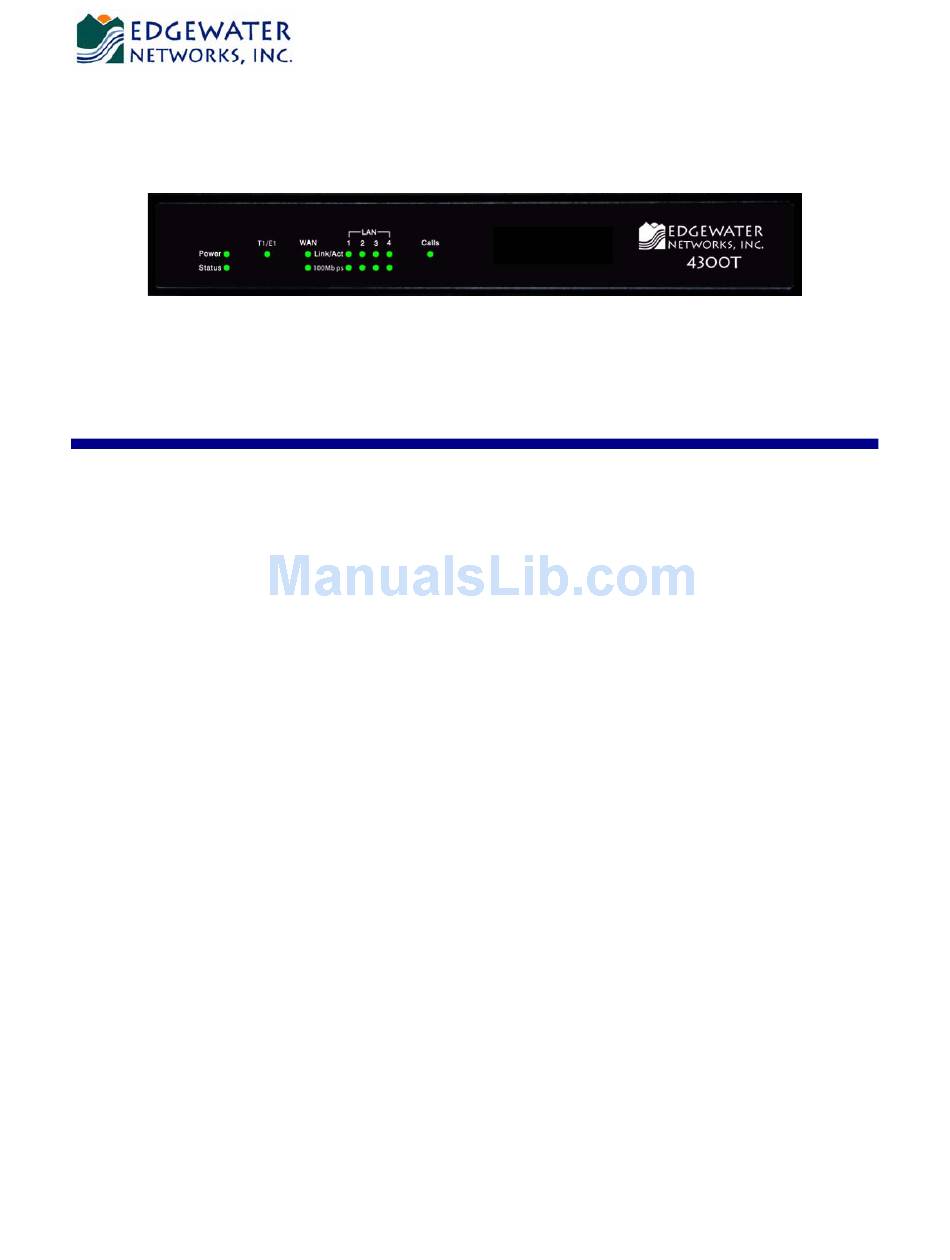

- Page 1 EdgeMarc 4300T Converged Network Appliance Installation Guide 500-10001-001...
- Page 2 No part of this document may be reproduced in any form by any means without prior written authorization of Edgewater Networks, Inc. Documentation is provided as is, without warranty of any kind, either express or implied, including any kind of implied or express warranty of non-infringement of the implied warranties of merchantability or fitness for a particular purpose.
-
Page 3: Table Of Contents
Contents Contents Preface ......... 3 About this Guide . - Page 4 EdgeMarc 4300T Converged Network Appliance Installation Guide...
-
Page 5: Preface
Preface Thank you for your purchase of the 4300T converged network appliance. This installation guide describes the 4300T and hardware installation procedures. It is intended for network installers, network operators, and security officers. About this Guide The following table briefly describes each chapter and appendix in this guide. Chapter or Appendix Description Chapter 1,... -
Page 6: Contact And Support Information
EdgeMarc 4300T Converged Network Appliance Installation Guide Caution This format highlights information that will help prevent equipment damage or data loss. Warning This format highlights safety information that must be followed to avoid the risk of bodily injury. Contact and Support Information Edgewater Networks, Inc. -
Page 7: Overview
Overview The EdgeMarc 4300T converged network appliance is an intelligent, all-in-one networking solution for enterprises and service providers. It reduces costs by simplifying the deployment, management, and security of converged voice, video, and data networks. The 4300T provides the following important functions for converged networks: •... -
Page 8: Feature Summary
EdgeMarc 4300T Converged Network Appliance Installation Guide • VoIP Resolves NAT/FW traversal problems for SIP, MGCP and H.323 traffic, and allows a single public IP address to be used for multiple VoIP clients. VoIP survivability is also provided so that local SIP PSTN gateways are available for inbound and outbound calling during WAN link failures. -
Page 9: Front Panel Leds
Overview • NAT/PAT server that hides enterprise LAN topology Passive Call Quality Monitoring • Per-call statistics that include mean opinion score (average and minimum), jitter, latency, and packet loss • Alarms for poor MOS scores • Active call count indicators Front Panel LEDs The front panel LEDs display real-time information for key functions of the 4300T. -
Page 10: Back Panel
EdgeMarc 4300T Converged Network Appliance Installation Guide Back Panel The back panel contains the following ports. Name Description Power connector Accepts the plug from the supplied power cord and connects the unit to an AC power source Erase button If pressed once and then pressed again within 2 seconds, returns the 4300T g to... -
Page 11: Getting Started
Getting Started Physical Installation The 4300T is designed for desktop, wall-mount, or rack installation. Follow these guidelines when installing the system: • Verify that the AC cord is disconnected from a power source prior to installation. • Ensure that the installation site has adequate air circulation and meets the minimum operating conditions as indicated in SPECIFICATIONS. -
Page 12: Desktop Installation
EdgeMarc 4300T Converged Network Appliance Installation Guide Desktop Installation Remove the 4300T and accessories from the shipping container. Place the 4300T on a flat, dry surface such as a desktop, shelf, or tray. Wall-Mount Installation Mount the 4300T on a wall using the two mounting brackets on the bottom of the appliance. -
Page 13: Connecting The Power And Cables
Getting Started Mount the completed assembly into your 19” equipment rack. Connecting the Power and Cables The 4300T comes with an AC power cord and power adapter for connecting the unit to the AC outlet. Warning Always connect the AC power cord to an AC outlet suitable for the power supply that came with the unit in order to reduce the risk of damage to it. -
Page 14: Administration
EdgeMarc 4300T Converged Network Appliance Installation Guide • Secure the power adapter using a fastener or tie wrap to nearby shelf so that it does not hang from the power connector. <<formatting went wonky; this should be a Caution>> •... - Page 15 Getting Started Enter the username root and the password default to log into the system. The initial 4300T main configuration menu appears. Select Network to start configuring the 4300T. For instructions, see the VOS for EdgeMarc User Manual. Note For secure network management, change the default user name and password, as described in the VOS for EdgeMarc User Manual.
- Page 16 EdgeMarc 4300T Converged Network Appliance Installation Guide...
-
Page 17: Specifications
Specifications WAN Ports 1 x T1 CSU/DSU or 10/100 Ethernet LAN Ports 4 x 10/100 Ethernet (switched) Serial Ports 1 x RS-232 Dimensions Height: 1.7 inches (4.3 cm) Width 10 inches (25.4 cm) Depth: 7 inches (17.8 cm) Weight 2 lb (0.91 kg) Power 12V 3A Warranty... - Page 18 EdgeMarc 4300T Converged Network Appliance Installation Guide...
-
Page 19: B Warranty Information
Warranty Information Hardware Warranty For a period of one (1) year after shipment of the Product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater. - Page 20 EdgeMarc 4300T Converged Network Appliance Installation Guide...
-
Page 21: C Certification
If you experience trouble with this product, or for repair or warranty information, please contact Edgewater Networks Technical Assistance Center at 408.351.7255 If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. -
Page 22: Industry Canada (Ic) Notice
EdgeMarc 4300T Converged Network Appliance Installation Guide If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of Model 4300T equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. - Page 23 Edgewater Networks 2730 San Tomas Expressway Suite 200 Santa Clara, CA 95051 Phone: 408-351-7200 info@edgewaternetworks.com http://www.edgewaternetworks.com...
