Summary of Contents for Edgewater Networks 4300T
-

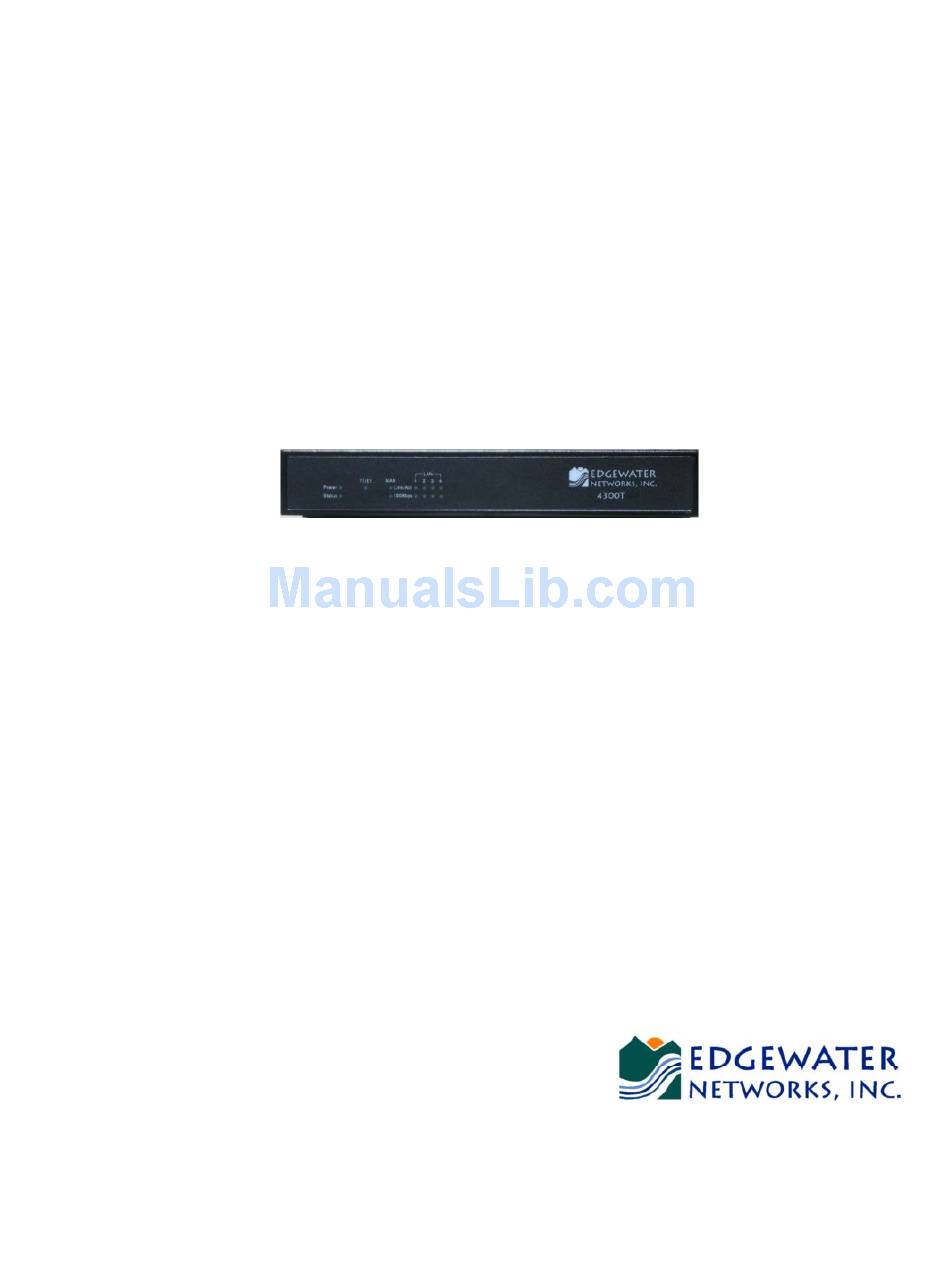

Page 1: User Manual
4300T Converged Network Appliance User Manual Edgewater Networks, Inc. 2730 San Tomas Expressway Suite 200 Santa Clara, Ca. 95051 Phone: 408.351.7200 info@edgewaternetworks.com... - Page 2 EdgeMarc is a trademark of Edgewater Networks, Inc. in the United States and other countries. Any other trademarks appearing in this manual are owned by their respective companies.
-
Page 3: Table Of Contents
Traffic Management Configuration ..............37 Enable Traffic Shaping ................38 Enable CAC ....................38 A Closer Look at Traffic Management in the 4300T ......... 40 VoIP Survivability Configuration ..............42 Chapter 4: System Diagnostics ................ 48 Passive Voice Call Monitoring ................. 50 Accessing Troubleshooting Tools .............. -
Page 4: Chapter 1: Introduction
Thank you for the purchase of your 4300T converged network appliance. This User's Guide describes the 4300T converged network appliance. This document introduces the major features of the 4300T and describes how to perform physical installation and system configuration. This User's manual is intended for network installers, network operators, and security officers. -
Page 5: Feature Summary
The 4300T resolves NAT/FW traversal problems for SIP, MGCP and H.323 traffic. It allows a single public IP address to be used for multiple VoIP clients. VoIP survivability is also provided by the 4300T so that local SIP PSTN gateways can be used for inbound/outbound calling during WAN link failures. -
Page 6: Front Panel Leds
Alarms for poor MOS scores • Active call count indicators • Front Panel LEDs The LEDs display real-time information for key functions of the 4300T. They are as follows: LED Label Activity Description Power... - Page 7 Management console port This port is used to establish a local console session with the 4300T using a VT100 terminal or emulation program. The cable required is a straight-through 8-wire cable. The serial port uses a baud rate of 9600, 8 data bits, 1 stop bit and no parity.
- Page 8 4300T User Manual Edgewater Networks, Inc. The ethernet 10/100 Mbps port on the 4300T can be used as a WAN interface as an alternative to the T1 interface. This port is typically used when connecting the 4300T to an existing T1/E1 WAN router, cable or xDSL modem.
-
Page 9: Chapter 2: Getting Started
A. Remove the 4300T and accessories from the shipping container. B. Place the 4300T on a flat, dry surface such as a desktop, shelf or tray. C. Connect the power and network cables to the appropriate ports on the back of the system. -
Page 10: Administration Of The 4300T
Administration of the 4300T The 4300T is configured using a web browser such as Internet Explorer or Netscape Navigator. The 4300T is shipped with a pre-configured IP address for its LAN port of 192.168.1.1. To connect to the 4300T, do the following: A. -
Page 11: Chapter 3: Configuring The 4300T
Edgewater Networks, Inc. Chapter 3: Configuring the 4300T The 4300T is a flexible, easy to use converged network appliance that provides many critical networking functions for IP based voice and data. It can be installed in several different VoIP topologies: ... - Page 12 LAN IP phones and PC’s. Static NAT entries. This enables the customer to use a WAN public IP address for data servers (web, mail, ftp, etc.) connected behind the 4300T. These servers can then be configured with private IP addresses for additional security.
- Page 13 Ethernet switches. The IP PBX in the corporate headquarters location performs VoIP signaling and the 4300T acts as a proxy for the voice devices installed at the branch office. The 4300T can perform the following functions in this application: ...
- Page 14 WAN bandwidth by enabling data traffic to burst up to full line rate in the absence of voice calls. Precedence is automatically given to traffic coming from IP phones and other devices using the 4300T’s Application Layer Gateway function. NAT/PAT translation for IP phones and PC’s. This allows a single IP address to be used on the WAN link to represent all of the private IP addresses assigned to the LAN IP phones and PC’s.
- Page 15 Configuration Guide For Trunk Side IP PBX Applications Companies with existing IP-based WAN links for inter-office voice and data communications can use the 4300T as a traffic shaper to meet the stringent jitter, latency and packet loss requirements for toll quality voice. The 4300T is deployed at the edge of the WAN in both headquarters and branch office locations, as shown below.
-
Page 16: System Configuration
B. Enter the Subnet Mask (e.g. 255.255.255.0). C. Press Submit. Configuring VLANs in the 4300T As depicted in the diagram below VLANs are used to connect the 4300T to an ethernet switch that has been configured to use VLANs. Version 1.7... - Page 17 (such as your management PC!) will loose access to the 4300T. Port 4 is only able to receive 802.1 frames, so a PC can always be connected to this port if the configuration of the other ports is unknown.
-
Page 18: Configure The Wan Interface
4300T User Manual Edgewater Networks, Inc. 4300T’s IP address within this VLAN, and the Network Mask. Press Add. A new VLAN entry will be added to the VLAN Configuration above. H. Depending on the mode of a physical port, assign it to one or more VLANs: 802.1 mode: Assign the port to any ONE VLAN. - Page 19 Packets destined for IP networks not known to the 4300T are forwarded to the default gateway for handling. G. Enter the Primary DNS Server. The DNS server is used by the 4300T to resolve domain names to IP addresses. The value entered into this field is provided to IP devices that use the 4300T as a DHCP server.
- Page 20 4300T User Manual Edgewater Networks, Inc. D. Press Submit. Frame Relay Mode and DLCI When the Protocol is one of ANSI or CCITT, then additional Frame Relay configuration parameters are required. The Frame Relay Mode is usually set to DTE for the customer premises.
-
Page 21: Configure The Dhcp Server
For normal operation the setting should always be No Loopback (the default setting). Configure the DHCP Server The 4300T can act as a DHCP server granting IP addresses to PCs, workstations, servers or voice devices (IP phones, IADs or softphones) connected to its LAN interfaces. - Page 22 IP phones. Some IP phones use these values for configuration of their TFTP server and MGCP control server addresses. PLEASE note: The DHCP server in the 4300T should not be used if a DHCP server already exists in the same subnet as the 4300T. Also, it is recommended that you assign static IP addresses for common-access devices such as network printers or fax machines.
- Page 23 Configure the WAN interface. These values will be delivered to clients. L. Default Gateway The default gateway is automatically set to the 4300T’s LAN address, see Configure the LAN interface. This value will be delivered to clients. M. Press Submit.
-
Page 24: Configure Hostname, Snmp And Remote Logging
This is the administrative contact information for the 4300T. By default, no value is set. Enter the SNMP Port. This is the port that the 4300T uses for SNMP communications with the network management system. The default is 161. Press Submit. - Page 25 D. Select Enable MOS. Set MOS Threshold You can define a minimum MOS value in the 4300T such that a message will be sent to syslog when the measured MOS value drops below the minimum. This is useful when for monitoring a particular location for call quality problems and enables pro- active resolution of problems that negatively affect call quality.
-
Page 26: Change The Administration Password
IP address of the voice device may be changed. Configure the VoIP ALG In order to configure the VoIP ALG the 4300T must be told where to reach the signaling servers and TFTP server on behalf of the voice devices. - Page 27 PLEASE note: It is not necessary to program in an FTP server address if your IP phones use the FTP protocol instead of TFTP to retrieve their images. A relay function is not needed for FTP as the 4300T will forward FTP traffic to the destination server as programmed in your IP phone.
-
Page 28: Configure Voip Subnet Routing
IP Phones instances it is necessary to configure a return path in the 4300T by specifying the intermediate router who knows how to reach the voice devices. This router must be reachable by the 4300T. PLEASE note: VoIP Subnet Routing is separate and independent from static data... -
Page 29: Configure Ip Phones, Iads Or Softphones
After configuring the 4300T VoIP ALG the voice devices must be configured to point to the LAN interface of the 4300T as their signaling gateway and optionally as their TFTP server (if they use the TFTP protocol to retrieve their software images). The steps required to setup these devices differ from vendor to vendor. - Page 30 VoIP ALG” section of this guide. H. Save and Reboot the telephone. The phone should now register with the 4300T. To complete the installation a one- time activation code may be required by the network based softswitch or IP PBX.
-
Page 31: Data Networking Configuration
Chapter 3 “VoIP Configuration”. Configure Dynamic NAT Use Dynamic NAT when you have multiple PCs installed on the LAN side of the 4300T that require Internet or WAN access. Once Dynamic NAT is enabled the 4300T will automatically perform an address translation for all packets to/from the LAN side PCs. - Page 32 4300T User Manual Edgewater Networks, Inc. server, a mail server or an FTP server. In these instances, the 4300T statically maps the public IP address of each server to the actual private IP address of the server. PLEASE note: In order for Static NAT to function dynamic NAT must be enabled.
-
Page 33: Static Ip Routing
Edgewater Networks, Inc. Static IP routing In addition to locally connected IP networks the 4300T can forward traffic for a remote data network by configuring a static route entry. Any packets destined for the remote data network will be forwarded to the specified gateway address in the entry. -
Page 34: Firewall Configuration
C. Select Submit. Configure Basic settings To allow or deny HTTP, Telnet and SSH traffic originating from the WAN to the 4300T simply use the checkboxes provided in the basic settings area of the firewall configuration page. By default, access from the WAN into the 4300T is disabled. -
Page 35: Configure Advanced Settings
C. Select Submit. Configure Advanced Settings A comprehensive security policy can be created using the advanced settings of the 4300T firewall. The policy actions that can be taken on any packet processed by the 4300T are summarized in the following table: Action... - Page 36 4300T User Manual Edgewater Networks, Inc. A. Select Firewall. B. Enter the desired Advanced Settings using the table above as a guide. C. Select Submit. Remove Advanced Setting Entries To remove an advanced firewall setting simply highlight the value in the entry box and delete it using the keyboard.
-
Page 37: Traffic Management Configuration
WAN and the LAN. TOS bits are used so that VoIP packets can be prioritized in the network by DiffServ enabled routers. The TOS bit value used by the 4300T is to “minimize delay and maximize throughput”, or 0xb8 hexadecimal. This value is set for all VoIP packets processed by the 4300T and overwrites any specific TOS bit configuration set by VoIP endpoints. -
Page 38: Enable Traffic Shaping
Enable CAC The 4300T uses CAC to limit the number of active voice calls over the WAN link. This is necessary because a typical installation uses a ratio of 1:2 or 1:4 active voice calls to voice devices on the assumption that 50% or 25% of all users are on the phone at the same time. - Page 39 PBX. If the PBX is responsible for this setting you do not need to configure CAC in the 4300T. Please check with your IT administrator to determine if this is the case. PLEASE note that CAC is available in the 4300T for the MGCP and SIP VoIP protocols only.
-
Page 40: A Closer Look At Traffic Management In The 4300T
Traffic shaper: To smooth bursts from high speed data links (typically from the LAN Ethernet heading to the WAN) the 4300T appliance uses a buffer that clocks data out at rates not exceeding automatically-calculated maximums. Low-priority data is clocked out at the WAN link’s full rate LESS the bandwidth currently being used for high-priority... - Page 41 (then dropped if necessary) before being forwarding on to its LAN interface. Similarly, data traffic sent back to the 4300T for transmission to the WAN are also delayed (as described in the above section). This results in the WAN-based devices following the rules of TCP/IP congestion avoidance and slowing down their transmit rate.
-
Page 42: Voip Survivability Configuration
(WAN) links to these locations. Edgewater’s VoIP survivability enhances the reliability of VoIP services to branch offices in a cost effective manner by providing local call switching in the event of WAN link failures or a loss of connectivity to network based call processing servers. - Page 43 4300T User Manual Edgewater Networks, Inc. How survivability works The EdgeMarc appliance automatically creates a local dialing plan by monitoring the registration requests sent by LAN based SIP user agents as they register with the network based call processing server. In creating this dial plan the EdgeMarc appliance now has knowledge of all local SIP user agents installed on its LAN interface.
- Page 44 EdgeMarc appliance including interface, IP, traffic management and VoIP configurations. Information regarding these tasks can be found in the “info” section of the EdgeMarc appliance, the User Manual or in Edgewater’s online knowledgebase located in the support section of www.edgewaternetworks.com Step 1 –...
- Page 45 4300T User Manual Edgewater Networks, Inc. E. Press Submit. The reachability settings are used to determine when the EdgeMarc appliance provides local call switching by entering fallback mode and when it returns call control to network based call processing servers. The definitions of the reachability...
- Page 46 4300T User Manual Edgewater Networks, Inc. Step 4 - Configure the IP address of the local LAN side PSTN gateway (optional) This step should be used if you have installed a PSTN gateway at the branch office location. In this case the...
- Page 47 4300T User Manual Edgewater Networks, Inc. D. Enter the Time between DNS lookups (in seconds) in the Softswitch Reachability section of the web page. E. Select Enable SIP server redundancy in the Softswitch Redundancy Settings section of the web page.
-
Page 48: Chapter 4: System Diagnostics
4300T User Manual Edgewater Networks, Inc. Chapter 4: System Diagnostics The 4300T provides a powerful set of diagnostic information, troubleshooting tools and utilities for system maintenance to network operators. Viewing Software Version, Hardware Platform and the LAN MAC Address The software version, hardware platform, and LAN... - Page 49 Interface Information section. HDLC0 shows the interface statistics for the T1/E1 WAN link. ETH0 shows the interface statistics for the internal LAN interface between the 4300T processor and the built-in LAN switch. Interface statistics for the external LAN ports are not displayed.
-
Page 50: Passive Voice Call Monitoring
Viewing Advanced System Information To view advanced system information for the 4300T proceed to the System Information page as follows: A. Select System. -
Page 51: Accessing Troubleshooting Tools
4300T as well as trace datapaths to endpoints throughout the network. Verify Registered Voice Devices The 4300T maintains a list of all registered voice devices called a “clients list” so that it can properly route voice calls. At startup, voice devices register their IP addresses with the 4300T. - Page 52 Successful ping test results indicate that both physical and virtual path connections exist between the 4300T and the test IP address. Successful ping tests do not guarantee that all data traffic is allowed between the 4300T and the test IP address but is useful to verify basic reachability.
-
Page 53: Chapter 5: Saving And Restoring The 4300T Configuration
4300T or on remote TFTP servers. PLEASE note: No more than 2 backup files can be stored in the 4300T’s flash due to size constraints. Also, it is recommended that you create a backup file after any configuration changes are made to the 4300T. - Page 54 The ewn command can be used with a local terminal connection or remotely using SSH. A. Use a NULL modem cable to connect to serial port 1 of the 4300T B. Use a terminal emulator such as Hyperterminal set to a baud rate of 9600, 8,...
-
Page 55: Chapter 6: Upgrading The 4300T
It is recommended that you reboot the 4300T prior to performing the upgrade. This is to make sure there is enough dynamic memory available to handle the upgrade process. - Page 56 Edgewater Networks, Inc. Upgrade Procedure for Software Revision 1.3.11 or Later Use this procedure if your 4300T is running software revision 1.3.11 or later. The software version can be found on the System page of the web GUI. A. Select System.
-
Page 57: Appendix A: Troubleshooting Tips
We recommend connecting a PC directly (or via a switch) to the LAN port of the 4300T. The default LAN IP address of the 4300T is 192.168.1.1 so please be sure that the IP address of the PC is on the same network (eg. 192.168.1.2). Once you have connected please verify that the IP configuration information in the Network page is correct. -
Page 58: Appendix B: Contact Information
Appendix D: Warranty Information Hardware Warranty For a period of one (1) year after shipment of the Product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater. -
Page 59: Software Warranty
Software does not perform substantially in accordance with the user documentation and Edgewater Networks is able to reproduce such failure, the entire and exclusive liability and remedy shall be limited to either, at Edgewater Networks’ sole discretion: (i) providing a correction or a workaround for such failure; Version 1.5... - Page 60 Agreement. If you have any questions regarding this Agreement, please contact Edgewater Networks, Inc. at 2730 San Tomas Expressway, suite 200, Santa Clara, CA 95051 or call 408.351.7200.
- Page 61 4300T User Manual Edgewater Networks, Inc. "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.
- Page 62 4300T User Manual Edgewater Networks, Inc. permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you;...
- Page 63 4300T User Manual Edgewater Networks, Inc. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.
- Page 64 4300T User Manual Edgewater Networks, Inc. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.
-
Page 65: Appendix F: Certification
If trouble is experienced with this equipment, Model 4300T for repair or warranty information, please contact Edgewater Networks Technical Assistance Center at 408.351.7255 If the equipment is causing harm to the telephone network, the... - Page 66 4300T User Manual Edgewater Networks, Inc. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.
