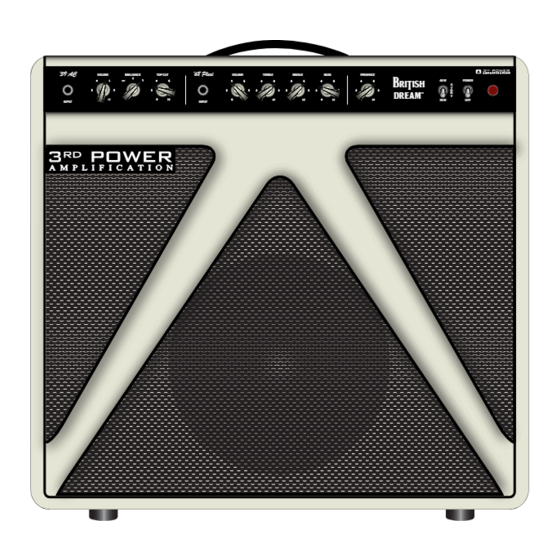

- Page 1 BRITISH DREAM ™ ‘59 AC ‘68 Plexi A M P L I F I C A T I O N VOLUME BRILLIANCE TOP CUT VOLUME TREBLE MIDDLE BASS PRESENCE BRITISH 45 W POWER DREAM ™ 20 W INPUT INPUT 1 1 2 C O M B O &...
- Page 2 Your 3RD POWER Amplifier is a professional musical instrument amplifier. The information contained herein is current at the time of publication. However, specifications are subject to change without prior notice. PRECAUTIONS & WARNINGS • READ THESE INSTRUCTIONS. • KEEP THESE INSTRUCTIONS.
- Page 3 MOVING FORWARD... IN 3D Thank you for choosing 3RD POWER as an integral compo- nent of your musical journey. Music is a thrilling blend of tone, attitude and technique. When the right combination occurs, magic happens and it’s experienced by everyone. I’ve had the extraordinary privilege of performing music for 30 years on stage and in the studio.
-
Page 4: Special Features
Special Features: • Hand-built and hand-wired in the USA • Dual Channel All-Tube design • Selectable 45 EL34 Power Amp section • ’59 AC’ Channel EF86 Preamp Pentode topology with Volume, Bril- liance and High Cut controls • ’68 Plexi’ Channel 12AX7 Preamp Triode topology with Volume, Treble, Middle and Bass controls •... -
Page 5: Front Panel
Front Panel: ‘59 AC ‘68 Plexi A M P L I F I C A T I O N BASS PRESENCE VOLUME BRILLIANCE TOP CUT VOLUME TREBLE MIDDLE BRITISH 45 W POWER DREAM ™ 20 W INPUT INPUT Preparing to Operate your British Dream™ Make certain that all connections are made prior to operating your British Dream™... -
Page 6: Input Jack
Front Panel: ’59 AC Channel ‘59 AC VOLUME BRILLIANCE TOP CUT INPUT Input Jack (4) The INPUT jack is where you connect instrument level signals. Volume Control (5) The VOLUME control allows you to adjust the signal level as well as the temperament and overall character of your instrument’s sound. -
Page 7: Treble Control
Front Panel: ’68 Plexi Channel ‘68 Plexi VOLUME TREBLE MIDDLE BASS INPUT Input Jack (8) The INPUT jack is where you connect instrument level signals. Volume Control (9) The VOLUME control allows you to adjust the signal level as well as the temperament and overall character of your instruments sound. -
Page 8: Back Panel
Back Panel: AC Input (13) The AC INPUT socket (TYPE IEC Grounded) is a required connec- tion for operating your BRITISH DREAM™ at 120V (standard USA household electrical power). Mains Fuse (14) The MAINS FUSE requires a 2 AMP fast-acting fuse. This fuse pro- tects your amplifier from voltage peaks from your power outlet. - Page 9 Back Panel: 16-OHM Speaker Output (16) The 16-OHM SPEAKER OUTPUT is provided for connecting your amplifier to standard 16 OHM speaker cabinet. 8-OHM Speaker Output (17) The 8-OHM SPEAKER OUTPUT is provided for connecting your amplifier to single 8-OHM speaker, such as the internal speaker for the combo unit.
-
Page 10: Operation Notes
This is a patent-pending circuit design developed by 3rd Power and is available exclusively on Dream and Dream Solo series amplifiers. Effects Insert (17) - Page 11 Operational Notes: SWITCHBACK™ Cabinet EFFECTS INSERT .5 AMP SWITCHBACK™ 112 Design Concept The BRITISH DREAM 112 combo version features our patent- pending triangular speaker enclosure design. This design produces an outstanding sound-field unattainable with typical speaker enclosures with some very important additional benefits. Basically, we’ve embedded a triangular speaker chamber within a rec- tangular exterior shell.
- Page 12 Operational Notes: SWITCHBACK™ Cabinet EFFECTS INSERT EFFECTS INSERT .5 AMP .5 AMP What can I do with a SWITCHBACK™ Cabinet? The SWITCHBACK cabinet design allows you to go from CLOSED (21) to OPEN BACK (22) operation. The sound quality of the OPEN BACK mode is wide and room-filling while the sound of the CLOSED BACK mode is focussed and punchy.
-
Page 13: Operational Notes
Operational Notes: TUBE CHART Tube Layout and Requirements: V1: JJ EF806 (Preamp Pentode) V2 and V3: JJ 12AX7 (Preamp) V4: Sovtek 12AX7LPS (Phase Inverter) V4 and V5: Mullard “Reissue” EL34 output tubes Bias Adjustment Your BRITISH DREAM comes from the factory biased for EL34 tubes. Bias adjustments are not intended to be user-serviceable. -
Page 14: Limited Warranty
