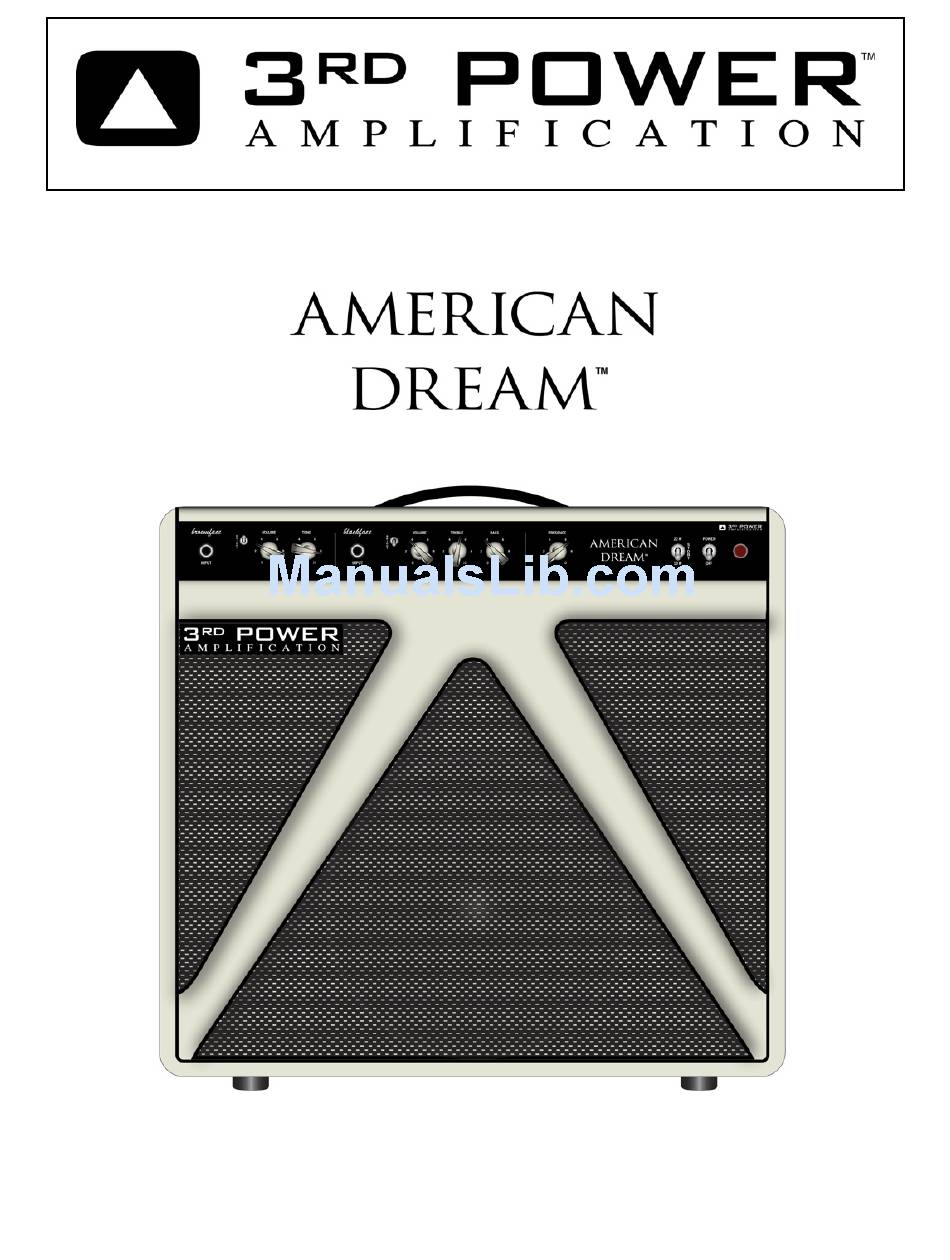

- Page 1 1 1 2 C O M B O & H E A D U S E R S G U I D E...
- Page 2 Your 3RD POWER Amplifier is a professional musical instrument amplifier. The information contained herein is current at the time of publication. However, specifications are subject to change without prior notice. PRECAUTIONS & WARNINGS • READ THESE INSTRUCTIONS. • KEEP THESE INSTRUCTIONS.
- Page 3 MOVING FORWARD... IN 3D Thank you for choosing 3RD POWER as an integral compo- nent of your musical journey. Music is a thrilling blend of tone, attitude and technique. When the right combination occurs, magic happens and it’s experienced by everyone. I’ve had the extraordinary privilege of performing music for 30 years on stage and in the studio.
-
Page 4: Special Features
Special Features: • Hand-built and hand-wired in the USA • Dual Channel All-Tube design • Selectable 40 6 Power Amp section • ‘Brownface’ Channel with Volume and Tone Controls plus Bright Switch • ‘Blackface’ Channel with Volume, Treble and Bass Controls plus Bright Switch •... -
Page 5: Front Panel
Front Panel: Preparing to Operate your American Dream™ Make certain that all connections are made prior to operating your American Dream™ Amplifier including power cable, speaker connec- tion, instrument cable and instrument connection. Make certain that all tubes are installed. Power Switch (1) The POWER switch, when placed in the UP position, provides AC wall power to the amplifier. -
Page 6: Input Jack
Front Panel: Brownface Channel Input Jack (4) The INPUT jack is where you connect instrument level signals. Bright Switch (5) The BRIGHT SWITCH allows you to emphasize the higher frequen- cies of your sound. Volume Control (6) The VOLUME control allows you to adjust the signal level as well as the temperament and overall character of your instrument’s sound. -
Page 7: Treble Control
Front Panel: Blackface Channel Input Jack (8) The INPUT jack is where you connect instrument level signals. Bright Switch (9) The BRIGHT SWITCH allows you to emphasize the higher frequen- cies of your sound. Volume Control (10) The VOLUME control allows you to adjust the signal level as well as the temperament and overall character of your instruments sound. -
Page 8: Back Panel
Back Panel: AC Input (13) The AC INPUT socket (TYPE IEC Grounded) is a required connec- tion for operating your AMERICAN DREAM™ at 117V (standard USA household electrical power). Mains Fuse (14) The MAINS FUSE requires a 3 AMP fast-acting fuse. This fuse pro- tects your amplifier from voltage peaks from your power outlet. - Page 9 Back Panel: 16-OHM Speaker Output (16) The 16-OHM SPEAKER OUTPUT is provided for connecting your amplifier to standard 16 OHM speaker cabinet. 8-OHM Speaker Output (17) The 8-OHM SPEAKER OUTPUT is provided for connecting your amplifier to single 8-OHM speaker, such as the internal speaker for the combo unit.
-
Page 10: Things To Try
This is a patent-pending circuit design developed by 3rd Power and is available exclusively on Dream and Dream Solo series amplifiers. Things to Try •... - Page 11 Operational Notes: SWITCHBACK™ Cabinet SWITCHBACK™ 112 Design Concept The AMERICAN DREAM 112 combo version features our patent- pending triangular speaker enclosure design. This design produces an outstanding sound-field unattainable with typical speaker enclosures with some very important additional benefits. Basically, we’ve embedded a triangular speaker chamber within a rec- tangular exterior shell.
- Page 12 Operational Notes: SWITCHBACK™ Cabinet What can I do with a SWITCHBACK™ Cabinet? The SWITCHBACK cabinet design allows you to go from CLOSED (22) to OPEN BACK (23) operation. The sound quality of the OPEN BACK mode is wide and room-filling while the sound of the CLOSED BACK mode is focussed and punchy.
-
Page 13: Operational Notes
Operational Notes: TUBE CHART Tube Layout and Requirements: V1 - V3: JJ 12AX7A (spiral filament) V4 and V5: Winged “C” 6L6 output tubes Bias Adjustment Your AMERICAN DREAM comes from the factory biased for 6L6 tubes. Bias adjustments are not intended to be user-serviceable. At- tempting to adjust the bias yourself will expose you to very dangerous high-voltage electricity that can kill you. -
Page 14: Limited Warranty
Incidental or Consequential Damage: In no event will 3RD POWER be liable for any incidental or con- sequential damages arising out of the use or inability to use any 3RD POWER product, even if a 3RD POWER dealer has been advised of the possibility of such damages or any other claim by any other party. - Page 15 3RD POWER Amplification LLC 2020 Fieldstone Parkway Suite 900-316 Franklin, TN 37069 Phone: (615) 945-3393 Web Site www.3rdPower.com Friday, April 27, 2012...
