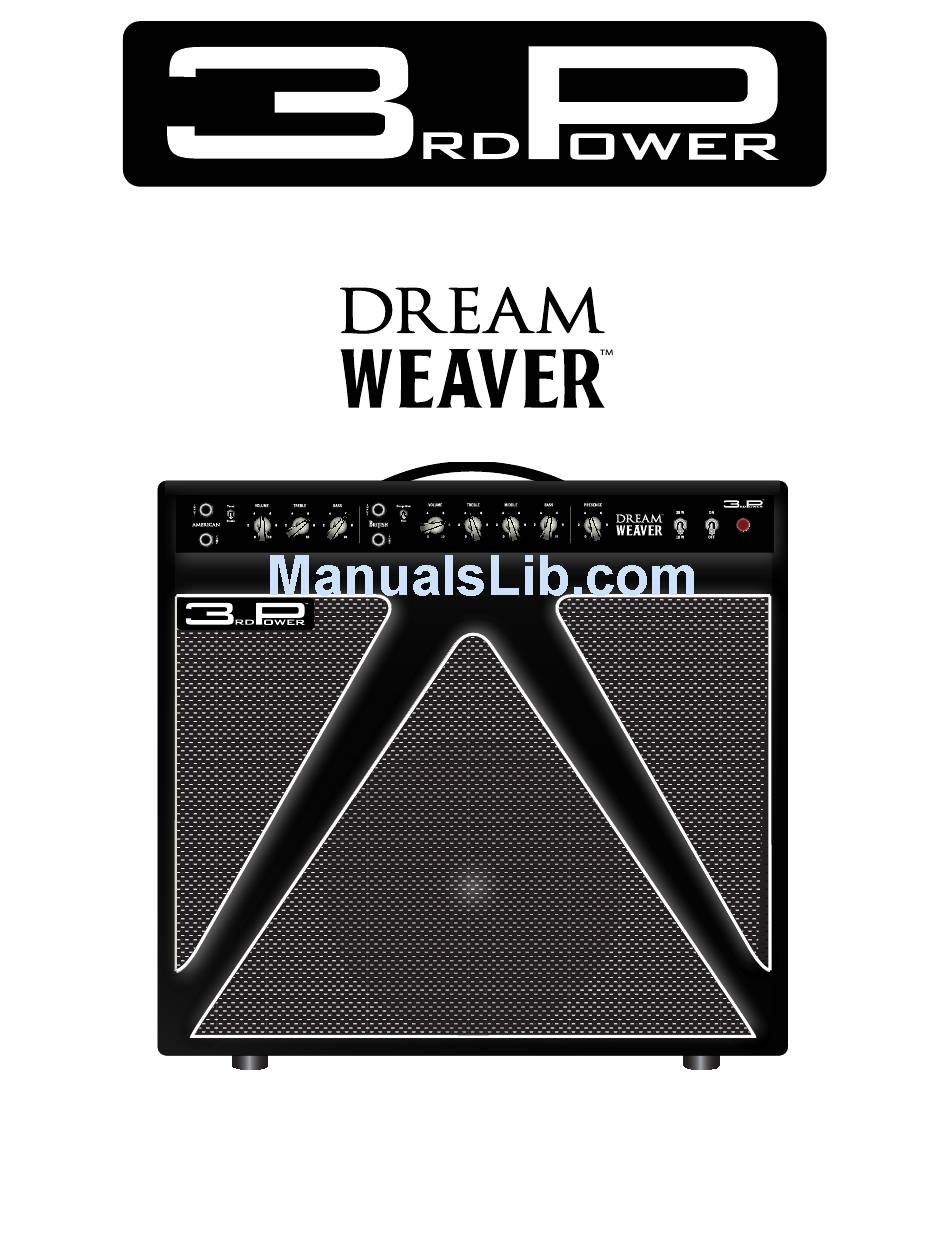

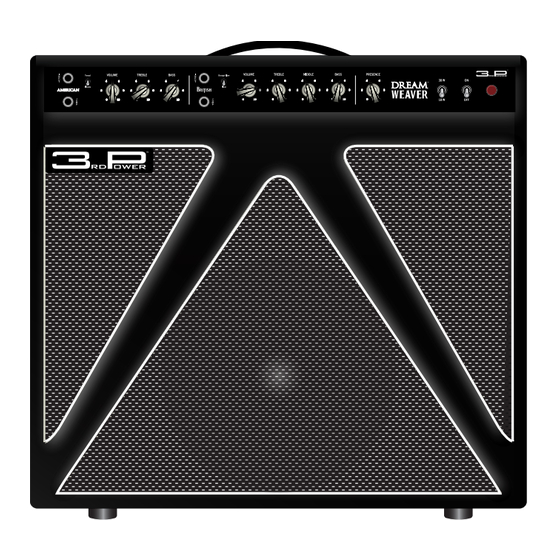

  • Page 1 ™ 1 1 2 C O M B O & H E A D U S E R S G U I D E...
  • Page 2 P R E C A U T I O N S & W A R N I N G S Your 3RD POWER Amplifier is a professional musical instrument amplifier. The information contained herein is current at the time of publication. However, specifications are subject to change without prior notice.
  • Page 3 M O V I N G F O R W A R D . . . I N 3 D Thank you for choosing 3RD POWER as an integral component of your mu- sical journey. Music is a thrilling blend of tone, atti- tude and technique.
  • Page 4 S P E C I A L F E A T U R E S : • Hand-built and hand-wired in the USA • Dual Channel All-Tube design • Selectable 38 W /18 W EL34 Power Amp section • HybridMASTER-PLUS™ Volume Management Technology •...

  • Page 5: Power Switch

    F R O N T P A N E L : Preparing to Operate your DREAM WEAVER™ Make certain that all connections are made prior to operating your DREAM WEAVER™ Amplifier including power cable, speaker connection, instrument cable and instrument connection. Make certain that all tubes are installed.

  • Page 6: Input Jack

    F R O N T P A N E L : A M E R I C A N C H A N N E L Input Jack (4) The INPUT jack is where you connect instrument level signals. JUMP Jack (5) The JUMP jack allows you to split your guitar’s signal and route it to the other channel.
  • Page 7 F R O N T P A N E L : B R I T I S H C H A N N E L Input Jack (10) The INPUT jack is where you connect instrument level signals. JUMP Jack (11) The JUMP jack allows you to split your guitar’s signal and route it to the other channel.

  • Page 8: Mains Fuse

    B A C K P A N E L : AC Input (17) The AC INPUT socket (TYPE IEC Grounded) is a required connection for operating your amplifier at 120V (standard USA household electrical power). Mains Fuse (18) The MAINS FUSE requires a 2 AMP fast-acting fuse. This fuse protects your amplifier from volt- age peaks from your power outlet.
  • Page 9 B A C K P A N E L : 16-OHM Speaker Output (20) The 16-OHM SPEAKER OUTPUT is provided for connecting your amplifier to standard 16 OHM speaker cabinet. 8-OHM Speaker Output (21) The 8-OHM SPEAKER OUTPUT is provided for connecting your amplifier to single 8-OHM speaker, such as the internal speaker for the combo unit.
  • Page 10 B A C K P A N E L : HybridMASTER-PLUS™ (23) The HybridMASTER-PLUS system allows you to set the overall volume level of the amplifier in- dependent of the volume and tone settings established on the front panel. The system consists of a “venue”...
  • Page 11 O P E R A T I O N A L N O T E S : S W I T C H B A C K ™ C A B I N E T SWITCHBACK™ 112 Design Concept The DREAM WEAVER 112 combo version features our patent-pending triangular speaker enclo- sure design. This design produces an outstanding sound-field unattainable with typical speaker enclosures with some very important additional benefits.
  • Page 12 O P E R A T I O N A L N O T E S : S W I T C H B A C K ™ C A B I N E T What can I do with a SWITCHBACK™ Cabinet? The SWITCHBACK cabinet design allows you to go from CLOSED (28) to OPEN BACK (29) opera- tion.

  • Page 13: Bias Adjustment

    O P E R A T I O N A L N O T E S : TUBE CHART Tube Layout and Requirements: V1 and V3: JJ 12AX7 (Preamp) V4: Sovtek 12AX7LPS (Phase Inverter) V5 and V6: Mullard “Reissue” EL34 output tubes Bias Adjustment Your DREAM WEAVER comes from the factory biased for EL34 tubes.
  • Page 14 Incidental or Consequential Damage: In no event will 3RD POWER be liable for any incidental or consequential damages arising out of the use or inability to use any 3RD POWER product, even if a 3RD POWER dealer has been advised of the possibility of such damages or any other claim by any other party. Some states do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you.
  • Page 15 ™ 3RD POWER Amplification LLC 2020 Fieldstone Parkway Suite 900-316 Franklin, TN 37069 Phone: (615) 945-3393 Web Site www.3rdPower.com Tuesday, January 14, 2014...
