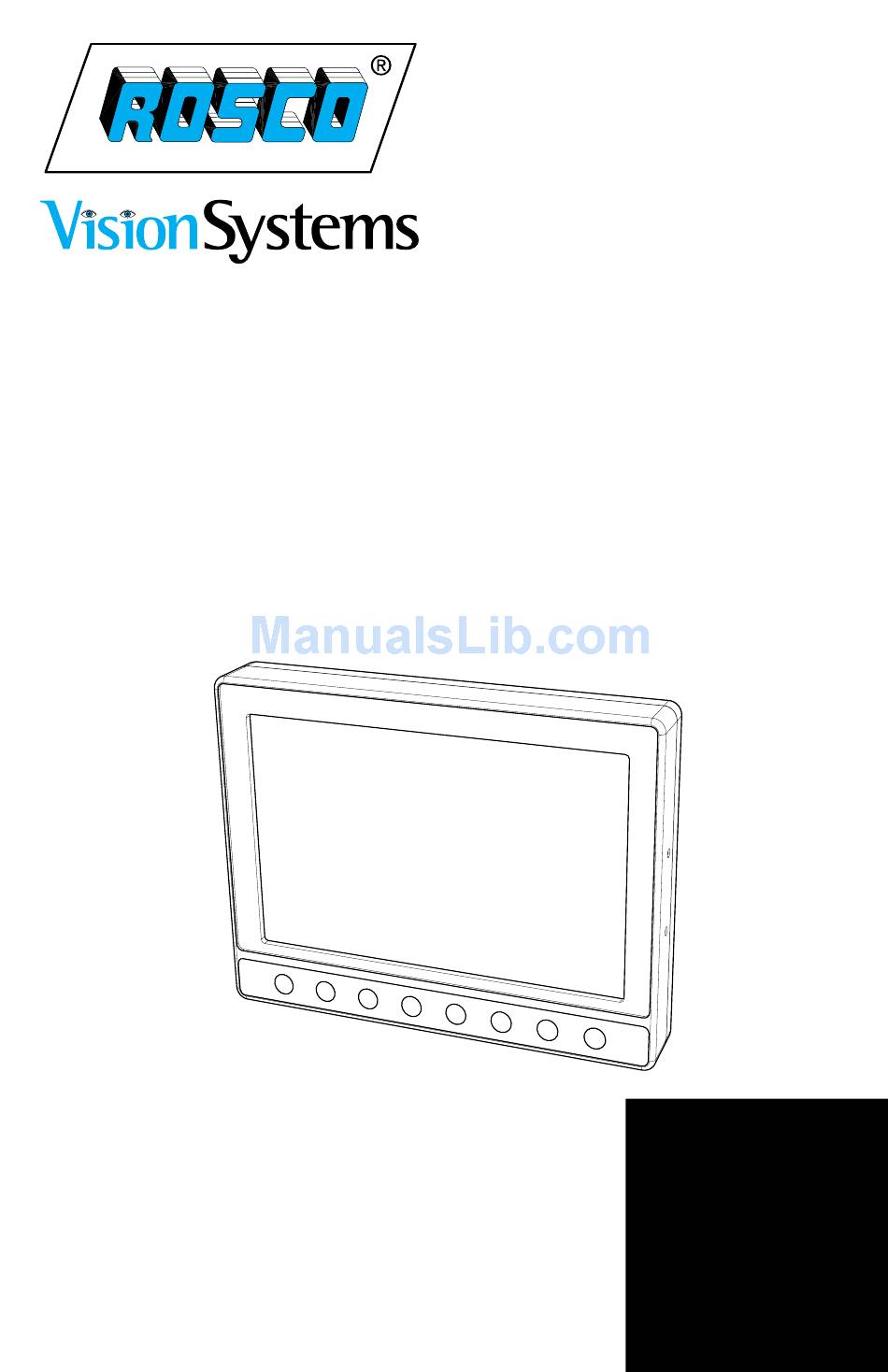

Safe-T-Scope™ 7" Waterproof
Rearview Backup
Camera System
INSTALLATION/USER'S MANUAL
STSK7360
90-21 144th Place
Jamaica, NY 11435
1.800.227.2095
www.roscovision.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Safe-T-Scope 7” Waterproof Monitor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosco Safe-T-Scope 7” Waterproof Monitor

Summary of Contents for Rosco Safe-T-Scope 7” Waterproof Monitor

  • Page 1 Safe-T-Scope™ 7” Waterproof Rearview Backup Camera System INSTALLATION/USER’S MANUAL STSK7360 90-21 144th Place Jamaica, NY 11435 1.800.227.2095 www.roscovision.com...

  • Page 2: Table Of Contents

    Contents Safeguard Instructions............2 Features & Contents............. 5 Installation Instructions............6 Wiring Camera & Monitor............7 Function & Operation............8 Monitor..................8 Split Screen & Camera Select.............8 Normal/Mirror View..............10 Distance Marker.................12 Trigger Input................13 Setting................16 Video System................16 Dimmer..................17 Picture..................17 Language...................17 Factory Settings.................18 Installation of U-Bracket...........18 Installation of Duckfoot Mount.........19 Connection..............20...

  • Page 3: Safeguard Instructions

    Safeguard Instructions 7”Waterproof Monitor Please read the “Safety Rules“ carefully before using this product. Following the safety rules prevents users from damages related with the misuse of the product. It is very important to follow these safety rules. We state “Caution“ and “Warning“ to clarify any potential risk for a damage associated with the misuse of the product.
  • Page 4 Controls 1. Automatic brightness control sensor 2. Dimmer 3. Mode 4. Up 5. Down 6. Left 7. Right 8. Menu 9. Power 10. Stand by lamp 11. Speaker (Waterproof) - 3 -...
  • Page 5 Do not install product in direct sunlight, high temperature, or extremely humid areas. - It may cause electronic shock or malfunction. Please use this product within the voltage range specified. - It may cause electronic shock or malfunction. Do not place this product where air bag operation may occur.. - It may cause malfunction of air bag or injury due from bag hitting monitor.

  • Page 6: Features & Contents

    FEATURE 7”Waterproof Monitor • Water Resistant (IP67), Aluminum housing • 4 camera INPUT (NTSC/PAL) • 2, 3, 4 Split Screen Function • Dimmer sensor built in • 7” WVGA (800 x 480) Wide LCD Panel CONTENTS 7”Waterproof Monitor • Before using this product, please check contents below. If there are any missing parts please contact sales agent.

  • Page 7: Installation Instructions

    INSTALLATION INSTRUCTIONS IMPORTANT: For typical rear-view installation, the rear camera MUST be connected to the distribution harness at the connector marked “REVERSE” Note: The following instructions are for typical rear-view application. STSC107 CAMERA Attach camera bracket close to rear marker lights, centered on vehicle (see Fig. 1). Attachment point must be sturdy enough to support camera and bracket.

  • Page 8: Wiring Camera & Monitor

    WIRING CAMERA AND MONITOR Connect the red wire to an ignition switched accessory (ex: radio) power source, and connect the black wire to chassis ground. See wiring diagram for connections (See Fig. 5.) Before drilling, be sure no cable or wire is on the other side. Be sure to drill a 20mm (0.8in) diameter hole only.

  • Page 9: Function & Operation

    FUNCTIONS AND OPERATION MONITOR POWER When the ignition is switched on, the monitor will be in standby mode (no image will be on the screen), waiting for trigger signal. When a trigger wire is energized by 12v power (such as backup lights turning on), the image captured by the selected camera will appear on the monitor.
  • Page 10 FUNCTIONS AND OPERATION - CONTINUED CAMERA SELECTION From the FULL SCREEN in the full screen, press the button to see CAM1 > CAM2 > CAM3 > CAM4 > CAM1 ..CAM1 CAM2 CAM4 CAM4 Press the “Mode“ buttton to display the screen information (Input Mode/Volume) CAMERA SELECTION FOR SPLIT SCREENS In the 2 split screen press the “Mode“...

  • Page 11: Normal/Mirror View

    FUNCTIONS AND OPERATION - CONTINUED CAMERA SELECTION FOR 3 SPLIT SCREENS In the 3 split screen press the “Mode“ button to see the OSD(On Screen Display). While the OSD is on, select with the button the camera position (Left, Top or Bottom). Then press the button to select the camera of choice.
  • Page 12 FUNCTIONS AND OPERATION - CONTINUED CAM2 OR CAM3 FULL SCREEN From the CAM2 or CAM3 full screen press the “Mode” button. From the “CAM2 TRIGER SETUP” screen press the “Mode” button again. Select the desired camera with the then press button to change Normal/Mirror view.

  • Page 13: Distance Marker

    FUNCTIONS AND OPERATION - CONTINUED IMPORTANT • The onscreen distance markers shold be considered as a general reference to assist the driver in assessing the distances depicted on the screen. The distance markers have been designed based on the “CCD camera installation conditions“ listed in the next section, but differences in vehicle design and construction may result in the actual installation condition or location being different from the conditions listed.

  • Page 14: Trigger Input

    FUNCTIONS AND OPERATION - CONTINUED MARKER ADJUSTMENT (ADJUSTING THE BUMPER POSITION) - Press “Mode“ button 5 times, select MARKER ADJUST from the menu. - Press button, select H/V. (H: horizontal, V: vertical) - Press button, and switch marker patter. ( H= -10~ +10, V= -12~ +12, Default setting: H=0, V=0) - After 10 seconds, set up screen disappears, and set up finishes.
  • Page 15 FUNCTIONS AND OPERATION - CONTINUED If there is trigger input, the connected screen (Trigger input screen) is displayed as full screen and the screen goes former one when the signal disappear. CAM1 CAM2 CAM4 In case of TRG2 and TRG3 input, by the OSD, the full or split screen could be selected.
  • Page 16 FUNCTIONS AND OPERATION - CONTINUED When there is the TRG1(Rear light) input, CAM1 video will be shown on the screen. with button, the 2 split screen CAM2/CAM1 or CAM1/CAM3 could be displayed. CAM2 CAM1 Button CAM1 CAM1 CAM3 Button In case of light on emergency blinker (TRG2+TRG3), the monitor display CAM1~ CAM4 as quad split screen.

  • Page 17: Setting

    FUNCTIONS AND OPERATION - CONTINUED When there is input signal more than 2 triggers, the monitor display fully connected screen (Trigger input screen) as the priority order. And the screen goes former one when the signal is disappears, the rest will be display as the priority order. TRIGGER PRIORITY ORDER TRG1(Rear light) >...

  • Page 18: Dimmer

    SETTINGS _________________________________________________________ DIMMER Dimmer sensor setting Press the “MODE“ button until OSD menu “PICTURE SETUP“ appears. Press button to select “DIMMER“ and use to enter selection. Press the “DAY/NIGHT“ button to switch DAY >> NIGHT >> AUTO >> DAY * Dimmer is set AUTO from the factory PICTURE SETUP DIMMER CONTRAST 5...

  • Page 19: Factory Settings

    SETTINGS _________________________________________________________ FACTORY SETTINGS Reset Press the “MODE“ button until OSD menu “PICTURE SETUP“ appears. Press button to select “RESET“ and use to enter selection. * All settings are initialized at the factory mode except for the video input. (NTSC/PAL) PICTURE SETUP DIMMER CONTRAST 5...

  • Page 20: Installation Of Duckfoot Mount

    INSTALLATION OF DUCKFOOT MOUNT __________________ Double side adhesive tape Double side adhesive tape Ensure that the monitor is installed with enough room for heat emission. Install the monitor stand with enclosed screws and double side adhesive tape as shown in the above image.

  • Page 21: Connection

    CONNECTION - 20 -...
  • Page 22 Fig. 1 Camera mount in suggested location Mount camera assembly high. (Centered) Camera mounting hole pattern - 21 -...
  • Page 23 Fig. 2 Position of camera Vehicles behind truck Street Rear Bumper Typical monitor image of view from properly installed camera - 22 -...
  • Page 24 Fig. 3 Optional wind deflector - 23 -...
  • Page 25 Fig. 4 Mounting on ceiling Mounting on the dash, console etc. - 24 -...
  • Page 26 Fig. 5 POWER INPUT LEAD (RED) To Ignition Switched Accessory GROUND WIRE (BLACK) To metal point of the vehicle CA2 Trigger 2 CAM 2 (WHITE) REVERSE Trigger 1 (GREEN) Note: For typical single camera installation, this trigger wire should be connected to the vehicle’s “back up lights”...

  • Page 27: Specifications

    SPECIFICATIONS STSC107 CAMERA PICK-UP DEVICE INTERLINE TRANSFER TYPE CCD TV SYSTEM PAL/NTSC PICTURE ELEMENTS 512(H) x 582(V) PAL 512(H) x 492(V) NTSC SENSING AREA 0.2x0.1in (4.9mm x 3.7mm) IMAGE SIZE 1/4 inch SYNCHRONIZATION INTERNAL HORIZONTAL RESOLUTION 420 TV LINES REQUIRED ILLUMINATION 0 LUX MINIMUM/F1.2 SIGNAL TO NOISE RATIO MINIMUM 48dB(AT AGC OFF)
  • Page 28 90-21 144th Place Jamaica, NY 11435 www.roscovision.com Ph. 1.800.227.2095 Fx. 1.718.297.0323 A Century of Printed in China Automotive Safety Lit. P/N: 04242012...

This manual is also suitable for:

Safe-t-scope 7''Stsk7360
