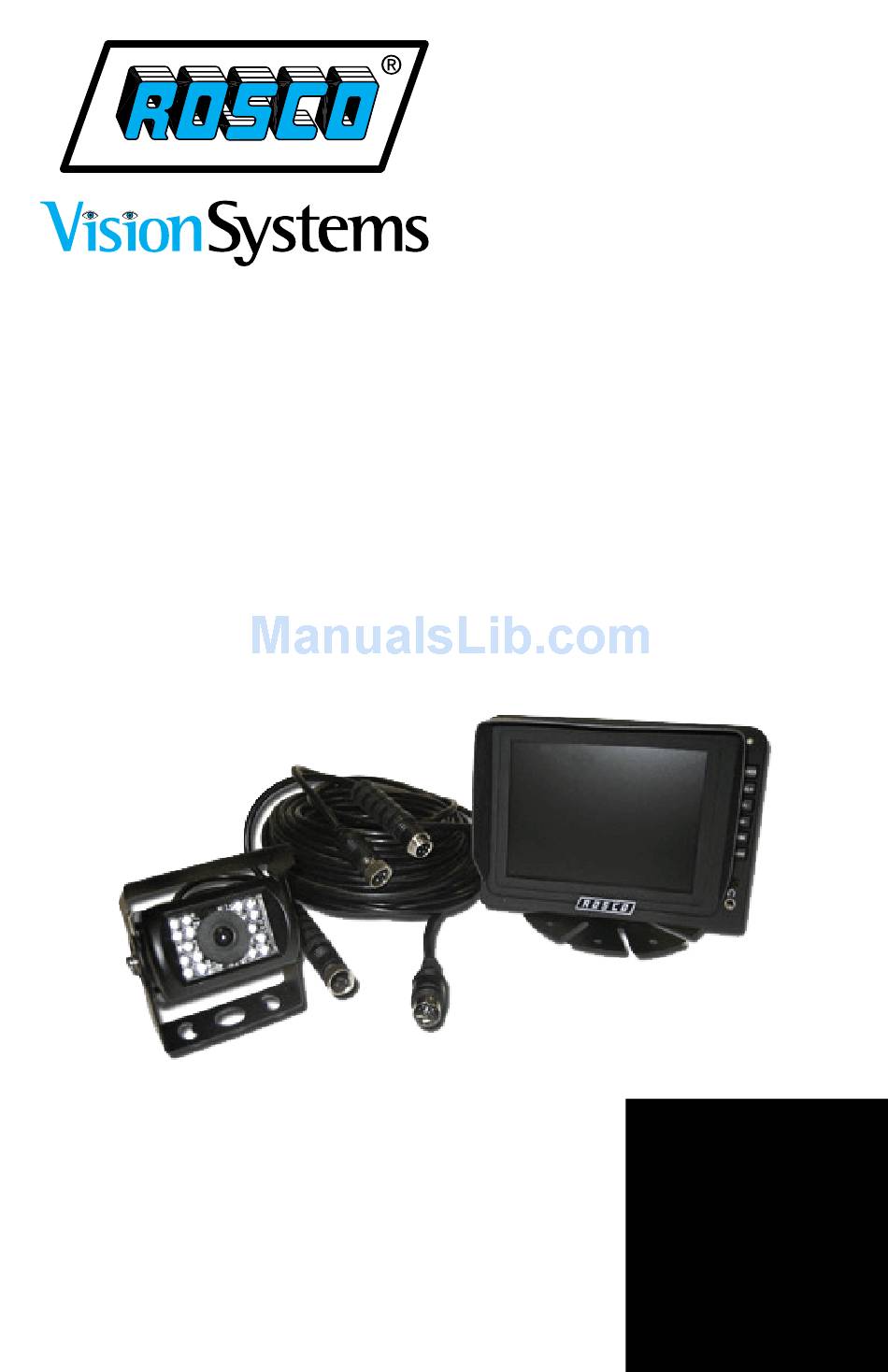

Safe-T-Scope™ 5" Rearview
Backup Camera System
INSTALLATION/USER'S MANUAL
STSK5065
90-21 144th Place
Jamaica, NY 11435
1.800.227.2095
www.roscovision.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vision System Safe-T-Scope STSK5065 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rosco Vision System Safe-T-Scope STSK5065

  • Page 1 Safe-T-Scope™ 5” Rearview Backup Camera System INSTALLATION/USER’S MANUAL STSK5065 90-21 144th Place Jamaica, NY 11435 1.800.227.2095 www.roscovision.com...
  • Page 2: Maintenance

    WARNING To prevent electrical shock, DO NOT OPEN THE MONITOR CASE. There are dangerous voltages inside the monitor. There are no user serviceable parts inside. Avoid exposing monitor to water, rain, moisture etc. It is NOT waterproof. Any moisture inside the monitor could cause extensive damage. Do not disassemble the camera or the monitor.
  • Page 3 2. Use a mild household detergent and clean the unit with a slightly damp cloth. GENERAL 1. Do not expose the monitor to excessive heat or cold. The storage temperature º º º~+70º. of this machine is -30 ~+80 C, and operating temperature is -20 This system is intended for use in automotive applications.
  • Page 4: Front View

    Front view 1. Power indicator 2. POWER up/down or less/more 4. SEL scale on/off or menu selection 5. MENU 6. CA SEL camera selection - 3 -...
  • Page 5 COLOR BACKUP CAMERA SYSTEM STSK5065 INTRODUCTION Please read this manual thoroughly. This manual contains instructions to make the installation of the camera and monitor easier. The color backup camera system is a supplement to standard rear-view mirror systems, and will provide additional rear-view vision when installed and maintained properly.
  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS IMPORTANT: For typical rear-view installation, the rear camera MUST be connected to the distribution harness at the connector marked “CA3” Note: The following instructions are for typical rear-view application. STSC101 CAMERA Attach camera bracket close to rear marker lights, centered on vehicle (see Fig. 1). Attachment point must be sturdy enough to support camera and bracket.
  • Page 7 WIRING CAMERA AND MONITOR See wiring diagram for connections to ignition, ground and “backup lights” circuit. (See Fig. 5.) Before drilling, be sure no cable or wire is on the other side. Be sure to drill a 20mm (0.8in) diameter hole only. Feed as much cable as possible into vehicle and clamp securely.
  • Page 8: Functions And Operation

    FUNCTIONS AND OPERATION MONITOR POWER LED When the red LED is on, it indicates power on, monitor in standby mode, waiting for trigger signal. When a trigger is selected, the image captured by the selected camera will appear on the monitor. An on-screen scale will appear when the trigger (typically rear-view) for camera 3 is energized.
  • Page 9: Picture Control

    HOW TO SET YOUR MONITOR TO YOUR REQUIREMENTS NOTE: On-screen menu commands may only be selected when monitor is in Steady-on (green light) mode. When monitor is in standby mode, and activated by trigger sig- nal, on-screen menu commands are disabled. 1.
  • Page 10: Specifications

    SPECIFICATIONS STSC101 CAMERA PICK-UP DEVICE INTERLINE TRANSFER TYPE CCD TV SYSTEM NTSC PICTURE ELEMENT 512(H) x 492(V) NTSC SENSING AREA 0.2x0.1in (4.9mm x 3.7mm) IMAGE SIZE 1/3 inch SYNCHRONIZATION INTERNAL HORIZONTAL RESOLUTION 420 TV LINES REQUIRED ILLUMINATION 0 LUX MINIMUM/F1.2 SIGNAL TO NOISE RATIO MINIMUM 48dB(AT AGC OFF) POWER SUPPLY...
  • Page 11 Fig. 1 Camera mount in suggested location Mount camera assembly high. (Centered) Camera mounting hole pattern - 10 -...
  • Page 12 Fig. 2 Position of camera Vehicles behind truck Street Rear Bumper Typical monitor image of view from properly installed camera - 11 -...
  • Page 13 Fig. 3 Optional wind deflector - 12 -...
  • Page 14 Fig. 4 Mounting on ceiling Mounting on the dash, console etc. - 13 -...
  • Page 15 Fig. 5 POWER INPUT LEAD (RED) To Ignition Switched Accessory GROUND WIRE (BLACK) To metal point of the vehicle CAMERA 1 (not supplied) INPUT LEAD (WHITE) Trigger 1 CA 1 (CAMERA 1) CAMERA 2 (not supplied) CA 2 CAMERA 3 CA 3 INPUT LEAD (BLUE) Trigger 2 (CAMERA 2)
  • Page 16 - 15 -...
  • Page 17 90-21 144th Place Jamaica, NY 11435 www.roscovision.com Ph. 1.800.227.2095 Fx. 1.718.297.0323 A Century of Printed in China Automotive Safety Lit. P/N: 04242012...
