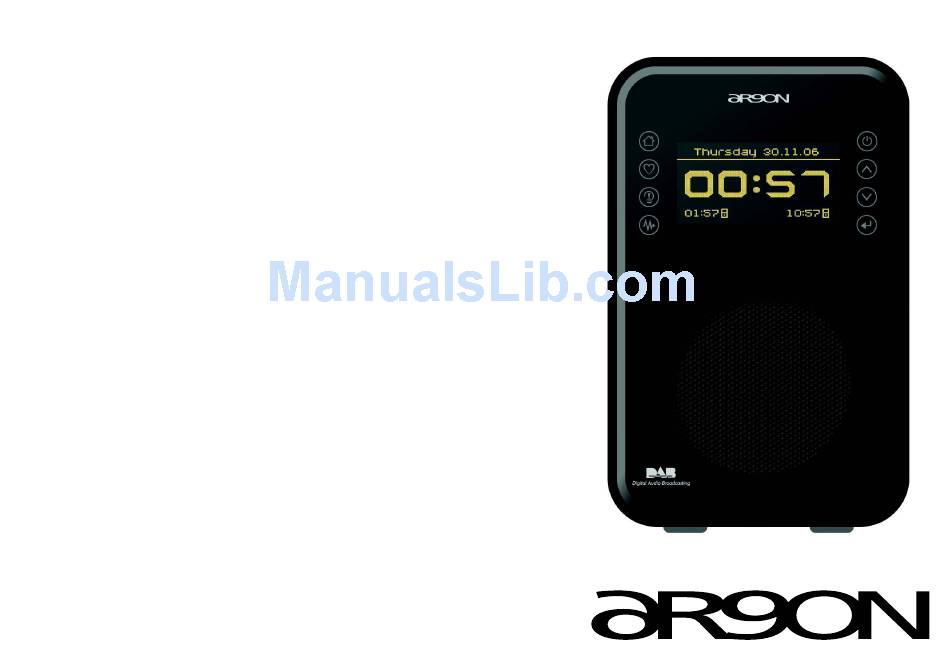

Argon DAB4
+
Quality has always been our driving force
and founding Argon Audio is a natural
extension of this philosophy. We have
20 years of experience in creating and
specifying high quality products,
manufacturing them and selling them on
to end users with Value-for-Money as the
primary aim. And Argon Audio is a brand
fully compliant with these values.
Design, features and quality standards are
all specified in Denmark and manufacturing
takes place in the Far East, where quality
vendors are highly competitive - and as a
result supply outstanding Value-for-Money
products – to the delight of both ourselves
and our customers!
1
DAB4+
Advertisement
Table of Contents
Related Manuals for argon audio DAB4+
Summary of Contents for argon audio DAB4+
- Page 1 Value-for-Money as the primary aim. And Argon Audio is a brand fully compliant with these values. Design, features and quality standards are all specified in Denmark and manufacturing...
-
Page 2: Table Of Contents
Contents Argon DAB4+ Quick start Guide and Manual Your Argon DAB4+........................page 4-6 Quick Start - Setting up and connecting your DAB4+...........page 7-8 Power-Up your DAB4+..................page 7 Tuning DAB stations..................page 7 Tuning FM stations....................page 7 Connecting an external devise using AUX in..........page 8 Using batteries and battery life time............page 8 Using your DAB4+........................page 9-10 DAB mode and Tuning DAB stations............page 9... - Page 3 A few warnings, hints and tips: Instructions: Read (even though its very boring), follow and maintain this Manual Water and Moisture: Keep the DAB4+ out of and away from water and moisture Heat: Do not expose the DAB4+ to excessive heat or sunlight. Notice that the color of the casing can fade if placed directly in sunlight for prolonged period of time.
-
Page 4: Your Argon Dab4
Front panel controls Volume control Turn the aluminum ring mounted around the speaker driver to increase or decrease the volume Other Front panel controls, DAB4+... - Page 5 Front panel controls “Home” let you select between Power On/Off the different Sources: DAB/FM/AUX “Favorites” or Preset stations. Scroll up Allows you to save 6 stations on for information DAB and 6 stations on FM Scroll down Menu button/Display Information for information Press this button once and you will change the display information press and hold 3 sec...
- Page 6 Connections and back panel ------------------------------------------ Antenna for DAB and FM ------------------------------------------ Speaker for “beep” sound ------------------------------------------ Battery power ON/OFF Input for iPod or other external Source Connection for Power Supply Battery compartment DAB4+...
-
Page 7: Quick Start - Setting Up And Connecting Your Dab4
Quick Start - Setting up and connecting your DAB4+ 1) Power-Up your DAB4+ Connect the Power Supply to the Radio and Electric Outlet or Insert 6 x AA batteries. The Argon DAB4+ can run on both Recharagable and Disposable Batteries. When the DAB4+ is connected to Electric outlet WITH batteries inserted, it will automatically use the Main power and hereby save battery life. -
Page 8: Connecting An External Devise Using Aux In
Quick Start - Setting up and connecting your DAB4+ 4) Connecting an external devise using AUX in. You can connect an iPod or other external Source device to the AUX-IN on the back side of the DAB4+ You can connect DAB4+ via the LINE-OUT connection on the back side, other end. -
Page 9: Using Your Dab4
Using your DAB4+ DAB mode and Tuning DAB stations 1) Automatic Full scan 2) Automatic Quick scan 3) Manual scan To do a Automatic Full scan press and hold the “autotune” button for 3 sec. The DAB4+ will start searching for avaliable stations. It may take a few minutes. All found stations can be viewed pressing the “scroll”... -
Page 10: Fm Mode And Tuning Fm Stations
Using your DAB4+ FM mode and Tuning FM stations “Enter/select” button Once in FM mode you can search for the stations, either manual or automatical Manual tuning is done be pressing either “Scroll” up or “Scroll” down once. You need to press for each frequency step. Automatical tuning is done be pressing and holding the “Scroll”... -
Page 11: Using Basic Functions On Your Dab4
Using basic functions on your DAB4+ Storing and recalling stations You can store 6 DAB and 6 FM stations as presets on your DAB4+ The procedure for doing so is similar for both DAB and FM mode To store a station you are listening to, press the “Favorite” button once. Using “Scroll”... -
Page 12: Setting The Date And Time
Using basic functions on your DAB4+ Setting the date and time In DAB mode the date and time will be set automatically so you actually dont have to do anything. The date and time will be updated continously no matter what DAB station you use. However, if the DAB4+ is used in FM mode only for more prolonged time (typically more than 24 hours), the date and time has to set manually as there is no automatic update from the broadcasters. -
Page 13: Setting The Sleep Timer
Using basic functions on your DAB4+ Setting the Sleep Timer To enter the Sleep Timer menu press and hold the “Menu” button for 3 sec. Using the “Scroll” buttons select “Utility” and press “Enter/select”. Using the “Scroll” buttons go to “Sleep setup” and press “Enter/Select”. You are now in the Sleep Timer setup. -
Page 14: Resetting The Dab4
Using basic functions on your DAB4+ Reseting the DAB4+ You may want to erase the settings on your DAB4+, including presets, alarms and sleep delays. In both DAB and FM mode press and hold “Menu” button for 3 sec. Using the “Scroll” buttons select “Set up” and press “Enter/select”. Using the “Scroll”... -
Page 15: Using The Aux In Jack
Using basic functions on your DAB4+ Using the AUX IN jack a) connect an iPod or other external Source device to the AUX-IN on the back side of the DAB4+ b) Choose AUX mode with the “scroll” buttons via the “home” button and press “select” on AUX. c) you will be able to regulate the volume both on the DAB4+ and on the External device while playing through the DAB4+. - Page 16 Frequency Range DAB: Band III (174-239.2 MHz) and L Band (1452-1490.624 MHz) 87.5-108 MHz/step: 50KHz Audio Frequency Range: 70HZ-15KHZ One 4W/2,75” full range speaker OLED display: black background with yellow lettering Battery function: 6xAA batteries, recharargable or disposable batteries Input voltage: 12VDC/1,5A Input connector: 3,5mm stereo Jack for iPod etc.
