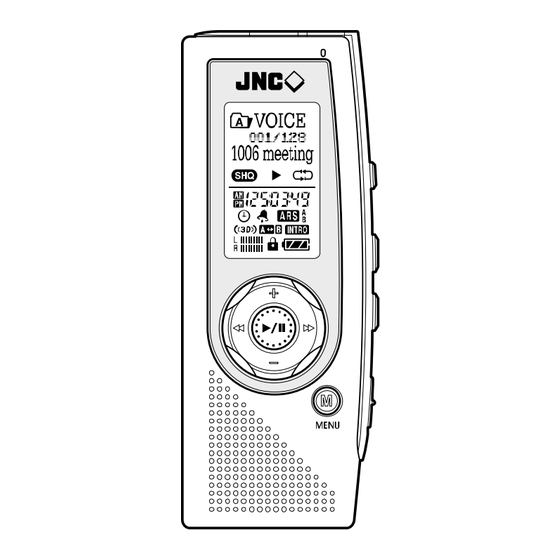

JNC SSF-1100 User Manual

Digital voice recorder
Hide thumbs Also See for SSF-1100:
Table of Contents

Advertisement

Quick Links

JNC SSF-1100/2200/3300 user manual
http://www.manuallib.com/file/2493888
From ManualLib.com
ManualLib.com collects and classifies the global product
instrunction manuals to help users access anytime and
anywhere, helping users make better use of products.
Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/
This Manual: http://www.manuallib.com/file/2493888

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSF-1100 and is the answer not in the manual?

Questions and answers

Related Manuals for JNC SSF-1100

Summary of Contents for JNC SSF-1100

  • Page 1 JNC SSF-1100/2200/3300 user manual http://www.manuallib.com/file/2493888 From ManualLib.com ManualLib.com collects and classifies the global product instrunction manuals to help users access anytime and anywhere, helping users make better use of products. Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/ This Manual: http://www.manuallib.com/file/2493888...
  • Page 2 MODEL : SSF-1100/2200/3300 DIGITAL VOICE RECORDER User Guide Manual Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER from DIASONIC TECHNOLOGY Co. Please carefully read the Instruction manual for safe use of the product. We recommend that you to keep this instruction manual for future reference.

  • Page 3: Information To The User

    Note This instruction manual is required for the effective use of JNC MP3 Player. Pay special attention not to lose the manual as it is not provided separately from the unit. This Manual: http://www.manuallib.com/file/2493888...

  • Page 4: Safety Precautions

    Safety Precautions Warning Keep the batteries out of reach of the children. If a child swallowed a battery, please consult a doctor immediately. Do not have the battery shorted, disassembled, heated or put in fire. This may cause leakage, heat, explosion or fire.

  • Page 5: Warranty

    Preface Safety Precautions Functions and Features Parts and Components Basic Function Buttons FM Radio Mode Menu Main Menu Record in Recording Mode Connecting External Device Installation of Windows 98SE Driver Uninstallation of Windows 98SE Driver Managing Folders and Files Deleting Files Downloading Files Formatting Files Firmware Upgrade...

  • Page 6: Functions And Features

    Functions and Features DIGITAL VOICE RECORDER UP TO 16,960 MIN RECORDING TIME(SP MODE AND 1GB) 8FOLDERS TO ORGANIZE FILES STORE UP TO 128 FILES FOR EACH FOLDER CONTINUE FOLDER FUNCTION: AUTOMATICALLY MOVE TO NEXT FOLDER IF INDEX IS FULL. VARIABLE RECORDING MODE (SHQ/HQ/SP IN MP3 FORMAT AND USER MODE IN MPEG1 LAYER3) MIC SESITIVITY ADJUSTABLE IN RECORDING.
  • Page 7 ID3 TAG SUPPORT(ARTIST/TITLE) SCROLL SPEED CONTROLLING MULTI LANGUAGE SUPPORT 5EQ (NORMAL/CLASSIC/LIVE/POP/ROCK) SYNC FUNCTION: AUTOMATICALLY RECOGNIZE THE END AND BEGINNING OF THE MUSIC FROM EXTERNAL AUDIO DEVICE IN RECODING THRU CONNECTING AUDIO CABLE AND RECORD. USER EASILY UPGRADES NEW FIRMWARE PROVIDED BY MAKER EASY-TO-USE BUTTON FOR QUICK NAVIGATION THROUGH FOLDERS AND OPTIONS SET UP THE ALARM TO PLAY AUTOMATICALLY AS A REMINDER TO...
  • Page 8 USB JACK NECK STRAP HOLDER EARPHONE MIC & LINE-IN JACK INTERNAL MIC REC/PAUSE DC JACK STOP ERASE HOLD MENU VOLUME + VOLUME - This Manual: http://www.manuallib.com/file/2493888...
  • Page 9 FOLDER MODE INDEX INFORMATION FILE PLAY/STOP/PAUSE INFORMATION /REC/REW/FF SYNC/BIT RATE REPEAT /EQ/SPEED TIME HOLD TIMER ON/OFF ALARM ON/OFF ARS ON/OFF 3D SOUND ON/OFF REPEAT INTRODUCTION PLAY BACK L/R SPECTRUM BATTERY STATUS This Manual: http://www.manuallib.com/file/2493888...
  • Page 10 1) PUT BATTERIES (LR03 TYPE) 2) BATTERY POWER STATUS INDICATOR FULL CHARGED SOME POWER CUSTOMED THINKING OF CHANGING BATTERY CHANGE BATTERY CHECK THE POLARITIES OF THE BATTERIES IF LCD DISPLAY DOESN’T TURN ON AFTER INSERTING NEW BATTERIES. This Manual: http://www.manuallib.com/file/2493888...
  • Page 11 3) TYPICAL BATTERY LIFE TIME (VOICE MODE) BATTERY TYPE RECORDING PLAYBACK VIA SPEAKER PLAYBACK VIA EARPHONE (VOLUME:MEDIUM) (VOLUME:MEDIUM) (VOLUME:MEDIUM) 2 AAA LR03 APPROX. 13HRS APPROX. 13HRS APPROX. 23HRS BATTERY LIFE MAY BE DIFFERENT FROM ABOVE MENTIONED TIME ACCORDING TO BATTERY BRAND & CONDITION. DO NOT USE DIFFERENT TYPE AND BRAND BATTERY TOGETHER.

  • Page 12: Reserved Recording

    TO TURN ON, HOLD THE KEY FOR 2-3 SECONDS. TO TURN OFF, HOLD THE STOP KEY AGAIN WITH LONG KEY (over 3secs). IF USB CABLE IS CONNECTED, AUTOMATICALLY POWER IS ON. IF YOU PUT THE BATTERY TO DDR-5000 FOR THE FIRST TIME, “A”...
  • Page 13 BY PRESSING MENU BUTTON FOR 1-2 SECONDS, MODE MENU WILL DISPLAY. FOR MOVING TO THE MODE WANTED, PRESS “REW/FF” BUTTON. SELECT THE MODE BY PRESSING “PLAY/PAUSE” BUTTON. VOICE MUSIC L-IN ENC FM ENC B-MARK FOLDER THIS IS FOR PLAYING THE FIRST FEW SECONDS OF EVERY TRACK FOR QUICK REVIEW OF VOICE FILES OR MUSIC.
  • Page 14 A CURRENT SPEED DISPLAYS ON THE LCD BY PRESSING “REC/PAUSE” BUTTON FOR 2-3SECONDS DURING PLAYBACK. TO SELECT DESIRED SPEED (STANDARD(100%), FAST(120%) OR SLOW(80%)) BY PRESSING “REC/PAUSE” BUTTON FOR 2-3SECONDS DURING PLAYBACK. IF STOP, SPEED IS BACK TO STANDARD. WHEN FILE PLAYS BACK, REPEAT MODE CHANGES BY PRESSING “ERASE”...
  • Page 15 Buttons This Manual: http://www.manuallib.com/file/2493888...
  • Page 16 This Manual: http://www.manuallib.com/file/2493888...
  • Page 17 IF THERE IS NO KEY OPERATION WITHIN 5SECS, SET UP THE STATION WILL BE RELEASED. EARPHONE WORK AS AN EXTERNAL ANTENNA FOR INCREASING RECEPTION. STRETCH IT OUT. This Manual: http://www.manuallib.com/file/2493888...
  • Page 18 This Manual: http://www.manuallib.com/file/2493888...
  • Page 19 PLAYBACK This Manual: http://www.manuallib.com/file/2493888...
  • Page 20 FM Radio TURN ON THE SET AND SELECT FM IN THE MODE MENU. FOR THE AUTOMATIC TUNING, PRESS AND HOLD FORWARD OR REWIND BUTTON FOR 2SECONDS. THE TUNNER AUTOMATICALLY SCAN AND STOP ON THE NEXT STATION WITH A STRONG SIGNAL. IN AREA WITH WEAK RECEPTION, PRESS THE FAST FORWARD OR REWIND BUTTON TO FIND A CLEAR STATION.
  • Page 21 IF YOU WOULD LIKE TO RECORD THE PRESENT LISTENING TO STATION, PRESS “REC” BUTTON. RECORDED FILE STORED “FM ENC” FOLDER WITH FILE NAME “FM001_048KBPS_040101_010101.MP3” AND THE FILE NAME IS SEQUENTLY NAMED IN ORDER. NOISE MAY OCCUR WHEN RECORDING FM IN WEAK COVERAGE OR INSIDE OF THE BUILDING.

  • Page 22: Mode Menu

    Mode Menu YOU CAN GO TO “MODE MENU” BY PRESSING “MENU” BUTTON FOR 1 SECOND. MODE MENU IS CONSIST OF BELOW MODE. TO MOVE TO ANOTHER MODE, USE “REW/FF” BUTTON. B-MARK VOICE MUSIC L-IN ENC FM ENC FOLDER PLAY BACK VOICE FILE RECORDED IN VA001_ 008KBPS_040101_010101.MP3 TYPE.
  • Page 23 PLAY THE FILE IN FM ENC FOLDER. FILE IS STAMPED IN FM001_128KBPS_040101_010101.MP3. IN SEQUENCE. 256FILES CAN BE RECORDED AS MUCH AS MEMORY IS AVAILABLE. RECEVING RADIO STATION. * B-MARK STORE FAVOITE SONGS.(2OFILES ARE AVAILABLE.) BOOKMARK IS SET BY PRESSING STOP BUTTON ON THE MUSIC, L-IN ENC, FM_ENC MODE.

  • Page 24: Main Menu

    Main Menu This Manual: http://www.manuallib.com/file/2493888...
  • Page 25 “REW/FF” FOR YES/NO AND “PLAY/PAUSE” FOR SELECTION. This Manual: http://www.manuallib.com/file/2493888...
  • Page 26 “REW/FF” FOR YES/NO AND “PLAY/PAUSE” FOR SELECTION. This Manual: http://www.manuallib.com/file/2493888...
  • Page 27 This Manual: http://www.manuallib.com/file/2493888...
  • Page 28 This Manual: http://www.manuallib.com/file/2493888...
  • Page 29 This Manual: http://www.manuallib.com/file/2493888...
  • Page 30 This Manual: http://www.manuallib.com/file/2493888...
  • Page 31 This Manual: http://www.manuallib.com/file/2493888...

  • Page 32: Record In Recording Mode

    Record in Recording Mode THE SET HAS 4 WAYS TO RECORD AS BELOW. 1) RECORDING THRU INTERNAL MIC: JUST PRESS “REC” BUTTON. 2) RECORDING THRU EXTERNAL MIC: PLUG EXTERNAL MIC INTO LINE IN JACK. SELECT EXTERNAL MIC ON SYSTEM/INPUT SELECTOR. PRESS “REC”...

  • Page 33: Connecting External Device

    Connecting External Device 1) RECORDING EXTERNAL DEVICE TO DDR-5000 CONNECT THE PROVIDED AUDIO CABLE TO LINE IN JACK ON THE SET. 2) RECORDING DDR-5000 TO EXTERNAL DEVICE CONNECT THE PROVIDED AUDIO CABLE TO EARPHONE JACK ON THE SET AND MICROPHONE OR LINE IN ON THE EXTERNAL DEVICE.
  • Page 34 This Manual: http://www.manuallib.com/file/2493888...

  • Page 35: Installation Of Windows 98Se Driver

    Installation Of Windows 98SE Driver IT SUPPORTS USB MASS STORAGE AND IT CAN BE USED AS HARD DRIVE. IT CAN BE CONNECTED TO PC DIRECTLY WITHOUT ANY APPLICATION BY PLUG & PLAY METHOD ON WINDOWS ME, 2000, XP EXCEPT FOR WINDOWS 98SE. HOW TO INSTALL DRIVER (1) In case of Windows ME, 2000, XP WHEN CONNECTING DEVICE TO PC BY USB PORT, “NEW HARDWARE DETECTED”...

  • Page 36: Double Click

    (2) In case of Windows 98 SE 1 INSERT THE PROVIDED CD & IT WILL INDICATE HOW TO INSTALL. DOUBLE CLICK “DVR-WIN98SE.EXE” 3 CLICK “INSTALL 98UMS DRIVER” AND AUTOMATICALLY INSTALL. This Manual: http://www.manuallib.com/file/2493888...
  • Page 37 4 WHEN IT IS COMPLETED, BELOW POP-UP WILL APPEAR. CLICK “YES” CLICK FOR REBOOTING THE COMPUTER. AFTER REBOOTING, CONNECT THE SET & PC THRU USB CABLE. BELOW WINDOW WILL APPEAR. 7 EVERYTHING IS SUCCEED, IT CAN BE APPEARED AT SYSTEM PROPERTIES.
  • Page 38 * REMOVING USB MASS STORAGE SAFELY. (1) Windows ME, 2000, XP WHEN THE SET REMOVE FROM CONNECTION, IT SHOULD DO IT THRU PROPER PROCEDURE AS BELOW. IF NOT, IT MIGHT CAUSE SERIOUS PROBLEM IN DATA. 1 CLOSE THE FILE TO OPEN. LEFT CLICK “...

  • Page 39: Uninstallation Of Windows 98Se Driver

    Uninstallation of Windows 98SE Driver THE PROVIDED CD CONTAINS UNINSTALLING PROGRAM AUTOMATICALLY. 1 INSERT THE PROVIDED CD. DOUBLE CLICK “DVR-WIN98SE.EXE” 3 CLICK “REMOVE DRIVER” 4 WHEN IT COMPLETE, BELOW WILL APPEAR AND CLICK “OK”. This Manual: http://www.manuallib.com/file/2493888...

  • Page 40: Managing Folders And Files

    Managing Folders and Files (2) ALL FILE FORMATS CAN BE STORED AND REMOVED. This Manual: http://www.manuallib.com/file/2493888...

  • Page 41: Line In Mode

    (3) AUDIO MODE IS NOT DEFAULTED LIKE VOICE, L-IN_ENC, FM_ENC. CREAT IT ON THE PC AND CAN CHECK IT AT FOLDER & MUSIC MODE. (4) LINE IN MODE This Manual: http://www.manuallib.com/file/2493888...
  • Page 42 This Manual: http://www.manuallib.com/file/2493888...

  • Page 43: Deleting Files

    Deleting Files This Manual: http://www.manuallib.com/file/2493888...

  • Page 44: Downloading Files

    Downloading Files • Don’t detach USB cable under the condition file delete or file transfer. It might cause data loss or could break down. This Manual: http://www.manuallib.com/file/2493888...

  • Page 45: Formatting Files

    Formatting Files This Manual: http://www.manuallib.com/file/2493888...
  • Page 46 This Manual: http://www.manuallib.com/file/2493888...

  • Page 47: Firmware Upgrade

    Firmware Upgrade • Upgrade Completed This Manual: http://www.manuallib.com/file/2493888...
  • Page 48 This Manual: http://www.manuallib.com/file/2493888...
  • Page 49 This Manual: http://www.manuallib.com/file/2493888...
  • Page 50 This Manual: http://www.manuallib.com/file/2493888...
