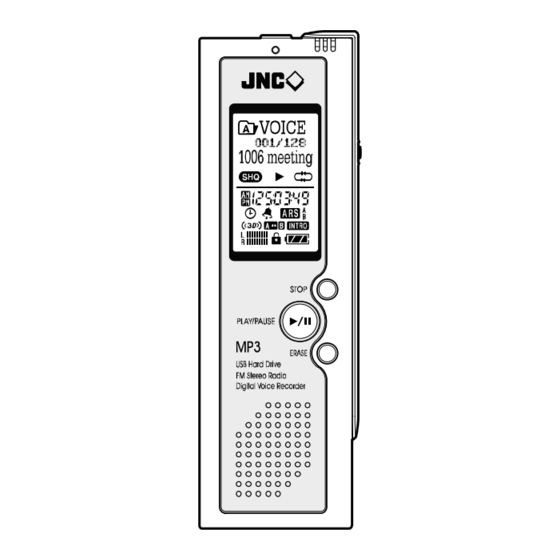

MODEL : SSF-110/220/330
DIGITAL VOICE RECORDER
User Guide manual
Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER.
Please carefully read the Instruction manual for safe use of the product. We recommend that you to
keep this instruction manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSF-110 and is the answer not in the manual?

Questions and answers

Related Manuals for JNC SSF-110

Summary of Contents for JNC SSF-110

  • Page 1 MODEL : SSF-110/220/330 DIGITAL VOICE RECORDER User Guide manual Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER. Please carefully read the Instruction manual for safe use of the product. We recommend that you to keep this instruction manual for future reference.
  • Page 2 ● Any unauthorized reproduction of recorded files for any other purposes than personal use is strictly prohibited by the relevant laws and regulations. Note This instruction manual is required for the effective use of JNC MP3 Player. Pay special attention not to lose the manual as it is not provided separately from the unit.

  • Page 3: Safety Precautions

    Safety Precautions Warning ● Keep the batteries out of reach of the children. If a child swallowed a battery, please consult a doctor immediately. ● Do not have the battery shorted, disassembled, heated or put in fire. This may cause leakage, heat, explosion or fire.

  • Page 4: Table Of Contents

    Contents Preface Safety Precautions Functions and Features Parts and Components Basic Function Buttons FM Radio Mode Menu Main Menu Record in Recording Mode Connecting External Device Installation of Windows 98SE Driver Uninstallation of Windows 98SE Driver Managing Folders and Files Deleting Files Downloading Files Formatting Files...

  • Page 5: Functions And Features

    Functions and Features DIGITAL VOICE RECORDER ▣ UP TO 16,960 MIN RECORDING TIME(SP MODE AND 1GB) 8FOLDERS TO ORGANIZE FILES STORE UP TO 128 FILES FOR EACH FOLDER CONTINUE FOLDER FUNCTION: AUTOMATICALLY MOVE TO NEXT FOLDER IF INDEX IS FULL. VARIABLE RECORDING MODE (SHQ/HQ/SP IN MP3 FORMAT AND USER MODE IN MPEG1 LAYER3) MIC SESITIVITY ADJUSTABLE IN RECORDING.
  • Page 6 ▣ MP3/WMA PLAYER & ENCODER ID3 TAG SUPPORT(ARTIST/TITLE) SCROLL SPEED CONTROLLING MULTI LANGUAGE SUPPORT 5EQ (NORMAL/CLASSIC/LIVE/POP/ROCK) SYNC FUNCTION: AUTOMATICALLY RECOGNIZE THE END AND BEGANNING OF THE MUSIC FROM EXTERNAL AUDIO DEVICE IN RECODING THRU CONNECTING AUDIO CABLE AND RECORD. USER EASILY UPGRADES NEW FIRMWARE PROVIDED BY MAKER EASY-TO-USE BUTTON FOR QUICK NAVIGATION THROUGH FOLDERS AND OPTIONS SET UP THE ALARM TO PLAY AUTOMATICALLY AS A REMINDER TO MEETING, BIRTHDAY AND MORE.

  • Page 7: Parts And Components

    Parts and Components (1) Main set HAND STRAP HOLE USB JACK EXTERNAL C-MIC / EARPHONE JACK LINE-IN JACK INTERNAL MIC MENU REC/PAUSE DC JACK STOP VOLUME+/- PLAY/ PAUSE ERASE HOLD...
  • Page 8 (2) LCD FOLDER MODE INDEX INFORMATION FILE PLAY/STOP/PAUSE INFORMATION /REC/REW/FF SYNC/BIT RATE REPEAT /EQ/SPEED TIME HOLD TIMER ON/OFF ALARM ON/OFF ARS ON/OFF 3D SOUND ON/OFF REPEAT INTRODUCTION PLAY BACK L/R SPECTRUM BATTERY STATUS...
  • Page 9 (3) BATTERY 1) PUT BATTERIES (LR03 TYPE) OPEN CLOSE 2) BATTERY POWER STATUS INDICATOR FULL CHARGED SOME POWER CUSTOMED THINKING OF CHANGING BATTERY CHANGE BATTERY ☞ CHECK THE POLARITIES OF THE BATTERIES IF LCD DISPLAY DOESN’T TURN ON AFTER INSERTING NEW BATTERIES.
  • Page 10 3) TYPICAL BATTERY LIFE TIME BATTERY TYPE RECORDING PLAYBACK VIA SPEAKER PLAYBACK VIA EARPHONE (VOLUME:MEDIUM) (VOLUME:MEDIUM) (VOLUME:MEDIUM) 2 AAA LR03 APPROX. 14HRS APPROX. 14HRS APPROX. 22HRS ☞ BATTERY LIFE MAY BE DIFFERENT FROM ABOVE MENTIONED TIME ACCORDING TO BATTERY BRAND & CONDITION. ☞...

  • Page 11: Basic Function

    Basic Function (1) TURN ON/OFF TO TURN ON, HOLD THE REC/STOP KEY FOR 2-3 SECONDS. TO TURN OFF, HOLD THE STOP KEY AGAIN WITH LONG KEY. ☞ IF USB CABLE IS CONNECTED, AUTOMATICALLY POWER IS ON. ☞ IF YOU PUT THE BATTERY TO SET, “A”...
  • Page 12 (4) CHANGING MODE MENU BY PRESSING MENU BUTTON FOR 1-2 SECONDS, MODE MENU WILL DISPLAY. FOR MOVING TO THE MODE WANTED, PRESS “REW/FF“ BUTTON. SELECT THE MODE BY PRESSING “MENU” OR “PLAY/PAUSE” BUTTON. VOICE MUSIC L-IN ENC FM ENC B-MARK FOLDER (5) INTRO PLAY THIS IS FOR PLAYING THE FIRST FEW SECONDS OF EVERY TRACK FOR QUICK REVIEW OF...
  • Page 13 (7) PLAYBACK SPEED CONTROL A CURRENT SPEED DISPLAYS ON THE LCD BY PRESSING “REC/PAUSE” BUTTON FOR 2- 3SECONDS DURING PLAYBACK. SELECT DESIRED SPEED (STANDARD(100%), FAST(120%) OR SLOW(80%)) BY PRESSING “REC/PAUSE” BUTTON FOR 2-3 SECONDS. STOP, SPEED IS BACK TO STANDARD. ☞...

  • Page 14: Buttons

    Buttons VOICE MODE...
  • Page 15 THE STATUS OF SET BUTTON OPERATION STOP RECORDING PLAYBACK PLAY/ SHORT PLAYBACK PAUSE REMAINING TIME PAUSE LONG INTRO PLAY GO TO NEXT FILE INCREASE INDEX SHORT GO TO NEXT FILE AND PLAY (AFTER 5 SECONDS) LONG GO TO NEXT FILE S-FORWARD CURRENT FILE IN SEQUENCE GO TO BEGINNING...
  • Page 16 (2) FM RADIO MODE MODE BUTTON OPERATION SET UP THE FREQUENCY MODE PRESET MODE STATION ENTERING SETTING SHORT SETTING STATION PLAY STATION /PAUSE LONG PRESET FREQ. MODE TUNE FM FREQ. FORWARD NEXT PRESET SHORT CHANNEL UP SLIGHTLY LONG AUTO SEEK + TUNE FM FREQ.
  • Page 17 (3) MUSIC/L-IN ENC/FM ENC MODE...
  • Page 18 THE STATUS OF SET BUTTON OPERATION PLAYBACK STOP RECORDING PLAY/ SHORT PLAY PAUSE REMAINING TIME PAUSE LONG INTRO PLAY SHORT GO TO NEXT FILE GO TO NEXT FILE INCREASE INDEX AND PLAY (AFTER 5SECONDS) LONG GO TO NEXT FILE S-FORWARD IN SEQUENCE CURRENT FILE GO TO BEGINNING...

  • Page 19: Fm Radio

    FM Radio (1) TURN ON FM TURN ON THE SET AND SELECT FM IN THE MODE MENU. (2) AUTOMATIC TUNING FOR The AUTOMATIC TUNING. PRESS AND HOLD FORWARD OR REWIND BUTTON 2SECONDS. TUNNER AUTOMATICALLY SCAN AND STOP ON THE NEXT STATION WITH A STRONG SIGNAL.
  • Page 20 (4) RECORDING FM IF YOU WOULD LIKE TO RECORD THE PRESENT STATION, PRESS “REC” BUTTON. RECORDED FILE STORED FOLDER WITH FM001- 48KBPS_040101_010101.MP3 AND THE FILE NAME IS SEQUENTLY ADDED ACCORDING TO RECORDED ORDER. ☞ NOISE MAY OCCUR WHEN RECORDING FM IN WEAK COVERAGE OR INSIDE OF THE BUILDING.

  • Page 21: Mode Menu

    Mode Menu YOU CAN GO TO “MODE MENU” BY PRESSING “MENU” BUTTON FOR 1 SECOND. MODE MENU IS CONSIST OF BELOW MODE. TO MOVE TO ANOTHER MODE, USE “REW/FF“ BUTTON. B-MARK VOICE MUSIC L-IN ENC FM ENC FOLDER B-MARK (1) VOICE PLAY BACK VOICE FILE RECORDED IN VA001-008KBPS_040101_010101.MP3 TYPE.
  • Page 22 (4) FM ENC PLAY THE FILE IN FM ENC FOLDER. FILE IS STAMPED IN FM001-128KBPS_040101_010101.MP3 IN SEQUENCE. 256FILES CAN BE RECORDED AS MUCH AS MEMORY IS AVAILABLE. (5) FM RECEVING RADIO STATION. (6) B-MARK * B-MARK STORE FAVOITE SONGS.(2OFILES ARE AVAILABLE.) BOOKMARK IS SET BY PRESSING STOP BUTTON ON THE MUSIC, L-IN ENC, FM_ENC MODE.

  • Page 23: Main Menu

    Main Menu TO ENTER INTO “MAIN MENU”, PRESS “MENU”BUTTON FOR 2-3SECONDS. “REW/FF” BUTTON WORKS AS A MOVING BUTTON TO ANOTHER FUNCTION AND PRESS “MENU” OR “PLAY/PAUSE” BUTTON FOR SELECTION OF THE FUNCTION YOU WANT. BY PRESSING “REC/PAUSE” BUTTON AGAIN, YOU CAN GO OUT OF SUBORDINATE MENU. IF YOU DO NOT OPERATE ANY BUTTON AFTER ENTERING INTO MENU FOR SECONDS, AUTOMATICALLY MENU FUNCTION WILL BE RELEASED.
  • Page 24 ② TIMER REC : RESERVATION RECORDING . ( UP TO 10 AVAILABLE ) ☞ USER MUST SET UP “SET DATE” FIRST. - ON THE SETTING DISPLAY, NO. 1 CHANNEL WILL BE BLINKING. - MOVE TO THE SPECIFIC NO. YOU WANT TO SET UP BY PRESSING “REW/FF” BUTTON AND PRESS “MENU”...
  • Page 25 ③ ALARM PLAY : THE FILE SELECTED PLAYS BACK ON TIME WHEN IS SET UP IN ADVANCE. (10PCS AVAILABLE) ※ SET UP THE ALARM PLAY (이하 설정은 TIMER REC와 동일합니다.) - THIS FUNCTION HAS DATE/DAILY/WEEKLY MODE. 1. DATE (1 TIME) a.
  • Page 26 ④ POWER OFF TIME : 1MIN, 3MIN, 5MIN, ALWAYS ON AUTOMATIC POWER OFF TIME ⑤ SLEEP TIME : OFF, 15MIN, 30MIN, 45MIN, 60MIN, 75MIN, 90MIN, 105MIN, 120MIN AUTOMATICALLY TURN OFF AFTER THE TIME YOU SET UP. ⑥ INTRO TIME : 5SEC, 10SEC, 15SEC PLAYING FILE BACK FOR THE TIME YOU SET UP.
  • Page 27 DISPLAY THIS MENU IS FOR SETTING UP DISPLAY AND CONSISTS OF FONT, ID3 TAG, SCROLL SPEED, BACKLIGHT TIME, LCD CONTRAST. ① FONT: KOREAN, ENGLISH, JAPANESE, CHINESE(SIMPLIFY＋TRADITIONAL), EUROPE, RUSSIAN YOU CAN SELECT THE LANGUAGE YOU WANT FOR ID3 TAG ON. ② ID3 TAG : ON, OFF DISPLAY FILE INFORMATION 1.
  • Page 28 SYSTEM THIS IS FOR PLAYER’S SYSTEM CONTROL. THIS CONSISTS OF LANGUAGE, REPEAT, SYNC, ARS, INPUT SELECTOR, MIC SENSITIVITY, RESUME, BITRATE, FM BAND, CONTINUE FOLDER, FORMAT, DEFAULT. ① LANGUAGE: ENGLISH, GERMAN, JAPANESE, CHINESE(SIMPLIFY＋TRADITIONAL) YOU CAN SELECT THE LANGUAGE YOU WANT FOR MODE/MENU. ②...
  • Page 29 ④ ARS : A, B, OFF IN RECORDING, IF THERE IS SOUND AT A WEAK SOUND FOR A CERTAIN TIME, RECORDING PAUSES AUTOMATICALLY FOR SAVING MEMORY, BUT IF THERE IS SOUND AT SPECIFIC LEVEL AGAIN, START RECORDING AGAIN. (AUTOMATIC RECORDING SYSTEM) - A : ALL SOUNDS ARE RECORDED INTO ONE FILE.
  • Page 30 ⑧ BIT RATE : VOICE BITRATE, MP3 BITRATE SET UP THE BIT RATE IN VOICE RECORDING, LINE IN AND FM RECORDING. - VOICE RECORDING : SHQ(32Kbps), HQ(16Kbps), SP(8Kbps) - MP3 ENCODE : 48Kbps, 64Kbps, 96Kbps, 128Kbps, 192Kbps, 256Kbps ⑨ FM BAND : WORLD, JAPAN, EUROPE YOU CAN SELECT FM BAND YOU WANT.

  • Page 31: Record In Recording Mode

    Record in Recording Mode (1) RECORDING METHOD THE SET HAS 4 WAYS TO RECORD AS BELOW. 1) RECORDING THRU INTERNAL MIC: JUST PRESS “REC” BUTTON. 2) RECORDING THRU EXTERNAL MIC: PLUG EXTERNAL MIC INTO LINE IN JACK. SELECT EXTERNAL MIC ON SYSTEM/INPUT SELECTOR. PRESS “REC”...

  • Page 32: Connecting External Device

    Connecting External Device (1) RECORDING FROM EXTERNAL DEVICE OR SET 1) RECORDING EXTERNAL DEVICE TO SSF-110 SERIES CONNECT THE PROVIDED AUDIO CABLE TO LINE IN JACK ON THE SET. 2) RECORDING SSF-110 SERIES TO EXTERNAL DEVICE CONNECT THE PROVIDED AUDIO CABLE TO EARPHONE JACK ON THE SET AND MICROPHONE OR LINE IN ON THE EXTERNAL DEVICE.
  • Page 33 (2) RECORDING FROM TELEPHONE AND MOBILE PHONE CONNECT LINE-IN CABLE TO THE MICROPHONE JACK ON THE VOICE RECORDER TELEPHONE ADAPTOR. CONNECT TELEPHONE CABLE TO TELEPHONE ADAPTOR. PRESS “REC” BUTTON FOR RECORDING. IF YOU SET UP THE “ARS”, AUTOMATICALLY START RECORDING PAUSING ACCORDING TO THE SOUND LEVEL.

  • Page 34: Installation Of Windows 98Se Driver

    Installation Of Windows 98SE Driver IT SUPPORTS USB MASS STORAGE AND IT CAN BE USED AS HARD DRIVE. IT CAN BE CONNECTED TO PC DIRECTLY WITHOUT ANY APPLICATION BY PLUG & PLAY METHOD ON WINDOWS ME, 2000, XP EXCEPT FOR WINDOWS 98SE. ☜...
  • Page 35 (2) In case of Windows 98 SE ○ 1 INSERT THE PROVIDED CD & IT WILL INDICATE HOW TO INSTALL. ○ 2 DOUBLE CLICK “DVR-II-WIN98SE.EXE” ○ 3 CLICK “INSTALL 98UMS DRIVER” AND AUTOMATICALLY INSTALL.
  • Page 36 ○ 4 WHEN IT IS COMPLETED, BELOW POP-UP WILL APPEAR. CLICK “YES” ⑤ CLICK FOR REBOOTING THE COMPUTER. ⑥ AFTER REBOOTING, CONNECT THE SET & PC THRU USB CABLE. BELOW WINDOW WILL APPEAR. ○ 7 EVERYTHING IS SUCCEED, ITCAN BE APPEARED AT SYSTEM PROPERTIES.
  • Page 37 * REMOVING USB MASS STORAGE SAFELY. (1) Windows ME, 2000, XP WHEN THE SET REMOVE FROM CONNECTION, IT SHOULD DO IT THRU PROPER PROCEDURE AS BELOW. IF NOT, IT MIGHT CAUSE SERIOUS PROBLEM IN DATA. ○ 1 CLOSE THE FILE TO OPEN. LEFT CLICK “...

  • Page 38: Uninstallation Of Windows 98Se Driver

    Uninstallation of Windows 98SE Driver THE PROVIDED CD CONTAINS UNINSTALLING PROGRAM AUTOMATICALLY. ○ 1 INSERT THE PROVIDED CD. ○ 2 DOUBLE CLICK “DVR-II-WIN98SE.EXE” ○ 3 CLICK “REMOVE DRIVER” ○ 4 WHEN IT COMPLETE, BELOW WILL APPEAR AND CLICK “OK”.

  • Page 39: Managing Folders And Files

    Managing Folders and Files (1) DEFAULT FOLDERS ◈ WHEN YOU CONNECT THE UNIT TO PC, YOU CAN FIND THAT THE VOICE, L-IN_ENC, FM_ENC & PLAYLIST FOLDERS ARE CREATED AS A DEFAULT. (2) ALL FILE FORMATS CAN BE STORED AND REMOVED.
  • Page 40 (3) AUDIO MODE IS NOT DEFAULTED LIKE VOICE, L-IN_ENC, FM_ENC. CREAT IT ON THE PC AND CAN CHECK IT AT FOLDER & MUSIC MODE. ☞ THE CREATED FOLDER BY USER CAN BE CHECKED AT FOLDER ON THE MODE MENU AND ONLY MUSIC FILE IS DISPLAIED ON MUSIC MODE.
  • Page 41 (5) FM_ENC MODE ☞ FM_ENC MODE CONTAINS THE FILES RECORDED IN LISTENING TO RADIO. ☞ WHEN RECORDING DATA, UP TO 256 FILES CAN BE CREATED IN SEQUENCE. IF THE NUMBER OF FILES EXCEEDS 256, THE “INDEX FULL” MESSAGE IS DISPLAYED. (6) VOICE MODE ☞...

  • Page 42: Deleting Files

    Deleting Files THIS WORK IS SAME AS DONE IN PC.

  • Page 43: Downloading Files

    Downloading Files COPY MUSIC FILES OR DATA FROM PC FOLDER AND DOWNLOAD THEM TO DEVICE. • Don’t detach USB cable under the condition file delete or file transfer. It might cause data loss or could break down.

  • Page 44: Formatting Files

    Formatting Files FORMAT on PC ○ 1 GO TO [MY COMPUTER], CHOOSE PORTABLE DISK(F:) AND CLICK RIGHT BUTTON OF MOUSE. FOLLOWING TOOLBAR APPEARS. AT THE TIME, CLICK FORMAT. ○ 2 CLICK ‘START’ WHEN FOLLOWING WINDOW APPEARS. ☞ THIS SET DOSE NOT SUPPORT “FAT32”. FORMAT MUST DO IN SETTING “FAT”.
  • Page 45 ○ 3 CLICK ‘OK’. ○ 4 FORMAT IS COMPLETED. ☞ DO NOT TAKE THE SET AWAY DURING FORMATTING. IT MAKE SERIOUS PROBLEM TO SET. IF FORMATTING IN FAT32, DO IT BY FAT AT THE PC AGAIN. AFTER REMOVING THE SET FROM PC IN FORMATTING WITH FAT32, “SYSTEM ERROR PLEASE FORMAT”...

  • Page 46: Firmware Upgrade

    Firmware Upgrade THIS DEVICE HAS THE FEATURE WHICH IS TO IMPROVE FUNCTION AND CORRECT ERROR BY UPGRADING FIRMWARE. YOU CAN DOWNLOAD UPGRADE FILE BY CONNECTING TO WEBSITE. • Before having Firmware upgrade, save the data in PC or other device. After this, start format of DDR- 5100 by the channel of MENU/ SYSTEM/ FORMAT.

  • Page 47: General Specification

    General Specification SSF-110 SSF-220 SSF-330 MODEL (128MB) (256MB) (512MB) SHQ:530min, SHQ:1060min, SHQ:2120min, RECORDING TIME HQ:1060min HQ:2120min HQ:4240min SP :2120min SP :4240min SP :8480min RECORDING MODE MP3 FORMAT : SHQ(32Kbps) / HQ(16Kbps) / SP(8Kbps) FOLDER A/B/C/D/E/F/G/H (8 FOLDER) Total 1024 Messages with 8 Separate Folder...
  • Page 48 SEARCHING Easy track search & track search REPEAT Normal/ One/ One All/ All/ Shuffle/ A↔B INTERFACE Mass Storage USB 1.1 SYSTEM CPU 200MHz more than , RAM 64MB more than, 20MB of free space interface Windows98SE , Windows2000 , Windows ME , Windows XP, OVER Mac OS9.2, OS10 SOUND CARD Sound blaster 16 compatible DISPLAY...
