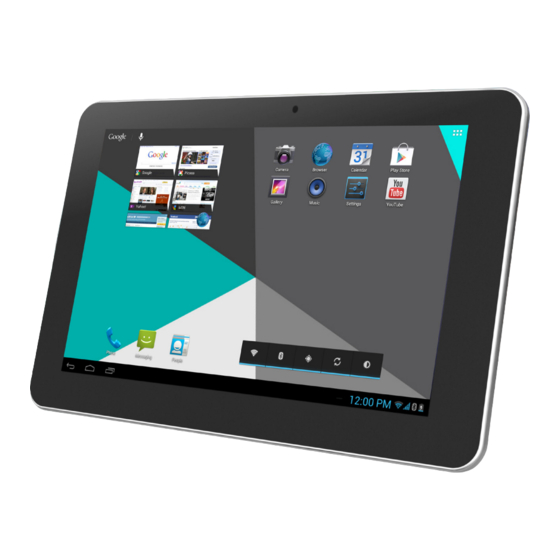

10.1” android tablet wifi + 3g

Advertisement

10.1" Android
Tablet WIFI + 3G
TM
Model Number: WL-101GQC
INSTRUCTION MANUAL
After Sales Support
Telephone:
1300 886 649
Email:
info@tempoaustralia.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL-101GQC and is the answer not in the manual?

Questions and answers

Summary of Contents for Bauhn WL-101GQC

  • Page 1 10.1” Android Tablet WIFI + 3G Model Number: WL-101GQC INSTRUCTION MANUAL After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
  • Page 2: Table Of Contents

    Contents Warranty Details Welcome General Safety Instructions Parts List Getting Started • SIM Card (2G/3G) • Micro SD Card • Charging the tablet • MID status and notifications Operation • Buttons • Switch on/off the device • Turn on/off the screen • MID screen operation • Main screen • Applications and widgets...
  • Page 3 Contents (Cont.) Settings • Wireless & Networks • Bluetooth • Device • Personalisation • System • Camera • Downloaded files management • Special notice • Firmeware reset Specifications Repair and Refurbished Goods or Parts Notice...
  • Page 4: Warranty Details

    10.1” Android Tablet WiFi +3G Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
  • Page 5: Welcome

    Welcome ® Congratulations on choosing to buy a BAUHN product. By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you by BAUHN ®...
  • Page 6: General Safety Instructions

    General Safety Instructions Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to.
  • Page 7 General Safety Instructions (Cont.) • D isposal: When discarding this device, observe local regulations and dispose of it appropriately for recycling. Contact your local authorities for advice on facilities. Maintenance • K eep the device dry. Do not let the device, battery or charger come into contact with water vapor or operate it with wet hands.
  • Page 8: Parts List

    Parts List After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
  • Page 9 Parts List (Cont.) 1. Power 2. Volume up/down 3. Micro SD card slot 4. Micro USB socket 5. Microphone 6. DC charger socket 7. Headphone socket 8. Rear camera 9. Mini SIM card slot 10. Reset button 11. Speaker 12. Front camera 13.
  • Page 10: Getting Started

    Micro SIM Mini SIM Micro SD Card Your Bauhn 10.1” 3G tablet is compatible with Class 10 Micro SD cards, up to 32GB in capacity. Power off your MID, then insert your Micro SD card into the SD slot on the left side of the MID, making sure the gold contacts are facing to the rear of the MID.
  • Page 11: Charging The Tablet

    Getting Started (Cont) Charging the tablet Before using your Android Tablet for the first time, you need to fully charge the battery. • When the tablet is off, a charging indicator will briefly appear on screen when the tablet is connected to a charger. • While charging, with the tablet turned on, a charging symbol will appear in the notification bar.
  • Page 12: Operation

    Operation Buttons There are 3 buttons located on the side of the tablet, which allow you to turn the tablet on/off and adjust the volume level. There is also a reset button on the rear of the MID. To use, gently press the desired button. You will feel a soft click. Switch on/off the device Power button • L ong press to turn on (3 seconds).
  • Page 13: Mid Screen Operation

    Operation (Cont) MID screen operation Click / Short When using the on-screen keyboard, opening an Press application or selecting items Long Press Press and hold for several seconds on an item (such as a text box or web page link) to display the action or submenu for an item, if available.
  • Page 14 Operation (Cont.) After unlocking the screen, you will see the last item you had open or the main screen, which has five windows or pages. You can view the pages by dragging your finger left and right across the screen. Every page has a 3D effect square frame.
  • Page 15 Operation (Cont.) Icons Description Top left to lower right: Current Time, Date, Bluetooth status, Mobile Signal, Wi-Fi Signal, Battery status, Settings. Click to display a list of all applications and widgets. Click to search for a file or application on the tablet, or to search the internet.
  • Page 16: Applications And Widgets

    Operation (Cont.) Applications and widgets Enter applications Click to enter the list of all applications and widgets. Click on the APPS tab in the top left corner. • T his window will display a list of the applications you have installed. • A s you install more applications, the first page will fill up and the application icons will automatically spread onto other pages.
  • Page 17 Operation (Cont.) Enter widgets Click to enter the list of all applications and widgets. Click on the WIDGETS tab in top left corner. Widgets are icons created by some applications to allow quick access to various features or to display information without the need to open the associated application.
  • Page 18: Add And Manage Desktop Icons

    Operation (Cont.) Add and manage desktop icons Add desktop icons At the application list or widget list, long press any application or widget and the device will shift into desktop, then drag them to any place on the desktop. Desktop shortcuts management To create a folder on the main screens, just drag and overlay any icon onto another icon, then release.
  • Page 19 Operation (Cont.) Then you can view the folder contents by clicking on the folder icon and it will display as pictured below. You can change the icon positions inside the folder by long pressing them, then dragging to the new position. If you want to remove an icon from the folder, long press the icon and drag to outside the folder.
  • Page 20: Change Wallpaper

    Operation (Cont.) Delete desktop shortcuts Long press any icon on the desktop and this icon will pop up. To delete the icon, drag the icon onto the top of and let go when it is a red colour. This also works for deleting folders and widgets. Change wallpaper Press and hold any blank area on the screen and the below menu will appear.
  • Page 21: Connect With Computer

    Operation (Cont.) Connect with computer Connect the device to a computer with a USB cable. When connected with a computer, a message will appear in the notification bar which will describe which USB mode the MID is in. There are 4 options available to choose from. • Media device (MTP) • Camera (PTP) • Mount SD card...
  • Page 22: Phone And Data Operation

    Phone and Data Operation Phone Operations This is a convenient and useful function, you can call people who use phones. For more SIM card information, refer to ‘Wireless and Networks’ in ‘Settings’. Click to phone Messaging You can send text, photos, multimedia messaging to people who have mobile phones.
  • Page 23: Applications

    Applications Browser Click to open the browser. When you click in the address bar, the device will automatically pop up the keyboard. After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
  • Page 24 Applications (Cont.) Click to open a new browser window. Click to close the current browser window. Click at the top right corner to show the browser menu. When the internet signal is poor and the web page does not load, click “Refresh”...
  • Page 25: Screen Compatibility

    Applications (Cont.) Screen compatibility When the device is installed with programs designed for small screen and cannot show in full screen, a screen zoom menu will pop up. You must confirm it to open those programs. Background applications Click the “background applications” (recent applications) on-screen button to show all programs running in the background.
  • Page 26: Gmail

    Applications (Cont.) Gmail You can use the device to access your emails stored in your Gmail account. Click to start the Gmail application. You will be asked to login with your Gmail account details or create a Gmail account if you do not have one. Read mail Touch any mail to read it;...
  • Page 27: Get And Install Applications

    Applications (Cont.) Get and install applications There are two ways to get applications software: download through this device or copy from a computer. Option 1: Download using a ‘Market’ or ‘Store’ application Download applications software using applications such as Google’s “Play Store”. Below are photos showing the process of downloading “Angry birds” from “Play Store”.
  • Page 28: Uninstall Applications

    Applications (Cont.) Uninstall applications • O pen the applications window and click , then click on “Apps” from the menu on the left. • I n the window on the right-hand side, click on “Manage apps”, then use the tabs at the top and scroll up and down through the list of applications until you find the application you wish to uninstall.
  • Page 29: Settings

    Settings The setting function on the Android MID is like that on a mobile phone or computer control panel. You can access the settings page by clicking the notification bar or “setting” icon in the applications list. Wireless & Networks • ‘ Mobile Networks’ section is located under the ‘More’ option. • T o activate data using your SIM card select ‘Data enabled’...
  • Page 30 Settings (Cont.) • C lick “Wi-Fi” to open the Wi-Fi function. • T o the right of the label “Wi-Fi” is the button to enable and disable Wi-Fi. • P ress the On/Off button to turn the Wi-Fi function on or off • C lick on the network you wish to connect to.
  • Page 31 Settings (Cont.) There are more useful advanced Wi-Fi settings when you choose to “show advanced options”. After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
  • Page 32: Bluetooth

    Settings (Cont.) Bluetooth Enable or disable bluetooth 1. Click “Settings” at the main menu or applications list. 2. In the “Wireless & networks” menu, click “Bluetooth”. 3. Click the On/Off button in the menu on the left to turn Bluetooth on or off. Change Bluetooth device name By default, the Bluetooth device will have a name.
  • Page 33: Device

    Settings (Cont.) Device Sound Set all sound options here. Click on “Volumes” to change the volume levels for multimedia players and applications, and also for notifications and alarms. Display Brightness, wallpaper, auto-rotate, font size. Storage Internal Storage: Space for installation of applications (APK software) Device Storage: Space for user’s files.
  • Page 34 Settings (Cont.) Battery Show battery balance and consumption. Applications Here you can manage applications, such as uninstall them or clear application data. You can also change the default install location for new applications. Choose from: Internal device storage, Removable SD card, or Let the system decide. After Sales Support Telephone: 1300 886 649...
  • Page 35: Personalisation

    Settings (Cont.) Personalisation Location services Use this menu to enable or disable Location options. GPS satellites Enable applications to use the built-in GPS module to locate your position. Wi-Fi & mobile network location Let applications use Google’s location services to estimate your location faster. After Sales Support Telephone: 1300 886 649 Email:...
  • Page 36 Settings (Cont.) Security The security menu contains many useful options for securing your tablet and data. Screen lock: C hange or set a protection method for locking the screen. Owner info: Enter text that will be displayed on the lock screen. This is a message that others can see without having to unlock the tablet.
  • Page 37 Settings (Cont.) Language and input In this area you can change the system language and change settings for the keyboard. Keyboard Some applications can open the keyboard automatically; others require you to click in an input field/area first. You can hide the keyboard by pressing the down arrow that appears where normally the on-screen back button would be.
  • Page 38 Settings (Cont.) Text selection - Copy, Share, Find • P ress and hold on one of the words you wish to select. The word will highlight in blue and a blue tab will appear at both ends. • P ress and drag the blue tabs to highlight the text you wish to select. • C hoose the task you wish to perform from the menu that appears at the top of the screen.
  • Page 39: System

    Settings (Cont.) Backup and reset Reset to factory settings: When some applications or the device itself cannot work properly, you can use this function to return the tablet to factory default settings. But you will lose all user installed applications and data. It is therefore important that you back up important data first.
  • Page 40: Camera

    Settings (Cont.) Development NOTE: T his section contains settings for advanced Android users only, such as Application Developers. By default all settings in this area are set to “Off”. About tablet Displays some information about the device. Camera The camera has photo-taking and video-recording functions. There are two cameras on the device. You can find your camera photos and video at > Applications > Gallery, or see camera videos and all other video files at >...
  • Page 41: Downloaded Files Management

    2. Gently press down at the same time (and continue to hold) both the Power button and the Volume up ( + ) button. 3. After a few moments you may see the BAUHN logo, continue holding the buttons. After several seconds the unit will display a menu in blue text.
  • Page 42: Specifications

    Specifications Processor & Memory Processor QualComm MSM8225Q Quad Core 1.2GHz RAM Size RAM Type DDR3 System features Internal Memory On Board 4GB Display Size 10.1” Display Resolution 1280x800 Touch Panel Capacitive Multitouch 1 x Micro USB I/O Ports 1 x Micro SD Card socket 1 x 3.5mm Headphone socket 1 x Mini SIM Card socket Internal MIC Wi-Fi 802.11b/g/n...
  • Page 43 This page was left blank intentionally. After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au...
  • Page 44: Repair And Refurbished Goods Or Parts Notice

    10.1” Android Tablet WiFi + 3G Repair and Refurbished Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of...
