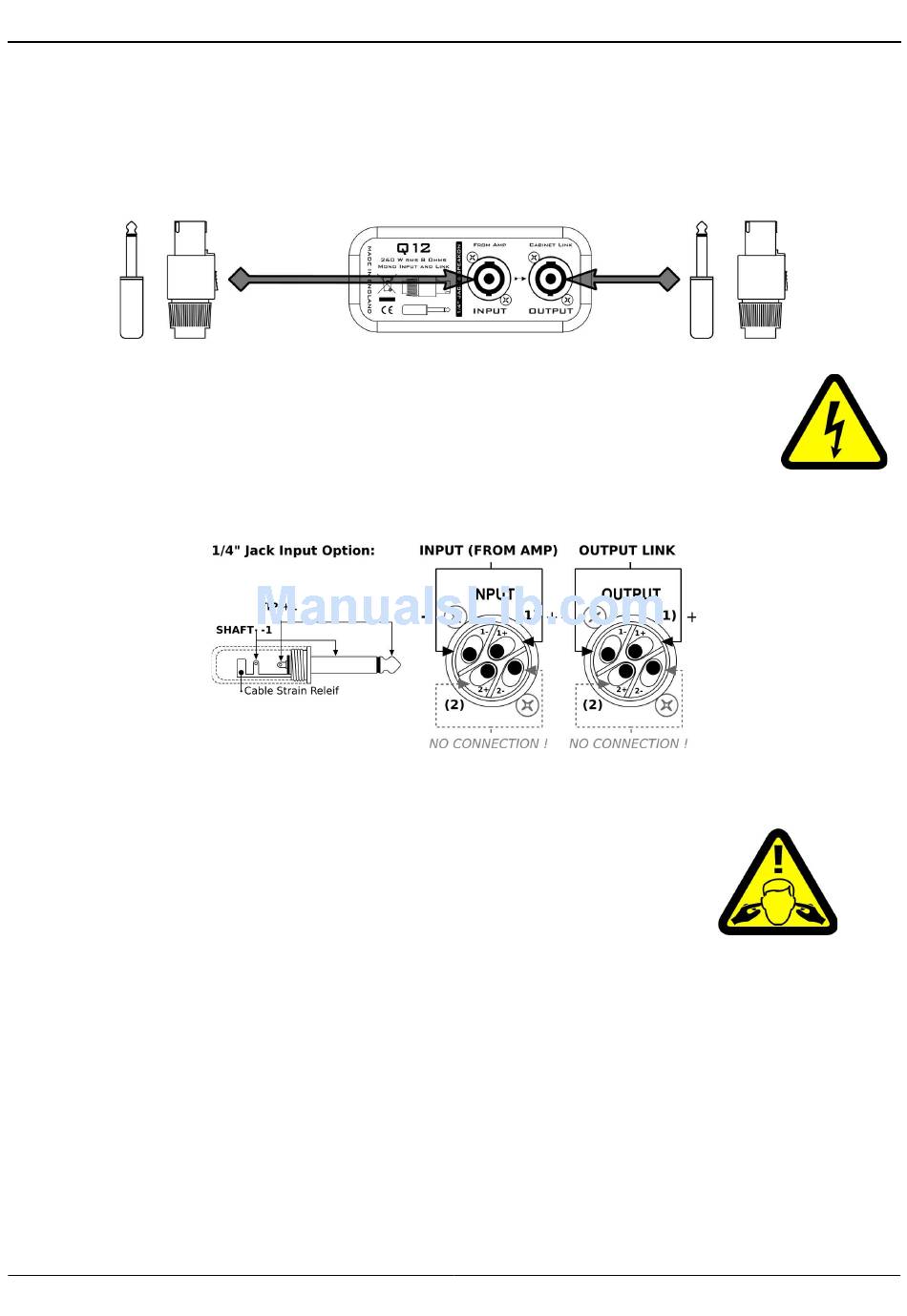

• Cabinet Connectors support the use of 1/4" Jack and Speakon Connections.
To maintain compatibility with system configurations many musicians are familiar with,
the ability to connect to the loudspeaker using 1/4" Jacks is also provided via combination
dual format Speakon connectors.
We would like to recommend however that Speakon connectors are used
where possible for connecting loudspeaker cabinets, as this decreases the
chance of damaging equipment or electrocution through accidental exposure
to the live end of an amplifier output lead, shorting, or connection to line level
inputs.
For reference only, consult a qualified engineer if cable wiring modifications are required.
Number of Audio Channels:
Power - Watts/RMS Continuous :
Power – Watts/Peak Headroom :
Cabinet Impedance :
Frequency Bandwidth Nominal :
Sound Dispersion Pattern
Cabinet Dimensions Inches : 14.75H x 17.9W x 11.2D
Cabinet Dimensions Millimetres :
REV.1.22
Loudspeaker Terminal Connections:
Loudspeaker Specifications:
Nominal :
Cabinet Weight :
Q 12
260 W
520 W
40-20,000 Hz
80H x 80V Degrees
13 Kg
375H x 455W x 285D
