Summary of Contents for Matrix Amplification CFR 12
-
Page 2: Table Of Contents
DO NOT OPEN LOUDSPEAKER; LEAVE ALL INTERNAL SERVICE OPERATIONS TO A QUALIFIED TECHNICIAN. THIS PRODUCT IS CAPABLE OF PRODUCING SOUND PRESSURE LEVELS WHICH MAY DAMAGE HEARING. THE USER IS RESPONSIBLE FOR EXPOSURE LEVELS AND USE OF HEARING PROTECTION. MATRIX AMPLIFICATION REV.1.01... -
Page 3: Features And Specifications
CFR SERIES USER MANUAL 1. Features and Specifications: The CFR 12 is a 12” coaxial, full range loudspeaker cabinet which has been designed for optimal performance and flexibility within its intended application as a musicians monitor loudspeaker. It is a passive, un-amplified cabinet, leaving the user free to choose an amplifier. - Page 4 Loudspeaker Terminal Connections: For reference only, consult a qualified engineer if cable wiring modifications are required. Loudspeaker Specifications: CFR 12 Number of Audio Channels: Power - Watts/RMS Continuous : 260 W Power – Watts/Peak Headroom :...
-
Page 5: Mono Loudspeaker Usage
Also note that series & series parallel connections cannot be used with this cabinet due to the presence of an internal crossover splitting the signal for the coaxial driver; poor performance will result. MATRIX AMPLIFICATION REV.1.01... -
Page 6: Stereo Loudspeaker Usage
Under NO circumstances connect multiple amplifier channels to the same cabinet ! Irreversible damage to both speaker, amplifier and associated equipment is likely to occur and is not covered by warranty. MATRIX AMPLIFICATION REV.1.01... -
Page 7: Recommended Amplification
CFR SERIES USER MANUAL 4. Recommended Amplification: We recommend the use of matrix GT and GM series amplifiers to power the CFR 12 optimally; however other amplifiers maybe used at users discretion. As a rule of thumb concerning musical instrument use of the cabinet in combination with an amplifier, a power capacity of up to twice the continuous RMS rating is permissible for solid state amps;... -
Page 8: Warranty
Warranty work can only be performed at our authorised distributors or at Matrix Amplification Limited. We will remedy the defect and ship the product from the service centre or our own factory within a reasonable time after receipt of the defective product. All expenses in remedying the defect, including freight costs from ourselves to you (within mainland UK) will be borne by us. -
Page 9: Declaration Of Ce Conformity
CFR SERIES USER MANUAL Declaration of CE Conformity Issuers Name and Address: Andrew Hunt, MATRIX AMPLIFICATION LIMITED, 32 Dewsland Park Road, Newport, South Wales. United Kingdom. NP20 4EF Products: CFR 12 Equipment Type: Commercial Audio Loudspeakers. Safety Standard: EN 60065 :2002+A12 : 2011 Safety requirements: Audio, video and similar electronic apparatus.
Need help?
Do you have a question about the CFR 12 and is the answer not in the manual?
Questions and answers

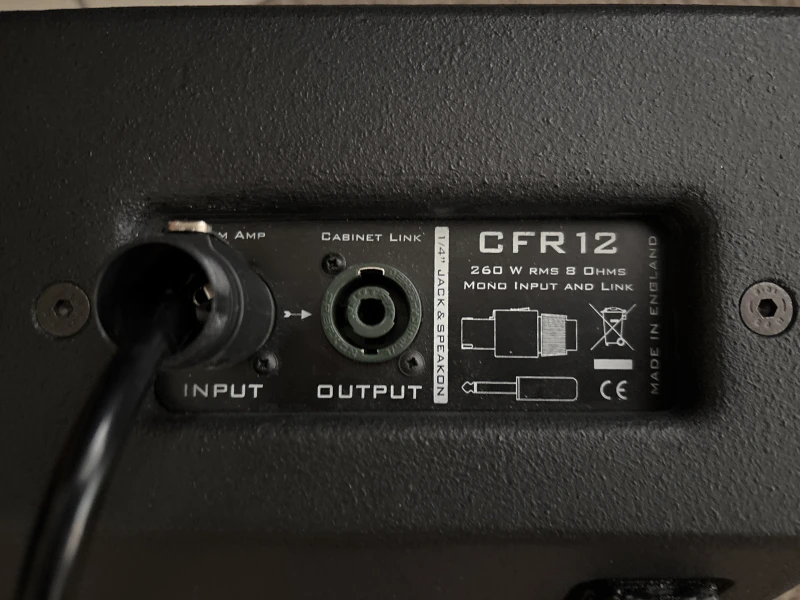

My input cord is stuck and I can’t loosen it to remove it
