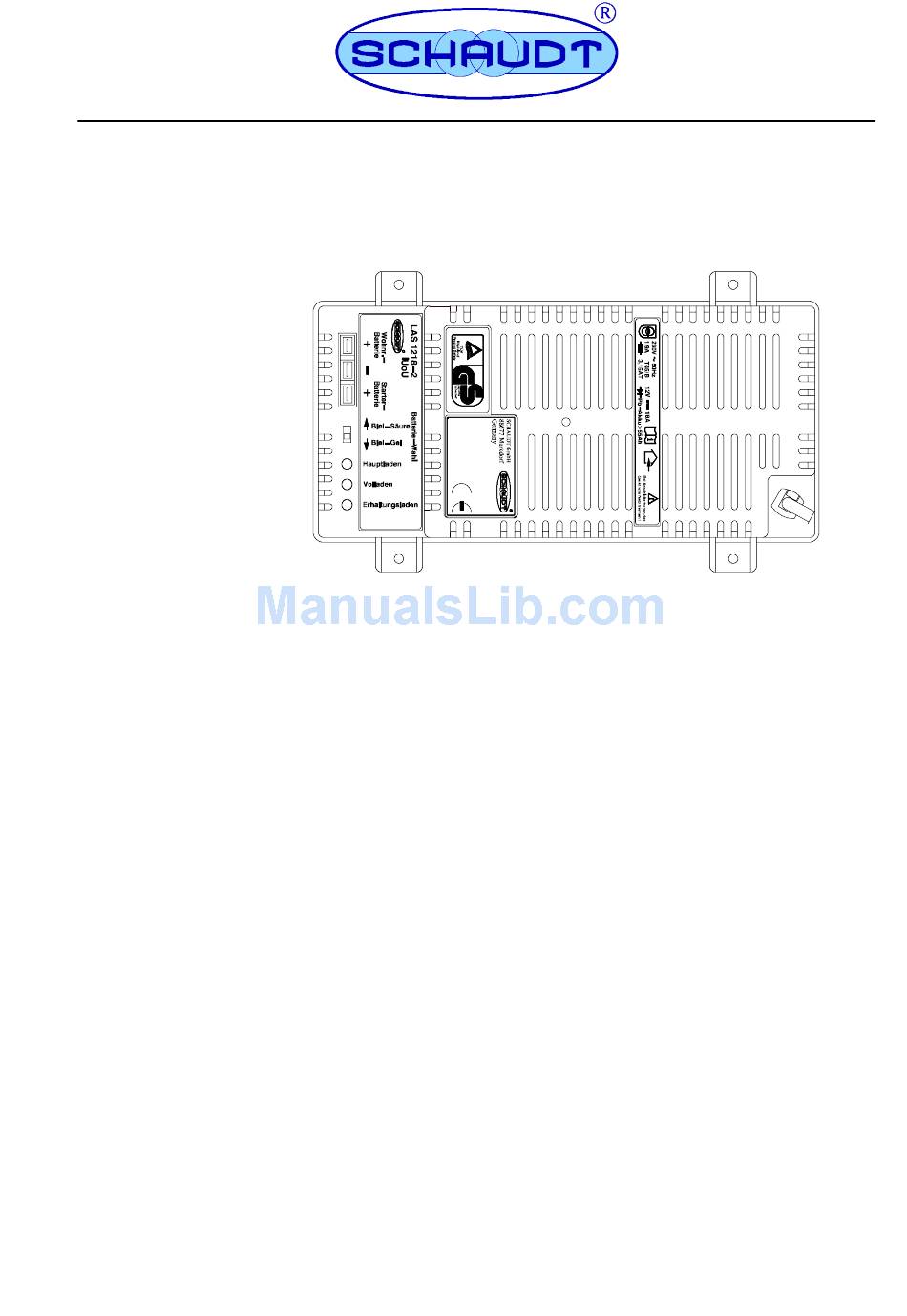

E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
810.523 BA / EN
Instruction Manual and Installation
Instructions
LAS 1218-2 Battery Charger
Table of contents
1
1.1
1.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4
2
2.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2
2.3
2.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.5
2.6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
Date: 06.11.2014
2
2
3
4
7
8
8
8
9
16
17
18
19
Advertisement
Table of Contents
Related Manuals for Schaudt LAS 1218-2
Summary of Contents for Schaudt LAS 1218-2
-
Page 1: Table Of Contents
..........E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 810.523 BA / EN... -
Page 2: Instruction Manual
Instruction Manual and Installation Instructions LAS 1218-2 Instruction Manual Safety Information 1.1.1 Meaning of safety symbols DANGER! Failure to heed this warning may result in death or serious injury. WARNING! Failure to heed this warning may result in personal injuries. -
Page 3: Introduction
Instruction Manual and Installation Instructions LAS 1218-2 WARNING! Hot components! Burns: Only change blown fuses when the device is completely de-energised. Only replace blown fuses once the cause of the fault has been identi- fied and rectified. Never bypass or repair fuses. -
Page 4: Operation
Instruction Manual and Installation Instructions LAS 1218-2 The LAS 1218-2 battery charger is for charging suitable batteries during 230V operation or supplying 12V consumers without connected battery with power. The device is a primary controlled switch-mode power supply unit. This mo- dern switching technology achieves high charging performance at a compact size and low weight. - Page 5 If this is not possible, e.g. if you are abroad, you can have the battery char- ger repaired at a specialist workshop. Please note that the warranty beco- mes void if incorrect repair work is carried out. Schaudt GmbH cannot ac- cept liability for any damages resulting from such repairs.
- Page 6 Instruction Manual and Installation Instructions LAS 1218-2 Fault Possible cause Remedy Living area battery is not No mains voltage Switch on the circuit charged during 230V breaker in the vehicle operation (battery voltage operation (battery voltage Have the mains voltage...
-
Page 7: Maintenance
Instruction Manual and Installation Instructions LAS 1218-2 Maintenance The battery charger is maintenance-free. Cleaning Clean the battery charger with a soft, slightly damp cloth and mild detergent. Never use spirit, thinners or similar substances. Do not allow liquids to enter the device. -
Page 8: Installation Instructions
Instruction Manual and Installation Instructions LAS 1218-2 Installation instructions Introduction These installation instructions are aimed at trained personnel. They contain important information on the connection and safe operation of the device. The safety information provided must be observed. Always follow the relevant instruction manual in addition to the installation in- structions. -
Page 9: Electrical Connection
4 x attachment- in the insulation housing holes, ø4.5 Fig. 1 Dimension diagram of LAS 1218-2 battery charger (dimensions in mm) 2.2.2 Fuse holder For applications that require one or two additional fuses (see sections 1.1.1.2 and 1.1.1.3 for example), fuse holders from the connector set must be installed. - Page 10 Connection as for auxiliary charger to the electroblock Auxiliary charger The LAS 1218-2 battery charger can also be used as an auxiliary charger for a Schaudt electroblock. Suitable for use here are all Schaudt electroblocks that include the LAS charger module and have the 2-pin MN connector (e.g.
- Page 11 Instruction Manual and Installation Instructions LAS 1218-2 The connector cable (Pos. 2 or 3) is required to connect the LAS 1218-2 battery charger to the electroblock. Fusing An additional fuse is not required as there is already one integrated in the electroblock.
- Page 12 Flat vehicle fuse, 20A Flat vehicle fuse, 10 A The connector set (Pos. 2 to 6) is required to connect the LAS 1218-2 bat- tery charger to up to two batteries. The length of the line to the starter battery may not exceed 4 m (supply and return lines together) for a cable cross-section of 2.5mm...
- Page 13 Living area battery Starter battery + terminal of LAS 1218-2 living area battery (flat push-on contact 6.3 x 0.8) to F1 (flat push-on contact 6.3 x 0.8) F1 (flat push-on contact 6.3 x 0.8) to + terminal of living area battery (ring terminal, M6 or M8) + terminal of LAS 1218-2 starter battery (flat push-on contact 6.3 x 0.8)
- Page 14 * Pos. 3 and 4 each only required 2 x, Pos. 5 only 1 x, Pos. 7 not used. The connector set (Pos. 2 to 6) is required to connect the LAS 1218-2 bat- tery charger to the additional battery.
- Page 15 F4 (flat push-on contact 6.3 x 0.8) to + battery terminal (ring terminal, M6 or M8) LAS 1218-2 to additional battery connection -- terminal of LAS 1218-2 (flat push-on contact 6.3 x 0.8) -- terminal of battery (ring terminal, M6 or M8) Label the additional fuse with sticker ”F4 -- additional battery”.
-
Page 16: Initial Use
Instruction Manual and Installation Instructions LAS 1218-2 2.3.2 Mains connection DANGER! 230V mains voltage carrying parts. Danger of death due to electric shock or fire: Only carry out electrical work once the 230V supply has been discon- nected. Mains connection... -
Page 17: Technical Details
230-V- mains cable of the LAS 1218-2 charger must be connected (the charger does not have its own mains switch). Check whether the batteries are being charged (display on the battery charger). -
Page 18: Storage - Packaging - Transportation
16 h with lead gel Time Fig. 9 Example of the charge voltage behaviour with the LAS 1218-2 battery charger Main charge with maximum 18 A charging current, electronically limi- ted, up to final charging voltage. Start of charge also for totally dischar- ged batteries. -
Page 19: Appendix
Instruction Manual and Installation Instructions LAS 1218-2 Appendix EC Declaration of Conformity Schaudt GmbH hereby confirms that the design of the LAS 1218-2 battery charger complies with the following relevant regulations: EC-Low Voltage Directive: 73/23/EEC edition with modifica- tions from 22.07.93... - Page 20 Instruction Manual and Installation Instructions LAS 1218-2 Fault report In the event of damage, please return the defective device together with the completed fault report to the manufacturer. Device type: _______________________ Item no.: _______________________ Vehicle: Manufacturer: _______________________ Model: _______________________ Own installation?
