Atech Flash Technology iDuo User Manual

Dock/media reader
Hide thumbs Also See for iDuo:

Advertisement

Quick Links

Download this manual
TM
Atech Flash Technology, Inc.
iDuo
TM
User's Guide
Guide de l'utilisateur

Advertisement

loading
Need help?

Need help?

Do you have a question about the iDuo and is the answer not in the manual?

Questions and answers

Related Manuals for Atech Flash Technology iDuo

Summary of Contents for Atech Flash Technology iDuo

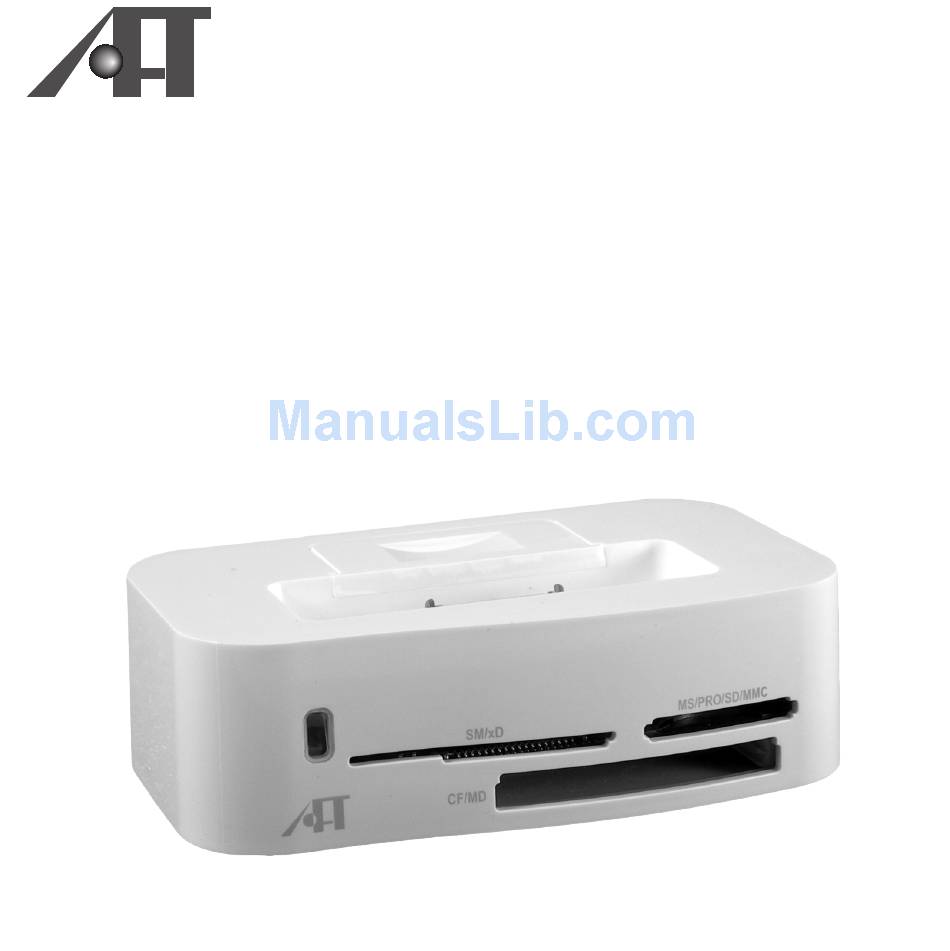

  • Page 1 Atech Flash Technology, Inc. iDuo User's Guide Guide de l'utilisateur...
  • Page 2 Congratulations Congratulations on your purchase of the iDuo dock/media reader. The iDuo is a docking station for your iPod™ and also a media reader for your Mac or PC computer. This guide will explain the features and specifications of your new iDuo, as well as the installation in a few simple steps.

  • Page 3: Package Contents

    Package Contents iDuo External USB 2.0 Cable x 1 - Connects iDuo to open USB port in your computer. To Reader unit connector To open USB port in your computer...
  • Page 4 Using the iDuo dock The iDuo dock is designed to hold the iPod upright as it charges or transfers music from your computer. Attach the iPod cable to your computer or power outlet and plug the other end to the iDuo dock connector.
  • Page 5 LINE-OUT to Play Music through External Speakers/Stereo The iDuo dock is designed to play music from iPod to external speakers, amplifier, or stereo system. Attach an audio/speaker cable that has a 3.5mm stereo miniplug to the iDuo LINE OUT port. You can now use the volume controls of the external audio source to adjust the volume.
  • Page 6 S-VIDEO Out to Display PHOTOS through External Display The iDuo dock is designed to display photos from the iPod photo to an external display. Attach a S-Video cable to the iDuo S-VIDEO OUT port and then connect the other end to the S-Video In display source such as a TV, LCD Projector, VCR, etc..
  • Page 7 The iDuo USB media reader is designed to transfer data between media cards your computer(does not transfer data directly to iPod). Attach the USB cable to READER port of the iDuo and then plug the other end to the USB port of your computer. Insert the media card into the slot and wait for your system to recognize the card.
  • Page 8 Installing Driver CD This step is required for Mac 9.2.+ and Windows 98SE / 2000 only. If you have Mac OS X V10.1.2+ or Windows ME / XP, please skip this step and proceed ahead. (1) Close all applications that are running, including applications running in the background.
  • Page 9 Using Media Reader with Mac Insert media card into designated card slot. Your Mac OS will display removable disk icons labeled 'no name' representing the media slot. Then you can open the files and begin read/write data to your media card. Before removing your media card from the reader, you must first EJECT the selected media card.

  • Page 10: Specifications

    Specifications Dimension (W x H x D): 3.93 inch x 1.18 inch x 2.36 inch / 100 mm x 30 mm x 60 mm Power Requirement: 5V DC, 500mA (USB bus power) Compact Flash™ Type I Supported media format: Compact Flash™ Type II MicroDrive™...

  • Page 11: Limited Warranty

    Limited Warranty Atech Flash Technology, Inc. ("AFT"), warrants to the original end user ("Customer") that under normal intended use AFT memory flash card readers will be free from defects in materials and workmanship for one (1) year from the date of purchase. During warranty period, AFT shall either repair, or replace defective product.
