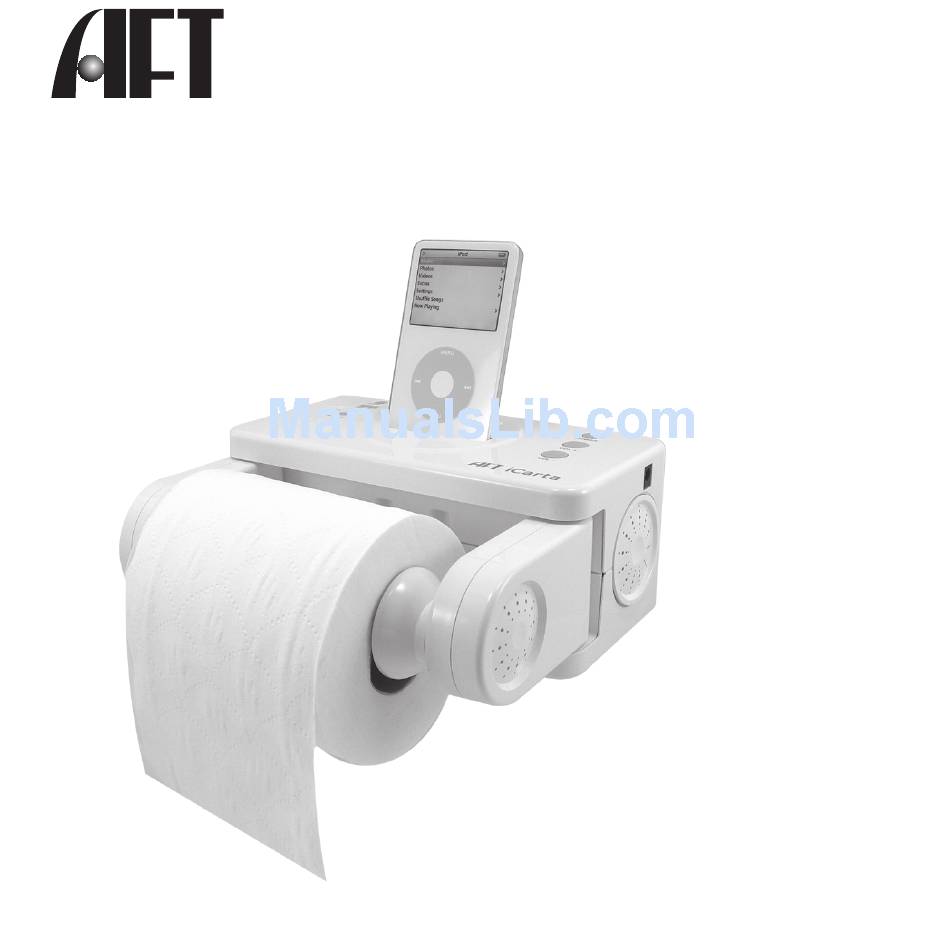

- Page 1 Atech Flash Technology, Inc. iCarta ™ User's Guide...
-
Page 2: Table Of Contents
Table of Contents A Consumer Guide to Product Safety ...2-4 Safety Instructions FCC Information Getting Started ...5-8 Install Wall Mount Spacer for iPod® Bath Tissue Holder Install AC Adapter Tabletop Use Controls and Indicators ...9 Setup and Operations ...10-11 Charging your iPod Listening to your iPod Listening to your iPod shuffle Listening to other audio device... -
Page 3: Important Safety Instructions
A Consumer Guide to Product Safety IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. - Page 4 A Consumer Guide to Product Safety Lightning and Power Surge Protection – Unplug the unit from the wall outlet and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
-
Page 5: Fcc Information
A Consumer Guide to Product Safety FCC INFORMATION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. -
Page 6: Getting Started
Select a location with adequate clearance near an AC electrical outlet. Make sure the power cord will reach the outlet easily. Mounting the iCarta We recommend the unit be mounted flush against the cabinet or wall. 1. Position Mounting Template on your chosen location. - Page 7 Getting Started 6. Mount the unit by lining up the holes on the backside. 7. Slide the unit down until it locks into place. 8. Make any adjustments to the screws to have a tighter/looser fit. Once the unit is securely mounted, connect the AC adapter plug into the jack on the side of the unit, then plug the AC adapter into AC electrical outlet.
- Page 8 Getting Started Using Dock Spacer with iPod Your iCarta comes with an adjustable spacer that slides to accommodate different sized iPod. This is to ensure your iPod will fit properly with the dock on top of unit. To adjust the spacer: Install Bath Tissue Holder Your iCarta comes with a bath tissue holder.
-
Page 9: Getting Started
4. Turn on the iCarta with the POWER button. 5. Select iPod using the SELECT button. 6. Dock your iPod 7. While your iPod is docked in the iCarta, it recharges (until fully charged). (Note: iPod shuffle will not charge with the unit.) -
Page 10: Controls And Indicators
Controls and Indicators iCarta 1. Audio Line-in 2. iPod Shuffle USB connector 3. Selection Indicator (iPod, iPod shuffle, Line-in) 4. SELECT 5. Adjustable spacer for iPod 6. POWER 7. VOLUME UP + 8. VOLUME DOWN - 9. Dock connector for iPod... -
Page 11: Setup And Operations
1. Turn on the iCarta with the POWER button. 2. Select iPod using the SELECT button. 3. Dock your iPod 4. While your iPod is docked in the iCarta, it recharges (until fully charged). (Note: iPod shuffle will not charge with the unit.) Listening to your iPod 1. -
Page 12: Setup And Operations
Line-in jack, located on top of unit. (Note: If the playing song/music loudness on the audio device itself is too high, the iCarta audio will sound too distorted. Make adjustments on the device to prevent this.) 4. -
Page 13: Maintenance And Troubleshooting
Maintenance & Troubleshooting Maintenance Do not expose the system to sources of excessive heat, dust or vibrations. Protect your furniture when placing the unit on a flat surface made of natural wood and lacquered finish. A protective material such as a cloth should be placed between the unit and furniture. -
Page 14: Troubleshooting
Troubleshooting Troubleshooting Symptom iPod did not charge up iPod is not connected properly. Note: Does not recharge iPod shuffle. Audio is distorted. Volume level is set too high on the unit. Playing from iPod shuffle. Playing from different audio device. iPod software out of date. -
Page 15: Limited Warranty
AFT shall not be liable for any losses or damages of any kind resulting from the use of AFT products or for any of Customer's data stored on products returned to AFT for service. AFT accepts no liability for and provides no expressed or implied warranty against any loss of data or images.
