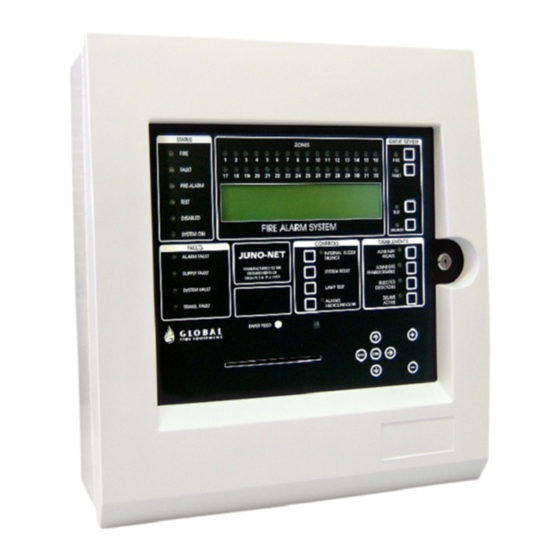

- Page 1 JUNO-NET EN-54 Fire Alarm Control Panel OPERATION & MAINTENANCE MANUAL JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005...
-
Page 2: Table Of Contents
Main control board fuse................ Connection board fuses................ Sub-panel fuses................... Battery voltage and charger checks............Replacing the Mains Fuse..............Use of programming functions for maintenance........Getting into Programming Mode............2.10 Logbook..................... 2.10 Event data sheet................... JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 3: Operation
: If the LED is AMBER it indicates that there is 5 Volt fault or a processor/program failure. TRANSMISSION FAULT : If the LED is AMBER it indicates that there is an open or short circuit in the fire brigade transmission circuit. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0... - Page 4 : When using the Remote Infra-Red Keypad it is important that the remote is pointed towards this sensor. KEYPAD: Used to enter authorized User and Programming codes, to select functions and options, and scroll through devices, loops and zones. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005...
-
Page 5: Alarm
DELAYS SILENCE/RESOUND ACTIVE silence the Internal Buzzer. It will also turn off the PAPER FEED INTERNAL BUZZER SILENCE DO NOT PRESS SYSTEM RESET UNTIL THE ALARM CONDITION HAS BEEN DEALT WITH. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 6: Reset The System
SUPPLY FAULT EN54-4: 1997 / AC: 1999 SOUNDERS SYSTEM RESET ENABLE/DISABLE SYSTEM FAULT SELECTED LAMP TEST DETECTORS TRANS. FAULT The sounders turn off ALARMS DELAYS SILENCE/RESOUND ACTIVE PAPER FEED ALARMS SILENCE/RESOUND extinguishes JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 7: Read The Fire, Fault, Test And Disabled Queues
SYSTEM FAULT SELECTED LAMP TEST DETECTORS TRANS. FAULT ALARMS DELAYS SILENCE/RESOUND ACTIVE PAPER FEED After 15 seconds the display will return to it’s quiescent state (usually the company name and current time). JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 8: Active Delays
" USER ACCESS LEVEL" will appear on the top line of the LCD display. Functions indicated as available to the General User do not require an access code to be entered JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0... -
Page 9: Lamp Test
All pixels on the LCD display should turn black All external Zone LEDs, if fitted, should be illuminated Release the LAMP TEST button to end the test. The LEDs and LCD display will return to their normal condition. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0... -
Page 10: Perform A Fire Drill
SYSTEM RESET ENABLE/DISABLE SYSTEM FAULT SELECTED LAMP TEST SILENCE/RESOUND button once more DETECTORS TRANS. FAULT ALARMS DELAYS SILENCE/RESOUND ACTIVE The following will occur: PAPER FEED The sounders stop sounding ALARMS SILENCE/RESOUND extinguishes JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 11: Caretaker Test Mode
· The message “ DETECTOR TEST MODE “ will be displayed on the LCD · The Zones in test mode will be displayed on the LCD - “ ALL ZONES “ JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... - Page 12 - depending on the system settings). Other Whilst in Caretaker Test Mode the SOUND ALARMS button will remain functional Caretaker Test Mode can be initiated from a Main Panel or Repeater JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0...
-
Page 13: Disablements
LAMP TEST DETECTORS TRANS. FAULT there is at least one detector set to SELECTIVE ALARMS DELAYS SILENCE/RESOUND ACTIVE DISABLEMENT. PAPER FEED Re-pressing the SELECTED DETECTORS button again will re-enable the detectors. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 14: Auxiliary Relays
EN54-4: 1997 / AC: 1999 SOUNDERS SYSTEM RESET ENABLE/DISABLE SYSTEM FAULT SELECTED LAMP TEST Re-press the SOUNDERS ENABLE/DISABLE button to re- DETECTORS TRANS. FAULT ALARMS DELAYS enable all sounders. SILENCE/RESOUND ACTIVE PAPER FEED JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 15: Zones Enable/Disable
SELECTED LAMP TEST DETECTORS TRANS. FAULT ALARMS DELAYS SILENCE/RESOUND ACTIVE If any detector detects a pre-alarm condition, the PAPER FEED STATUS - PRE-ALARM will light up AMBER. CALL THE MAINTENANCE ENGINEER JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 16: Maintenance
THE PRINTER CAN BE DAMAGED IF IT IS SYSTEM FAULT SELECTED LAMP TEST DETECTORS OPERATED WHILE PAPER CANNOT FEED TRANS. FAULT ALARMS DELAYS SILENCE/RESOUND ACTIVE FREELY. AT FIRST INSTALLATION, REMOVE PAPER FEED THE ELASTIC BAND FROM THE PAPER. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 17: Sim Card Replacement
To install the replacement SIM CARD, locate it on the connector almost horizontally with the main panel board, push it up and back gently until the retaining clips snap into position. Download the panel configuration from the JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 18: Main Control Board Fuse
The location, function and rating of the fuse on the connection board are given below. MAX 3A FAST ACTING BATTERY FUSE H8/3003 WARNING ALWAYS REMOVE POWER FROM THE PANEL BEFORE REPLACING FUSES. J-NET-SP: JUNO-NET SUB-PANEL BOARD JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 19: Battery Voltage And Charger Checks
For convenience, there is also place to store a spare fuse. FUSE 2.4Amp = 4Amp Fuse 5.6Amp = 6.3Amp Fuse NEUTRO FASE MEANWELL MODEL: PS-65-27 INPUT: 100-240V AC 1.5A 50/60Hz OUTPUT: +27V 2.4A DANGER 220 VOLTS 2.4A POWER SUPPLY UNIT JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 20: Use Of Programming Functions For Maintenance
If you wish to stop a printout enter the function again and you will be given the option of canceling the printout. This function cannot be accessed remotely (from the PC Graphics software or a Repeater). Nothing will be printed if the printer is disabled by (function 8-4-3). JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0... - Page 21 Integrated Sub-panels Conventional Sounders and Loop Sounders are operated for 1 second then silenced for 9 seconds. Conventional Sounder operation for a Repeater Integrated Sub-panel will be synchronized to the Loop Sounder operation. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0...
- Page 22 There is no need to press ENTER just use UP/DOWN to toggle between LED NORMAL MODE and LED TEST MODE. This test has no effect on Integrated Sub-panels. Upon exit of this programming function normal functionality is automatically restored. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0...
- Page 23 Select the device and SWITCHED ON and press ENTER. The device will typically take a few seconds to respond. Selecting NORMAL for that device, or selecting SWITCHED ON for another device on the same Sub- panel, will clear the LED on the first device. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0...
-
Page 24: Getting Into Programming Mode
SHIFT: Toggle this keypad to switch from alpha-numeric & to numeric " ENTER: Accept current selection HOME B-SP SHIFT SPACE ENTER EXIT ESC.: Reject. (ESCape from current selection) EXIT: Press both keys simultaneously to stop programming JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... - Page 25 JUNO-NET MOTHERBOARD (BACK VIEW) QUAD UART J-NET-QUART: QUAD UART SIM CARD CONNECTOR STANDOFFS (4) FOR LOOPCARD LOOPCARD HEADER DISPLAY LOOPCARD HEADER MASTER RESET PRINTER CONNECTOR PS2 PC KEYBOARD ADAPTOR PRINTER FUSE JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005...
- Page 26 The first press will display help for 7 seconds, a second press will ensure the help is displayed for 20 seconds. Pressing any key whilst help is displayed will clear the help but this key press will be ignored. JUNO-NET EN-54 OPERATION &...
- Page 27 7 Monitor Device Counts & Test 8 General Most functions operate in a consistent manner using the standard keys. The item that is being changed is usually highlighted with a flashing cursor. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0...
-
Page 28: Logbook
Name and address: Responsible person: Date:_________________________ ________________________ Date:_________________________ ________________________ Date:_________________________ ________________________ Date:_________________________ The system was installed by:_______________________________________________ and is maintained under contract by:________________________________________ _______________________________until:___________________________________ Telephone number:____________________________________ should be contacted if service is required. JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005... -
Page 29: Event Data Sheet
MAINTENANCE JUNO-NET 2.10 EVENT DATA SHEET DATE DATE TIME EVENT ACTION REQUIRED INITIALS COMPLETED JUNO-NET EN-54 OPERATION & MAINTENANCE MANUAL REVISION 1.0 21-08-2005...
