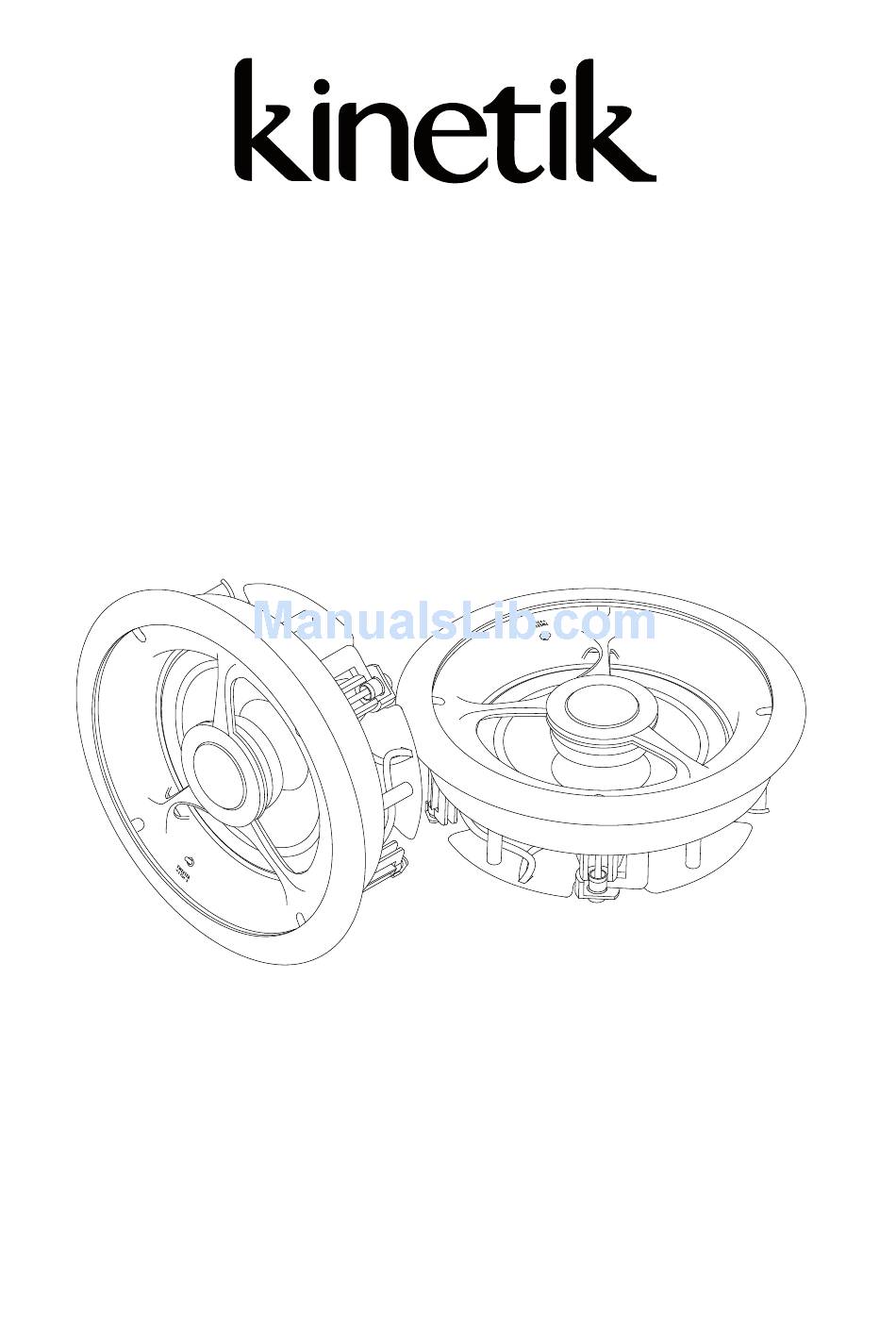

  • Page 1 ™ Kinetik Labs KISP-E160-IC In-Ceiling Speakers Instruction Manual...
  • Page 2: Table Of Contents

    ™ Kinetik Labs In-Ceiling Speakers KISP-E160-IC Contents Section Page Introduction Safety Instructions Description Box Contents Installation Instructions Speaker Removal Painting Speakers Additional Features Specifications Limited Warranty...
  • Page 3: Introduction

    Description The KISP-E160-IC is designed for installation in ceilings, or other suitable surfaces such as plasterboard walls. It is a two way array design with 160mm Polypropylene bass/mid driver and pivotable 25mm silk dome tweeter. The tweeter can be angled 30 degrees in any direction from the centre thanks to its ball and socket design.
  • Page 4: Box Contents

    Box Contents Aluminium speaker grille KISP-E160-IC In-ceiling speaker Cutout template Paint guard Speaker grille fixing gum Speaker grille extraction tool Instruction manual...
  • Page 5: Installation Instructions

    Installation Instructions Be careful when handling the speaker. It is okay to hold using the tweeter bridge but do not touch the drive unit as it could result in damage. Using the cut out template, draw a 202mm circle on the ceiling / wall, where you wish to install the speaker.
  • Page 6 Installation Instructions (continued) Place each speaker into the hole, with the white plastic dog legs on the rear of the speaker tucked in, and tighten the four screws with a Phillips-head screw- driver. The dog legs will turn and lock the speaker into the ceiling / wall.
  • Page 7: Speaker Removal

    Speaker Removal Hook the speaker grille at the edge using the speaker grille removal tool and ease it carefully off the speaker. Unscrew the four screws around the speaker rim and hold it securely as it loosens. The dog legs should automatically retract.
  • Page 8: Additional Features

    Additional features Treble boost / cut switches The KISP-E160-IC speakers have a switch for adjusting treble frequencies in the audio spectrum. It can be left in the central position for passive response or switched left or right for a 3 decibel boost or cut.
  • Page 9: Specifications

    Specifications General Model Number: KISP-E160-IC Box contents: 2x in-ceiling speakers 2x aluminium speaker grilles Included accessories: 1x cut out template 2x paint guards 1x speaker grille removal tool 8x speaker grille fixing gum 1x instruction manual Mechanical Woofer: 160mm Polypropylene cone with mica, rubber...
  • Page 10: Limited Warranty

    Limited Warranty This Kinetik Labs product is warranted free of defects in workmanship and materials on purchase. If the goods are found to be defective within the warranty period, they will be repaired or replaced, at AWE Europe Ltd’s option, without charge on return to the vendor upon satisfactory proof of purchase from the vendor and date of purchase.
  • Page 12 Europe Ltd. AWE Europe Ltd is not liable for omissions or for technical or editorial errors herein or for damages directly or indirectly resulting from the use of this Kinetik Labs product. ‘Kinetik Labs’ and the ‘Kinetik’ logo are trademarks of...
