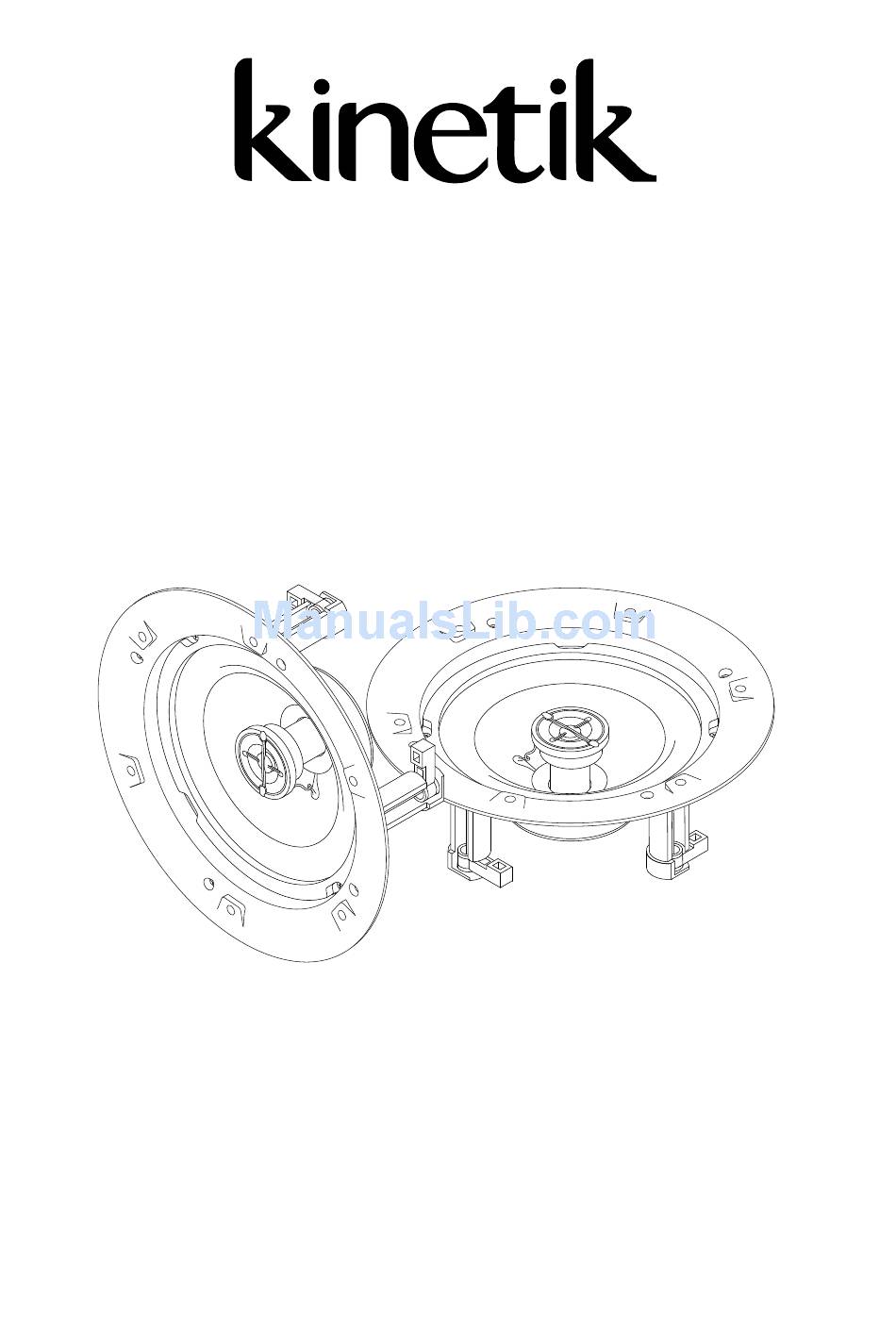

- Page 1 ™ Kinetik Labs KISP-C160-LP In-Ceiling Speakers Instruction Manual...
-
Page 2: Table Of Contents
™ Kinetik Labs In-Ceiling Speakers KISP-C160-LP Contents Section Page Introduction Safety Instructions Description Box Contents Installation Instructions Speaker Removal Painting Speakers Additional Features Specifications Limited Warranty... -
Page 3: Introduction
Building regulations may require that you install a fire hood. Description The KISP-C160-LP is designed for installation in ceilings, or other suitable surfaces such as plasterboard walls. It is a two way array design with 160mm Polypropylene bass/mid driver and 13mm mylar dome tweeter. -
Page 4: Box Contents
Box Contents Speaker grille KISP-C160-LP In-ceiling speaker Cutout template Instruction manual... -
Page 5: Installation Instructions
Installation Instructions Be careful when handling the speaker. It is okay to hold using the tweeter bridge but do not touch the drive unit as it could result in damage. Using the cut out template, draw a 204mm circle on the ceiling / wall, where you wish to install the speaker. - Page 6 Installation Instructions (continued) Place each speaker into the hole, with the white plastic dog legs on the rear of the speaker tucked in, and tighten the four screws with a Phillips-head screw- driver. The dog legs will turn and lock the speaker into the ceiling / wall.
-
Page 7: Speaker Removal
Speaker Removal Holding the edges, pull the speaker grille from the wall or ceiling to release it from the magnets. Unscrew the four screws around the speaker rim and hold it securely as it loosens. The dog legs should automatically retract. To release the speaker, gently pull it out from the hole and disconnect the speaker cable from the binding posts. -
Page 8: Specifications
Specifications General Model Number: KISP-C160-LP Box contents: 2x in-ceiling speakers 2x speaker grilles Included accessories: 1x cut out template 1x instruction manual Mechanical Woofer: 160mm polypropylene cone with UV treated foam surround, 25mm voice coil Tweeter: 13mm mylar dome Tweeter protection:... -
Page 9: Limited Warranty
Limited Warranty This Kinetik Labs product is warranted free of defects in workmanship and materials on purchase. If the goods are found to be defective within the warranty period, they will be repaired or replaced, at AWE Europe Ltd’s option, without charge on return to the vendor upon satisfactory proof of purchase from the vendor and date of purchase. - Page 12 Europe Ltd. AWE Europe Ltd is not liable for omissions or for technical or editorial errors herein or for damages directly or indirectly resulting from the use of this Kinetik Labs product. ‘Kinetik Labs’ and the ‘Kinetik’ logo are trademarks of...
