Kinetik Labs
KISP-E160-ICS
Stereo In-Ceiling Speaker
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KISP-E160-ICS and is the answer not in the manual?

Questions and answers

Summary of Contents for Kinetik KISP-E160-ICS

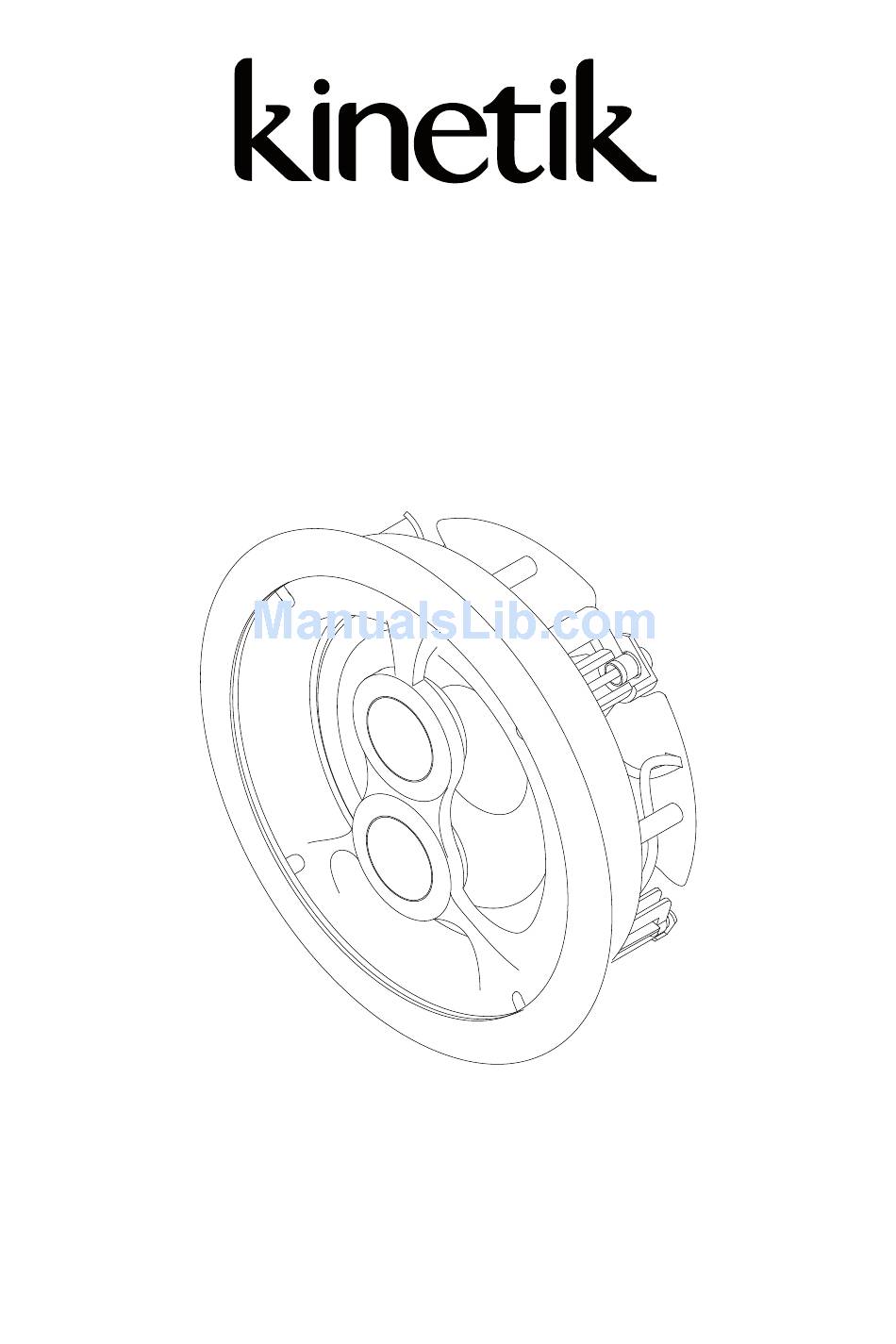

  • Page 1 ™ Kinetik Labs KISP-E160-ICS Stereo In-Ceiling Speaker Instruction Manual...
  • Page 2: Table Of Contents

    ™ Kinetik Labs Stereo In-Ceiling Speaker KISP-E160-ICS Contents Section Page Introduction Safety Instructions Description Box Contents Installation Instructions Speaker Removal Painting Speakers Additional Features Specifications Limited Warranty...
  • Page 3: Introduction

    The tweeters can be angled 30 degrees in any direction from the centre thanks to their ball and socket design. A single KISP-E160-ICS speaker has a stereo input and provides a stereo high frequency output, ideal for use in...
  • Page 4: Box Contents

    Box Contents Aluminium speaker grille KISP-E160-ICS In-ceiling speaker Cutout template Paint guard Speaker grille fixing gum Speaker grille extraction tool Instruction manual...
  • Page 5: Installation Instructions

    Installation Instructions Be careful when handling the speaker. It is okay to hold using the tweeter bridge but do not touch the drive unit as it could result in damage. Using the cut out template, draw a 202mm circle on the ceiling / wall, where you wish to install the speaker.
  • Page 6 Installation Instructions (continued) Place the speaker into the hole, with the white plastic dog legs on the rear of the speaker tucked in, and tighten the four screws with a Phillips-head screw- driver. The dog legs will turn and lock the speaker into the ceiling / wall.
  • Page 7: Speaker Removal

    Speaker Removal Hook the speaker grille at the edge using the speaker grille removal tool and ease it carefully off the speaker. Unscrew the four screws around the speaker rim and hold it securely as it loosens. The dog legs should automatically retract.
  • Page 8: Additional Features

    Additional features Pivoting tweeters The KISP-E160-ICS speaker is ideally suited for installations where the wall or ceiling area cannot fit multiple speakers but where stereo sound is desired. Each tweeter has a wide dispersion and boasts 360 degree housings, each adjustable to 30 degrees off axis.
  • Page 9: Specifications

    Specifications General Model Number: KISP-E160-ICS Box contents: 1x stereo in-ceiling speaker 1x aluminium speaker grille Included accessories: 1x cut out template 1x paint guard 1x speaker grille removal tool 4x speaker grille fixing gum 1x instruction manual Mechanical Woofer: 160mm polypropylene cone with...
  • Page 10: Limited Warranty

    Limited Warranty This Kinetik Labs product is warranted free of defects in workmanship and materials on purchase. If the goods are found to be defective within the warranty period, they will be repaired or replaced, at AWE Europe Ltd’s option, without charge on return to the vendor upon satisfactory proof of purchase from the vendor and date of purchase.
  • Page 12 Europe Ltd. AWE Europe Ltd is not liable for omissions or for technical or editorial errors herein or for damages directly or indirectly resulting from the use of this Kinetik Labs product. ‘Kinetik Labs’ and the ‘Kinetik’ logo are trademarks of...
