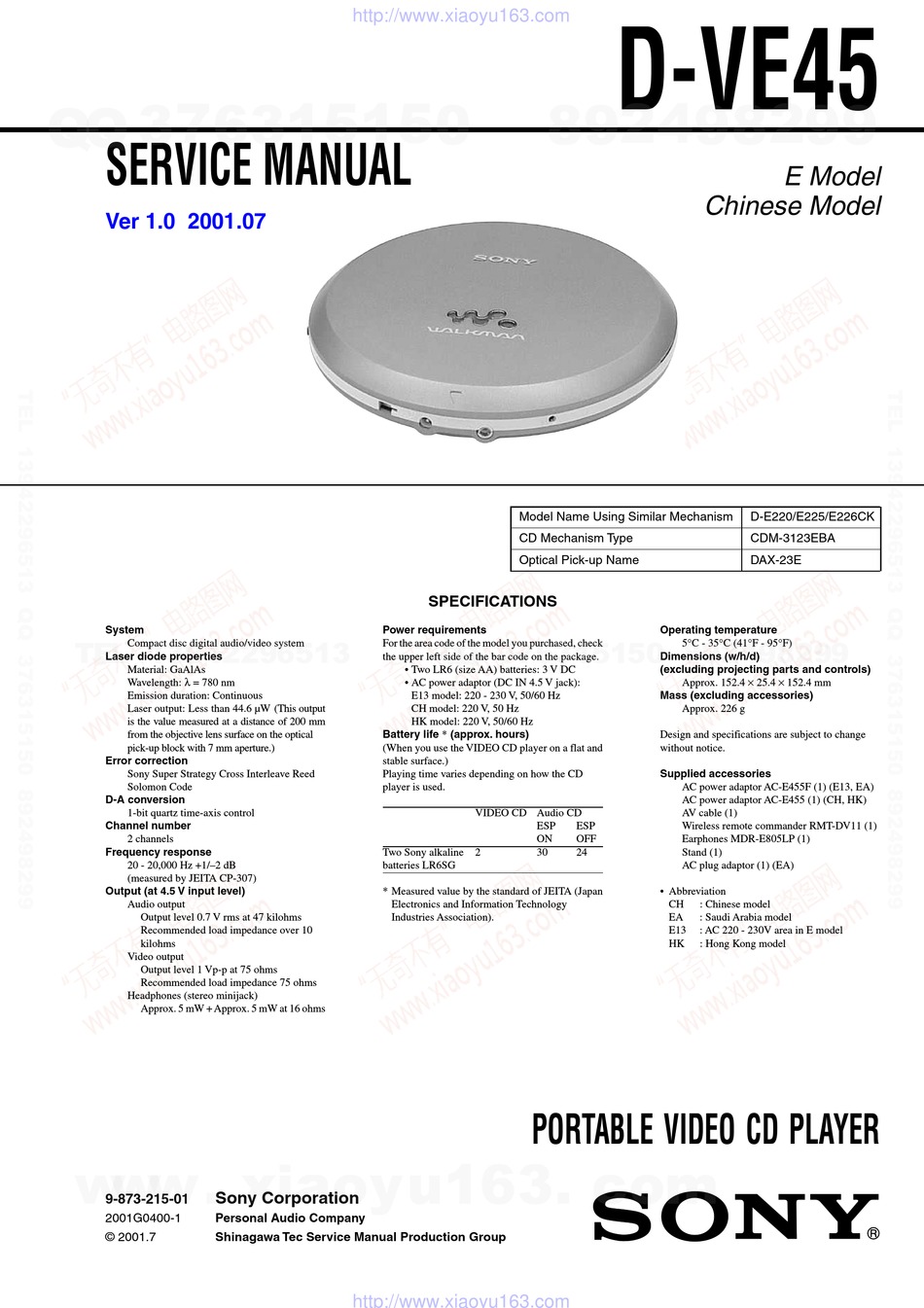

SERVICE MANUAL
Ver 1.0 2001.07
TE
System
L 13942296513
Compact disc digital audio/video system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW (This output
is the value measured at a distance of 200 mm
from the objective lens surface on the optical
pick-up block with 7 mm aperture.)
Error correction
Sony Super Strategy Cross Interleave Reed
Solomon Code
D-A conversion
1-bit quartz time-axis control
Channel number
2 channels
Frequency response
20 - 20,000 Hz +1/–2 dB
(measured by JEITA CP-307)
Output (at 4.5 V input level)
Audio output
Output level 0.7 V rms at 47 kilohms
Recommended load impedance over 10
kilohms
Video output
Output level 1 Vp-p at 75 ohms
Recommended load impedance 75 ohms
Headphones (stereo minijack)
Approx. 5 mW + Approx. 5 mW at 16 ohms
www
.
Sony Corporation
9-873-215-01
2001G0400-1
Personal Audio Company
© 2001.7
Shinagawa Tec Service Manual Production Group
http://www.xiaoyu163.com
Power requirements
For the area code of the model you purchased, check
the upper left side of the bar code on the package.
• Two LR6 (size AA) batteries: 3 V DC
• AC power adaptor (DC IN 4.5 V jack):
E13 model: 220 - 230 V, 50/60 Hz
CH model: 220 V, 50 Hz
HK model: 220 V, 50/60 Hz
Battery life * (approx. hours)
(When you use the VIDEO CD player on a flat and
stable surface.)
Playing time varies depending on how the CD
player is used.
Two Sony alkaline
batteries LR6SG
* Measured value by the standard of JEITA (Japan
Electronics and Information Technology
Industries Association).
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
Model Name Using Similar Mechanism
CD Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
Q Q
3
6 7
1 3
1 5
VIDEO CD Audio CD
ESP
ESP
ON
OFF
2
30
24
PORTABLE VIDEO CD PLAYER
co
.
D-VE45
9 4
2 8
E Model
Chinese Model
D-E220/E225/E226CK
CDM-3123EBA
DAX-23E
Operating temperature
0 5
8
2 9
9 4
2 8
5°C - 35°C (41°F - 95°F)
Dimensions (w/h/d)
(excluding projecting parts and controls)
Approx. 152.4 × 25.4 × 152.4 mm
Mass (excluding accessories)
Approx. 226 g
Design and specifications are subject to change
without notice.
Supplied accessories
AC power adaptor AC-E455F (1) (E13, EA)
AC power adaptor AC-E455 (1) (CH, HK)
AV cable (1)
Wireless remote commander RMT-DV11 (1)
Earphones MDR-E805LP (1)
Stand (1)
AC plug adaptor (1) (EA)
• Abbreviation
CH
: Chinese model
EA
: Saudi Arabia model
E13
: AC 220 - 230V area in E model
HK
: Hong Kong model
m
9 9
9 9
1
