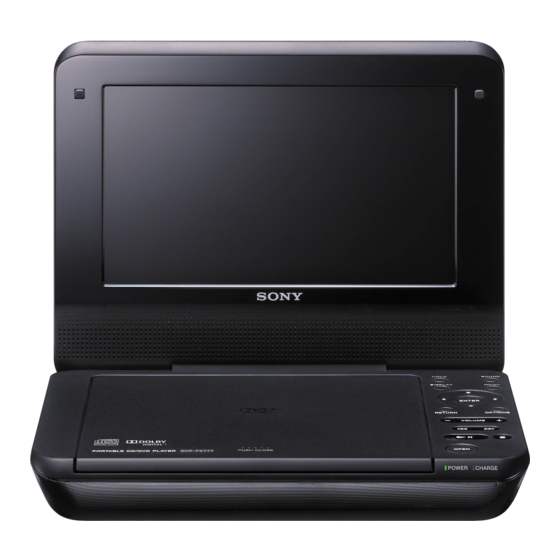

Portable
CD/DVD Player
Operating Instructions
Manual de instrucciones
DVP-FX780
© 2012 Sony Corporation
4-411-680-11(1)
US
ES

Advertisement

   Related Manuals for Sony DVP-FX780

   Summary of Contents for Sony DVP-FX780

  • Page 1 Portable CD/DVD Player Operating Instructions Manual de instrucciones DVP-FX780 © 2012 Sony Corporation 4-411-680-11(1)
  • Page 2: Warning

    Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. DVP-FX780 Serial No._____________ CAUTION You are cautioned that any...
  • Page 3: Important Notice

    Do not take apart or remodel the player. Doing so can result in electric shock. Consult your nearest Sony dealer or Sony Service Center for exchange of rechargeable batteries, internal checks or repair. IMPORTANT NOTICE...
  • Page 4: Table Of Contents

    Table of Contents WARNING ..........2 Guide to Parts and Controls .
  • Page 5: Guide To Parts And Controls

    Guide to Parts and Controls The available functions differ depending on the disc or the situation. Player The VOLUME+ and buttons have a tactile dot. Use the tactile dot as a reference when operating the player. A LCD panel (page 9) B Speaker C HOLD Prevents accidental button operation...
  • Page 6 F ./> (previous/next) Skips to the previous/next chapter, track, or file. • Fast reverses/fast forwards (m/ M) when pressed for more than one second during playback. Press repeatedly to change the speed. • Slow reverses/slow forwards ( ) when pressed for more than one second during pause.
  • Page 7: Preparations

    Preparations Checking the Accessories Check that you have the following items: • AC adaptor (1) • Car battery adaptor (1) • Audio/video adaptor (1) Charging the Battery Charge the rechargeable battery before using the player for the first time, or when the battery is depleted.
  • Page 8: Using The Car Battery Adaptor

    Using the Car Battery Adaptor The car battery adaptor (supplied) is for a 12 V car battery, negative earth (do not use it with a 24 V car battery, positive earth). Connect the car battery adaptor. Car battery adaptor (supplied) After using the player in a car Disconnect the car battery adaptor from a cigarette lighter socket.
  • Page 9: Playback

    Playback Playing Discs For playable discs, see “Playable Media” (page 18). Charge the battery in advance or connect the AC adaptor. Open the LCD panel, and turn on the player. Press OPEN to open the disc lid, and place the disc. Place with the playback side down and push gently until it clicks.
  • Page 10: Information Display

    Using the Playback Information Display You can check the playback information and change the playback mode. Press DISPLAY while playing a disc. Example: When playing a DVD VIDEO Items Menu Title 02/07 Chapter 03/20 Audio 01 5.1CH Subtitle 01 English Title Elapsed 00:12:01 Select and adjust each of the following items by pressing X/x...
  • Page 11: Playing Mp3, Jpeg, And Video Files

    Playing MP3, JPEG, and Video Files For playable files, see “Playable Media” (page 18). When you set a DATA media, a list of albums appears. Depending on the disc, playback starts automatically. Press X/x to select the album, and press ENTER. Example: The list of MP3 files Dir:001 MY BEST...
  • Page 12: Adjusting The Picture Size And Quality

    Adjusting the Picture Size and Quality You can adjust the picture displayed on the LCD screen. Press OPTIONS. Press X/x to select “LCD Mode” and press ENTER. Select and adjust each of the following items by pressing C/ X/x/c and ENTER. •...
  • Page 13: Settings And Adjustments

    Settings and Adjustments Using the Setup Display You can change the settings of the player. The default settings are underlined. Some discs have stored playback settings, which take priority. Press OPTIONS when the player is in stop mode. During Resume Play, you cannot use the setup display.
  • Page 14: Parental Control

    ◆ PBC (VIDEO CD only) This function is available for VIDEO CDs with the PBC (Playback Control) function. For this function, see page 9. Select “On” or “Off.” ◆ Default Each function returns to its original factory settings. Note that all of your settings will be lost.
  • Page 15: Additional Information

    Before charging, turn off the player. , If you have not used the player for more than a year, the battery may have been deteriorated. Consult your nearest Sony dealer. Picture The black points appear and the red, blue, green points remain on the LCD.
  • Page 16: Precautions

    “ ” appears and the player does not function according to the button. , Depending on the disc, you may not be able to perform certain operations. Refer to the operating instructions supplied with the disc. “Copyright Lock” appears and the screen turns blue when playing a DVD (VR mode) disc.
  • Page 17 On temperature increases Heat may build up inside the player during charging or if it is being used for a long time. This is not a malfunction. On placement • Do not place the player in a confined space such as a bookshelf or similar unit. •...
  • Page 18: Playable Media

    On headphones • Preventing hearing damage: Avoid using headphones at high volumes. Hearing experts advice against continuous, loud, and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use. • Showing consideration for others: Keep the volume at a moderate level.
  • Page 19 Playable file format Type File format Music MP3 (MPEG-1 “.mp3” Audio Layer III) Photo JPEG (DCF “.jpg,” “.jpeg” format) Video MPEG-4 “.mp4” (simple profile) • To play a complex hierarchy of folders may take some time. Create albums as follows: –...
  • Page 20: Specifications

    Specifications System Laser: Semiconductor laser Signal format system: NTSC Inputs/Outputs A/V OUT (audio/video output): Minijack PHONES (headphones): Stereo minijack Liquid Crystal Display Panel size: 7 inches wide (diagonal) Driving system: TFT active matrix Resolution: 480 × 234 General Power requirements: DC 12 V 0.95 A (AC Adaptor) DC 12 V 1.5 A (Car battery adaptor) Power consumption (DVD VIDEO Playback):...
  • Page 21: Index

    Index Numerics 16:9 13 4:3 Letter Box 13 4:3 Pan Scan 13 Angle 10 Angle Mark 13 Audio 10 Audio DRC 14 Audio Setup 14 CD 9 Charging time and playing time 7 DATA 11 Disc Menu 14 DVD 9 General Setup 13 JPEG 11 Language Setup 14...
  • Page 22 Este manual explica los preparativos y el funcionamiento básico del reproductor portátil de CD/DVD. Para obtener más información, consulte el Manual de Instrucciones en inglés. Control de accesorios Compruebe que dispone de los siguientes elementos: • Adaptador de CA (1) •...
  • Page 23 Reproducción de discos Cargue la batería con antelación o conecte el adaptador de CA. Abra el panel LCD y encienda el reproductor. Presione OPEN para abrir la tapa del disco y coloque el disco. Ubíquelo con la cara de reproducción hacia abajo y empuje suavemente hasta que se ajuste con un clic.
  • Page 24 4-411-680-11(1) Sony Corporation Printed in China...
