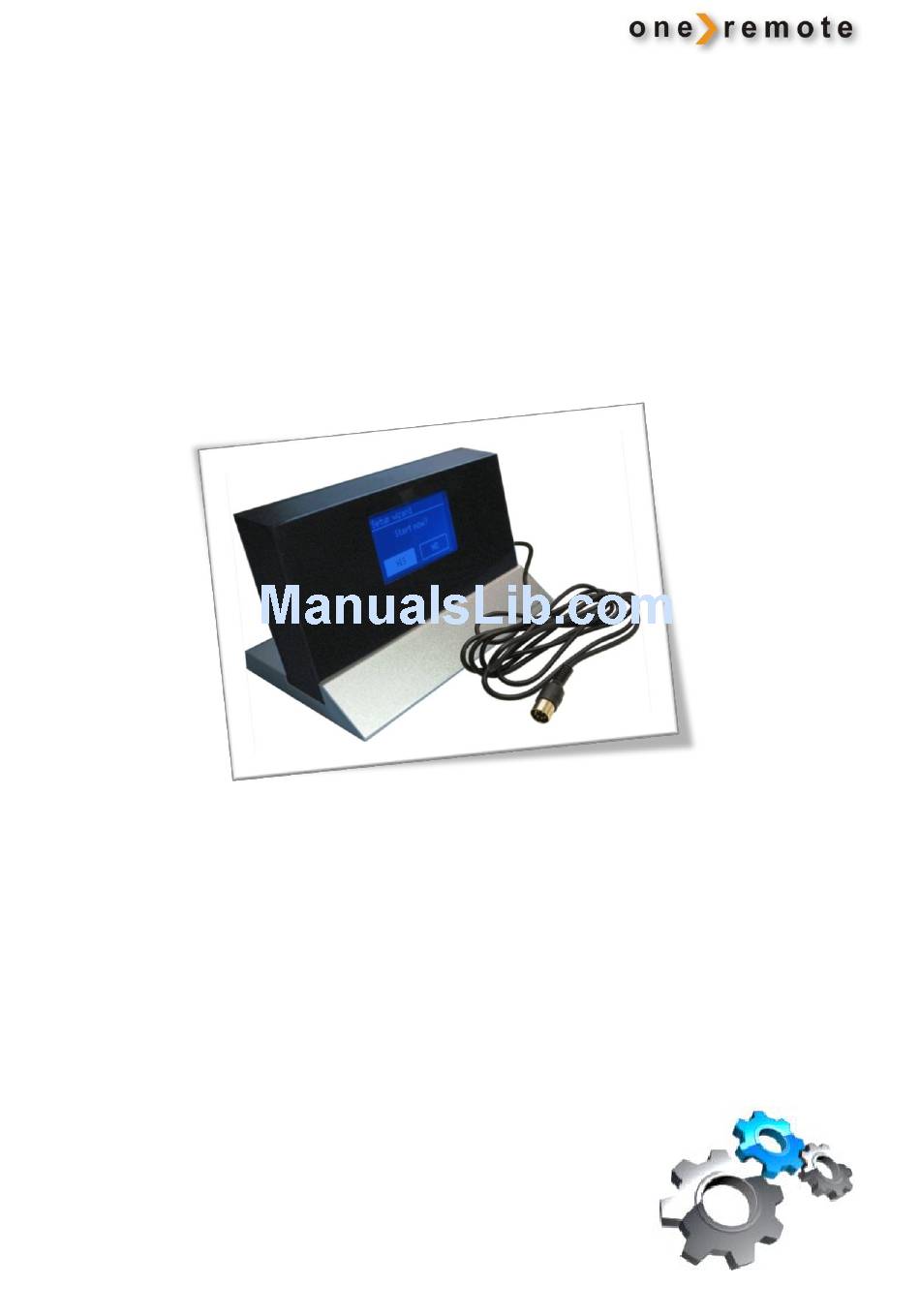

- Page 1 OneRemote DabWiFi2 DAB+/FM/ Internet Radio & Media Player Modified for use with B&O remotes only Installation Manual 30012724s1uk...
-
Page 2: Table Of Contents
BeoMaster 5500 ..................16 BeoMaster 3500 ..................17 BeoMaster 4500 ..................17 BeoMaster 6500 ..................17 BeoMaster 7000 ..................17 BeoCenter 8000 ..................17 BeoCenter 8500 BeoCenter 9000 BeoCenter 9500 ........17 BeoCenter 9300 ..................18 BeoSystem 3 ....................18 www.oneremote.dk... - Page 3 Connection via a BeoLink Active in any Link Room Connection to a 21 Pin AV Socket on any Bang & Olufsen TV. 21 Setup the Media Player Windows Media Player 11 Shared Media Set Up ........22 Setup Media Sharing in the MAC OS ............23 Troubleshooting www.oneremote.dk...
-
Page 4: Getting Started
Hereafter the daily operation shall – in most cases - be limited to selecting a pre-set favorite program. The OneRemote DabWiFi2 tuner is supplied with a DataLink cable enabling connection to most Bang & Olufsen radios. But some system configurations require an adaptor as shown later in this manual and explained in detail in the Installation Manual. -
Page 5: Connection To Bang & Olufsen Equipment
Connection to Bang & Olufsen Equipment This OneRemote DabWiFi2 tuner may be connected to any Bang & Olufsen BeoSound, BeoCenter, BeoMaster, BeoSystem or BeoVision TV and controlled with a Bang & Olufsen remote control terminal. It may also be connected to equipment of any other brand, but it still needs to be controlled with a Bang &... -
Page 6: Set Up For Direct Control
Set Up for Direct Control The Bang & Olufsen remote terminal controls both the OneRemote DabWiFi2 tuner and the Bang & Olufsen audio equipment. When selecting the tuner connected source with the Bang & Olufsen remote the corresponding input socket is opened, and the tuner is turned on simultaneously. -
Page 7: Option Programming - Fit The Tuner To The B&O Set Up
If the programming procedure is not successful the first time, repeating it is recommended. Option 106 is programmed as follows: L*1 106w *1 Using a Beolink 1000, MK I or II has to be replaced by LINK Allowed options are listed in the tables found in Source & Option Selection below. www.oneremote.dk... -
Page 8: Setup Wizard
Decide on automatic daylight saving change or not and press Select the correct WLAN region and press OO. Select the appropriate network SSID and press If the selected network is not encrypted the tuner automatically connects to the internet and display: www.oneremote.dk... -
Page 9: Access Wireless Network
Access Wireless Network With the Setup Wizard completed select Station list and press Various internet sources are available: If ‘Network error’ is displayed: Check the router. Relocate the tuner to obtain a better signal. Check the entered password. www.oneremote.dk... -
Page 10: Connecting To A Wired Network
Connection of the tuner to the wired LAN has been completed. Shift to Wireless Network Refer to above display Connection type Select Wireless by pressing Select DHCP enable by pressing Enter the name of the router. Access to the wireless network has been established. www.oneremote.dk... -
Page 11: Access Code
View SW Version and Tuner ID Point at System settings then Info and select by pressing The tuner’s software version and the are being displayed. This information may be requested when dealing with technical support issues. www.oneremote.dk... -
Page 12: Connection To Bang & Olufsen Equipment
Connection to Bang & Olufsen Equipment This OneRemote DabWiFi2 tuner may be connected to any Bang & Olufsen BeoSound, BeoCenter, BeoMaster, BeoSystem or BeoVision TV and controlled with a Bang & Olufsen remote control terminal, but it may also be connected to equipment of any other brand and still be controlled with the Bang &... -
Page 13: Antenna Connection
Antenna Connection The OneRemote DabWiFi2 tuner may be connected to any antenna picking up the FM and the DAB frequencies. If the FM signal strength is not sufficient the reception will be noisy. If the DAB signal strength is not sufficient the reception is varying from disturbing ”bubbles” to complete quietness. -
Page 14: Source & Option Selection
One Remote DabWiFi2 tuner should be. The OneRemote DabWiFi2 tuner has to be programmed with the right option, to operate in the B&O environment that it is situated. -
Page 15: Beosound 4
Use a BeoSound 4 OneRemote adaptor cable, type 39207438. If the MasterLink socket is MasterLink not used, the DabWiFI2 tuner might be connected and operated via a BeoLink Converter. See page 15 for details on connection of the BeoLink Converter 1611. -
Page 16: Beosound 9000
In the CableLink mode numeric commands are not accepted. If the MasterLink socket is MasterLink not used, the DabWiFI2 tuner might be connected and operated via a BeoLink Converter. See page 15 for details on connection of the BeoLink Converter 1611. -
Page 17: Beosystem 2500 Beocenter 2500
In the CableLink mode numeric commands are not accepted. Input Socket Source Selected Direct CableLink Remarks Option Option In the CableLink mode numeric commands are not BeoMaster 3300 accepted. In the CableLink mode numeric commands are not accepted. BeoMaster 5500 www.oneremote.dk... -
Page 18: Beomaster 3500
Option Option In the CableLink mode TAPE2 numeric commands are not BeoCenter 8000 accepted. Input Socket Source Selected Direct CableLink Remarks Option Option In the CableLink mode TAPE2 numeric commands are not BeoCenter 8500 accepted. BeoCenter 9000 BeoCenter 9500 www.oneremote.dk... -
Page 19: Beocenter 9300
Use a OneRemote adaptor cable, type 39207438. uetc. If the MasterLink socket is MasterLink not used, the DabWiFI2 tuner might be connected and operated via a BeoLink Converter. See page 15 for details on connection of the BeoLink Converter 1611. - Page 20 VMEM as an example. Connected to a video master and programmed as an “audio source” the DabWiFI2 may be selected as that, ATAPE as an example. Notice that the Bang & Olufsen equipment has to be programmed in option 2. See the relevant Bang & Olufsen user guide.
- Page 21 Connection via a BeoLink Active in any Link Room The OneRemote DabWiFI2 tuner may be connected to a Bang & Olufsen BeoLink Active with a vacant ‘PC’ socket. Thus active speakers in any link room allow for the installation of the DabWiFI2 tuner and the opportunity of having a local radio source controlled directly with the Bang &...
- Page 22 Option The input is a scart All B&O TV Scart socket, a 21 pin AV models socket. Use a AV1 - AV6 OneRemote adaptor cable, type 39207496. BeoVision 10 NOT the DECODER BeoVision 8 input!! BeoVision 7 BeoVision 6 BeoVision 4...
- Page 23 Select the desired computer. This tuner appears in the list. To ensure that this IS the tuner, right click on the device and select”properties”: the tuner’s MAC-address is shown. *1 This tuner is named ”Jupiter 6.2” in the Media Player. www.oneremote.dk...
- Page 24 - Copy and paste the mp3 files to 'Documents' in the 'Finder' window. - Turn on 'AirPort' (wireless sharing). - Wait for a few minutes. In the 'Media Player’ > ‘Windows Shares' menu enter the MAC account’s ”short name” and password. The tuner may now be connected to the MAC. www.oneremote.dk...
- Page 25 The Internet connection between the server and the tuner is slow. They are often countries apart! If the station can be played via a PC use the form at www.wifiRadio-frontier.com for notification enabling a change of the station data used by the tuner. www.oneremote.dk...
- Page 26 www.oneremote.dk...
- Page 27 www.oneremote.dk...
- Page 28 DabWiFi2 is equipped with a 7 pin DIN DataLink cable for connection to Bang & Olufsen equipment. Thus an adaptor cable is required for connection to equipment not having a DIN input socket. See below examples and the Option Programming section in the installation manual.
