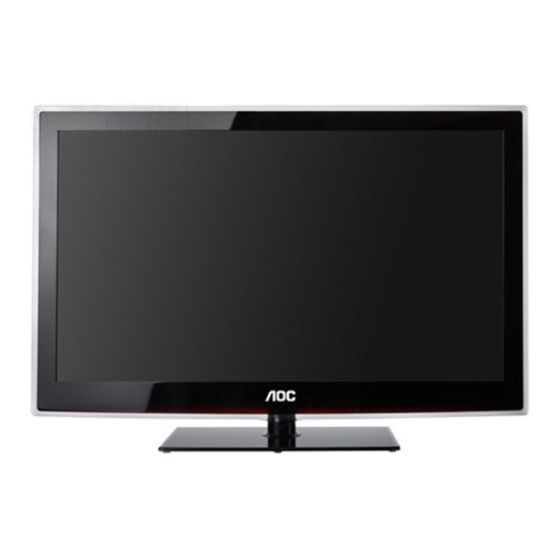

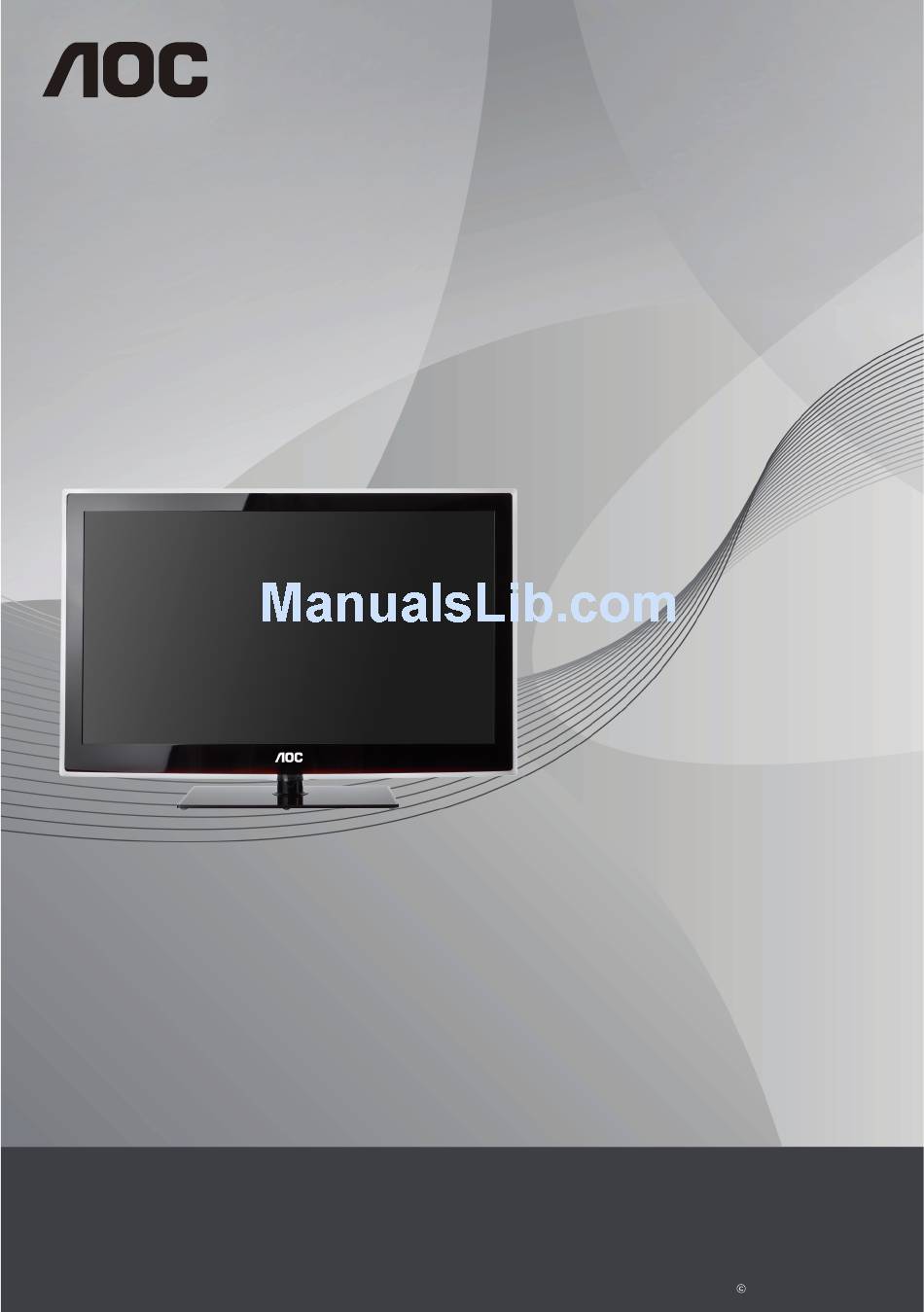

- Page 1 LED LCD TV User Manual LE42K09D/ LE42H09P ww w.aoc.com 2010 AOC. All Rights Reserved.
- Page 2 This manual is provided as an operational guide to user. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be,representations or warranties concerning the products described.
-
Page 3: Table Of Contents
Important information ......3 Operating AOC TV ......17 Warning . -
Page 4: Important Information
Important information Important safety information 1. Read and keep these instructions. Warning 2. Pay attention to all warnings. 3. Follow all operation instructions. 4. Make sure that only proper power supply is used CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE, NE PAS OUVRIR... -
Page 5: Usage Instructions
Usage Instructions Accessories Do not use accessories not recommended by the product manufacturer in order to avoid risks. Installation Wall-mount Placement Wall-mount brackets need to be used for wall-mount TV sets. Be sure to ask qualified contractors to It is recommended to keep a distance 3-7 times more carry out installation when using wall-mount brackets to than the screen height from the TV set when watching install or remove a TV set. - Page 6 LED screen Electric shock Do not touch the AC power cord or the TV set with • Although the LED screen is manufactured by state-of- a wet hand. Plugging in or unplugging the AC power the-art technologies, with effective pixels reaching up cord with a wet hand may result in electric shock.
-
Page 7: Small Accessories
Small accessories Cleaning Clean the plug of the AC power supply. Place small accessories out of children’s reach. Pull out the AC power supply plug and clean it regularly. If there is too much dirt on the plug, it will absorb moisture and its insulation property will decline, thus resulting in a fire. - Page 8 Moving the TV set 30 cm Move the TV set as per the specified below Be sure to follow the following instructions to avoid 4 inches 10 cm Install the TV set 10 cm the TV set from falling and severe personal injury: with a stand base.
-
Page 9: Volume Adjustment
The image quality you watch on the AOC TV set depends on the signal quality you will receive. To experience the super fine picture effects of the AOC TV set, you need to receive high definition programs. This AOC high definition TV set may receive and display high definition programs... -
Page 10: Packing List
Packing list Check the TV set and all accessories for their intactness after the packing case is opened. User manual Warranty card Warranty card AOC L E D TV Set User manual YPbPr Freeze Picture Audio I/II Dispaly Sleep Zoom... -
Page 11: Control And Connection
Control and connection Touch type Power Channel Source Menu Volume supply Item Description Used to connect the YPbPr jack and L/R jack input from other device. The YPbPr will provide a YPbPr input better picture quality than S terminal or composite video. b SPDIF Output a digital audio to the external loudspeaker or other digital audio equipment RF input used to connect the cable or VHF/UHF antenna. -
Page 12: Remote Control
Remote control Keys Description Press the key to change channels. Press either f Program of +/- keys and hold to switch channels rapidly. the key to mute or unmute the sound. g Mute Press Press the key to set the time after which TV YPbPr should turn off and enter standby state. -
Page 13: Battery Installation For The Remote Control
Battery installation for the remote control Put two AAA batteries (supplied) into the position indicated in the battery case of the remote control. Installation Refer to the above schematic diagram for important operation instructions. Stand base installation Install the stand base (sold separately) before installing the TV set. Carry out the installation pursuant to the following simple procedures: 42”: 1. -
Page 14: Wall-Mounted
Wall-mount • Use wall-mount brackets (sold separately) to install the TV set on the wall. Be sure to remove the stand base of the TV set before installing it. • Do not remove the stand base unless the TV set is mount on the wall. •... -
Page 15: Connections To Tv
The TV set can receive cable and VHF/UHF antenna analog signal TV programs. AOC strongly recommend to use 75Ω coaxial cable connected antenna/cable input to receive optimum picture quality. 300 Ω twin-core cable may be easily affected by RF interference, thus resulting in signal degradation. -
Page 16: Ypbpr Connection
YPbPr connection YPbPr input AV signal connection AV signal input Computer connection TV set can be used as a computer monitor by connecting TV to computer with a VGA cable. The TV set may also be connected to a computer with HDMI output. Computer signal input •... -
Page 17: Reference Sheet Of Computer Input Signals
Reference sheet of computer input signals Set output signals in the computer according to the table below after connecting the computer to the TV set properly. Definition Horizontal frequency (kHz) Vertical frequency (Hz) 640 x 480 31.469 59.940 800 x 600 37.879 60.317 1024 x 768... -
Page 18: Operating Aoc Tv
You may watch conventional programs by DVD player or VCR player. Connect the equipment to the TV set via AV input at the side of the TV set panel. Operating AOC TV set Power on/off the TV set You may turn on the TV set via the power button on the TV set or the remote control. - Page 19 Step2 : TV pops-up window shown below prompting to select Menu Language. By default English will be selected as Menu language to continue wizard press OK key or arrow key π on remote control or to select languages other then English press arrow key and press Ok key.
-
Page 20: Switching Between Input Sources
Switch between input sources You can select signal sources to your AOC TV set directly with your remote controller. You can also press the Source key in the display menu to select signal source. 1. When selecting a source with a remote control directly: Press the following keys to switch input sources directly. - Page 21 Picture settings Picture Auto picture Standard Brightness Contrast Color Tint Sharpness Item Description Personal settings User can set their favorite setting. Standard Standard picture setting. Recommended for family entertainment. Smart image Vivid Enhanced picture contrast and sharpness. Movie Used to watch movie based content. Most suitable for cinema environment. Energy saving Reduce the backlight intensity to save electricity.
-
Page 22: Picture Setting (For Computer Source Only)
Picture settings (For computer source only) Advanced Video Auto Config Horizontal Vertical Phase Clock Resolution Item Description Auto adjustment Adjust the picture to optimum position of the screen automatically. Horizontal Adjust the horizontal position of the picture. position Vertical position Adjust the vertical position of the picture. -
Page 23: Sound Setting
Equalizer 5 kHz Equalizer 10 kHz AOC co-works with SRS Labs to create unique and exclusive sound technology- DSS Dream Surround. DSS effect creates a truly immersive surround sound experience with rich bass and clear dialog from only two speakers. -
Page 24: Features Settings
Features settings Features Menu Language Simplified Chinese Picture Format Auto Time Parental Reset SW Ver. V1.000A Item Description Menu language Press the pπ key to select the required language and press the OK key to confirm it. Picture format To select the available picture format. Wide screen, Auto, Normal, Zoom1 and Zoom2 Sleep timer can be set to 5, 10, 15, 30, 45, 60, 90, 120 minutes. -
Page 25: Tv Settings
TV settings The setting is available only in TV mode. Channel Scan Manual Scan Channel Skip Channel Sort Channel Edit Channel Fine Tune Item Description TV automatically searches for the channel in the available frequency band and stores sequentially Channel scan Press the OK key to enter the interface. -
Page 26: Viewing Photos
Multimedia functions (USB) TV USB port can be used to view JPEG photos, play mp3 music and Video files present in USB devices. Selecting USB Media Center: Press the Direct USB key on remote to enter into the [USB] source Source 1. - Page 27 USB menu settings for JPEG Press the Menu key to get the following menu settings: 1. [Pause/Play] : Use to pause or play the slide show. 2. [Repeat] : Use to select the following repeat options: a. Repeat one : show same image repeatedly. b.
-
Page 28: Multimedia Format Supported
Tips: 1. The USB interface to the digital multimedia player is not universal. If a file fails to be identified by the USB interface, it is normal and related to the equipment drive. 2. The period needed for the player to read information varies with the equipment and its memory capacity and information reading speed may slow down temporarily. -
Page 29: Dimensions And Specifications
Dimensions and specifications Model LE42K09D LE42H09P Panel display size 930.24(H) x 523.26(V) 930.24(H) x 523.26(V) (42.02”diagonal) (42.02”diagonal) Resolution 1920 x 1080P Full HD 1920 x 1080P Full HD Panel spec Horizontal 178˚ (TYP) Horizontal 178˚ (TYP) Vertical 178˚ (TYP) Vertical 178˚ (TYP) -
Page 30: Troubleshooting
Troubleshooting Symptoms Explanation/solution No picture is available No picture is available. Check the energy saving settings. Ensure proper power cord connection. Turn on the TV set. Check antenna/cable Fail to receive any connection. channel. Ensure your TV source cable settings are correct. The TV set is locked in Execute auto program searching and add available channels not saved in the TV channel a certain channel. - Page 31 Symptoms Explanation/solution Computer input Identify that the computer has been connected to the TV set properly via computer output (with the HD cable) or the HDMI output. Ensure that the output signal in the computer is a format listed in the signal reference sheet.
