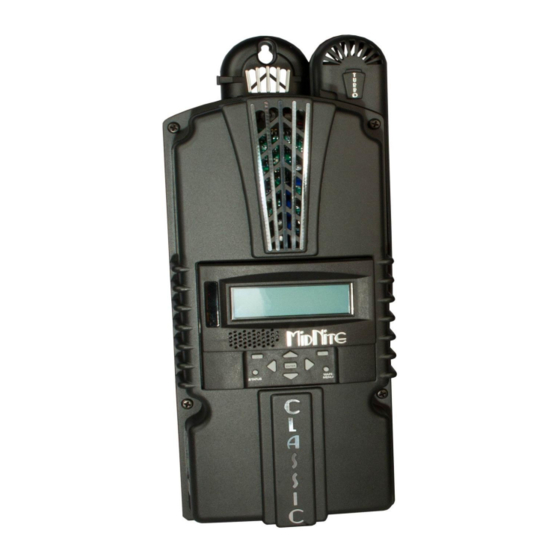

MidNite Solar Classic
Owner's Manual

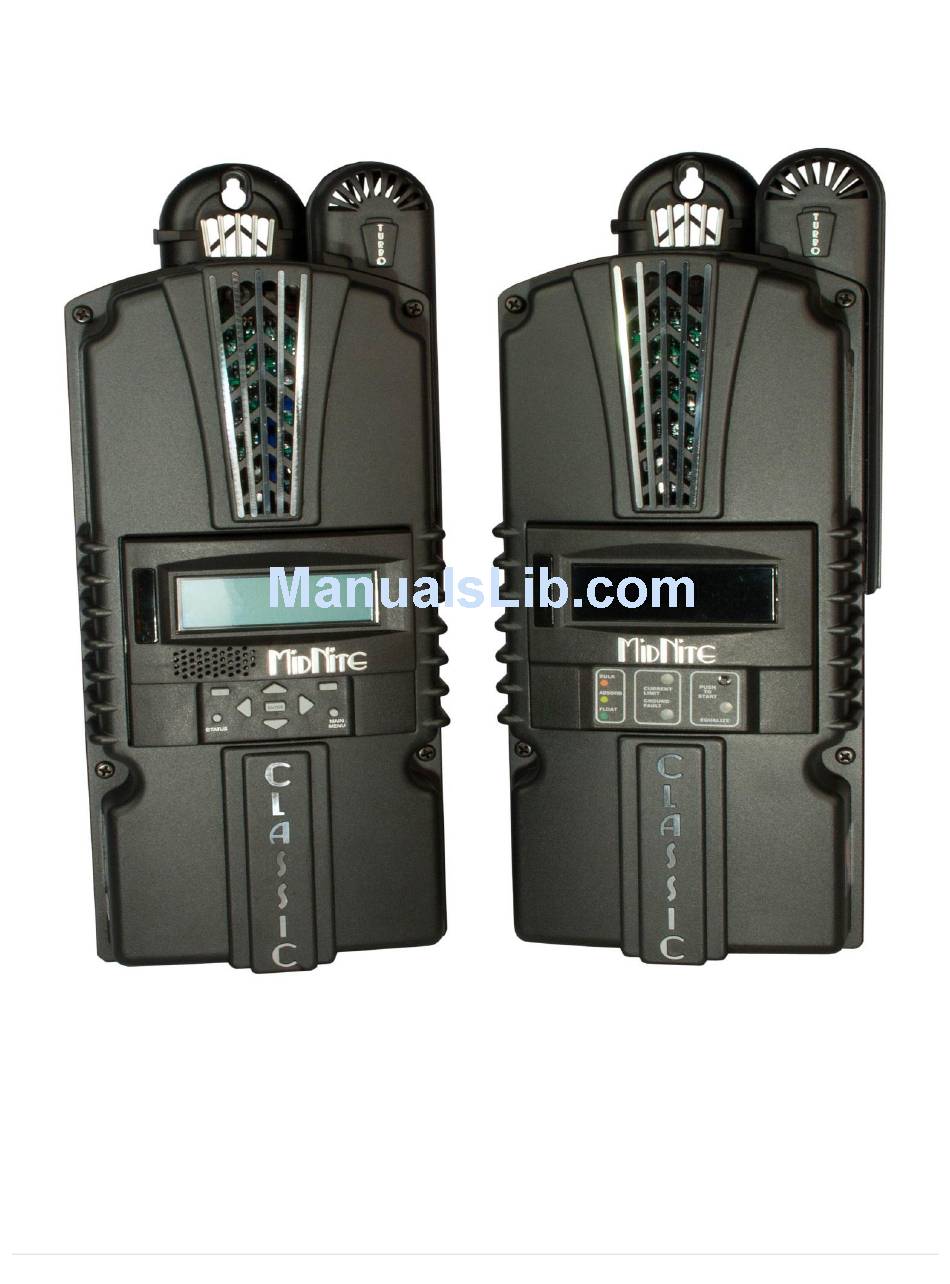

Standard Classic
Classic Lite
This Manual covers models Classic 150, 200, 250 &
250KS as well as the Classic 150, 200, 250 & 250KS LITE
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MidNite Solar Classic 150

Summary of Contents for MidNite Solar Classic 150

  • Page 1 MidNite Solar Classic Owner’s Manual Standard Classic Classic Lite This Manual covers models Classic 150, 200, 250 & 250KS as well as the Classic 150, 200, 250 & 250KS LITE P a g e...
  • Page 2 Copyright 2010 all rights reserved. MidNite Solar Inc. reserves the right to revise this document and to periodically make changes to the content hereof without obligation or organization of such revisions or changes unless required to do so by prior arrangement.

  • Page 3: Table Of Contents

    Table of Contents Glossary of Terms............................. 5 Scope ................................7 Introduction .............................. 7 Classic Power Curves ..........................9 Unpacking the Classic ..........................11 Removing and installing the front cover on the Classic ..............12 Mounting the Classic ..........................13 Alternative Mounting .......................... 15 Dimensions............................
  • Page 4 Viewing Other MidNite Products on the Display ................42 Connecting Classic to Two MNGPs/Network cable ................42 Arc Fault ............................. 43 View Faults and Warning's ........................44 View Logged Data ..........................44 Graphical Logging Display modes ..................... 47 Dealer Information Screen ........................49 Classic Lite Programming ........................

  • Page 5: Glossary Of Terms

    Glossary of Terms Absorb – Constant voltage charge stage to fill the batteries. The controller is regulating so maximum power will not be seen at this time. The Absorb timer is also counting down to the switch to Float. A-EQ-R – This will reload the Auto Equalize counters, basically it will start the counters from day 1. AF –...
  • Page 6 Insomnia – This when enabled, will keep the Classic from going to Resting. This is intended for hydro mode only where you may need time to open water valves and do not want to wait for the Classic to wake up. LED-MODE –...

  • Page 7: Scope

    The Classic is designed to regulate DC input from PV, and Approved Hydro and Wind turbines for other DC sources please contact MidNite Solar tech support.. The Classic 150, 200 and 250 are designed to work with 12, 24, 36, 48, 60 and 72 volt battery banks.
  • Page 8 •The System's DC Negative conductor must not be bonded to earth ground. The Classic does this with its internal Ground Fault Protection circuitry. The battery negative and ground are not bonded together directly but are connected together by the Classic’s internal GFP device. All negative conductor connections must be kept separate from the grounding conductor connections.

  • Page 9: Classic Power Curves

    ELECTRICAL SHOCK, BURN FROM HIGH SHORT CIRCUIT CURRENT, FIRE OR EXPLOSION FROM VENTED GASES. FOLLOW PROPER PRECAUTIONS.  Someone should be within range of your voice to come to your aid if needed.  Keep plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes. ...
  • Page 10 Figure 2.3 Figure 2.4 10 | P a g e...

  • Page 11: Unpacking The Classic

    The graphs above represent the max power output for a given input for each Classic. Using and understanding these power graphs will help maximize Classic’s output power and aid in selecting wire and breaker/disconnects. The built in set up wizard also helps select breakers and wire sizes. Notice that lower battery voltages and lower PV input voltages result in higher continuous output power.

  • Page 12: Removing And Installing The Front Cover On The Classic

    Removing and installing the front cover on the Classic Removing the front art deco cover is required to gain access to the wiring compartment. Be aware if this is not the first removal of this cover there is a cable connecting the cover to the electronics.

  • Page 13: Mounting The Classic

    The Classic is designed to be directly mounted onto the MidNite Solar E-Panel. The Classic can also accommodate other installation methods as well. Mount in an upright position out of direct sunlight when possible. For your convenience the Classic has four one inch knock outs that are pre cast.
  • Page 14 E-Panel Figure 1.3B Classic Mounted to side of E-Panel Figure 1.3C Nipple, locknuts and bushings that come with every E-Panel Figure 1.3D Classic mounted to the side of a MidNite Solar E-Panel 14 | P a g e...

  • Page 15: Alternative Mounting

    Install locknut here to act as a spacer. Alternative Mounting To mount the Classic to a plywood surface use 1 1/2” wood screws in the top key hole slot hole and the holes in the wiring compartment. Taking care to make sure the Classic is Plumb and Level. Dimensions See page 70 for more details.

  • Page 16: Sealed Or Vented

    Sealed or Vented The Classic has the ability to be sealed for protection from salt air or dust. It comes from the factory Vented. If you live in a dusty or salt air environment you may wish to seal the Classic. Sealing the Classic does not make the unit water resistant.

  • Page 17: Classic Stacking Cable Routing And Installation Guidelines

    Classic Stacking Cable Routing and Installation Guidelines The Classic uses a 4 conductor phone cable to communicate with other Classic's or other MidNite products. This cable is a standard 4 conductor phone cable and simply plugs into the jack on the Master Classic labeled slave. Plug the other end into the master jack on the second device (Slave).

  • Page 18: Battery Temperature Sensor Installation

    Cable Clamp for network cables Battery Temp Sensor included USB connector USB cable is included Ethernet connector Figure 1.7B Battery Temperature Sensor Installation CAUTION - To reduce risk of injury, charge only deep-cycle lead acid, lead antimony, lead calcium, gel cell or absorbed glass mat type rechargeable batteries. Other types of batteries may burst, causing personal injury and damage.
  • Page 19 Figure 1.8 Insert BTS to the jack labeled BATTERY TEMP on the control board. Figure 1.9 19 | P a g e...

  • Page 20: Chassis Grounding

    Chassis Grounding In all installations the Classic chassis should be connected to ground. For systems with a battery breaker sized 60 amps and smaller 10 AWG (6 mm ) copper is generally sufficient. For systems with a battery breaker sized 100 amps and smaller 8 AWG (10 mm ) copper is required.

  • Page 21: Dc Gfp (Ground Fault Protection)

    DC GFP (Ground Fault Protection) The Classic has internal ground fault protection (GFP) built in. Since 2008 the NEC requires a DC-GFP on all PV systems in the USA. The built in DC-GFP eliminates the need to purchase and install an external DC-GFP.

  • Page 22: Wiring The Classic

     Scroll to the right or left until TWEAKS is highlighted and press ENTER  In TWEAKS press the right soft key to get to the MORE menu  In MORE scroll until GFP is highlighted  Use the up and down arrow keys to toggle between on and off ...
  • Page 23 Figure 2.1 23 | P a g e...
  • Page 24 Figure 2.2 24 | P a g e...

  • Page 25: Dc Terminal Connector

    #4 AWG. #4 AWG THHN when installed in the Classic and MidNite E-Panel is rated for over 100 amps and is therefore suitable for the highest power available from the Classic 150. Over Current Protection and Wire Size Requirements The over current devices, wiring, and installation methods used must conform to all electrical codes applicable to the location of installation.

  • Page 26: Over Current Protection

    If this sounds too complicated use this rule of thumb in selecting the proper Classic. PV runs up to 100 feet, use the Classic 150. Runs up to 180 feet, use the Classic 200.

  • Page 27: Maximum And Minimum Wire Size

    Maximum and Minimum Wire Size The Classics Blue DC terminal connector will accept wire from #14-#4 AWG The Classics Aux 1 and 2 terminal connector will accept wire up to #18 AWG 27 | P a g e...

  • Page 28: Equalization Manual And Auto

    Equalization Manual and Auto Equalization with the Classic Lite DHCP MODBUS IP Address Mode System Battery port Voltage Type Auto Equalize Switch 8 Equalize Manual Auto By setting Auto Equalize to Manual the Equalize intervals in the Battery Settings table are effectively disabled and Equalization stages will have to be started manually.

  • Page 29: Equalization With The Standard Classic

    Equalization with the standard Classic 29 | P a g e...

  • Page 30: Standard Classic Programming

    Standard Classic programming Commissioning the Classic (Quick Start) The Classic will enter into the Quick Set screens upon initial power up. If the Classic does not enter into the quick set or you want to restore to Factory Default follow these steps to get initiate a Quick Set.

  • Page 31: Mode Is Off

    Mode is OFF The Classic is unique, it has multiple charging algorithms for just about any DC input. Because we support such a wide variety of DC inputs we have also added a software “ON” and “OFF” feature. This software “Switch” basical- ly turns the relay off effectively disconnecting the input source so the Classic will not charge the battery.

  • Page 32: Calibrating Battery And Pv Voltage

    “Wizard” is highlighted. Scroll to the right until “Misc” is highlighted and press “Enter”. Now scroll to “LED-Mode” and press “Enter”. Here you can use the up and down arrows to select the mode you prefer. After selecting the appropriate LED Mode press “Enter” to save this data to the Classic. Pressing “Status” will now bring you back to the home screen.
  • Page 33 The following Modes will appear in this order in the MODE Menu. Micro Hydro This mode is intended for use with hydro systems but can be used with other sources as well. When the Classic first turns on after the input voltage goes above battery voltage, it will sweep from that open circuit voltage down to battery voltage, finding the maximum power point voltage (MPP V).

  • Page 34: Configuring The Classic For Wind Input Source

    1 through 9 to save it in and select “SAVE”. Now push the Enter button to save it to the Classic's memory. For more information consult the videos contained in this DVD as well as the MidNite Solar web site. Classic-Wind-Graph-Editor-1.mpg...

  • Page 35: Setting The Date And Time

    Setting the Date and Time To set the date and time manually on the Classic follow the steps below.  Push the Main Menu button repeatedly until Wizard is highlighted.  Scroll left or right to highlight “MISC” and push the Enter button ...
  • Page 36 Main Aux Screen shows both Aux1 and Aux2 functions Table 2.0 Off - Places output to Low state (0 Volts) Auto - Selects the assigned function to the Aux output or input On - Sets output for Low state (12 Volts or Relay On) The Following is a list of the Aux 1 and 2 functions with brief descriptions of their function.
  • Page 37 Nite Light This mode will turn Aux 1 on at sunset and turn it off at sunrise based on the pv input voltage. Toggle Test This mode will cycle Aux 1 for 1 second off and 1 second on repeatedly. This mode is mostly for testing purposes.
  • Page 38 Low bat disc This mode will turn Aux 1 off when it reaches a set point based on battery voltage (V High) and turn it on at another set point based on battery voltage (V Low). It also allows you to set a delay time in seconds the Classic will wait before turning Aux 1 off after reaching the V High set point.

  • Page 39: Aux 1 Function

    Pv V on High This mode is PWM based and will PWM Aux 2 above a user set voltage (V High) based on the input voltage to the Classic and stop when it hits a low voltage set point (V Low). Toggle Test This mode will cycle Aux 2 for 1 second off and 1 second on repeatedly.

  • Page 40: Aux 2 Function. Output/Input

    NITE LIGHT Aux1 on at dusk off at dawn TOGGLE TEST Aux1 cycled 1 sec interval Pv V ON LOW Aux1 on below Pv in setpoint Pv V ON HIGH Aux1 on above Pv in setpoint OPPORTUNITY LO Divrt based on chrg state lo OPPURTUNITY HI Divrt based on chrg state hi LOW BAT DISC...

  • Page 41: Setting The Mngp Features

    Setting the MNGP features The Classic comes with an integrated “MidNite Graphics Panel” (MNGP), which is the primary interface to the Classic. Setting up contrast, backlight and volume its simple just follow the steps below.  Push the Main Menu button. ...

  • Page 42: Viewing Other Midnite Products On The Display

    MNGP. Since the Classic transmits power and data signals through the phone cable to the MNGP the length of the cable is limited to 100ft. MidNite Solar only offers a 3ft as an optional accessory. If you are making your own cable be sure be sure to insert cable end all the way into the phone terminal to get a good contact.

  • Page 43: Arc Fault

    Arc Fault The Arc Fault Detector is a unique safety component included in every Classic, because safety is not an option, the engineers at MidNite take action as the 2011 NEC code requires. The Classic is the first charge controller in the world to successfully stop a series arc.

  • Page 44: View Faults And Warning's

    SENSITIVITY: This parameter determines how sensitive the Arc fault detector will be 1 being the most sensitive and 15 the least. This parameter is set to 10 from the factory. If you experience nuisance tripping you can raise the sensitivity one digit at a time. Follow the instructions below to make adjustments or disable Arc fault.
  • Page 45 time/date stamp for each data logging mode is Date for daily history and Time for recent history although both time and date are stored and displayed for each logging mode. When entering the "LOGS" menu, you will see two items displayed there. The top line is lifetime kW- Hours for the Classic and below that is time spent in float today.
  • Page 46 The HOURLY log menu (actually captured every 5 minutes), works very similar to the DAILY log menu, except that the time stamp above the word TIME is the time, shown in 24 hour format, that the data was captured that day. The category of data captured is of course more suited for minute by minute capture rather than the maximum data statistics captured on a day by day basis in the DAILY log screen.

  • Page 47: Graphical Logging Display Modes

    and the time/date stamped along with that data and does not necessarily mean the data itself is not correct. If the data is all zeros and the year is shown as 2000, the data IS most likely invalid and not correct or the logging memory has not been filled yet.
  • Page 48 time stamp of that data where the cursor is positioned on the graph. Finally, the bottom left of the graph screen al- ternates between two indicators. One is the charge stage at the cursor position and the other is the scaling of the vertical axis of the graph.

  • Page 49: Dealer Information Screen

    Dealer Information Screen For dealers’ convenience the Classic has a display screen that can be modified to publicize the dealers’ business information. This is helpful because the customer will know who to contact in case they want to report any problems regarding the product. This will also help to promote retailers’ accessories that are compatible with the Classic.

  • Page 50: Classic Lite Programming

    For the advanced features to be accessed and programmed, you will need to use the included Local Application software and a PC, or a MidNite Solar MNGP Graphics Panel, or the Graphics panel of another Standard Classic in If desired, the Classic Lite can be used with an MNGP instead of the supplied MNLP control- the system.

  • Page 51: Programming

    Programming There are four separate ways to program a Classic Lite. 1-The programming is done using Dip Switches under the front cover of the MNLP. 2-The Classic Lite can be programmed with an independent MNGP. 3-The Lite can be Networked with a standard Classic and programmed using the standard Classic’s MNGP 4-The Classic Lite can be programmed using the Local App (Through the Ethernet connection) software included on the DVD or available at www.midnitesolar.com...
  • Page 52 Now you will need to use the supplied tool (Toothpick) to place all 15 switches in the correct position. All the information on the switches can be found on the labels on the MNLP as well as in the tables below. Keep in mind if any of the switches are set to Custom the Lite display becomes a LED display only and you will need to use the included PC software or a MNGP to program the Classic.

  • Page 53: Section 1 Switch Settings Explained

    Section 1 Switch settings explained Mode: Switches 1 and 2 (Section 1) On Section 1, the first 2 Switches are used to select which Solar Mode will be used. For “Solar” Mode: set switches 1 and 2 to OFF . This is the optimum setting for virtually all solar installations. For “Legacy “...

  • Page 54: Section 2 Switch Settings Explained

    Section 2 Switch settings explained DHCP or Static IP address Switch 1 (Section 2) On Section 2, Switch 1 when on will enable DHCP. This will allow the Router on the network to assign the Classic Lite an IP address. When off it sets the Classic to a static IP address that will be determined by Switches 2, 3 and 4. IP Address Switches 2, 3 and 4 (Section 2) On Section 2, Switches 2, 3 and 4 will set the Static IP Address of the Classic Lite to the address shown in the table below if Switch 1 is set to Off for Static IP.
  • Page 55 Section 1 Switches 1through 8 Section 2 Section 1 DHCP IP Address MODBUS Mode System Battery port Voltage Type Section 1 Mode Mode Switch 1 Switch 2 Solar Legacy Reserved Custom* System Voltage System Voltage Switch 3 Switch 4 Custom* Battery Type Switch 5 Switch 6...
  • Page 56 Section 2 Switches 1 through 7 Section 2 Section 1 DHCP IP Address MODBUS Mode System Battery port Voltage Type Section 2 DHCP or Static IP address Switch 1 Static IP DHCP IP Address (only if DHCP is set to Static IP) Switch 2 Switch 3 Switch 4...

  • Page 57: Battery Voltage And Time Settings

    Battery voltage and time settings Battery Absorb Float Equalize Absorb Absorb Equalize Time Equalize Type Voltage Voltage Voltage Minimum Maximum (minutes) Interval Time Time (days) (minutes) (minutes) 12 Volt battery 14.0 13.7 Sealed 1 14.2 13.7 14.4 Sealed 2 14.3 13.7 14.6 14.4...

  • Page 58: Using Mngp Remote To Program A Classic Lite

    Using MNGP Remote to program a Classic Lite The Classic Lite can be programmed using an MNGP remote. This is an easy way to get into and program not only the basic functions, but the advanced features as well. In Dip Switch Section 1set DIP Switches 1, 2, 3, and 4 to ON.

  • Page 59: Programming The Lite With The Local App

    Programming the Lite with the Local App Coming Soon Clearing Faults If either the Ground Fault or Current Limit fault light is lit, then the equalize button can be tapped to clear these faults. If the fault condition has not been removed, however, then the light will re-illuminate indicating that a fault condition is still present.

  • Page 60: Uploading New Firmware To The Classic

    Uploading New Firmware to the Classic The Classic has the ability to have its firmware updated with the included USB cable and a Windows based PC. Please see www.midntesolar.com and click on the Firmware tab for the firmware and instructions. Do to the various different Windows configurations we will not go into detail in the Classic Manual.
  • Page 61 2. Remove the four screws holding the front cover of the Classic charge controller. Do not let the front cov- er hang by the cable. 3. Holding the front cover with one hand, place a screw in the top left hole of the front cover and screw it into the top right hole of the back casting.
  • Page 62 4. Use the provided USB cable to connect the Classic to the PC. The smaller terminal connects to the USB port on the Classic. The USB port is located on the right side of the Ethernet Jack in the lower part of the Classic.

  • Page 63: Connecting The Classic To The Internet

    Connecting the Classic to the Internet Networking The Classic supports standard 10/100-base T Ethernet networks. For Gigabit networks you will need a common network switch that is capable of mixed mode operation. The Classic may also be placed on a, b, g, or n wireless networks by using a wireless network bridge device.

  • Page 64: Network Setup Through The Mngp

    MAC Address The hardware or Ethernet address of the Classic Device ID The unique MidNite Solar address of the Classic Table 5.1 Net Menu Details DHCP The Classic supports Dynamic Host Configuration Protocol (DHCP) in which all networking settings are derived from a DHCP-enabled router.
  • Page 65 Please note that the Classic’s DHCP protocol implementation usually takes a few seconds up to a minute to update the network settings. If the network settings do not update within a minute, please consult the troubleshooting section. Static IP The Classic supports static IP address allocation. In this mode you can assign the Classic a specific IP address.

  • Page 66: Web Access

    Web Access MidNite Solar will be offering a free web service with which you can access your Classic from a web page from anywhere in the world simply by pointing your favorite web browser to http://www.mymidnite.com See the web section further on for instructions on how to create an account and use the web-based system.

  • Page 67: Hypervoc

    For example, the Classic 150 has an input voltage rating of 150 operating volts, if the Classic 150 is connected to a 48 volt battery bank, the HyperVOC voltage limit will be: 150V + 48V a total of 198 Volts that the Classic can withstand without breaking. When the Classic input voltage rises above 150 volts it will switch off (stop outputting power).

  • Page 68: Troubleshooting

    Troubleshooting Classic will not power on. *Check for voltage between the Battery + and the common – on the blue terminal block inside the Classic. If voltage is present and above 10vdc contact “No self test on power up” customer service. If no voltage is present back step through the + and – to find the fault.

  • Page 69: Specifications Electrical

    Specifications Electrical Model Classic150 Classic200 Classic250 Classic250KS Operating Volts in 150VDC 200VDC 250VDC 250VDC Max Hyper VOC 150+battery 200+battery 250+battery 250+battery *Battery Charge Volts 12-93 volts 12-93 volts 12-93 volts 12-150 volts 96a at 12v battery 74a at 12v battery 60a at 12v battery **Absolute Current 94a at 24v battery...

  • Page 70: Specifications Mechanical

    Specifications Mechanical 70 | P a g e...

  • Page 71: Default Battery Charge Set Points

    MidNite network cables various Lengths. Regulatory Approval The MidNite Solar Classic charge controller conforms to UL 1741, Safety for Inverters, Converters, Controllers and Interconnection System Equipment for Use With Distributed Energy Resources, Second Edition, May 7, 1999 with revisions through January 28, 2010 and CAN/CSA C22.2 No.

  • Page 72: Warranty

    Warranty MidNite Solar's Classic comes with a standard 5 year warranty we will repair or replace the Classic at no charge to the consumer during this 5 year period 72 | P a g e...

  • Page 73: Appendix

    Appendix Figure 3.0 Aux 1 and Aux 2 Graphs/Jumpers Figure 3.0 shows the two Aux port terminals, with their respective Polarities. These terminals are located at the bottom of the Power board below the battery temperature jack. Use a mini Aux 2 Aux 1 flat head screw driver to tighten the screws.

  • Page 74: Aux 1 Voltage-Time Relation (Relay/12V)

    Aux 1 Voltage-Time Relation (Relay/12v) Aux 1 Function Graph shows the relationship between voltage and time of AUX 1. (The axis labeled VOLTAGE could be battery, PV, wind input voltage, etc. depending on the function selected by the user) VHIGH is the upper voltage limit, as soon as the voltage reaches this limit the Delay time will then start, as soon as the Delay time expires AUX1 will change state and stay there until the voltage drops below VLOW set point, then another timer called Hold Time will start and when this expires the output will go back to the original state.

  • Page 75: Classic Breaker Sizing

    Classic Breaker sizing 75 | P a g e...
  • Page 76 76 | P a g e...

  • Page 77: Label Set From Classic

    Label Set from Classic 77 | P a g e...

  • Page 78: Modbus

    Please make sure that you understand what you are doing before attempting to change any settings (like battery voltage) using the raw MODBUS interface. MidNite Solar cannot take responsibility for any damage to your Classic in the event of misconfiguration.
  • Page 79 MODBUS application has reason to reset or adjust this register, there is nothing to prevent you from changing it however you please. Don’t be surprised if your batteries pop in and out of Absorb stage unexpectedly, though! Operators: Indexing square brackets around an address indicate the value of the register specified: ex: [4116] indicates the value of the register at address 4116.
  • Page 80 << x Binary shift left. Shift the value x binary digits to the left. This is equivalent to multiplying the decimal number by 2 . Ex: [4116] = 0x0001 Then [4116] << 1 = 0x0002. >> x Binary shift right. Shift the value x binary digits to the right. This is equivalent to dividing the decimal number by 2 [4116] = 0x0002 Then...
  • Page 81 Base Registers Address R/W Name Conversion Notes 4101 UNIT_ID PCB revision = [4101] The PCB revision is a value Unit Type = [4101] between 0 and 255 indicating the hardware revision of the PC board. The Unit Type is an integer value indicating the voltage category of the Classic See Table 4101-1.
  • Page 82 Address R/W Name Conversion Notes 4123 RESERVED 4124 MatchPointShadow [4124] Instantaneous value of Wind curve being used. Values [1…16] 4125 AmpHours ([4125] / 10) Amp Hour Daily Amp Hours reset once per 4126 TotalkWhours (([4127] << 16) + [4126]) Lifetime Energy Generation 4127 4128 TotalAmpHours...
  • Page 83 Address R/W Name Conversion Notes 4147 NoDoubleClickTimer [4142] Seconds Forced time space between manual MPPT sweeps. 4148 R/W Battery output Current Limit [4148] / 10) Amps Battery Current Limit Amps (example: 23.4 A = 234) 4149 R/W Absorb Set Point Voltage ([4149] / 10) Volts Battery Absorb Stage Set point Voltage...
  • Page 84 Address R/W Name Conversion Notes 4162 R/W Equalize Time [4162] Seconds Initialize Time for Batteries to remain in Equalize Stage. 4163 R/W Equalize Interval Days [4163] Days Number of days between Equalize Stages (Auto EQ) 4164 R/W Mppt Mode (Solar, Wind, [4164] (bit 0 = On/Off) Maximum Power Point ……………...
  • Page 85 Address R/W Name Conversion Notes 4179 R/W Aux1VoltsHiPv (absolute) ([4179] /10) Volts Aux 1 High PV Voltage Threshold 4180 RESERVED (Do NOT Write) 4181 R/W Aux2VoltsHiPv (absolute) ([4181] /10) Volts Aux 2 High PV Voltage Threshold 4182 RESERVED (Do NOT Write) 4183 R/W ArcFaultSenstvty Time = [4183]...
  • Page 86 Address R/W Name Conversion Notes 4202 R/W ClipperCmdVolts ([4202] /10) Volts Variable Voltage command to Clipper or Aux in Clipper mode 4203 R/W WindNumberOfPoles [4203] poles Number of turbine alternator poles (for RPM Calc) 4204 R/W MppPercentVoc [4204] 00 to 100 % % of Voc for U-Set mode 4205 R/W WindTableToUse...
  • Page 87 Address R/W Name Conversion Notes 4225 RESERVED (Do NOT Write) 4226 R/W VauxA2Dinput [4226] TBD Aux 2 A to D input (TBD) 4227 4228 RESERVED (Do NOT Write) 4229 4230 4231 VocRD ([4231] /10) Volts Last V OC reading 4232 4233 RESERVED (Do NOT Write) 4234...
  • Page 88 Address R/W Name Conversion Notes 4251 BattMonSOC 4252 BattMonAmps 4253 BattMonAHefficiency 4254 RESERVED (Do NOT Write) 4255 4256 4257 R/W RebulkTimerSec [4257] seconds Rebulk interval timer. Cleared if Vbatt >= Rebulk 4258 4259 4260 RESERVED (Do NOT Write) 4261 4262 4263 4264 Voc_Qualify_Timer_1ms...
  • Page 89 RESERVED (Do NOT Write) 4283 Table 4101-1 Device Type Name Value Description Classic150 Classic 150 Classic200 Classic 200 Classic250 Classic 250 Classic250 KS Classic 250 with 120 V Battery bank capability (lower current than 250) Table 4120-1 Battery Stage (UPPER Byte of mbComboChrgStge register)
  • Page 90 Table 4130-1 Info Flag Bits: READ ONLY Flag Value Description Classic Over Temperature 0x00000001 Classic Over Temperature if set EEPROM error 0x00000002 Classic EEprom read/write found an error if set RESERVED 0x00000004 RESERVED Equalize In Progress 0x00000008 Equalize Charge stage Active if set RESERVED 0x00000010 RESERVED...
  • Page 91 Table 4158-1 Battery Type (not used yet as of May 2011) Name Value Description Flooded Lead Acid (Flooded) Lead Acid (Gel) Lead Acid (AGM) AGM2 Lead Acid (AGM2) Lithium LiIon Nicad Nickel Cadmium VRLA AGM or AGM or AGM2 actually AbsolyteIIP User1 Table 4160-1 ForceFlagsBits (can write to low or high 16 bits independently if wanted)
  • Page 92 Table 4164-1 MPPT MODE† Value Description PV_Uset 0x0001 U-SET MPPT MODE (includes MPPT ENABLED (On) FLAG i.e. if 0x0000 MPPT mode is OFF) Slow Dynamic Solar Tracking (old Solar 1 O & P ) DYNAMIC 0x0003 Legacy P&O 0x0009 Legacy P & O sweep mode SOLAR 0x000B Fast SOLAR track (old PV Learn mode)
  • Page 93 Table 4240-1 Internal Flags bits (Read Only) (flagsRD) Name Value Description RESERVED 0x00000001 RESERVED RESERVED 0x00000002 RESERVED RESERVED 0x00000004 RESERVED RESERVED 0x00000008 RESERVED RESERVED 0x00000010 RESERVED 0x00000020 RESERVED RESERVED 0x00000040 RESERVED RESERVED AbsorbTimeRunf 0x00000080 Bulk/Absorb Timer Counting is Enabled EqTimeRunf 0x00000100 EQualize Timer Run flag FloatTimeRunf...
  • Page 94 AUX 1 and 2 modes Extracted and encoded as combined in Aux12Function Table 4165-1 AUX 1 Off – Auto – On (Extracted/Encoded as Aux12Function bits 6,7) Name Value Description Aux 1 Off Aux 1 output is OFF (0 Volts) Aux 1 Auto Aux 1 operates as defined in Aux2Funtion Aux 1 On Aux 1 output is ON (~14 Volts)
  • Page 95 Table 4165-4 AUX 2 Function (Extracted/Encoded as Aux12Function bits 8-13) Name Value Description DIVERT DGTL F+ Digital Out PWM Battery Diversion (Active High) DIVERT DGTL F- Digital Out PWM Battery Diversion (Active Low) BAT DIV V REL+ Digital Out PWM Relative to Charge Stage Voltage Threshold Diversion (Use It Or Lose It) (Active High) BAT DIV V REL- Digital Out PWM Relative to Charge Stage Voltage...
  • Page 96 Consolidated Time Registers 0 Table 4214-1 (write only to set Classic Time -- Normally, MNGP will set these registers from its battery backed RTC) Name Value Description 0 to 59 BITS 5:0 Seconds Seconds value in the range of 0 to 59 RESERVED RESERVED (Do NOT write ones to these bits) BITS 5:0...
  • Page 97 Table 4275-1 Reason For Resting VALUE REASON FOR RESTING Anti-Click. Not enough power available (Wake Up) Insane Ibatt Measurement (Wake Up) Negative Current (load on PV input ?) (Wake Up) PV Input Voltage lower than Battery V (Vreg state) Too low of power out and Vbatt below set point for > 90 seconds FET temperature too high (always shows up on boot up) (Cover is on maybe ?) Ground Fault Detected Arc Fault Detected...
  • Page 98 The network registers are all Read/Write. You may write any values to these registers, however this may result in erratic operation in some instances. To set A static IP address, be sure to clear the DHCP bit in register 20481 before writing the static values to the Network Address...
  • Page 99 The Version Registers are all Read Only. Writes to any of these registers will have no long-term effect. Version Address Name units Description 16385 app_version Major: [16385](15…12) Release version of the application code Minor: [16385](11…8) Release: [16385](8..4) 16386 net_version, Major: [16386](15…12) Release version of the communications stack Minor: [16386](11…8) Release: [16386](8…4)
  • Page 100 Communication Statistics are all Read/Write registers. You may write any value to these registers which will be incremented should the trigger for that counter occur. The most useful type of write may be to periodically reset the counters to zero. These are all lifetime counters and due to the number of MODBUS transactions may overflow to 0.
  • Page 101 Communication Statistics Remote bus interface 10033 rx_ok ([10034] << 16) + Number of correctly received packets 10034 [10033] 10035 rx_crc_err ([10036] << 16) + Number of packets received with crc errors 10036 [10035] 10037 requested_ok ([10038] << 16) + Number of transactions originating from 10038 [10037] this unit that completed successfully...

  • Page 102: Rs232 Jack Pin Out

    Reserved Address Name units Description 61441- Reserved Reserved 61442 RS232 Jack Pin Out Figure 1. Classic RS-232 MODBUS RJ-11 PHONE JACK PINOUTS (Top View) 102 | P a g e...
