OWNERS OPERATING INSTRUCTIONS

INTRODUCTION

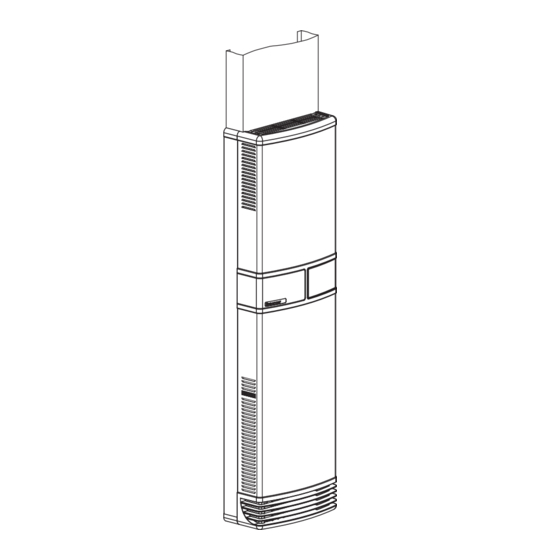

For satisfactory performance of your Braemar gas wall furnace, please read these
instructions carefully. The operation of the heater is controlled by the gas control knob
and fan switch located behind the access door on the front cover.

FAN OPERATION

The fan will start automatically in both AUTO and BOOST positions when the unit is
warm enough after the burner is turned on, and stop automatically when the unit has
cooled sufficiently after the burner turns off. With AUTO selected the unit will auto-
matically select between "low" and "normal" (and "boost" on 40MJ models) fan speeds
based on the heated air temperature - no further user adjustment is necessary. When
BOOST is selected the fan will run only on its boost speed. It is recommended that the
manual fan switch be set to AUTO for normal operation, or BOOST for rapid heat-up.

GAS CONTROL

To light the heater:
Turn the gas control knob anti-clockwise from the "O" position to the
•
Depress knob fully and hold down.
•
Press the igniter button located next to the gas control knob 3-4 times.
•
Observe the pilot meter to indicate operation of the pilot.
•
Wait 20 seconds then release the knob and check that the pilot status indicator
•
stays on.
If not, repeat the ignition process.
•
Heat setting:
Turn gas control knob anti-clockwise to desired heat setting between "1" and
•
"7". The heater will automatically adjust the gas flow rate to maintain the room
temperature corresponding to the selected setting.
To increase heat setting:
Turn gas control knob anti-clockwise towards "7".
•
To reduce heat setting:
Turn gas control knob clockwise towards "1".
•
To turn off main burner (when heat is not required):
Turn gas control knob clockwise to the "PILOT" position. It is recommended that
•
the pilot be left in operation for the duration of the heating season.
To turn off completely (end of heating season):
•
Turn gas control knob clockwise to the "O" position.
Do not place articles on or against this appliance.
Do not use or store flammable materials near this appliance.
Do not spray aerosols in the vicinity of this appliance while it is in operation.
BRAEMAR WF2000 SERIES
WARRANTY REGISTRATION CARD
Name of Purchaser _______________________________________________
Address ________________________________________________________
___________________________________ Phone: (___)_________________
Purchased From _________________________________________________
Address _________________________________________________________
Installation Date ___________________ Serial Number WF______________
This unit is installed in - New Home
Lounge / Dinning area Kitchen / family room
WF2000 Gas Wall Furnace

WARNING

TEAR AWAY HERE AND MAIL TODAY
GAS WALL FURNACE
Existing Home Hall / Passageway
Other
position.
Bedroom
