Braemar Seeley WF30 Owner's Manual

It is a condition of your warranty cover that the items in the Schedule below are checked (and action taken as required)
every two (2) years after the date of installation by a qualified, licenced technician, and that the Schedule is properly
filled out (ie names, signature, date, and action taken). Even after the warranty period expires, please continue to have
the product maintained every two years as per the items in the Schedule. This will help to prolong the life of the product
and keep it running efficiently.

Maintenance Schedule

Year 2
Name of Technician and company
(Print)
Signature of Technician
Date of attendance
Cabinet and components
Cabinet
Heat exchanger
Electrical connections
Combustion air inlet louvres

General installation

Rear register
Flue system, cowl

Electrical and gas connections

Electrical
Electrical wiring
Room fan motor / impellor
Thermocouple voltage
Overtemp switch

Gas, burners, ignition

Main burner and injector
Pilot gas rate
Pilot burner and injector
Pilot ignition / ignition electrode

Operation

Start up and run sequence
Control operation
Complete ignition
Gas inlet pressure
Gas test point pressure High
Gas test point pressure Low
Thermostat operation
Draught diverter
Action taken key:
= Inspected and working correctly no action required
A = Adjustment of part
C = Cleaning of part
R = Replaced part
To owner/user: please note that as explained in your Warranty Card, installation is not covered by the warranty
(for example, electrical and gas connections to the Wall Furnace). However, we still require that you have these things
checked, because they can affect the performance (and/or safety) of the heater. This is why we have included them in
the Maintenance Schedule. Further, run time maintenance may be required more frequently in non-domestic
applications or when operating in adverse environmental situations. It is your obligation to ensure that you comply with
these requirements.
It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject
to change without notice. Please consult with your dealer to confirm the specifications of the model selected.
612195k Version 29-10-13
4 6 8
kPa kPa kPa kPa
kPa kPa kPa kPa
kPa kPa kPa kPa
Warranty Service
Australia 1-300-650-644
seeleyinternational.com
seeleyinternational.com.au
10
OWNER'S MANUAL

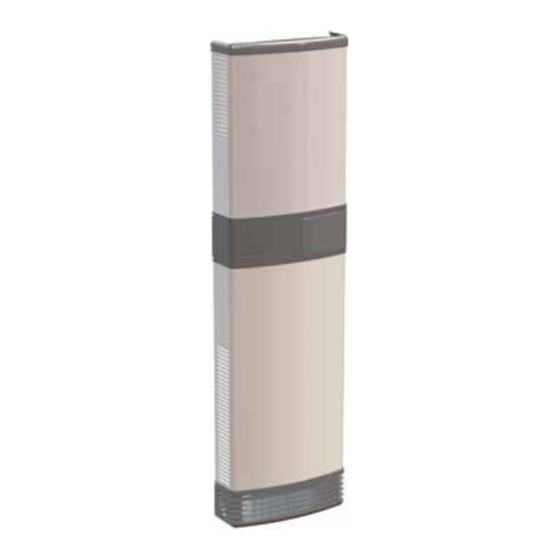

Wall Furnace - WF30/40
kPa
kPa
kPa
AU 1102
(English) (WF30/40)
