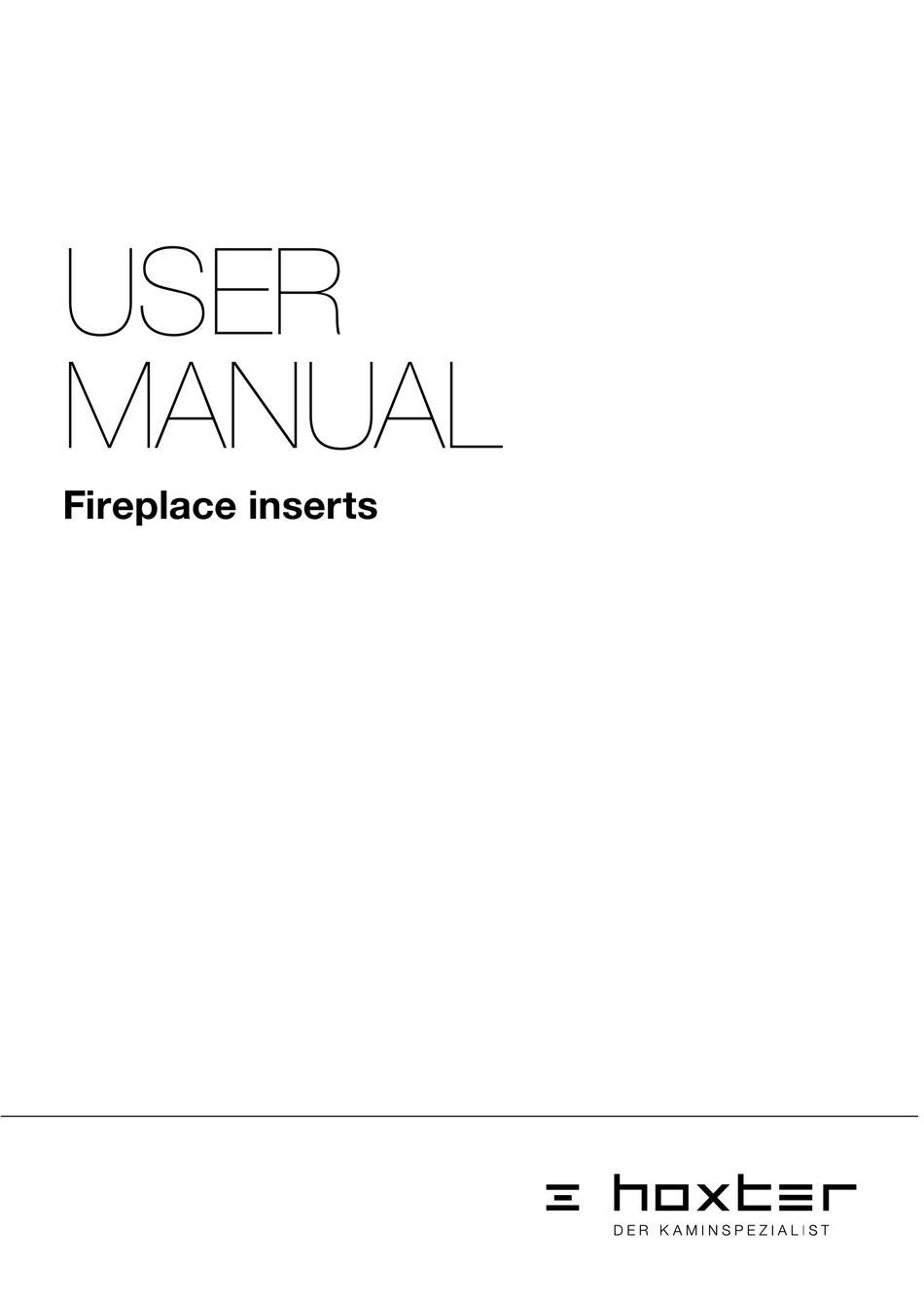

- Page 1 User manUal Fireplace inserts...
- Page 3 Dear Client, Thank you for purchasing the Hoxter fireplace insert – the best product without compromises. Hoxter is honoured to provide you with these fireplace inserts, which are the result of many years of research and development, extensive market experience and intensive contact with customers.
-
Page 4: Table Of Contents
Important information 7.2. Warranty conditions 7.3. Warranty period 7.4. Common wearing 7.5. Repair and maintenance 7.6. Making a claim We reserve the right for any technical changes, printing errors and differences in display. You can find the original manual on www.hoxter.eu. -
Page 5: Safety
Carefully read these instructions for using the fireplace insert and keep the manual in a safe place. Hoxter fireplace inserts are certified according to European standard EN 13229 and carry the CE indication. When assembling the fireplace insert, you must comply with local regulations and instructions applicable to national and European standards. -
Page 6: Putting Into Operation
1.5. OPEN OPEraTiON Hoxter fireplace inserts are not designed to be operated with an open door. The fireplace must always be closed with the exception of adding fuel so as to prevent burning wood falling out and combustion gases leaking into the room. -
Page 7: Fire In The Chimney
1.6. FirE iN ThE ChimNEy When burning wood, sparks from the fireplace may get into the chimney and ignite the built up layer of soot. Therefore, the fireplace insert, smoke flue and the chimney must be regularly cleaned. If starting the heating after a long break in operation, then first check that the system is not blocked anywhere. -
Page 8: Permitted Fuel
2.2. PErmiTTED FuEl It is only permitted to burn only wood in natural condition with the humidity ≤18 % in Hoxter fireplace inserts. 2.3. TyPES OF WOOD The volume of energy contained in one kilogram of wood is approximately the same for all types of wood. - Page 9 Under no circumstances should you use fresh wood. Fresh wood has humidity of approximately 60 % and a caloric capacity less than 2 kW/h per 1 kg (Fig. 4). To create the same volume of heat energy would require twice the volume of fuel. Moreover, when using fresh wood, the fireplace insert does not achieve the optimal burning temperature, efficiency and low emissions of pollutants.
-
Page 10: Recommended Dose Of Fuel
[kW] Dose of fuel [kg/hour] HAKA 37/50 6,3–11,7 1,8–3,4 HAKA 37/50 (G) 4,2–7,8 1,2–2,3 HAKA 63/51 9,1–16,9 2,6–4,9 HAKA 63/51 (G) 5,9–11,0 1,7–3,2 HAKA 63/51 a 9,1–16,9 2,6–4,9 HAKA 67/51 8,4–15,7... -
Page 11: Description Of Control Elements
10 cm 3. DESCriPTiON OF CONTrOl ElEmENTS 3.1. DESCriPTiON OF CONTrOl ElEmENTS Hoxter fire place inserts are produced in two basic versions for opening the door: - vertically opening doors (Fig. 5a) - liftdoors (Fig. 5b) FiG. 5a FiG. 5b 1. -
Page 12: Options For Closing The Door
3.2. OPTiONS FOr ClOSiNG ThE DOOr Hoxter fireplace inserts enable two methods of closing the door: a1 – automatic closing of the door a – manual closing of the door The door is set in production for manual closing – a. If you want the door to automatically close –... - Page 13 2. Open the door of the fireplace and on the bottom of the chamber place the dose of fuel recommended for your type of the fireplace insert against the rear wall (Chapter 2.5). First place the larger pieces of wood, then smaller pieces (Fig. 7a). 3.
-
Page 14: Operation With Electronic Burning Regulation
Notification: During active burning (visible fire), never close the air supply and do not smoother the fire! Air flowing into the burning chamber cools the ceramic glass. If closing the supply of air, it can be overheated and irreversible changes can occur in the crystalline structure of the glass. During burning with an insufficient air supply, an excessive amount of harmful carbon monoxide - CO will originate. -
Page 15: Cleaning The Glass
5.1. ClEaNiNG ThE GlaSS The door of the Hoxter fireplace insert is produced from high-quality ceramic glass and is fitted with a self-cleaning ceramic glass system. Air supplied into the combustion chamber “rinses” the glass from the inside. Correct regulation of air and by burning dry wood will result in clear glass that won’t need to be cleaned very often. -
Page 16: Cleaning The Hot Water Exchanger
5.3. ClEaNiNG ThE hOT WaTEr ExChaNGEr Problem-free and effective operation of the hot-water fireplace insert requires regular cleaning of the hot-water exchanger. Depending on the intensity of the operation, it is recommended to clean a minimum of once a month. In the case of neglecting the maintenance, there is gradual blocking of burnt passages and a reduction in efficiency which can result in irreversible damage to the fireplace insert. -
Page 17: What To Do In The Case Of A Defect
6. WhaT TO DO iN ThE CaSE OF a DEFECT The glass is heavily smoked Possible reasons: - incorrect fuel is used (Chapter 2.2) - regulation of the combustion air is not opened (Chapter 4.1) - the line for the external air supply is blocked (contact your fireplace technician) - the draught of the chimney is insufficient - in the transient period (Chapter 4.3) - the hot water exchanger is blocked (Chapter 5.3) -
Page 18: General Warranty Terms
7.1. imPOrTaNT iNFOrmaTiON Hoxter products are produced from high-quality materials with a long service life. The whole manufacturing process is the subject of regular inspection to prevent any defects. The installation of this product requires professional knowledge and, therefore, must only be done by qualified companies aware of the valid legal provisions. -
Page 19: Common Wearing
7.4. COmmON WEariNG Warranty conditions do not apply to parts which are the subject of common wearing, particular concerning: Wearing of the fireplace bed: Refractory / nyrolit plates are expanded or contracted during operation due to thermal loading. During these processes, micro cracks may originate. If refractory / nyrolit plates keep their form and are not broken, then they fulfil their function. - Page 20 Hersbrucker Straße 23 91244 Reichenschwand Germany +49 (0)9151 8659 163 info@hoxter.de hOxTEr a.s. Blanenská 1902 66434 Kuřim Czech Republic +420 518 777 701 info@hoxter.eu vErSiON 04/2015 www.hoxter.eu Changes of the stated data and errors reserved.
