Summary of Contents for Chauvet MotionDrape LED

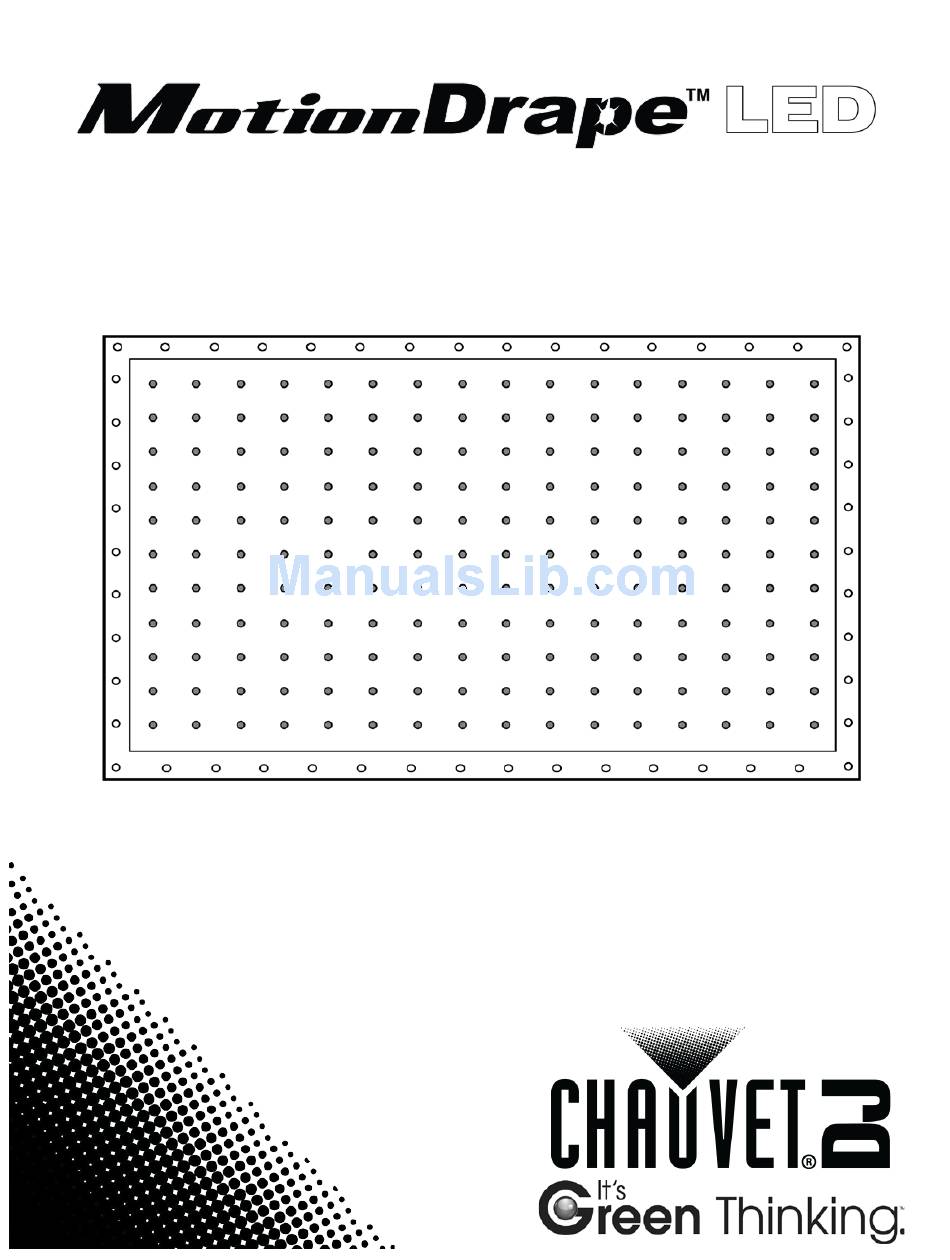

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ................3 What Is Included ....................3 Unpacking Instructions ..................3 Claims ........................3 Text Conventions ....................3 Icons ........................3 Document Information ..................3 Product at a Glance ..................4 Safety Notes ...................... 4 2. -
Page 3: Before You Begin
Chauvet, upon receipt of the damaged merchandise. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, retain the container and all the packing material for inspection. -
Page 4: Product At A Glance
Use on Dimmer Auto Programs Product at a Outdoor Use Auto-ranging Power Supply Glance Sound Activated Replaceable Fuse User Serviceable Master/Slave Duty Cycle Safety Notes Please read the following Safety Notes carefully before working with this product. They include important safety information about its installation, usage, and maintenance. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Front Panel Button Menu LED Display Top Panel Curtain Input Power In Fuse holder DMX Out On/Off Switch DMX In Product Dimensions MotionDrape™ LED User Manual Rev. 8 Page 5 of 13... -
Page 6: Setup
3. S ETUP AC Power This product has an auto-ranging power supply and can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for this product (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Mount the product securely to a rigging point, whether an elevated platform or a truss. Reusable zip ties (tie wraps) are provided with the MotionDrape™ LED for quick and easy mounting. This product can be used with the CHAUVET® CH-31 portable truss or any similar portable trussing system. Grommets for easy truss... -
Page 8: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the buttons location on the control Operation panel. Button Function Press to find an operation mode or to back out of the current menu <MENU>... -
Page 9: Configuration (Standalone)
Configuration Set this product in one of the standalone modes to control it without a DMX controller. 1. Connect this product to a suitable power outlet. (Standalone) 2. Turn this product on. Never connect a product that is operating in any standalone mode, whether Automatic or Sound to a DMX string connected to a DMX controller. -
Page 10: Dmx Channel Assignments And Values
DMX Channel Assignments and Values 8-CH Channel Function Value Setting 000 ó 007 No function Dimmer 008 ó 255 0–100% 000 ó 010 No function Strobe 011 ó 255 0–100% 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó... -
Page 11: Technical Specifications
5. T ECHNICAL PECIFICATIONS Dimensions and Length (Drape) Width (Drape) Height (Drape) Weight (Drape) Weight 9.8 ft (118 in) 6.6 ft (78.7 in) 0.6 in (15 mm) 9.8 lb (4.4 kg) 3 m (3,000 mm) 2 m (2,000 mm) Length (Control Box) Width (Control Box) Height (Control Box) Weight (Control Box) -
Page 12: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause for the return. You must send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. -
Page 13: Contact Us
(954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address: Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate Pinxton, Nottingham, UK World Wide Web www.chauvetlighting.co.uk...
