Summary of Contents for Bosch REG-L1

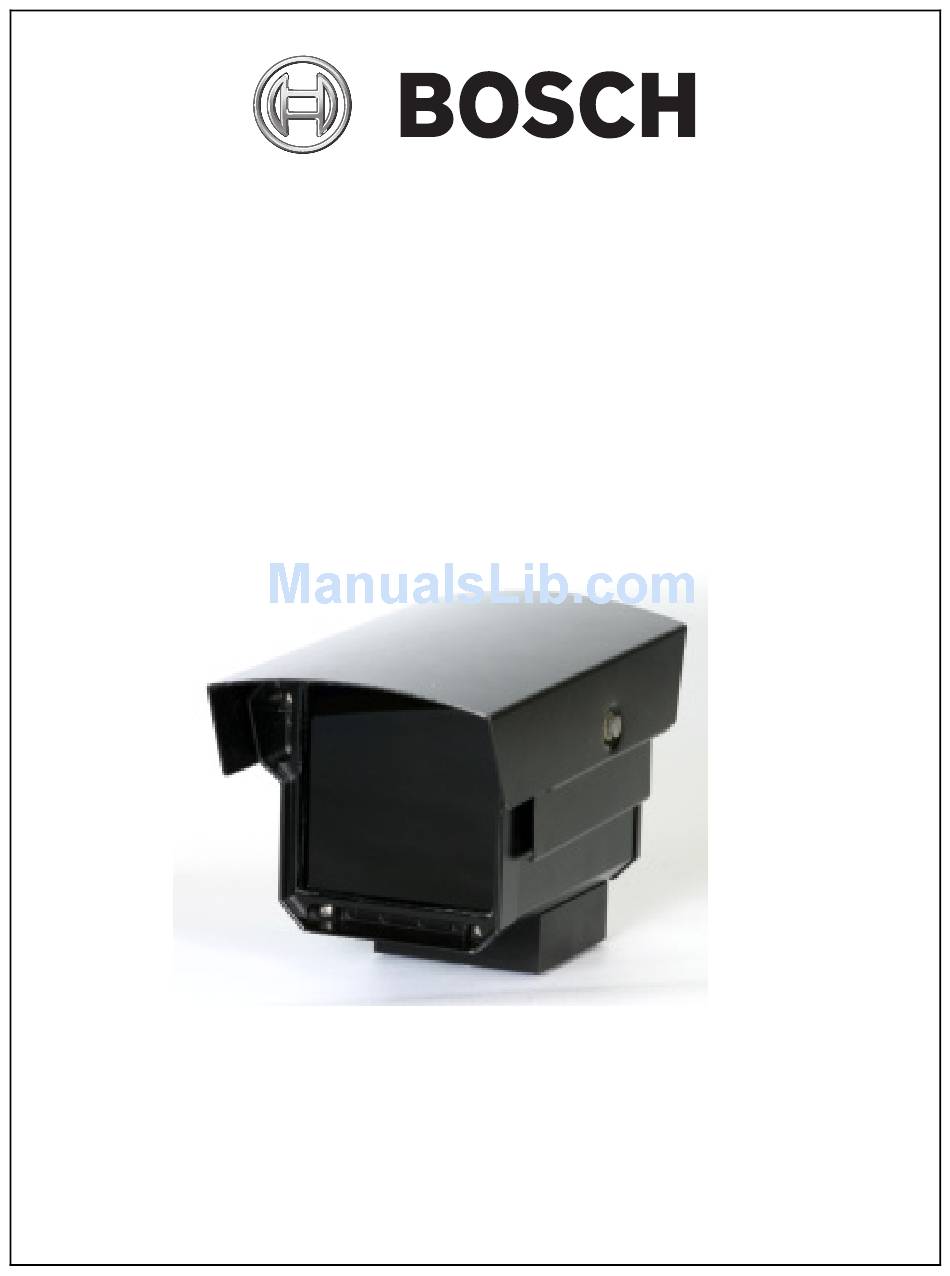

- Page 1 INSTALLATION INSTRUCTIONS REG-L1 MAN-REG-L1-06 IMPORTANT SAFETY INSTRUCTIONS...
- Page 2 Read these instructions. Keep this instruction. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with manufacturer instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
- Page 3 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the power where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 4 Bosch Security Systems, Inc. will not be responsible for injuries or damages resulting from the improper installation or use of any camera sold by Bosch Security Systems, Inc., their agents, distributors or dealers. EU Directives covered by this declaration:...
- Page 5 PSU box. 3)Contact Bosch Service Center for further advice...
-
Page 6: Table Of Contents
INDEX – REG - L1 Camera Description………………………………………………...1 Unpacking………………………………………………..2 Parts List…………………………………………………..2 Items Required for Installation…………………………..2 Initial Preparations………………………………………..3 Guidelines………………………………………………..3 1. Mechanical Specifications REG-L1………………...4 2. Input Power / Video Output Connections………….5 3. Mounting Specification………..……………………..6 4. Troubleshooting Guide…...………………………..10 5. General specifications…………..…………………13... -
Page 7: Description
DESCRIPTION The REG-L1 license plate capture camera unit consists of one IR-sensitive monochrome camera and one integrated panel of Infrared LEDs. The license plate capture camera produces optimum license plate images during day and night settings in all-weather conditions. The camera has optical... -
Page 8: Unpacking
Check the parts list and confirm all items have been located. Inspect the equipment thoroughly to ensure nothing was damaged in transit. Contact BOSCH Service Center if a problem is noted, see the rear page of this booklet for contact numbers. -
Page 9: Initial Preparations
Note: To ensure the camera is working, you must use a retro reflective license plate. GUIDELINES The installation of the REG-L1 camera is explained in Sections 1 to 3. It is important that these steps are followed and practice proper installation procedures with proper safety equipment. -
Page 10: Mechanical Specifications Reg-L1
1. MECHANICAL SPECIFICATIONS – REG L1 (See Section 5 - General Specifications, for more information) Front View Side View Bottom View *Optional mounting kits: EXMB028 or EXMB029 Figure 1 General Mechanical Specifications - 4 -... -
Page 11: Input Power / Video Output Connections
2. INPUT POWER / VIDEO OUTPUT CONNECTIONS The camera unit is pre-connected with an electrically isolated power board for 12 to 24 VDC/VAC operation with no wiring change or wiring polarity. Note: Input voltage is 12VDC to 24VDC for DC input. The AC input range is 12VAC to 24VAC. -
Page 12: Mounting Specification
3. MOUNTING SPECIFICATION Caution: Install with appropriate screws to suit mounting surface. Select a suitable location that is protected from accidental damage, tampering and environmental conditions exceeding the camera’s specifications. See page 13. Caution: Ensure the selected location is protected from falling objects, accidental contact with moving objects, and unintentional interference from personnel. - Page 13 The REG-L1 units have a recommended operation range with specified optimal capture distance for each model as shown below. Any number plate recognition installation should also aim to control the traffic through a lane. Model Range, ‘R’ Optimal Distance* REG-L1-816 12 –...
- Page 14 can provide readable plates larger than 80 pixels depending on level of image compression set on DVR. The maximum angle of the unit to the car is 40º. This is both horizontally and vertically. This limits the amount of skew of the letters on the number plate.
- Page 15 Range ‘R’ 40ْ Figure 5 Maximum Horizontal Angle If the maximum range is exceeded the letters will become smaller and be more difficult to read. At the max range the width of the number plate covers approximately 12% of the width of the screen. Note: The ‘R’, Range is the distance from the camera to the license plate.
-
Page 16: Troubleshooting Guide
4. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE LIKELY SOLUTION CAUSE No Video 1. Power Check the input Supply power connections at Connection the terminal block, ensuring no wires are loose. Voltage The supply range is: Range 12 - 24VDC OR 12 – 24VAC. Measure the voltage at the terminal block. - Page 17 Check the video signal. If okay, the problem is with the interconnections. If still no video, contact BOSCH Service Center. See rear page of this manual for contact information. Horizontal Ground Check the coax cable Scan...
- Page 18 Safety and Precaution “Prolonged direct viewing of the REG-L1 camera product at any distance does not pose a hazard to the retina or cornea.” When mounting and installing the REG-L1 camera, make sure proper safety equipment and procedures are used and practiced.
-
Page 19: General Specifications
5. GENERAL SPECIFICATIONS Power Consumption: 24W Max. Input Voltage: 12 – 24 VDC to 12 – 24 VAC Enclosure (housing): Aluminum casting and extrusion (sealed to IP66 / NEMA4) Viewing Window: Black Acrylic Dimensions: 130mm H ( 5.12” ) 134.5mm W ( 5.30” ) 212mm L ( 8.35”... - Page 20 5600 JB Eindhoven, The Netherlands Phone: + 31 40 2577 284 Fax: +31 40 2577 330 emea.securitysystems@bosch.com www.boschsecurity.com] Asia-Pacific Bosch Security Systems Pte Ltd 11 Bishan Street 21 Singapore 573943 Phone: +65 6258 5511 Fax: +65 6258 4671 apr.securitysystems@bosch.com www.boschsecurity.com...
