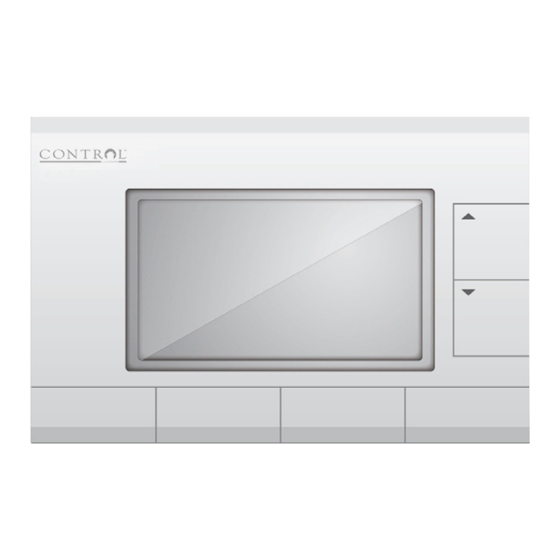

Control M6004 Instruction Manual

5+1+1 day programmable thermostat low-voltage (24 v or millivolt) system control
Hide thumbs
Table of Contents

Advertisement

Quick Links

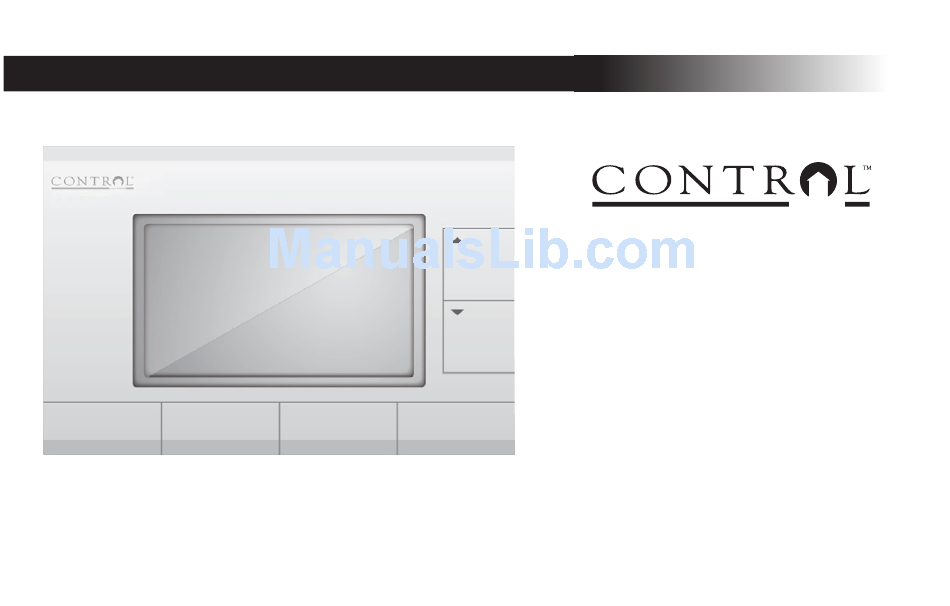

5+1+1 Day Programmable Thermostat
For single stage heating, cooling or millivolt heating systems
IMPORTANT:
This thermostat is NOT compatible with any 120V or 240V high voltage control system.
Read and understand this manual before installation or use.
Instruction Manual
model: M6004
Low-voltage (24 V or millivolt)
system control
CANARM
BY/PAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6004 and is the answer not in the manual?

Questions and answers

Related Manuals for Control M6004

Summary of Contents for Control M6004

  • Page 1 For single stage heating, cooling or millivolt heating systems CANARM BY/PAR Instruction Manual model: M6004 Low-voltage (24 V or millivolt) system control IMPORTANT: This thermostat is NOT compatible with any 120V or 240V high voltage control system. Read and understand this manual before installation or use.

  • Page 2: Table Of Contents

    Table of Contents Features Introduction and Features Warning and Safety Precautions Compatibility Choosing the Location for the New Thermostat Installation Tools Required for Installaton Replacing Old Thermostat Wiring 7-10 Connecting the Wires to the Terminals Mounting the Thermostat Back-cover Buttons LCD Display 14-15 Operation...

  • Page 3: Introduction And Features

    Features • Temperature display in Centigrade or Fahrenheit (°C or °F) • Automatic temperature control – changing the temperature up to four times a day. • Humidifier control – When connected to control wires for a central humidifier. • Temperature setting in half degrees.

  • Page 4: Warning And Safety Precautions

    Features Warning & Safety Precautions • Read this instruction manual thoroughtly prior to the installation and the use of the thermostat. • Follow all instructions in this manual. • Keep this instruction manual for future reference. • Only clean this thermostat with a dry cloth. •...

  • Page 5: Compatibility

    Features Compatibility This thermostat is designed to be connected to low voltage (24 volt and milivolt) control wires only! Do not connect directly to wires carrying regular household voltage (120V /240V) as it would be dangerous. For details on compatibility of your particular equipment, please call our technical assistance line.

  • Page 6: Installation

    • Near concealed pipes and chimneys. • In areas with poor air circulation, such as behind a door or in an alcove. After choosing a location for the new thermostat, you must arrange to have a heating contractor install the control wiring for you.

  • Page 7: Replacing Old Thermostat

    Installation Replacing Old Thermostat Prior to replacing an old thermostat please test the system to make sure your heating and air conditioning systems are in working order. If there is any concern please consult a specialist. WARNING: Many old thermostats contain MERCURY and should be removed with caution and disposed of as a HAZARDOUS WASTE.

  • Page 8: Wiring

    Installation Wiring NOTE: Please note the wire colours and terminal letters they are attached to on the old thermostat. WIRING COLOURS ARE NOT ALWAYS STANDARDIZED, IT IS VERY IMPORTANT TO LABEL ALL WIRES ACCORDING TO THE LETTER DESIGNATION ON YOUR OLD THERMOSTAT. (The wires are usually designated ‘W’, ‘Y’, ‘G’, ‘RH’, ‘RC’, ‘B’, ‘O’...
  • Page 9 Wiring Key Wiring Diagrams Regular Wiring G - Fan output Y - Cool output H1 / H2 - Humidifer control Rc - Common for Cooling and Fan Rh - Common for Heating W - Heat output 2-Wire Heating Rc / Rh - Common...
  • Page 10 Installation Wiring Key Wiring Diagrams 4-Wire Heating/Cooling 4-Wire Heating/Cooling Rc / Rh - Common (Rc and Rh must be connected with jumper) 5-Wire Heating/Cooling 5-Wire Heating/Cooling 2 separate transformers (Heat / Cool) Rc / Rh - Common Heat Transformer Cool Transformer (wire separately, jumper must not be installed)
  • Page 11 • The original humidistat should be removed or set to 'OFF' position. • The 2 humidifier control terminals 'H1' and 'H2' are electrically isolated from the Heat / Cool terminals. • 'H1' and 'H2' terminals are non-polarized, and there is no function difference between 'H1' and 'H2'.

  • Page 12: Connecting The Wires To The Terminals

    Installation Connecting the Wires to the Terminals Connect the previously labeled wires to the corresponding terminals, matching the designations. Use a screwdriver to loosen the terminal, wrap the wires around the terminal, and then tighten to securely fasten the wires. Make sure the wires do not touch or short-circuit with other terminals.

  • Page 13: Mounting The Thermostat Back-Cover

    Installation Mounting the Thermostat Back-cover • The back-cover should be mounted horizontally with the terminals on the top. • Thread the existing wiring through the big center hole from the back and set the back-cover vertically on the wall. • Select two appropriate mounting holes, and mark the locations with a pencil. If necessary, use a level to make sure the thermostat is positioned straight.

  • Page 14: Buttons

    Operation Buttons...

  • Page 15: Lcd Display

    Operation LCD Display...
  • Page 16 Operation LCD Display Check Programs • Press SET CLOCK/DAY/SCHEDULE, then SET SCHEDULE. • Press NEXT two times to view the next program setting. • Continue to press NEXT to view the rest of the program settings, press DONE when finished viewing. Current Temperature •...

  • Page 17: Changing Batteries

    Operation Changing Batteries When the AA batteries are low and need to be replaced, the battery symbol will appear on the LCD screen, the current temperature will flash and a beep will sound every hour, it indicates that the batteries are running low and have to be replaced immediately.

  • Page 18: Programming

    Programming CELSIUS DEFAULT: Since Celsius (ºC) is the default mode, no action is required to use the thermostat in this mode. However, if you wish to choose Fahrenheit (ºF), you must do so before you begin using the thermostat, because this is a one-time process.

  • Page 19: Program Heating And Cooling

    Programming Program Heating and Cooling This thermostat is equipped with 5+1+1 DAY PROGRAMMING - separate programming for weekdays, Saturday and Sunday, with four settings per day. This thermostat is pre-programmed for your convenience or you can set your own programs as desired. PROGRAM 1: MORNING This is typically for the morning when you may prefer a warmer temperature.
  • Page 20 Programming Heating Program 1. Press the SYSTEM button until the HEAT symbol appears. 2. Press SET CLOCK/DAY/SCHEDULE, then SET SCHEDULE. 3. Start time of P1 will blink, indicating that the time can be changed. 4. Press UP or DOWN to adjust the start time for P1. 5.
  • Page 21 Programming Cooling Program 1. Press the SYSTEM button until the COOL symbol appears. 2. Press SET CLOCK/DAY/SCHEDULE, then SET SCHEDULE. 3. Start time of P1 will blink, indicating that the time can be changed. 4. Press UP or DOWN to adjust the start time for P1. 5.

  • Page 22: Functional Settings

    Programming Humidifier Control 1. Verify that the humidifier is correctly wired to the thermostat (see installation guide or contact an electrician). 2. Ensure the thermostat is in HEAT mode. While in HEAT mode, at the end of Sunday P4 program, press NEXT to view humidity setting.
  • Page 23 Programming Fan Control / Ventilation • For automatic control of the fan, press FAN until the AUTO symbol appears. In cooling mode, the fan starts/stops with the cooling equipment. In heating mode, the fan is controlled by the heating equipment if HG is selected.
  • Page 24 Programming Temporary OVERRIDE This function will change the temperature temporarily, until the next program period starts. Press UP or DOWN to set the desired temperature. • The OVERRIDE symbol will display, indicating the the OVERRIDE function is active. • Only the currently active mode (heat or cool) setting will be changed •...
  • Page 25 Programming Pre-comfort Recovery • This thermostat is equipped with a 'Pre-Comfort Recovery' system that will activate the heating or cooling in advance of the actual set program time, so that the room will be at the desired temperature at the start of the program time. •...

  • Page 26: Optional Settings

    Programming Optional Settings The thermostat has a number of OPTIONS that the user can change. (*NOTE: Adjust these settings before programming in the thermostat, becasue changing certain options will erase all programming.) There are 5 OPTIONS. To begin, press SET CLOCK/DAY/SCHEDULE, then press OPTION to enter the optional setting mode.
  • Page 27 Programming Optional Settings 1) 12/24 - 12- or 24-hour display format • Press SET CLOCK/DAY/SCHEDULE, then press OPTION. • Select your preference between 12hr or 24hr display format by presing UP or DOWN. • Press OPTION to confirm the setting and to advance to the next option. 2) CR - Cycle Rate setting (select cycle rate to match the heating equipment) •...
  • Page 28 Programming Optional Settings 3) HE / HG • Select the setting by presing UP or DOWN. • Press OPTION to confirm the setting and to advance to the next option. HE: Use this setting for electric furnaces. With this setting, the thermostat will turn the fan on immediately with the heating system. HG: Use this setting for gas or oil-fired furnaces.

  • Page 29: Reset

    Programming Reset SOFT RESET If the thermostat has an abnormal display, press the RESET (R) button located at the back of the thermostat. The programs and thermostat settings will remain stored in memory, but the clock will have to be set again. HARD RESET To clear the permanent memory (including all stored programs and settings) or to change the temperature scale (ºC or ºF), a hard reset must be performed.

  • Page 30: Specifications

    Supplementary Information Specifications Number of Programs: 5+1+1 Day Programming with 4 programs per day Temperature display range: 0ºC - 55ºC (32ºF - 131ºF) Temperature setting range: 5ºC - 35ºC (41ºF - 95ºF) Humidity display range: 15% to 95% Humidity setting range: 20% to 70% Battery: 2 x AA size batteries (not included) and 1 x CR2025 size battery (installed)

  • Page 31: Troubleshooting

    Supplementary Information Troubleshooting Problem Solution LCD screen is blank. •Check if the batteries are installed correctly. •Check if the batteries are fresh and of the correct type. •Press the RESET button on the back of the unit. Battery symbol • This is an indication that the AA batteries are running low and need to be replaced. current temperature is •...
  • Page 32 Supplementary Information Troubleshooting Problem Solution Air-conditioning will not • Check and ensure that the thermostat is set to COOL mode. come on. • Check and ensure that the set temperature is lower than the current (room) temperature • You may have to wait up to 5 minutes before the air conditioning will turn on. The thermostat has a built-in time delay to prevent undesirable on/off sequences.
  • Page 33 Supplementary Information Troubleshooting Problem Solution Heating system seems to • Check and ensure that you have selected a Cycle Rate that matches your particular cycle too often. heating system. If you find that it is still cycling too often, you may wish to try a slower cycle rate or disable the cycling.

  • Page 34: Warranty

    Customer Service number (English) 1-800-265-1833 Numéro du Service à la Clientèle de Canarm (Français) 1-800-567-2513 Made in China Imported by/Importé par CONTROL™ by Canarm, CANARM Ltd/ltée., 2157 Parkedale Avenue, Brockville, Ontario K6V 5V6 www.canarm.com © 2012 Kelan-Hudson Group Inc. Product specifications and appearance are subject to change without notice.
