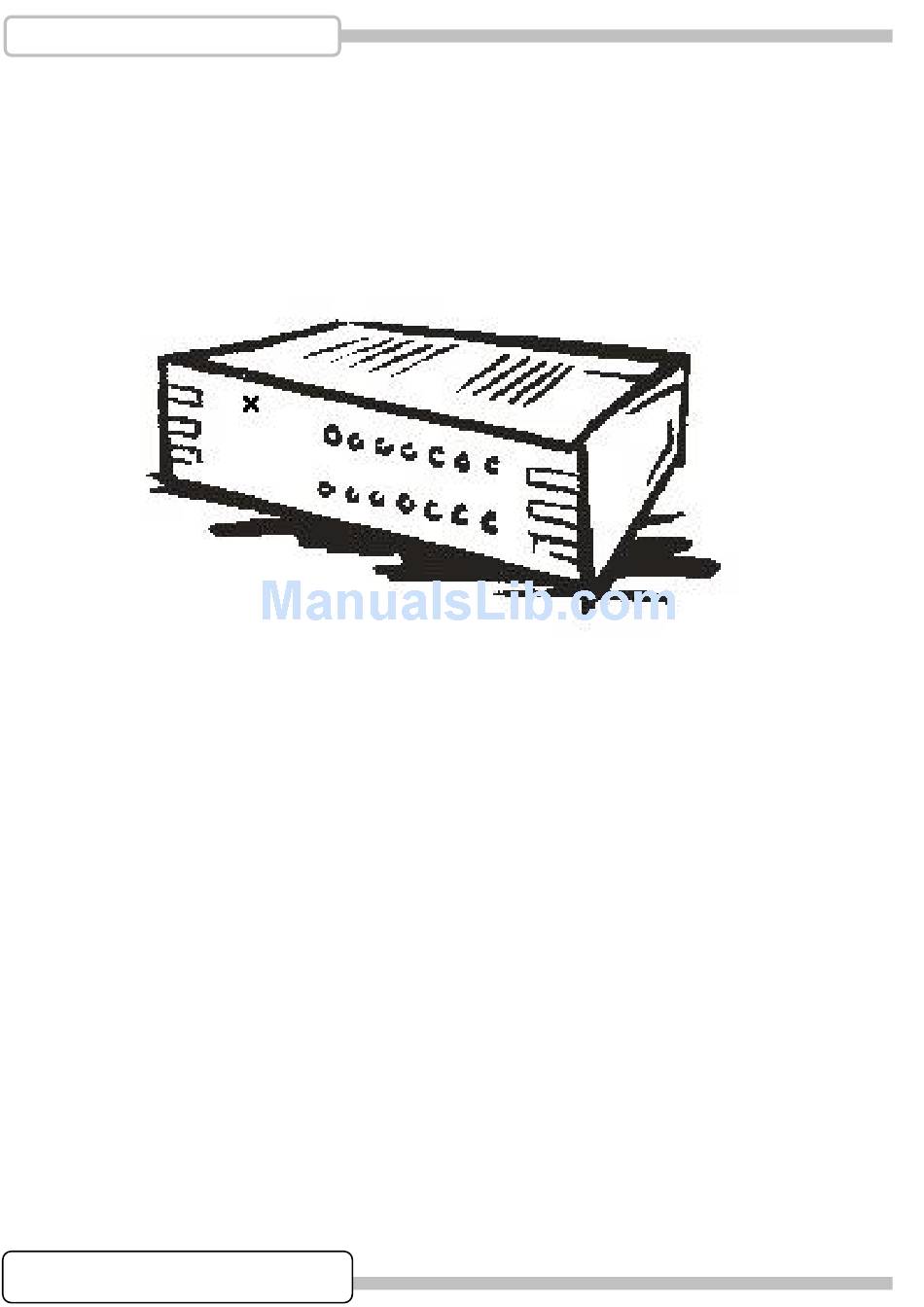

  • Page 1 Digital Video Recorder 4CH DVR...

  • Page 2: Table Of Contents

    Index Introduction to Digital Video Recorder------------------2 Front panel buttons----- ------------------------3 -------------- Rear panel buttons ------------------------------------------4 DVR installation:video output connection--------------5 DVR installation:video input connection----------------5 DVR installation:sensor installation----------------------6 DVR installation:alarm installation--- -------7 -------------- Power up the unit --------------------------------------------8 On-screen display--------------------------------------------9 Operation guide:Main menu-------------------------------10...

  • Page 3: Introduction To Digital Video Recorder

    HDD to record the compressed video stream. The following operation guide explains how to operate/manage the DVR, and the following installation guide explains how to install DVR at your home or HDD into the DVR. Hope you enjoy it, use it to protect your home, and eventually make your...

  • Page 4: Front Panel Buttons

    Front Panel (Menu) button: press to display Operation menu option (Recording button): press to start recording. (Stop recording/playback button):press stop recording/playback (the authorized password is requested upon stopping record; the default password is 111111) (Fast forward button): press to play the recorded stream faster. (Playback button): press to start playback (Pause button): press to pause the video playback Reverse:press to playback backward...

  • Page 5: Rear Panel Buttons

    Rear Panel S Video Video output Monitor : Second Video output Video input Video loop-through Sensor input/alarm output: 4 sensor inputs and one alarm output NTSC/PAL switch DC-in (12Voltage) Audio-in/out (optional function) LAN(RJ45) (optional function) Power switch PC Link : USB device interface (2.0) (optional function) VGA output (optional function)

  • Page 6: Dvr Installation:video Output Connection

    DVR Installation BNC connection Or through S-Video connection (Optional) 1.Video output connection ( TV or monitor, LCD monitor) Please connect TV(monitor) or LCD monitor to the unit over the Video output (optional) connector. The unit provides 1 x S-Video input, 2 x BNC connector and 1 x VGA output.

  • Page 7: Dvr Installation:sensor Installation

    DVR Installation Signal Line Sensor Power line AC/DC adaptor power outlet 3.Sensor Installation The unit provides 4 sensor input for 4 channels. The sensor Installation procedures are as follows. There are two simple steps For the installation of the sensors.

  • Page 8: Dvr Installation:alarm Installation

    DVR Installation Signal Line AC/DC adaptor Alarm power outlet 4. Alarm installation The unit provides 1 internal switch for sounding alarm when the sensor is Activated due to the unwanted entrance of anonymous visitor. The switch Is open at normal state, but, when the alarm is activated, the switch is closed So that the alarm gets the power.

  • Page 9: Power Up The Unit

    Make sure the HDD is off Make sure the HDD is off before removing the drive before removing the drive Turn off and on the DVR! 2.Once you resume the initial 2.Once you resume the initial setting, the right information setting, the right information will be displayed on the screen.

  • Page 10: On-Screen Display

    On-Screen Display 1. Power on the system MAIN MENU CAMERA SELECT 1234 Press button to open OSD RECORD SELECT 1234 menu as right 田 RECORD MODE RECORD FRAMERATE CH1 CH3 VIDEO QUALITY CH3 CH4 Press button to exit OSD RECORD SCHEDULE menu to real-time display SUB MENU HARD DRIVE SETUP...

  • Page 11: Operation Guide:main Menu

    Operation guide MAIN MENU MAIN MENU Press to display Operation Buttons CAMERA SELECT 1234 menu option shown press to display menu option. RECORD SELECT 1234 田 RECORD MODE --- press to change menu field or as right figure. RECORD FRAMERATE 30 change the unit’s configuration values.

  • Page 12: Operation Guide:record Select

    Operation guide NOTICE Channel Display Control In each mode(回) mode, you can use the following buttons to display Full-screen format of each channel. Channel 1 button: Full screen display of channel 1 Channel2 button: Full screen display of channel 2 Channel 3 button: Full screen display of channel 3 Channel 4 button: Full screen...

  • Page 13: Operation Guide:record Frame-Rate

    Operation guide There are two kinds of recording mode : 回(each mode; full screen MAIN MENU mode)&田 (quad screen mode). CAMERA SELECT 1234 when you set to 回mode, you can RECORD SELECT 1234 田 RECORD MODE view the full-screen display of one RECORD FRAMERATE 30 specified channel.

  • Page 14: Operation Guide:video Quality

    Operation guide VIDEO QUALITY There are 3 different video quality MAIN MENU CAMERA SELECT 1234 settings for operation: Normal, RECORD SELECT 1234 Low, High 田 RECORD MODE RECORD FRAMERATE 30 Please use buttons of front VIDEO QUALITY RECORD SCHEDULE panel to select mode and then SUB MENU enter to confirm the selection...

  • Page 15: Operation Guide:record Schedule

    Operation guide RECORD SCHEDULE MAIN MENU Enter into this option to change a CAMERA SELECT 1234 recording schedule during a day RECORD SELECT 1234 (24-hour period) . 田 RECORD MODE RECORD FRAMERATE 30 VIDEO QUALITY RECORD SCHEDULE SUB MENU HARD DRIVE SETUP SENSOR SETUP Numbers above indicate the time duration PROGRAMMED RECORD...

  • Page 16: Operation Guide:sub Menu-Password Change

    Operation guide SUB MENU Enter into this option to change SUB MENU password, time /date setting, date PASSWORD CHANGE format and enable the connection TIME SET between the unit and PC over DATE DISPLAY FORMAT SEQUENTIAL TIME USB interface. ), THEN ( ) PRESS ( PRESS( ) TO EXIT...

  • Page 17: Operation Guide:sub Menu-Time Set

    Operation guide TIME SET Enter into this option to change TIME date and hour. 2004/03/21 03:23:21 ), THEN ( ) PRESS ( PRESS( ) TO EXIT DATE DISPLAY FORMAT The unit provides yyyy/mm/dd or DATE DISPLAY FORMAT dd/mm/yyyy variant which depends on the regional preference.

  • Page 18: Operation Guide:sequential Time

    Operation guide SEQUENTIAL TIME Use this menu to specify each channel display dwell time. Dwell time settings determine SEQUENTIAL TIME from 1 sec to 9 sec between ), THEN ( ) displays for 4 channels. PRESS ( PRESS( ) TO EXIT Note: Please press “...

  • Page 19: Operation Guide:sensor Setup

    Operation guide SENSOR SETUP SENSOR SETUP SENSOR RECORD TIME SENSOR RECORD TIME: ALARM OUT TIME Recording duration once sensor MOTION SENSITIVE SETUP Being triggered. CHANNEL-1 TYPE:MOTION + N-C CHANNEL-2 TYPE:MOTION + N-O ALARM OUT TIME: CHANNEL-3 TYPE:NORMAL CLOSE It controls how long ( in second) CHANNEL-4 TYPE:NOT the alarm sounds after being triggered.

  • Page 20: Recording

    Operation guide How to operate Motion detection recording Follow the steps as below to SENSOR SETUP SENSOR RECORD TIME activate motion-detection ALARM OUT TIME recording. MOTION SENSITIVE SETUP 1.Please go to “SENSOR CHANNEL-1 TYPE:MOTION + N-C CHANNEL-2 TYPE:MOTION + N-O SETUP”...

  • Page 21: Operation Guide:playback

    Operation guide PLAYBACK Please use the front panel buttons to operate various playback functions Press “ ” button, then the playback time /events SEARCH TIME selection menu as the left figure appears on the HDD: MASTER screen. Or you can simply press “ ” twice to directly 04/03/24 13:24:21-04/03/24 13:44:54 start playing.

  • Page 22: Optional Functions:backup Via Usb Port

    Optional functions:Backup via USB port Optional functions:Backup via USB port The unit provides one USB port to simple backup over the connection with PC. Please mind the following steps to successful link. Step 1. Connect the USB cable between the unit and PC Step 2.

  • Page 23: Optional Functions:networking Setup

    DVR and remote PC other equipments like PC. via DHCP configuration within your LAN environment! DVR ID on LAN : use “ ” button to specify the DVR’s identification as nickname with 26 alphabets appearing in sequential order. DHCP [ON] : press” ” to confirm the installation as [ON].(the default...

  • Page 24: Optional Functions:audio Recording Setup

    Optional function guide:Audio recording AUDIO RECORD[ON] The unit support one-ch Audio/in, AUDIO MUTE [OFF] please set “AUDIO RECORD” on ), THEN ( ) PRESS ( to activate Audio operation PRESS( ) TO EXIT...

  • Page 25: Appendix I Regulatory

    Appendix I. Appendix I. Regulatory FCC Certification This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 26: Appendix Ii Pc Viewer Application

    Appendix II: PC Viewer application Appendix II: PC Viewer application PC Viewer, being installed into your PC, enables you to export Video data from DVR to your PC or convert the DATA into AVI format! Search Capture Play Backup to AVI...
  • Page 27 Appendix II: PC Viewer application Appendix II: PC Viewer application Click on “Search” key to retrieve the desired video to view through entering the time/date or selecting event, then you will see the dialog box as below. Enter the date/time to retrieve the data you want to view Click on this button and have a list of events will show up for your selection.

  • Page 28: Appendix Iii Pc Client Application

    Appendix III: PC Client Application. Appendix III: PC Client Application. This dedicated remote PC client software allows you from a remote location to view live and recorded video over Internet. Also, you can capture,convert the video from the unit into AVI file or JPEG file, or play the stored video later on. Please follow the instructions below to use PC client.
  • Page 29 As the following dialog window Optional function Optional function DVR IP: The DVR IP address is the IP address of the remote DVR. Password : The password is same password used for formatting the DVR’s Hard Drive. The default value is 111111 Optional function-DHCP configuration.
  • Page 30 Appendix III: PC Client Application. Appendix III: PC Client Application. 2. Connection Status: When successfully connected, you would see” Connected” sign. This window also displays DVR IP address and shows changes of connection speed. • To disconnect, simply click “ Disconnect “...
  • Page 31 Appendix III: PC Client Application. Appendix III: PC Client Application. 3. DVR control The panel shown as the following figure operates exactly as the remote DVR operational button allow you to control remote DVR to live view, record and playback as well.
  • Page 32 4-1 Capture video data When you click “REC” button, it will start to record the incoming video on your PC hard disk. The DVR client creates “ steam_files”folder where the execution file is located. When the client is recording, the Capture &...
  • Page 33 Duration, Input Channels, Record Channels, DVR system time setting and Record Schedule. All of settings operate as you do with DVR itself. Notice: For the record mode change can be made only on DVR, so the display shows the current DVR record mode on connection.
  • Page 34 Appendix III: PC Client Application. Appendix III: PC Client Application. 6. AVI file Click on this button to convert the real-time video data or the recorded data into AVI file Click on “ AVI save as” button to convert the desirable data into AVI file, then you will see the following dialog box for saving the AVI file.
  • Page 35 Appendix III: PC Client Application. Appendix III: PC Client Application. 8. Single Channel Scaler Single channel scaler is effective only in single channel mode. If you are viewing single channel, you can scale it up/down by selecting these options.
  • Page 36 Appendix IV The following is the recording time vs video quality settings table for your reference Frame/Second 897H 回 NORMA 1092 MODE 1365 田 690H MODE NORMA 840H 1050 NTSC format Frame/Second 回 NORMA MODE 田 MODE NORMA PAL format PS: The recording hours on 80GB HDD...
