Audiovox MediaBridge Installation Manual & User Manual

Multinedia integration kit for select nissan and infinity vehicles
Hide thumbs Also See for MediaBridge:

Advertisement

Quick Links

Download this manual See also: User Manual and Installation Instructions, Installation Manual
Installation Guide/User manual

Advertisement

loading

Related Manuals for Audiovox MediaBridge

Summary of Contents for Audiovox MediaBridge

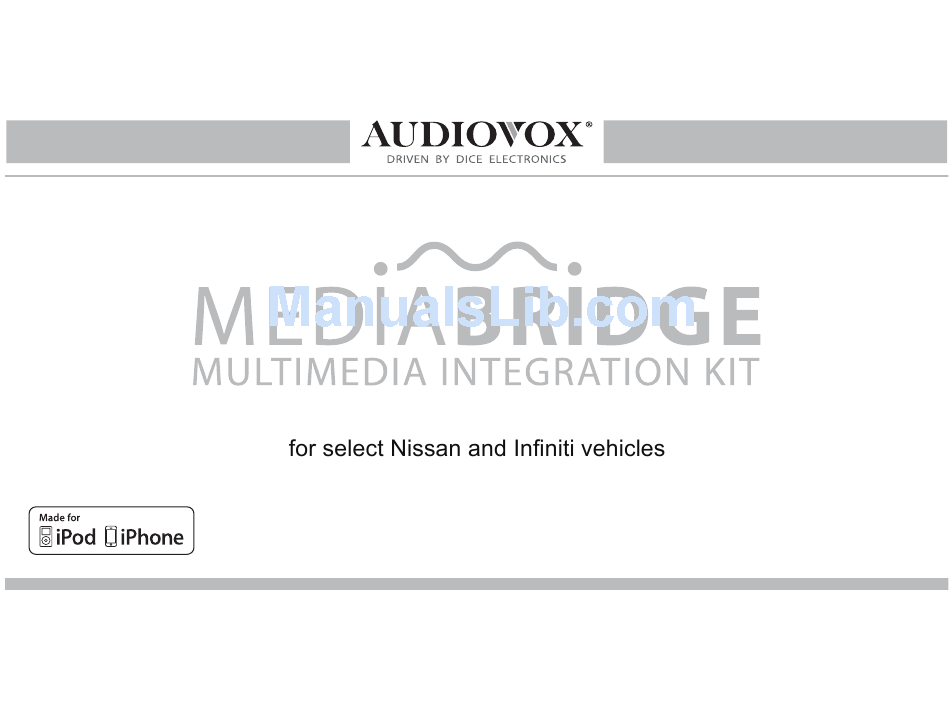

  • Page 1 Installation Guide/User manual...
  • Page 3 Table of Contents Warning and safety Note to Installer Installation Basic operation Warranty...
  • Page 4 Warning and safety!
  • Page 5 Congratulations on your purchase! Product registration To register your Audiovox product, please complete the following steps:...
  • Page 6 MediaBridge kit contents Installation Guide/User manual MediaBridge connector Optional accessories (sold separately): Cradle...

  • Page 7: Dip Switches

    DIP switches Disconnect the vehicle harness from the module and set the ignition to the off position for 60 seconds after changing the switches then reconnect the module!
  • Page 8 DIP switch settings...
  • Page 9 Model Firmware / OS Version Model Firmware / OS Version iPod classic...
  • Page 10 Attention installer! Please read the following! Audiovox strongly recommends that the unit be installed in an easily accessible place! DO NOT PLACE IT BEHIND THE RADIO AND DO NOT HIDE UNDER CARPET! MAKE SURE THAT THE MODULE IS IN AN ACCESSIBLE PLACE!
  • Page 11 Connection diagram iPod MENU...
  • Page 12 Installation...
  • Page 13 iPod content browsing Playlist Artist Album Song Charging...
  • Page 14 iPod locked/unlocked settings and features Radio control iPod control Note slide to unlock...
  • Page 15 Note: 1= SONG, 2= PLAYLISTS, 3= ARTISTS, 4= ALBUMS, 5= PODCASTS, 6= AUDIOBOOKS...

  • Page 16: Basic Operation

    Basic operation Accessing the MediaBridge as the audio source: MediaBridge source selection: *These sources require additional parts/accessories/service from Audiovox and/or third parties. Select PRESET 1 to Select PRESET 3 to Select PRESET 6 to...
  • Page 17 Operating MediaBridge as an audio source SAT radio SEEK TUNE TRACK LOAD PRESET AUDIO PUSH AUX IN DISP RADI SCAN CLOCK...
  • Page 18 Operating the MediaBridge in SAT emulation mode (non-NAV radio) SAT radio SEEK PAUSE SETTING DEST TRACK MUTE ENTER TUNE GUIDE PREV TRIP ROUTE VOICE PRESET SCAN LOAD...
  • Page 19 Operating the MediaBridge in SAT emulation mode (NAV radio) SAT radio PRESET CLOCK SEEK SCAN RADIO DISP TRACK REAR AV FOLDER LOAD MP3 / 6CD CHANGER PUSH PUSH AUDIO TUNE TRACK...
  • Page 20 SAT radio PRESET PAUSE MUTE LOAD SA T TUNE SEEK TRACK PUSH AUDIO CLOCK SCAN CAT RPT...
  • Page 21 Icon legends FOLDER FOLDER Controlling the MediaBridge iPod source FOLDER FOLDER FOLDER FOLDER...
  • Page 22 Controlling the MediaBridge USB memory source FOLDER FOLDER FOLDER FOLDER FOLDER FOLDER...
  • Page 23 SAT emulation SAT emulation...
  • Page 24 Controlling the MediaBridge SIRIUS source to store Sirius mode: station Common control:...
  • Page 25 PRESET 1, 2 or 3 PRESET 4 PRESET 5 PRESET 6 Options Function Reset M rn on only rn off M...
  • Page 26 Answering / Making a phone call...
  • Page 27 Accessing the auxiliary input...
  • Page 28 Internet Radio Application support (iPhone/iPod touch)
  • Page 29 Controlling Internet Radio Apps Next/previous TRACK buttons PRESET (1- 6) buttons...
  • Page 30 Text display from the Internet Radio App...
  • Page 31 Terminate (kill) the App Internet Radio App settings...
  • Page 32 Audiovox Firmware Updater v3.0.0 Audiovox Firmware Updater v3.0.0 MediaBridge MBR 1500 ABP 2.01 Audiovox Electronics Audiovox Electronics, The above screen shots are for illustration purposes only.

  • Page 33: Troubleshooting

    Troubleshooting Problem Solution Text is not displaying in selected emulation. iPod does not charge. Music is distorted or sound level is too low with iPod connected. Why is the interface not controlling the iPod/USB drive? use? Sirius tuner can’t be selected.
  • Page 34 Problem Solution Why does the message “iPod UNLOCKED” display on screen? No audio from iPod source. Why does the radio display show “EMPTY/STOP” and no music plays? Cannot select the interface. Radio/ steering wheel controls do not operate iPod. Why does category read “PRESELCTD”?

  • Page 35: Month Limited Warranty

    12 MONTH LIMITED WARRANTY AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 36 Installation notes:...

This manual is also suitable for:

Mediabridge a-mbr-1500-nis
