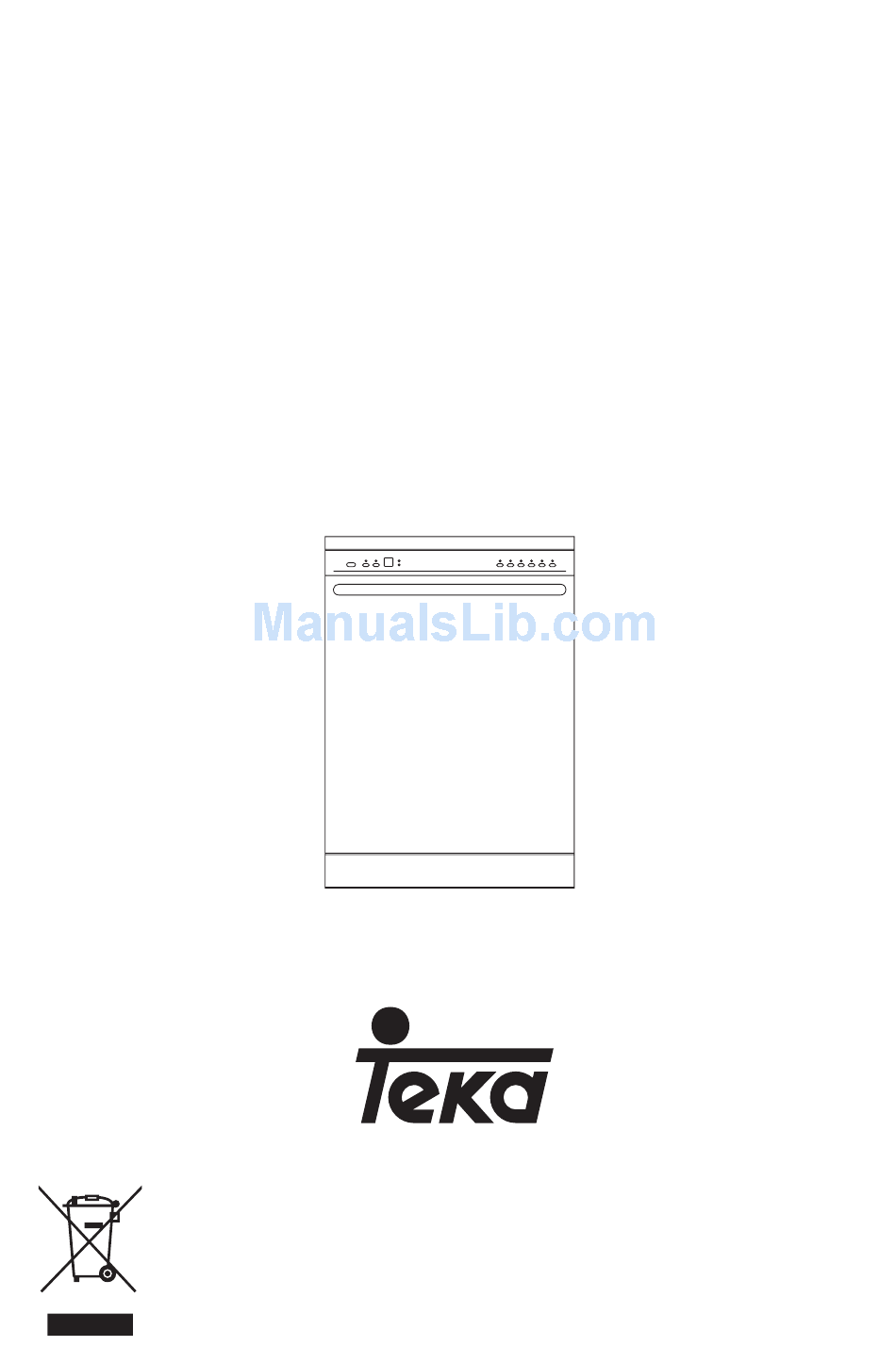

- Page 1 Manual de Uso y Mantenimiento Manual de Utilização e Manutenção Use and Maintenance Manual Manual d'Emploi et Entretien Bedienungsanleitung und pilegehinweise LP7 830 Code: 0120504497B...
-
Page 2: Table Of Contents
Index Safety information Installation How to remove the top of your dishwasher Getting to know your dishwasher How to fill the salt How to fill rinse aid Not suitable for the dishwasher Arranging crockery, glasses, etc. in the dishwasher How to fill the detergent dispenser Programme overview Washing dishes How to keep your dishwasher in shape... -
Page 3: Safety Information
Safety information At time of delivery Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier or customer service without delay. Please dispose of packaging materials properly. During installation Site the dishwasher and connect it up in accordance with the installation instructions. -
Page 4: If A Fault Occurs
If your family includes children The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. Keep detergents out of the reach of children, who must also be kept away from the dishwasher when it is open. -
Page 5: Installation
Installation Positioning the appliance Place the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. Levelling the appliance Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the dishwasher, making it level. -
Page 6: Drain Hose Connection
Drain hose connection Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend) with a connecting piece for the drain hose (fig.C). -
Page 7: How To Remove The Top Of Your Dishwasher
How to remove the top of your dishwasher Freestanding dishwasher can also be used as built-in, according to following processes: 100-150mm... - Page 8 Built In Dishwasher: fixing on top Built In Dishwasher: fixing on side...
-
Page 9: Getting To Know Your Dishwasher
Programme Button Delayed Start Button Programme Indicator Delayed Start Indicator Models explanation Model Colour Stainless steel LP7 830 Dishwasher interior Upper Rack Salt Container Cap Lower Rack Washing Filter Detergent and Rinse Aid Dispenser Top Spray Arm Water Inlet Hose... -
Page 10: How To Fill The Salt
How to fill the salt Salt The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water. -
Page 11: Adjusting Salt Consumption
Adjusting salt consumption The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption so that it remains at a minimum. To adjust salt consumption, proceed as follows: Unscrew the cap from the salt container;... -
Page 12: How To Fill Rinse Aid
How to fill rinse aid Rinse aid This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the inside panel of the door . When the low rinse aid indicator “ H ” lights , you must load rinse aid . -
Page 13: Not Suitable For The Dishwasher
Not suitable for the dishwasher What you should not put into the dishwasher Cutlery and tableware manufactured in whole or part from wood.They become faded and unsightly in appearance.Furthermore,the adhesives that are used are not suitable for the temperature that occur inside the dishwasher.Delicate decorative glassware and vases,special antique or irreplaceable china. -
Page 14: Arranging Crockery, Glasses, Etc. In The Dishwasher
Arranging crockery, glasses, etc. in the dishwasher Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from be- coming clogged, which results in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed. - Page 15 Shelf Lean tall glasses and those with long stems against the shelf- not against other items to be washed. Place glasses, cups and small bowls on the additional cup rack. The additional cup rack can be swivelled in or out as required (see fig.F).
-
Page 16: How To Fill The Detergent Dispenser
How to fill the detergent dispenser Detergent Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Programme overview". The detergent dispenser is located on the inside panel of the door. -
Page 17: Programme Overview
Programme overview Type of Condi- Type of Amount of crokery e.g. Wash tion of china, pots/ 1/2 Load food food Description of cycle pan s, food programme remains remains cutiery, remains glasses, etc Pre-wash with hot water. Extended wash at 70°C. Soups, Non- Rinses with cold water. - Page 18 Detergent Delayed Energy Water Duration in Rinse Aid Start consump- consump- Extended minutes Prewash tion in kWh tion in litres Wash 7.5g 1.62 1.48 7.5g 1.24 1.15 7.5g 1.10 1.00 1.12 1.10 0.40 0.30 0.02 0.02 * EN50242 test with rinse aid setting 5...
-
Page 19: Washing Dishes
Washing dishes Programme selection The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as well as the amount and condition of food remains, with the details contained in the wash cycle table.The corresponding programme sequence, duration and consumption details are shown in the right half of the overview. -
Page 20: End Of Programme
Switching the dishwasher ON Turn on the tap. Set ON-OFF button “ A ” to ON. All the programme indicators “K1,K2,K3,K4,K5,K6 ” light . K5 K6 K1 K2 K3 K4 Press programme button “J1” , programme indicator “ K1” blinks and the time-remaining indicator “ F ” displays the time of the programme.. -
Page 21: Delayed Start Programming
Interrupping the programme Open the door. Caution! There is a risk of water squirting out from inside the appliance. Do not open the door fully until spray arm has stopped rotating. When you open the door, the dishwasher will beep ten times every thirty seconds. If the appliance has already heated up or the hot water was switched ON and then the appliance door opened, leave the door ajar for several minutes and then close. - Page 22 Cancelling or modifying a cycle A cycle that is underway can be modified if it has only been running for a short time. Otherwise, the detergent may have already been used, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled ( see the paragraph entitled, “...
-
Page 23: How To Keep Your Dishwasher In Shape
How to keep your dishwasher in shape After Every Wash After every wash, set the main switch “A” to off and leave the door slightly ajar so that moisture and odors are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks. No solvents or Abrasive Cleaning Products To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. -
Page 24: Care And Maintenance
Care and maintenance Regular inspection and maintenance of your appliance helps to prevent problems from occurring.This saves time and aggravation.You should therefore carefully inspect the inside of your dishwasher from time to time. Overall condition of appliance Check that no grease or scale has accumulated on the inside of the dishwasher. If you discover any deposits: Clean the interior of the dishwasher thorughly with a detergent solution. -
Page 25: Spray Arms
Spray arms Lime and remnants of food in the washing water can block the nozzles in the spray arms “ 10 ” and “ 11 ” and the arm mountings. Inspect the nozzles in the spray arms for blocked holes due to remnants of food. -
Page 26: Fault Finding
Fault finding Resolving minor problems yourself Experience has shown that you can resolve most problems that rise during normal daily usage yourself, without having to call out a service engineer.Not only does this save costs,but it also means that the appliance is available for use again that much sooner. - Page 27 When the programme indicators “ K1,K3,K4” blinks. Have you checked whether: the drain hose is crimped or bent. the drain hose is too high. When the programme indicators “ K1,K2,K6” blinks. Have you checked whether: the drain hose is too low. If you take all these checks and the dishwasher still does not function or your dish- washer have any other error display, you can power the dishwasher OFF, and wait a few minutes.
- Page 28 Water remains inside appliance after programme has ended Blockage or kind in drainage hose. Pump is jammed. Filters are blocked. The programme is still running. Wait for the programme to end ..during washing Unusual amount of foam is creased Normal washing up liquid has been poured into the rinse-aid container.
- Page 29 Plastic items are discoloured Not enough detergent was added to dispenser. Detergent has insuffcient bleaching properties. Use a detergent containing a chemical bleaching agent. White stains are left on crockery, glasses have a milky appearance Not enough detergent was added to dispenser compartment. Amount of rinse-aid was set too low.
-
Page 30: Technical Data
Technical data 60 cm Width Depth 60 cm Height 85 cm Capacity 15 standard place settings Mains water pressure 0.03-0.6MPa Power voltage 220-240V~ 50Hz Maximum current intensity 1950W Total absorbed power... -
Page 31: Important Information
Important information Notes on waste disposal Old appliances still have some residual value. An environment-friendly method of disposal will ensure that valuable raw materials can be recovered and used again. When an appliance has reached the end of its working life,unplug it from the mains.Cut through the mains cable and dispose of it together with the plug. - Page 32 Information on comparability tests implemented in compliance with EN 50242 Appliance loaded in accordance with standard specifications. Example of loaded dishwasher: See Fig 1 , 2 and 3. Capacity: 15 place settings Comparability programme: Light wash Rinse-aid setting: 5 Detergent: 30+7.5g Fig.1 Fig.2 Fig.3...
- Page 33 A: Wiring box F: 2-way valve J: Washing pump motor O: Low rinse aid switch B: Door switch G: Softener valve K: Temperature limiter P: Temperature sensor C: Water level switch H: Overflow switch L: Heater Q: Flowmeter D: Drain pump motor I1: Inlet valve M: Relay R: Turbidity sensor...
