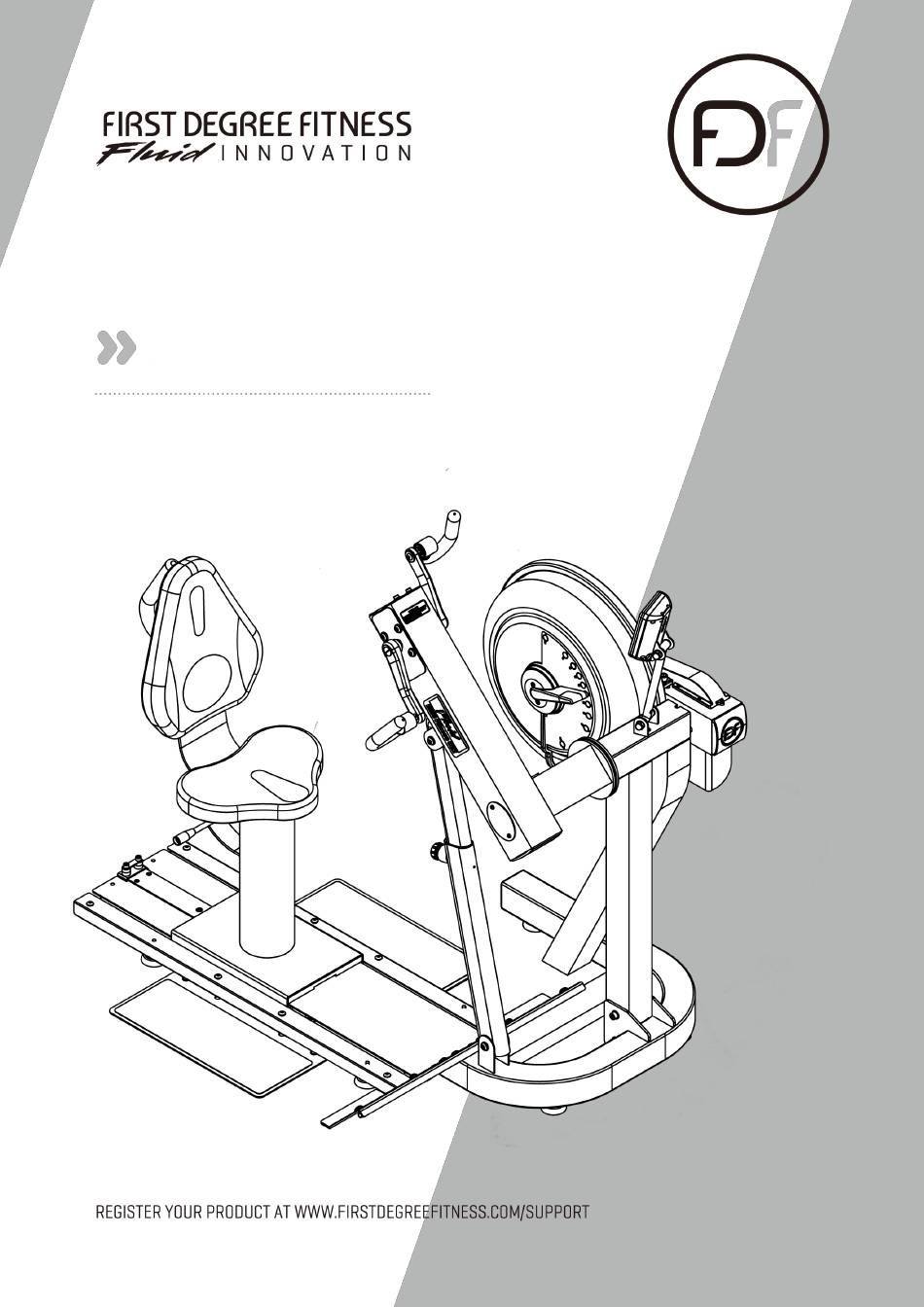

- Page 1 USER GUIDE E820A...
- Page 3 FIRST DEGREE FITNESS is proud to present the Rower as a FULL COMMERCIAL USE product featuring patented Adjustable Fluid Resistance. As with any piece of fitness equipment, consult a physician before beginning your E820A exercise program. Follow all instructions carefully for correct assembly, Tank filling, water treatment, service and safety.
-
Page 4: Table Of Contents
Contents Safety ................... 5 Assembly ................7 E820A Box 1 & Box 2 Contents ..........8 Assembly Instructions ............. 9 Operation Instructions Bluetooth Auto-Adjust Monitor ..........16 Calibration Procedure ............17 Maintenance & Troubleshooting Tank Belt Adjustment International Warranty ............21... -
Page 5: Safety
Safety Safety Information • Before using this product, it is essential to read this ENTIRE operation manual and ALL instructions. The Rower is intended for use solely in the manner described in this manual. • UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT •... - Page 6 Inspection • DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all FIRST DEGREE FITNESS equipment use only replacement parts supplied by FIRST DEGREE FITNESS. • EQUIPMENT MAINTENANCE - Preventative maintenance is the key to smooth operating equipment as well as to keep your liability to a minimum.
-
Page 7: Assembly
Assembly Product Specifications Product Class: SC Braking System: Speed Independent Product Net Weight: 84.6kg (186.12lb) Product Gross Weight: 107kg (235.4lb) Maximum Safe Operating Surface Area: 276cm (108.66”) Length x 222cm (87.40”) Width Dimensions: 1560mm (61.42”) Length x 1020mm (40.16”) Width x 1400mm (55.12”) Height Maximum User Weight: 150kg (330lb) Footprint:2160mm x 1620mm... -
Page 8: E820A Box 1 & Box 2 Contents
E820A Box 1 & 2 Contents Item Qty. Description Item Qty. Description Main Frame with Telescoping Tube Foot Levelers and Internal Gas Assist Shock Baseplate Multi-tool Seat Frame Touch up paint Seat Back D Cell Duracell Battery Lower Seat Funnel and Hose... -
Page 9: Assembly Instructions
Assembly Instructions STEP 1 Main Frame Assembly Instructions REQUIRED Attach Telescoping Tube to the underside of the 4 x M8 x 15mm Blots [15] control arm using 4xM8x15mm Bolts[15] and 4x M8 Spring Washers[21]. 4 x M8 Spring Washers [21] Thread the 3xFoot levelers[7] into underside of base. - Page 10 Assembly Instructions STEP 3 Installing the Baseplate REQUIRED Tilt the T-Channel slightly to allow the footplate (with pre-installed Bolts) to slide underneath as shown. T-Track Channel Right Channel Left 2 x Footplate Footplate T-Track 8 x M8x45mm Blots [16] Foot Leveler [7] Mount the Left Channel over the top of the footplate dome Bolts and then slide forward.
- Page 11 Assembly Instructions STEP 4 Installing Baseplate to the Main Frame Mount the baseplate onto the Main Frame using REQUIRED mounting pins as a locator 3 x M10x20mm [17] Then, secure with 3x M10x20mm Bolt[17], 2x M10 2 x M10 Nylock Nut [18] Nylock Nut[18] and 3x M10 Washer[20].
- Page 12 Assembly Instructions STEP 6 Installing Seat to the Main Frame a) Seat Stop: Must be lowered to allow seat onto CAUTION Baseplate track. Must ALWAYS be in the LOCKED position when seat is occupied on Baseplate. Must be The Seat Stop Must be in lowered to allow seat removal.
-
Page 13: Operation Instructions
Operation Instructions E820 Control Arm Chain Tensioning Bolts: Allows for tightening the Chain or adjustment from side to side. Make sure when tightening only to adjust the same amount for both Bolts, otherwise the sprocket will be misaligned. Note: Tightening the right Bolt only will pull the right side of the crank assembly toward you, tightening the left will pull the left side toward you. - Page 14 (rechargeable via USB) available as an option. We recommend this to any commercial facility, with multiple units, that has a need to drain and refill Tanks from time to time. To purchase, contact your nearest First Degree Fitness distributor or go to our website on www.firstdegreefitness.com for details.
- Page 15 Operation Instructions CHANGING RESISTANCE LEVEL Changing resistance on your Unit is simple. The level of resistance is determined by the level indicator lo- cated on the front of the Tank. Level one indicates lightest resistance, level ten represents heaviest resistance. The Tank’s variable fluid resistance technology ensures an instant catch and constant resistance throughout the movement.
-
Page 16: Bluetooth Auto-Adjust Monitor
Bluetooth Auto-Adjust Monitor Auto Start: Commence exercise to activate. Reset all values: Press and hold RESET button for 3 seconds. Auto Power Down: Over 5 minutes. All values revert to zero after restart. WATT: Power measured in watts WORK: Duration of exercise segment REST: Duration of rest period POWER GRAPH: Press RESET to change display from Power Curve to Cumulative Power Graph... -
Page 17: Calibration Procedure
Calibration Procedure Press and hold 「RESET」and「REST」for 5 seconds. Display will show “ - - - - “ Turn handle to Level 1. Press Reset. Display will now show Level 2. Level 1 Calibration is complete. Turn handle to Level 2. Press Reset. -
Page 18: Maintenance & Troubleshooting
Tanks from time to time. To purchase, contact your nearest First Degree Fitness distributor or go to our website on www.firstdegreefitness.com for details. The computer display is erratic and It is possible that there is a loose connection. - Page 19 Crank Arm threads, necessitating securely tightened into replacement. Crank Arm. To ensure maximum lifespan and optimal performance follow these steps: Keep your E820A in a dry, clean climate controlled environment at room temperature. 2. Only treat water with FDF genuine Water Treatment Tablets.
-
Page 20: Tank Belt Adjustment
Tank Belt Adjustment 2. Using a long tool, push out the rear 1. Remove large metal inspection plate. end cap as pictured below left. This will give you access to the Tank tensioning Bolt (shown lower right). End Cap 3. Loosen both the rear and front Tank 4. -
Page 21: International Warranty
Metal Frame – 10 Year Limited Warranty FIRST DEGREE FITNESS will repair or replace the metal Main Frame should it fail due to any defect in materials or workmanship within 10 years of the original purchase. Warranty does not apply to frame coating. - Page 24 CONTACT US For customer support please visit firstdegreefitness.com/support TAIWAN T: +886 3 478 3306 764 Chung Shan South Rd Yangmei Taoyuan Taiwan R.O.C.
