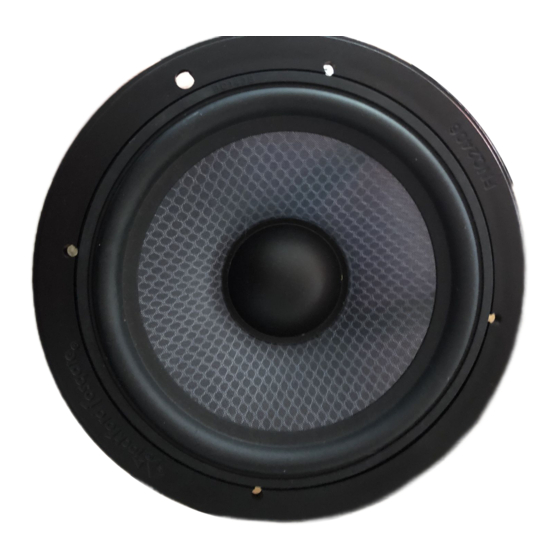

Summary of Contents for Rockford Fosgate Fanatic Q FNQ1414
- Page 1 ® ® c a r a u d i o component systems operation & operation & operation & operation & operation & installation installation installation installation installation...
-
Page 2: Practice Safe Sound
Congratulations on your purchase of the world's finest brand of car audio speakers. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsman- ship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve. -
Page 3: Table Of Contents
Section of this manual or refer to the icons listed below. Other information can be located by using the Table of Contents. We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice. -
Page 4: Introduction
This manual provides information on the features and installation of the Fanatic Q Systems. We suggest you save this manual for future reference. We strongly recommend you have your Authorized Rockford Fosgate Dealer install the Fanatic Q System. If you do choose to install the system yourself, please be sure to read the entire manual before beginning. -
Page 5: Design Features
ESIGN EATURES Tweeter 1. 3/4" Aluminum Dome Tweeter – To ensure accurate high frequency reproduc- tion, the tweeter dome must be both light and strong. The Fanatic Q Component Systems use an aluminum dome with a silk surround. This combines the low mass and strength of aluminum with the smoothness of silk for the ultimate in high frequency reproduction. - Page 6 7. Large 1-1/4" Voice Coil with Anodized Aluminum Former – Just like all Rockford Fosgate woofers, all Fanatic Component System midrange drivers use an aluminum voice coil former for more efficient dissipation of heat. Dissipating the heat is key to long life and high power handling,...
- Page 7 Crossover 11. Competition Quality 2-Way Butterworth Crossover – Features a 24dB per octave high-pass crossover for the tweeter and a 24dB/octave low- pass crossover for the midrange. The steep slope of the tweeter crossover gives better power handling. The low-pass crossover provides a seamless transition between the tweeter and midrange.
-
Page 8: Installation Considerations
2. For best results, mount the crossover(s) next to the amplifier for a decorative finish to the installation and provide an easy upgrade (no new wires to run) for a bi-amp Rockford Fosgate system in the future. – 5 –... -
Page 9: Mounting Location
OUNTING OCATION A solid front stage with a good image is one of the most difficult tasks to achieve in a vehicle. No car has the optimum listening environment. This makes proper sound staging very difficult to accomplish. Most speakers tend to be placed where they will fit easily, as opposed to where they can perform the best. -
Page 10: Installation
• Sound radiated from a “point source” has the most optimum stereo imaging because the separation of the acoustical centers between the midrange and tweeter for each channel is at the optimum. Figure 2-A describes a horizontal speaker alignment. In a closed environment such as an automobile, horizontal speaker alignment can cause severe amplitude and phase differences which will degrade not only the imaging, but also the frequency response. - Page 11 ® ® Flush Mount Tweeter Flush Trim Ring Back Tweeter Housing Plate Surface Mount Tweeter Back Surface Trim Ring Tweeter Plate Housing Wedge Mount Tweeter Wedge Tweeter Housing – 8 –...
- Page 12 ® ® Crossover Connections -6db Tweeter Level -3db Tweeter Level 0db Tweeter Level 0∞ 180∞ INPUT MIDRANGE TWEETER – – (One channel of – amplifier) • Be Sure to Maintain Speaker Polarity • 0dB Tweeter Level matches the amplitude of the tweeter to the midrange •...
- Page 13 ® ® Bandpassing the Midrange • The Fanatic Component Systems are optimized for full range music reproduc- tion. In cases where a subwoofer is used, the midrange can be bandpassed in order to prevent overlapping frequencies from the midrange into the subwoofer. 1.Determine the frequency range that the subwoofer will play (i.e.: 20Hz-80Hz) 2.Use the low-pass crossover frequency of the subwoofer system (i.e.: 80Hz) as the high-pass crossover frequency for the midrange...
-
Page 14: Troubleshooting
TROUBLE-S R O U B L E S H O O T I N G Symptom Diagnosis Remedy No sound from Wires between amplifier, Check and repair or replace speakers crossover or speakers not wiring as needed. connected properly. Amplifier has no output. Check system with known work- ing amplifier and repair or re- place as needed. -
Page 15: Specifications
P E C I F I C AT I O N S System Model Number FNQ1414 FNQ1514 FNQ1614 Midrange Model Number FNQ1404 FNQ1405 FNQ1406 Nominal Diameter 4" ⁄ " ⁄ " Nominal Impedance 4Ω 4Ω 4Ω Frequency Response 70Hz-7kHz 50Hz-6kHz 45Hz-5kHz Fs (Hz) 70Hz... - Page 16 Surface Mount Wedge Mount .25" .675" .965" 1.00" 1.562" 1.795" 1.24" Flush Mount .375" 1.00" 1.74" 1.94" 4.070” 5.615” 1.915” INPUT MIDRANGE TWEETER (Specifications are subject to change without notice) – 13 –...
-
Page 17: Warranty Information
This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. -
Page 18: International Information
– 15 –... - Page 19 Es preferible que la instalación de sistema Fanatic Q sea realizada por un distribuidor autorizado Rockford Fosgate. Si prefiere realizar la instalación usted mismo, asegurese de leer el manual en su totalidad antes de comenzar. ONTAJE •...
- Page 20 2. Use los anillos de midrange como plantilla. Marque la posición de los tornills de anclaje. 3. Quite el anillo y perfore los agujeros con una broca de 1/8". 4. Pase el cable de altavoz a través del agujero. 5. Conecte los cables observando la polaridad. Mantenga los cables alejados pe partes móviles o cortantes.
- Page 21 Fanatic Q. Nous vous proposons de garder ce manuel pour toute référence future. Nous vous recommandons vivement de faire installaer votre système punch Fanatic Q par un dealer agréé Rockford Fosgate. Si vous choisissez d'installer le système vous même, assurez-vous de lire ce manuel entièrement avant de commencer.
- Page 22 3. Percer les trous des vis en utilisant une mèche de 3mm. 4. Faire passer les fils dans le trou central. 5. Connecter les fils au haut-parleur en respectant les polarités. Eloigner les fils de toute partie tranchante ou mobile du véhicule. 6.
- Page 23 Fanatic Q Systems. Wir empfehlen, diese auch für Fragen in der Zukunft sorgfältig aufzubewahren. Es ist empfehlenswert, sich das Fanatic Q System von einem Autorisierten Rockford Fosgate Fachhändler einbauen zu lassen. Sollten Sie den Einbau jedoch selber vornehmen wollen, so empfehlen wir Ihnen, die Bedienungsanleitung sorgfälitg zu lesen.
- Page 24 3. Nehmen Sie den Mitteltöner wieder ab und bohren Sie dann, mit einem passenden Bohrer, die Schraubenlöcher vor. 4. Führen Sie das Kabel durch das Loch. 5. Schlieβen Sie die Lautsprecherkabel an. Kontrollieren Sie, ob die Polarität stimmt. Stellen Sie sicher, daβ das Lautsprecherkabel an keinen scharfen oder sich bewegenden Teilen anliegt.
- Page 25 Fanatic Q. Vi suggeriamo di conservare questo manuale come riferimento futuro. Raccomandiamo fortemente che is sistema sia installato dal vostro rivenditore Rockford Fosgate. Se scegliete di procedere con l'installazione da soli, leggete attentamente tutto il manuale prima di proseguire. OSIZIONAMENTO •...
- Page 26 3. Togliete midrange e forate il pannello con una puna da 3mm. 4. Passate i cavi attraverso il foro. 5. Collegate i cave assicurandovi di osservare la corretta polarità. Assicuratevi di mantenere i cavi lontano da parti in movimento o strutture taglienti. 6.
- Page 27 American companies. However, due to the global nature of their manufacturing facilities and the loudspeaker parts industry in general, some parts may be manufactured in other countries. Rockford Fosgate Rockford Corporation 546 South Rockford Drive Tempe, Arizona 85281 U.S.A.
