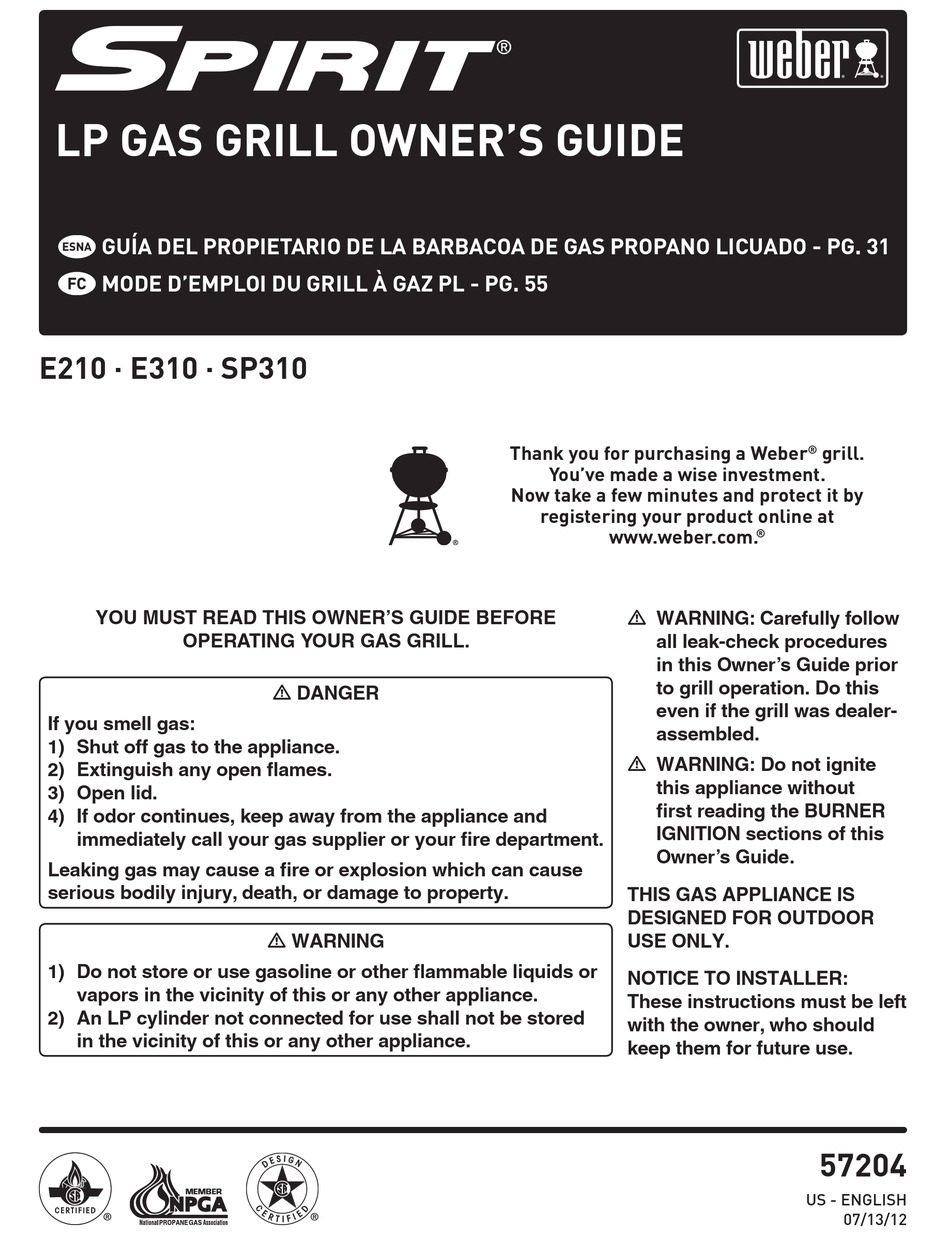

LP GAS GRILL OWNER'S GUIDE
GUÍA DEL PROPIETARIO DE LA BARBACOA DE GAS PROPANO LICUADO - PG. 31
MODE D'EMPLOI DU GRILL À GAZ PL - PG. 55
E210 · E310 · SP310
YOU MUST READ THIS OWNER'S GUIDE BEFORE
OPERATING YOUR GAS GRILL.
If you smell gas:
1) Shut off gas to the appliance.
2) Extinguish any open flames.
3) Open lid.
4) If odor continues, keep away from the appliance and
immediately call your gas supplier or your fire department.
Leaking gas may cause a fire or explosion which can cause
serious bodily injury, death, or damage to property.
1) Do not store or use gasoline or other flammable liquids or
vapors in the vicinity of this or any other appliance.
2) An LP cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
m DANGER
m WARNING
Thank you for purchasing a Weber
You've made a wise investment.
Now take a few minutes and protect it by
registering your product online at
www.weber.com.
m WARNING: Carefully follow
all leak-check procedures
in this Owner's Guide prior
to grill operation. Do this
even if the grill was dealer-
assembled.
m WARNING: Do not ignite
this appliance without
first reading the BURNER
IGNITION sections of this
Owner's Guide.
THIS GAS APPLIANCE IS
DESIGNED FOR OUTDOOR
USE ONLY.
NOTICE TO INSTALLER:
These instructions must be left
with the owner, who should
keep them for future use.
grill.
®
®
57204
US - ENGLISH
07/13/12

Advertisement

Table of Contents
loading

Summary of Contents for Weber Spirit E210

  • Page 1 GUÍA DEL PROPIETARIO DE LA BARBACOA DE GAS PROPANO LICUADO - PG. 31 MODE D’EMPLOI DU GRILL À GAZ PL - PG. 55 E210 · E310 · SP310 Thank you for purchasing a Weber grill. ® You’ve made a wise investment.
  • Page 2: Warnings

    See instructions in this Owner’s Guide for correct procedures. m Do not operate the Weber gas grill if ® there is a gas leak present. m Do not use a flame to check for gas leaks.
  • Page 3: Table Of Contents

    IMPORTANT INFORMATION ABOUT LP GAS CONNECTIONS ....11 claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must WHAT IS A REGULATOR? .
  • Page 4: Spirit ® Sp310 Lp Exploded View

    SPIRIT E210 LP EXPLODED VIEW · DIAGRAMA DE DESPIECE · VUE ECLATEE ® Spirit_E210_LP_US_042512 WWW.WEBER.COM ®...
  • Page 5: Spirit ® E210 Lp Exploded View

    Échelle de la bouteille de gaz Slide-Out Grease Tray Bandeja deslizante de grasa Plateau de récupération des graisses amovible Bottom Panel Panel inferior Panneau inférieur Caster Rueda giratoria Roulette Locking Caster Rueda giratoria con bloqueo Roulette à verrouillage WWW.WEBER.COM ®...
  • Page 6: Important Information About Lp Gas

    Leaking LP gas may collect CANADIAN LP CYLINDER • The gas must be turned off at the LP cylinder when REQUIREMENTS in low areas and resist the Weber ® gas grill is not in use. m WARNING: Make sure that the LP • The LP cylinder must be constructed and marked dispersion.
  • Page 7: Important Information About Lp Gas Connections

    ® grill must be used. This regulator is set for 11 inches of water column pressure. • Replacement pressure regulator and hose assemblies must be those specified by Weber- Stephen Products LLC. • Be sure the regulator is mounted with the small vent hole pointed downward so that it will not collect water.
  • Page 8: Lp Cylinder Installation And Removal

    A) Loosen cylinder lock wing nut. Swing cylinder lock up (3). B) Turn the LP cylinder so the opening of the valve is either to the front or side of the Weber gas grill. ® m WARNING: Make sure that the LP cylinder valve is closed.
  • Page 9: Fuel Level

    LP cylinder before attempting to fill it. m DANGER NEVER store a spare LP cylinder under or near Weber gas appliances. NEVER fill ® the cylinder beyond 80% full. Failure to follow these statements exactly may result in a fire causing death or serious injury.
  • Page 10: Preparing To Use Your Grill

    Keep ventilation openings for cylinder enclosure free and clear from debris. m The entire cookbox gets hot when in use. Do not touch. m Do not move the Weber gas grill when ® operating or while grill is hot.
  • Page 11: Checking For Gas Leaks

    DO NOT OPERATE THE you should check all fittings for leaks before using your GRILL. Contact the Customer Service Weber® gas grill. Shipping and handling may loosen or Representative in your area using the damage a gas fitting.
  • Page 12: Grilling Tips & Helpful Hints

    After flames subside, relight unwanted flare-ups. the grill. NEVER USE WATER • In general, large pieces TO EXTINGUISH FLAMES ON of meat will require more A GAS GRILL. cooking time per pound than • Using a timer will help to alert small pieces of meat. you when “well done” is about to become “overdone.” WWW.WEBER.COM ®...
  • Page 13: Safety Checks Before Using Your Grill

    Remove excess grease with a plastic scraper (2). Wash the catch pan with warm, soapy water and rinse with water. To keep the catch pan cleaner longer, you can line the catch pan with a Weber ® disposable drip pan or with aluminum foil.
  • Page 14: Crossover Ignition System

    TO EXTINGUISH BURNER Crossover ignition system. ® Push each burner control knob in and turn it clockwise to Do not confuse this plastic the off ( ) position. Turn gas supply off at the source. with the battery label. WWW.WEBER.COM ®...
  • Page 15 G) After burner 1 is lit, you can turn on burner 2 (and burner 3). TO EXTINGUISH BURNER Push each burner control knob in and turn it clockwise to the off ( ) position. Turn gas supply off at the source. WWW.WEBER.COM ®...
  • Page 16: Troubleshooting

    THIS IS NOT A DEFECT. Clean thoroughly. Refer to “CLEANING THE INSIDE OF THE GRILL.” If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® WWW.WEBER.COM...
  • Page 17: Annual Maintenance

    NOTE: If a spider/insect screen becomes damaged or cannot be cleaned, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com®. BURNER TUBE PORTS Over time, from repeated use of the grill, the burner tube ports will become dirty.
  • Page 18: Burner Tube Cleaning Or Replacement

    (8). Pull manifold forward and away from burner tubes (9). Manifold will remain attached to corrugated gas line(s). Be careful not to let manifold scratch frame or door or kink the attached corrugated gas line(s). WWW.WEBER.COM ®...
  • Page 19 D) Slide burner tube 2 out from under the guide screw and washer. Remove the Crossover tube by moving it ® toward back of cookbox (3). Lift burner tube 2 up and out of cookbox. WWW.WEBER.COM ®...
  • Page 20 (openings) running along the length of the tubes are fully open. When cleaning burner tube 1, avoid damaging the igniter electrode by carefully brushing around it (4). m CAUTION: Do not enlarge the burner ports when cleaning. WWW.WEBER.COM ®...
  • Page 21 E) While holding burner tube 1, insert left side of Crossover tube into Crossover burner hole. Slide ® ® burner tube 1 under the guide screw and washer (7). WWW.WEBER.COM ®...
  • Page 22: Storage And/Or Nonuse

    STORAGE AND/OR NONUSE For grills that have been stored or left unused for a while, it is important to follow these guidelines: • The gas must be turned off at the LP cylinder when the Weber gas grill is not in use. ® • If storing the Weber gas grill indoors, first DISCONNECT the gas supply and store the LP cylinder outdoors ®...
  • Page 23: Routine Maintenance

    Wash outside surfaces with a soft and rinse with water. To keep the catch pan cleaner cloth and a soap and water solution, rinse with water, and longer, you can line the catch pan with a Weber ® wipe dry.
  • Page 24: Maintaining The Electronic Crossover

    ® to ignite, contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® IGNITER MODULE WIRE CHART (E210 / E310 / SP310) BURNER 1 IGNITER BUTTON...
  • Page 25: The Grills Illustrated In This Owner's Guide May Have Slight Differences Than The Model Purchased. Memo

    ATTENTION: This product has been safety tested and is only certified for use in a specific country. Refer to country designation located on outer carton. These parts may be gas carrying or gas burning components. Please contact Weber-Stephen Products LLC, Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information.
