USER'S MANUAL
READ BEFORE USE!
COMPLIES WITH ANSI Z83.26a-2008/CSA 2.37a-2008 STANDARDS
FOR GAS-FIRED OUTDOOR INFRARED PATIO HEATERS
Factory No.: HYPH50061-38

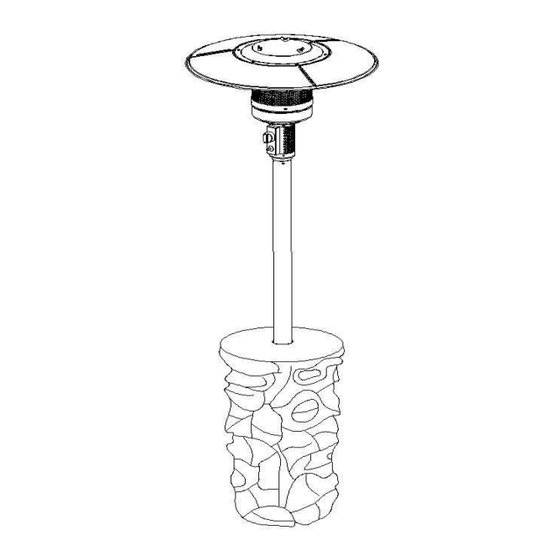

Propane Patio Heater
Read this manual carefully
before assembling, using or
servicing this heater.
Keep this manual for future
reference.
Style No.: 67508
IMPORTANT
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BOND MANUFACTURING HYPH50061-38
Summary of Contents for BOND MANUFACTURING HYPH50061-38
- Page 1 USER'S MANUAL READ BEFORE USE! Factory No.: HYPH50061-38 Style No.: 67508 Propane Patio Heater IMPORTANT Read this manual carefully before assembling, using or servicing this heater. Keep this manual for future reference. COMPLIES WITH ANSI Z83.26a-2008/CSA 2.37a-2008 STANDARDS FOR GAS-FIRED OUTDOOR INFRARED PATIO HEATERS...
-
Page 2: Table Of Contents
Contents General Safety Information........2 Assembly Instructions Components……………..........4 Components List………..........5 Installation Process Step1 - Attach Post Assembly to Cylinder Housing...5 Step 2 –Attach Head Assembly to Post.....6 Step 3 –Attach Reflector Stud to Head Assembly…. 6 Step 4 –Attach Center Reflector to Reflector Panel...7 Step 5 –Attach Reflector Assembly to the top of Head Assembly……………………... -
Page 5: Components List
Components List Part Part Description Descri tion Wing Nut F at Washer Cap Nut Reflector Panel Center Reflector Assembly Reflector Small Screw M6 Reflector Stud eater Burner Head Assembly Screen Post Regulator Cylinder Housing Cylinder Housing Door Ø6.2Washer Wing Screw Screw M6 X 10 Hose Installation process... -
Page 6: Step 2 -Attach Head Assembly To Post
Figure 2-1 Assemble the cap to the post. post Figure 3 Step 2 –Attach Head Assembly 4 pcs to Post bolts Screw off 4pcs bolts which preassembling on the head assembly. Please see Figure Load head assembly by inserting gas hose into post. Figure 4 Figure 5 Please see Figure 4... -
Page 7: Step 4 -Attach Center Reflector To Reflector Panel
WARNING! Figure 8 Step 4 –Attach Center Reflector Remove protective cover before assemble. to Reflector Panel. Figure 9 Remove protective cover before assemble. Please see Figure 8 Slide two reflector panels together. Please see Figure Insert one small screw and Figure 9 screw on cap nut loosely. -
Page 8: Step 5 -Attach Reflector Assembly To
Step 5 –Attach Reflector Figure 11 Assembly to the top of Head Assembly Attach reflector assembly to the top of head assembly by sliding over reflector stud (3pcs). Fasten with flat washers (6pcs) and wing nuts (3pcs). Please see Figure 11. Connect Hose &... -
Page 9: Check For Leaks
Figure 13 Step 2 – Install Cylinder on the base. Put the gas cylinder in the metal stand. Make sure the gas tank sits on the metal stand completely. Turn the wing screw on the outer part of metal stand clockwise to secure the gas tank tightly. -
Page 10: Minimum Clearances
Minimum clearances BE CAREFUL: WHEN CERTAIN Figure 16 MATERIALS OR ITEMS ARE Stored, ABOVE, BESIDE OR UNDER THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. This heater is primarily used for the heating of outdoor patios, decks, and pool and spa areas. - Page 11 Figure 18 Viewing Hole Figure 19 Match lighter Observe the flame pattern When heater is ON: When lit for the first time the heater may emit a slight odor and smoke. This is a normal temporary condition caused by the burn in of paints and lubricants used in the manufacturing process and will not occur again.
-
Page 12: Storage
Storage Note: Wait until heater is cool before covering. When heater is not in use for a prolonged period of time, remove gas cylinder. Verify that the gas cylinder valve is closed tightly. Do not store the gas cylinder indoors, store gas cylinder in a well ventilated area. Maintenance To obtain the best performance from your heater make sure you perform the following maintenance activities on a regular basis:... - Page 13 Troubleshooting and replacement parts To learn how to service and procure parts for worn out, defective or damaged components which shown in below list need replace please contact your selling dealer or call us directly for assistance. Please provide us with heater’s model number and the serial number. Warning: Use our original equipment replaced parts only.
-
Page 14: Service
PLEASE CALL BOND TOLL FREE # 1-866-771-BOND(2663) OR TO BETTER EXPEDITE YOUR REQUEST FEEL FREE TO EMAIL US customerservice@bondmfg.com OR LOG IN TO OUR WEBSITE UNDER CUSTOMER SERVICE SUPPORT www.bondmfg.com BOND MANUFACTURING CO. 1700 West 4th Street Antioch, CA 94509 USA...
