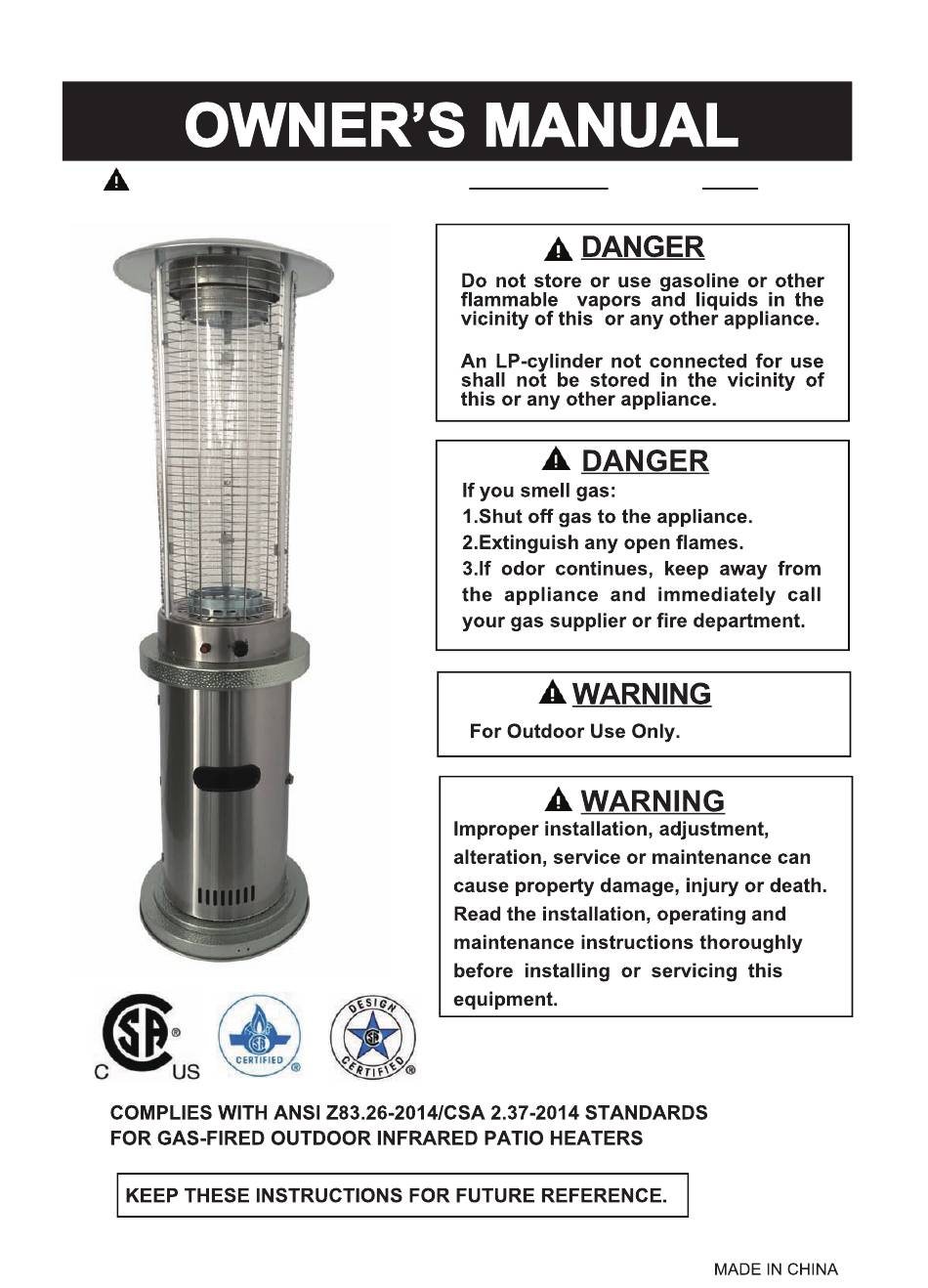

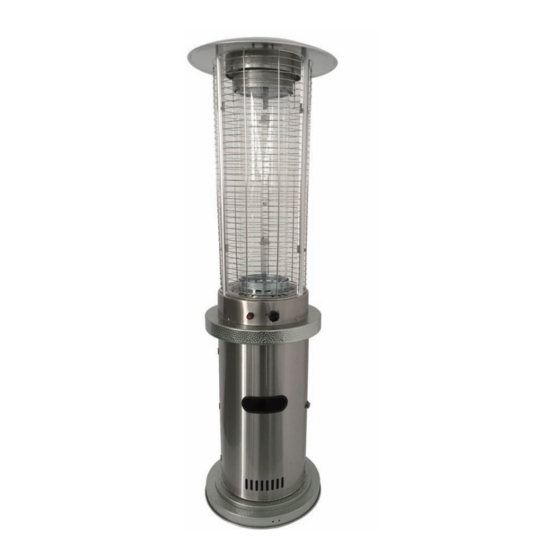

- Page 1 READ BEFORE USE! Model No.: HYPH4601-1 Item No.: 66799...
-
Page 2: General Safety Information
General Safety Information This manual contains important information about Failure to comply with the precations and instructions the assembly, operation and maintenance of this provided with this heater can result in death, serious heater. bodily injury and property loss or damage from General safety information is presented in these hazards of fire, explosion, burn, asphyxiation, and/or first few pages and is also located throughout the... -
Page 3: Burn Hazard
Never store propane near high heat, open flames, pilot lights, direct sunlight, other ig- nition sources or where temperatures ex- BURN HAZARD ceed 120 Never leave heater unattended when hot or Propane is heavier than air and can accumu- in use. late in low places. - Page 4 24 in /60.9 cm and sides 24 in /60.9 cm. 24 in/60.9cm 24 in /60.9cm...
- Page 5 Tank Housing Burner Glass Tube Glass Tube Ring Mesh Guard Upper Supporter Upper Combination Tank Housing Supporter Wheel Handle Attached into the M5x12 screw upper supporter Attached into M4x10 screw the burner cover M5x12 screw in hardware packing...
- Page 6 M5 lock nut in hardware packing 1 in hardware packing, 2 M8x16 screw screwed into wheel M8 lock nut screwed into wheel M6 nuts assembled into handle M6 washer assembled into handle M6x12 screw in hardware packing M6 lock nut in hardware packing Anchoring Arm in hardware packing...
-
Page 9: C Onnect H Ose & Regulator To C Ylinder
C onnect H ose & Regulator to C ylinder Step 1 - Gas Cylinder Required ■ You must provide propane gas and propane cylinder. Figure 1 Use a standard 20lb propane cylinder only. ■ Use this heater only with a propane vapor withdrawal 20LB Propane Cylinder supply system. - Page 12 This appliance shall be used only in a well- ventilated space and shall not be used in a building, garage or any other enclosed area. This appliance may be installed with shelter no more inclusive than: 1. With walls on all sides, but with no overhead cover.
- Page 13 PLEASE CALL BOND TOLL FREE # 1-866-771-BOND(2663) OR TO BETTER EXPEDITE YOUR REQUEST FEEL FREE TO EMAIL US customer.service@bondmfg.com OR VISIT OUR WEBSITE UNDER CUSTOMER SERVICE SUPPORT www.bondmfg.com BOND MANUFACTURING CO. 1700 West 4th Street, Antioch, CA 94509 USA MADE IN CHINA...
- Page 14 66799 HYPH4601-1...
-
Page 18: Lista De Piezas
LISTA DE PIEZAS N° DE PIEZA NOMBRE DE LA PIEZA IMAGEN CANTIDAD DESCRIPCIÓN Alojamiento del tanque Quemador Tubo de vidrio Aro del tubo de vidrio Protector de malla Soporte superior Combinación superior Soporte del alojamiento del tanque Rueda Manija Fijado al soporte Tornillo M5x12 superior Fijado a la tapa del... - Page 19 LISTA DE PIEZAS N° DE PIEZA NOMBRE DE LA PIEZA IMAGEN CANTIDAD DESCRIPCIÓN en el paquete de Tuerca de accesorios seguridad M5 1 en el paquete de Tornillo M8x16 accesorios, 2 atornillados en la rueda M8 lock nut atornillada en la rueda Tuercas M6 ensamblada en la manija Arandela M6...
- Page 23 Paso 2 – Instale el cilindro sobre la base. Coloque el cilindro de gas dentro de la base, ajuste las ménsulas de ubicación del cilindro a la base y abroche el cilindro de gas con la correa ajustando la longitud de la misma. Por favor, vea la Figura 2...
