Sonance ARCHITECTURAL SERIES ASBPC3RS Quick Start Manual

S O N A N C E A R C H I T E C T U R A L S E R I E S
AS BANDPASS CONNECTOR QUICKSTART GUIDE
ASBPC3RS AND ASBPC6RS (ROUND AND SQUARE)

Box Contents

(1) Quickstart guide

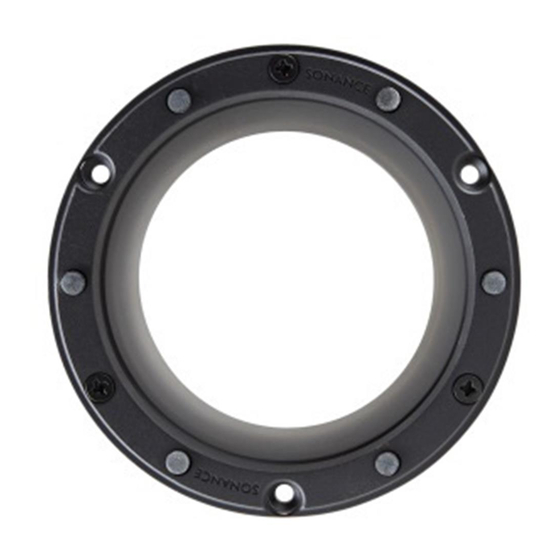

(1) Bandpass connector
(1) Round grille
(1) Square grille

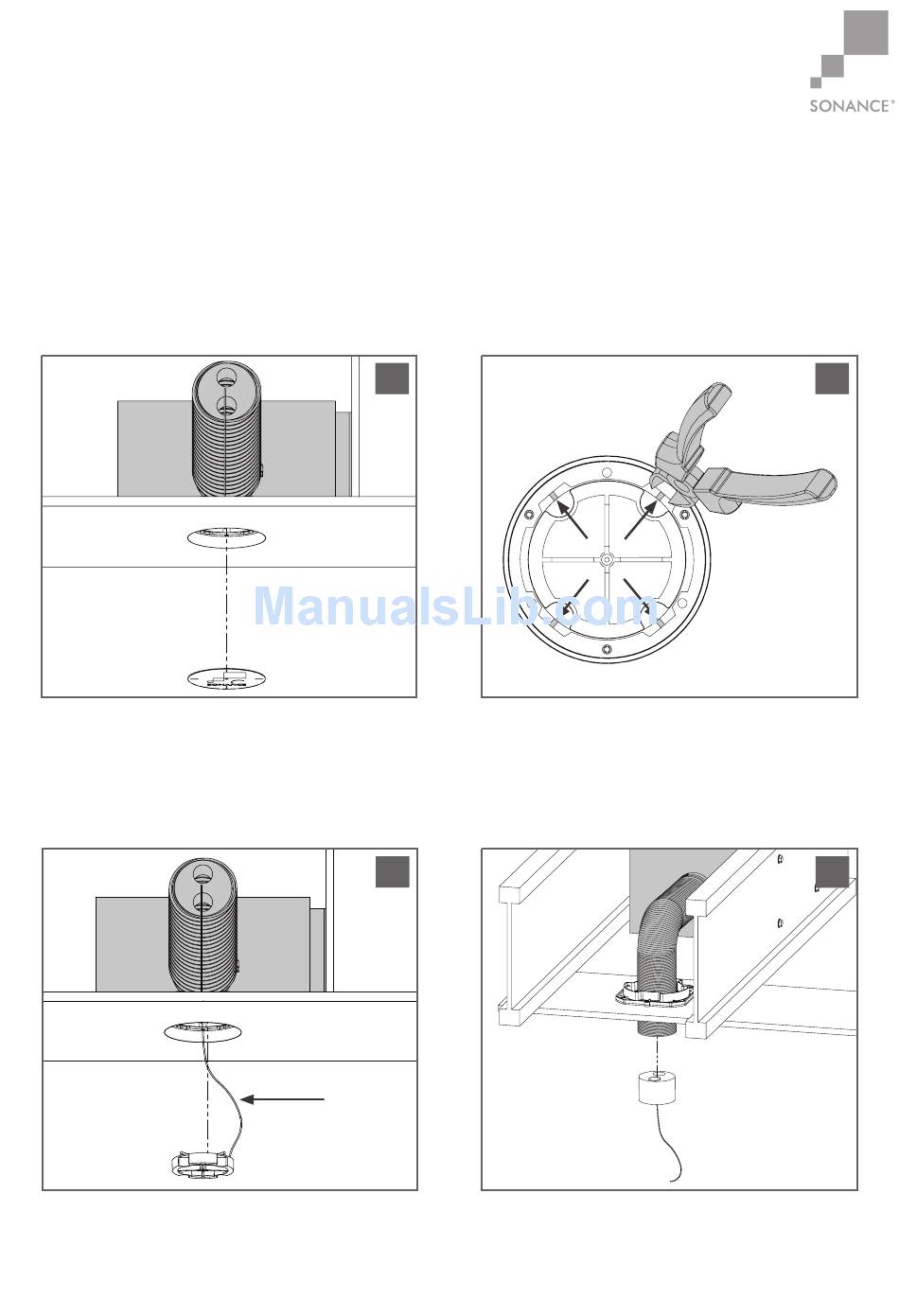

Remove the paint shield from the finished
mounting platform.
Remove sanding shield support structure.
Use the tether to guide the port tube through
the back of the mounting platform. Do not
remove foam insert from port tube yet.
(1) Hose clamp for port tube
(1) Grille painting instructions
(1) Set of speaker screws w/ Loctite
1
Cut the four tabs on the sanding shield support
structure on the bracket. NOTE: The port
tube tether is connected to the zip tie for
easy access.
3
Port Tube
Tether
Expose 6" (152mm) of port tube through speaker
opening. Remove foam insert from port tube.
®
®
2
