I N S T R U C T I O N M A N U A L
SONANCE LANDSCAPE SERIES
L S 4 8 S A T 8
Introduction
Thank you for purchasing SLS 8ohm Speakers. When properly
installed, these speakers will provide you with years of outdoor
entertainment pleasure. To get the most out of your new
speakers, please read this manual thoroughly before you begin
installation.
Box Contents
SLS Satellite box contains:

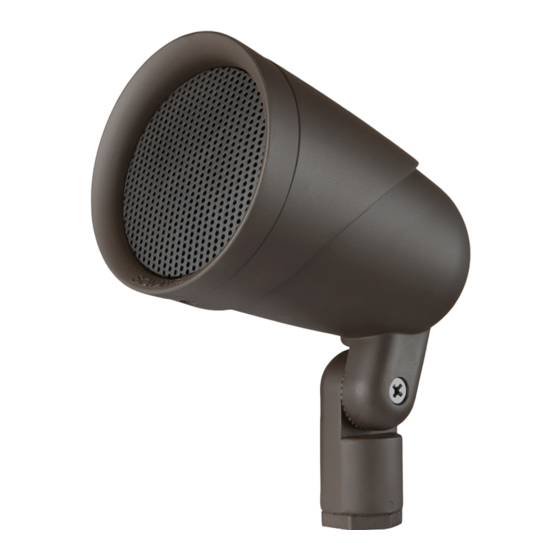

(1) Satellite speaker
(2) Silicone filled wire nuts
Landscape Series
Satellite Speaker
LEFT
Satellite Location Selection
RIGHT
AMPLIFIER
The SLS is designed to deliver a seamless, evenly dispersed
sound field in an 'open air' environment. An array of multiple
Satellite speakers and Subwoofers should be strategically
placed to minimize 'hot spots' and 'nulls' as you move around
the outdoor entertainment area. See Figure 1.
LEFT
RIGHT
AMPLIFIER
Figure 1
S P E A K E R
LS48SAT8
LS48SAT8 SR1 SUB
LS48SAT8 SR1 SUB
AS A GENERAL GUIDELINE, (1) SATELLITE WILL COVER
ABOUT 250 SQUARE FEET OF LISTENING AREA
Select locations for the satellites that are as close as possible to
the same distance from the main listening area. When possible
use high and low locations to centralize the acoustic stage.
Satellite Wiring
The Sonance SLS 8ohm system allows the satellite speakers to
be wired together in a parallel-daisy chain configuration. In a
typical system with one zone of audio, simply run a 4 conductor
wire from the amplifier or connection point to the closest speaker.
Once you have designated the first speaker as either left or
right, continue alternating the wires between the left and right
channels creating a daisy chain of stereo satellites. A maximum
of 4 total Satellites and 1 SR Subwoofer can be connected in this
configuration. See Figure 2.
NOTE: SONANCE STRONGLY RECOMMENDS THE USE
OF 14 GAUGE OR LARGER DIRECT BURIAL GRADE WIRE.
CAUTION: THE AMPLIFIER SHOULD NOT BE CONNECTED
TO AC POWER UNTIL ALL CONNECTIONS ARE COMPLETED.
DO NOT CONNECT SPEAKER WIRES TO THE AMPLIFIER
UNTIL ALL OTHER CONNECTIONS ARE COMPLETED.
LS48SAT8 + SR-SUB SYSTEM Wiring Diagram 8ohm
Figure 2
Note: The subwoofer can be connected
at any point in the daisy chain.
1
SONAMP DSP 2-150 Amplifier
(4) LS48SAT8 + (1) SR-SUB
Left and Right
Left Right
Configuration: 4 SATs to 1 SUB. Non-expandable.
Left Right
