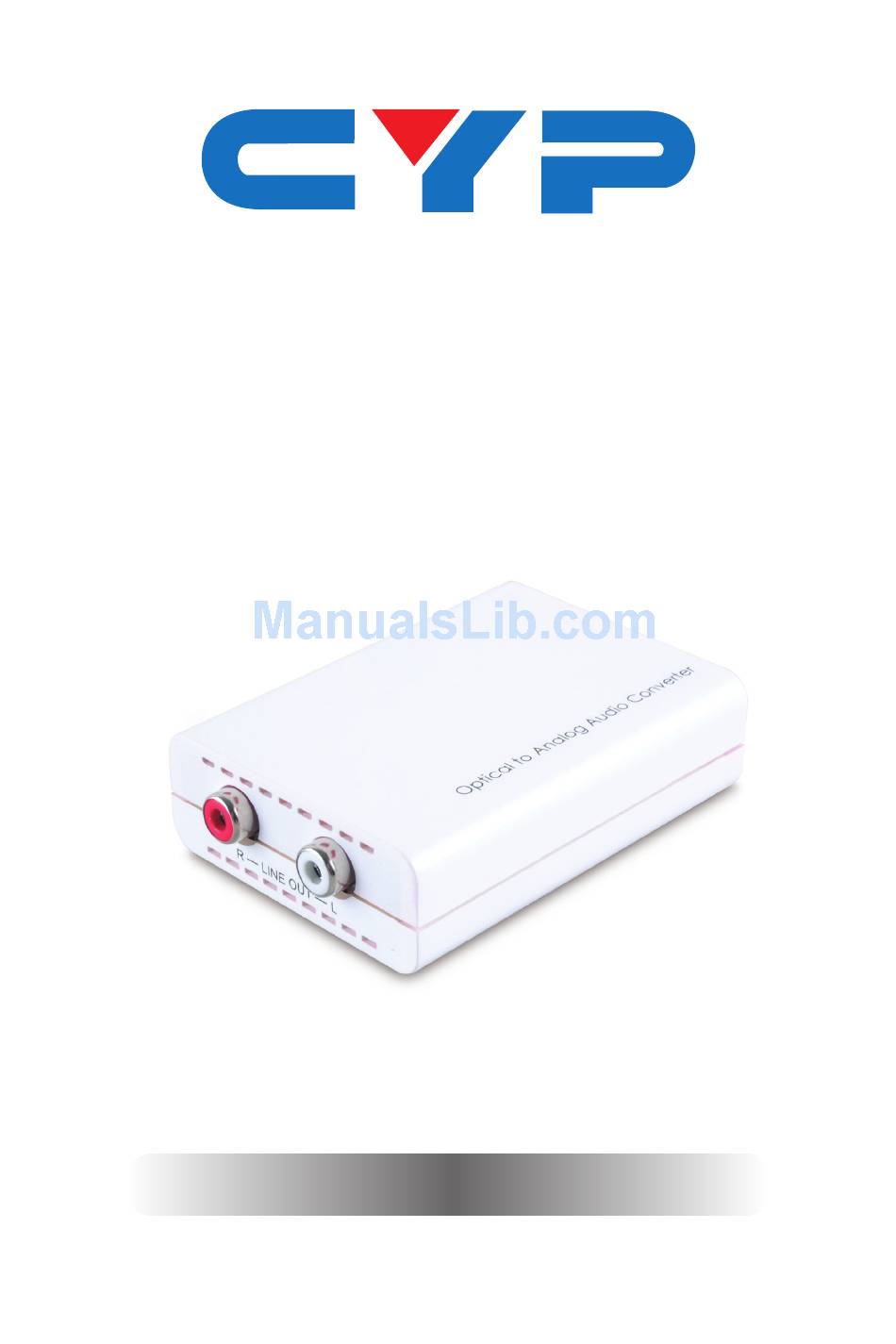

- Page 1 DCT-1 Optical to Analog Audio Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction

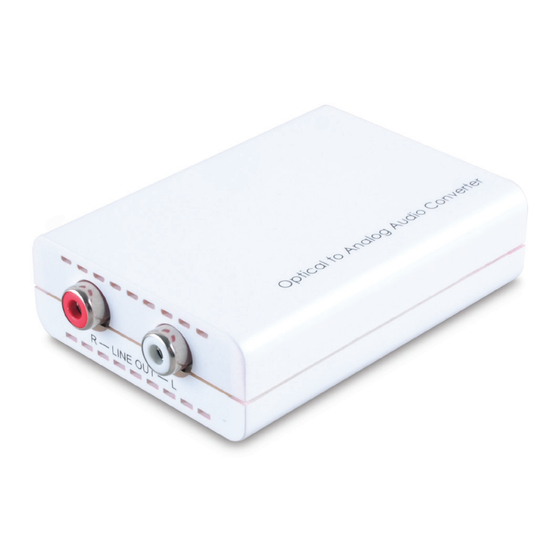

1. INTRODUCTION The Optical to Analog Audio Converter (DAC) provides the ideal solution for converting an Optical digital audio signal to analog stereo audio. With support for audio sampling rates up to 192 kHz/24-bit, it provides high quality sound conversion. This unit is perfect for use in digital recording systems, computer audio systems or digital mixing consoles and can be powered from any spare USB port allowing it to be used with USB equipped HDTVs, Blu-... -
Page 7: Features
5. FEATURES • Supports optical digital audio signal input and conversion into analog stereo audio output • Supports uncompressed digital LPCM stereo audio input • Supports LPCM audio sampling rates up to 192 kHz • Supports S/PDIF bitstream 24-bit of data for the left and right channels •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL IN USB 5V OPTICAL IN: Connect the Optical input to an Optical digital audio source, such as a Games Console, HDTV or Set-top Box. USB 5V: Connect the USB power port to any powered USB port with a Mini-USB cable or Mini-USB to AC adaptor. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM HDTV without Analog Audio Output Power Digital Optical Power Supply Input Analog Stereo Output AV Receiver (with a spare analog input) -
Page 10: Specifications
8. SPECIFICATIONS Input Port 1×Optical Output Port 1×L/R (2×RCA) Power Supply Powered by USB bus Output Level 1.800 Vrms THD+N < 0.01 % Frequency Response < 0.5 dB > 104 dB Crosstalk < -120 dB Dimensions 55 mm (W)×80.5 mm (D)×22.5 mm (H) Weight 65 g Chassis Material... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
