exacqVision A series Quick Start Manual

1

Connections

1
Item # Description
1 Power
2 PS-2 Port
3 RS-232 Port
4 Video out
5 USB (up to 6 per system)
6 10/100/1000 Ethernet
7 Audio out
8 Auxiliary Connections
Video In
9
(16- and 32-input systems)
10 Video Out (x2)
11 Video/Audio In (48-/64-input)
A Series 4U Hybrid NVR Quick Start

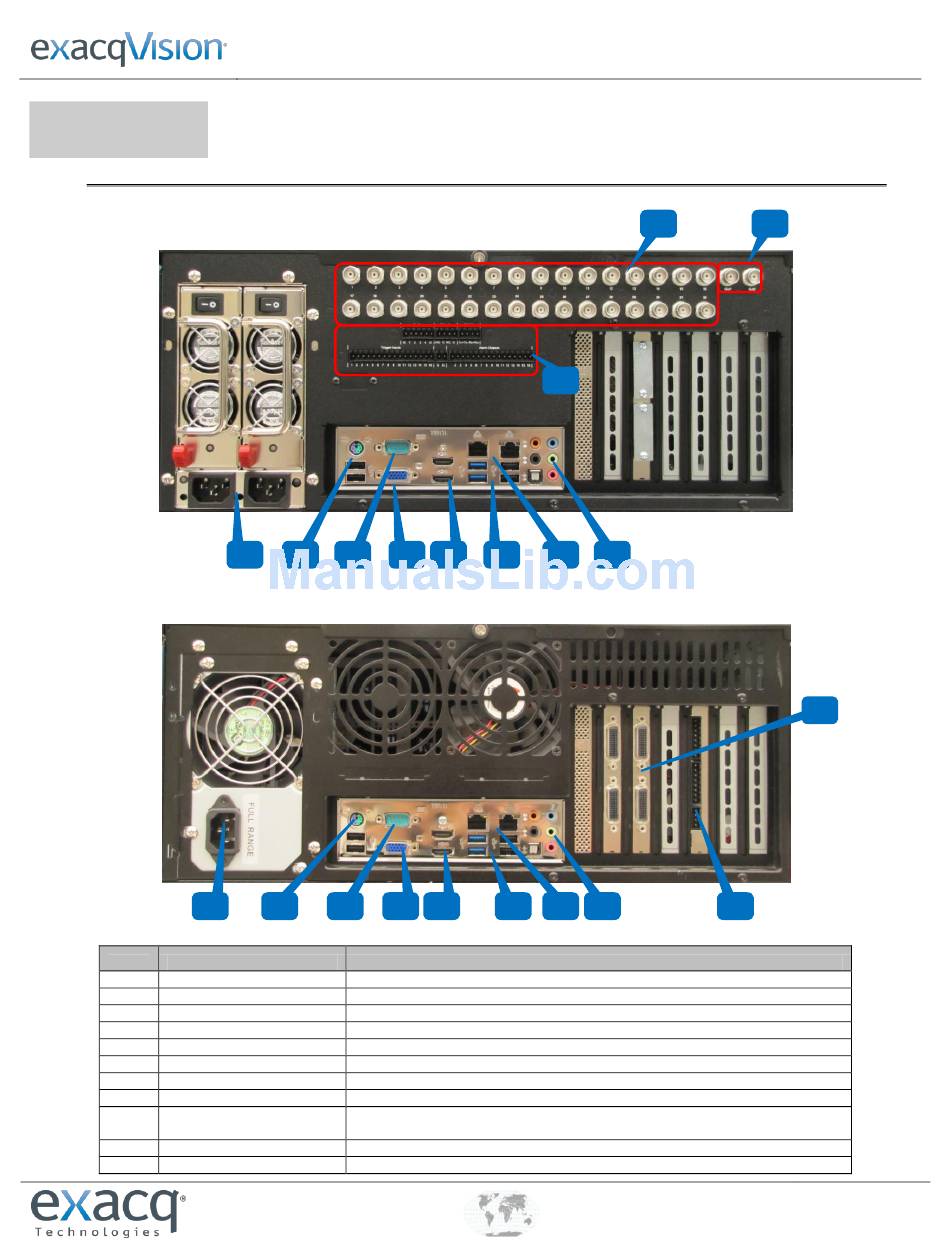

MAIN BACK PANEL CONNECTIONS
A Series 4U (16-Input and 32-Input)
1 2 3 4a
A Series 4U (48-Input and 64-Input)
2 3 4a
Notes
100-240VAC 50/60Hz (optional redundant power supply shown on standard system)
For compatible mouse or keyboard
POS, ATM, access control integration
VGA (4a) or two HDMI (4b); up to two video out can be used simultaneously
Keyboard, mouse, USB memory device, or DVD burner
Optional additional network interface ports not shown.
Line level stereo audio out (green)
See detail on next page
Top row: Inputs 1-16
Bottom row: Inputs 17-32 (32-input systems) or looping outputs 1-16 (16-input systems)
16-input and 32-input systems only
Bottom: inputs 1-16; Top: inputs 17-32; number of connectors varies by model
