exacqVision A Series Quick Start Manual

A-Series Hybrid/IPS Desktop Quick Start Guide
The following table describes the ports for both the A-Series Hybrid and IPS Desktop server:
Table 1: A-Series Hybrid and IPS Desktop back panel connections and ports
Name No. of Description
Ports
A Power 1 100-240VAC 50/60Hz. Power port (A1) and power switch (A2).
B Video out 4 DisplayPort (B1), HDMI (B2), VGA (B3), and DVI-D (B4).
You can use a maximum of two video outputs simultaneously.
C 10/100/1000 Ethernet 2 Dual on-board NICs.
D USB 2.0/3.0 4 USB keyboard, mouse, memory device, or DVD burner; USB 2.0 (E1) and USB 3.0
(E2).
E Audio in/out 3 Line in (blue); line out (green); microphone (pink).
*F Video and Audio In 32 No looping with 8 channel, 16 channel, and 32 channel.
*G Auxiliary Connections For more information, see Figure 4.
*H RS-232 POS, ATM, and access control integration, not shown in figure 2.
*Applies to A-Series Hybrid Desktop only.
Note: You can install auxiliary or RS-232 connections but you cannot install both on the same system.
Auxiliary Connections
The following figure and table show the auxiliary connections for the A-Series Hybrid Desktop server:
Alarm Output Blocks/Relay Block Connections
1 - 3 Alarm outputs 1 - 3
G Ground
NC Normally closed relay output #2 (24V/1A
max)
C Relay common
NO Normally open relay output #1 (24V/1A max)
G Common for all inputs
Trigger input Connections
1 - 8 Trigger inputs 1- 8
RS-485 Block Connections
Tx+ PTZ control
Tx- PTZ control
Rx+ PTZ control
Rx- PTZ control

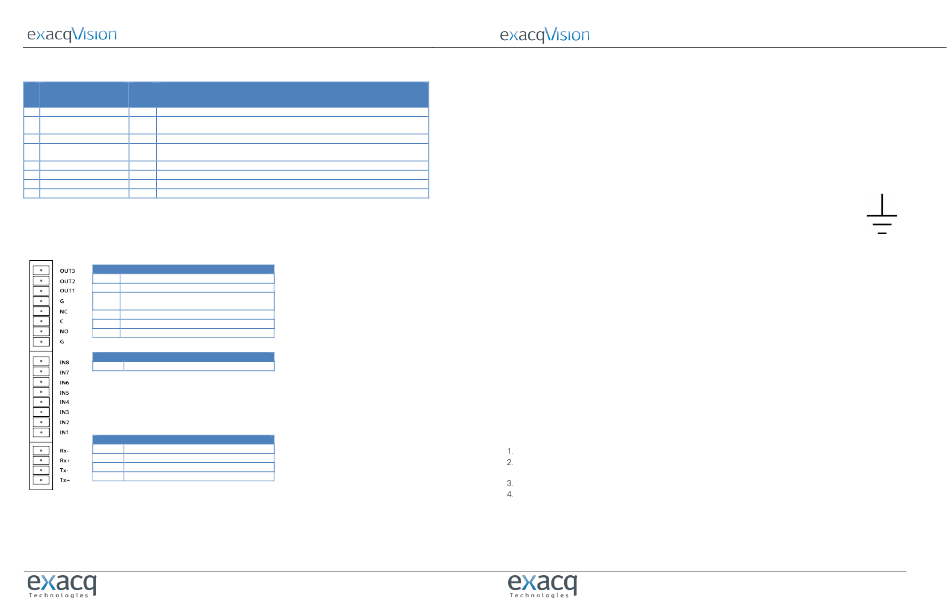

Figure 4: Auxiliary connections
February 2020, Rev C
©2020 ExacqTechnologies
www.exacq.com
A-Series Hybrid/IPS Desktop Quick Start Guide
Introduction
The exacqVision A-Series desktop is part of exacqVision's series of network video recorders (NVR). The A-Series Hybrid Desktop and
IPS Desktop, provide high performance hardware with an exacqVision surveillance video management software.
Installation
Before turning on the exacqVision A-Series Desktop server, ensure that you meet the following requirements:
Mounting and operating environment requirements
•
Mount the exacqVision server in a dust-free, and climate controlled location where the temperature is less than 70°F
(21°C), and the humidity level is less than 80% non-condensing.
Caution: Dust can cause components of the server to overheat, and elevated temperatures can contribute to premature hard
drive failures.
•
If the hard drives dispatch separately to the system, insert each drive into the appropriate hard drive slot, if
they are numbered.
•
If you use an outdoor camera, the server must connect permanently to the ground wire. Ensure that
you use an 18 AWG wire or larger to make the connection, and that you label the grounding screw near
the power connector with the image in Figure 1.
Electrical environment requirements
• For maximum reliability, connect the exacqVision server to an online UPS. An online UPS, filters power surges and dips that
can damage the server.
•
Connect a mouse, monitor, and keyboard to the server.
•
Connect the exacqVision server network interface cards (NIC) to the appropriate network switch ports.
•
It is recommend to use cables with ferrite core for connecting to monitors. If the cable does not have a ferrite core, the unit
still performs as expected but may not meet CE safety regulation standards.
Network connection requirements
•
If the video surveillance system does not have a physically isolated network, connect all IP cameras and one server NIC to a
dedicated camera VLAN.
•
Install the camera manufacturer's software on a PC in this subnet, or configure the router to connect a client computer with
the camera subnet.
•
This VLAN configuration reduces the chances of network traffic conflicts and unauthorized access to the cameras.
Initial startup
When you start the exacqVision A-Series server for the first time, create a user name and password for the operating system, then
create a root user name and password for the Enterprise Manager.
Turn on the exacqVision server.
Create a user name and password for the operating system when the logon dialog box appears.Configure operating system
settings as required.
If prompted, log back on to the operating system with the user name and password you just created.
When you log back on, an exacqVision dialog box appears on the desktop. Create the exacqVision admin user name and
password.
Note: This is not the same as the credentials you created to log on to the operating system. Use these credentials to log on to the
exacqVision Server.
Figure 1. Grounding wire
