Name and function of each part

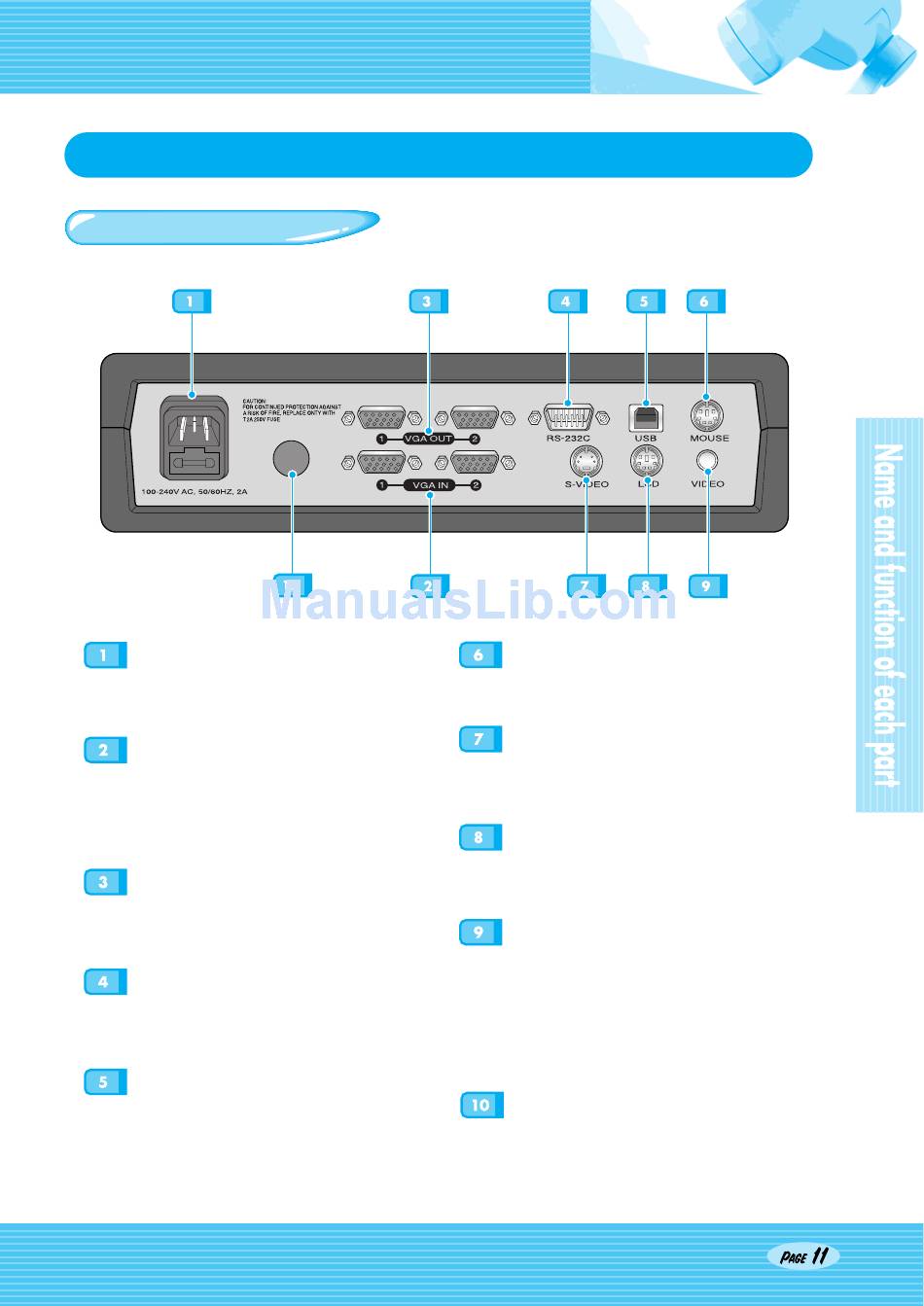

Terminals at the back

POWER INPUT TERMINAL
Use this to connect the power cable. (100 - 240V,
free voltage)
VGA VIDEO INPUT 1,2
Connect this to the VGA output terminal of
another device by supplied PC cable.
When external input menu is selected, the image
is shown through the VGA out terminal.
VGA VIDEO OUTPUT 1,2
Connect this to the RGB input terminal of a PC
monitor or a projector by supplied PC cable.
RS-232C: COMPUTER CONNECTION
TERMINAL
Use this to connect RS-232C cable.
USB: COMPUTER CONNECTION
TERMINAL
Use this to connect USB cable when
transmitting image by USB port.
MOUSE
Use this to connect PS/2 Mouse. (See page 17.)
S-VIDEO OUTPUT
This is the video output terminal connecting to a
TV that has S-video input terminal.
LCD OUTPUT
This is the video output terminal connecting to a
LCD monitor.
TV OUTPUT
Connect this to the TV input terminal.
Connect this to view the image projected on the
TV screen.
Even when the external input menu is selected,
only the image on the main unit is displayed on
TV output terminal.
IR SENSOR
The remote control signal reception.
