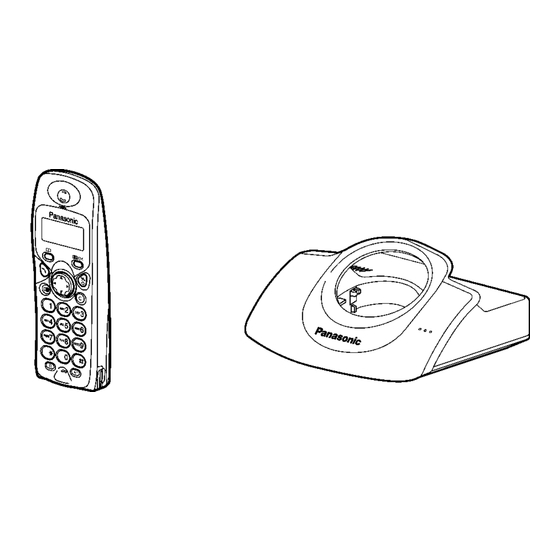

Panasonic KX-TCD150FXB Service Manual

Digital cordless phone black version dark blue version
Hide thumbs
Table of Contents

Advertisement

Quick Links

Telephone Equipment
KX-TCD150FXB
KX-TCD150FXC
KX-TCD152FXB
KX-TCA115EXB
KX-TCA115EXC
Digital Cordless Phone
Black Version
Dark Blue Version
(for Central Europe)
© 2005 Panasonic Communications Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO. KM40507819CE
Unauthorized
copying
and
