QG_505NL_e.fm Page 1 Thursday, July 10, 2003 5:00 PM
The guide is provided to allow a quick set-up of the basic features and
operations of this phone. Please read the Operating Instructions for further
details.

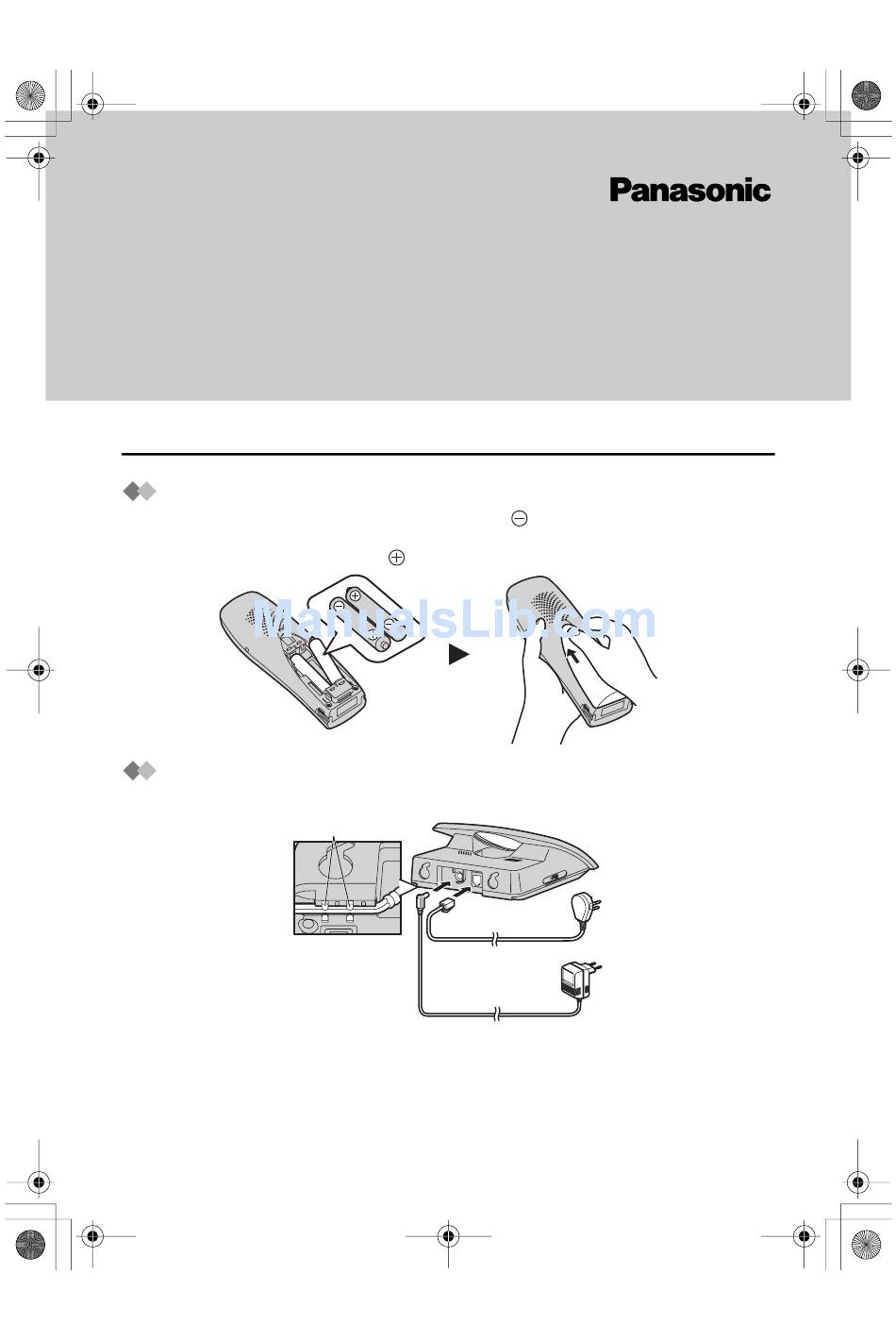

Before Initial Use
Battery Installation
Please ensure the batteries are inserted as shown.
Close the cover as indicated by the arrow.
• When you replace the batteries,
Connection
Plug in the AC adaptor and the telephone line cord in order
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to
feel warm during use.)
• Never install telephone wiring during a lightning storm.
• USE ONLY WITH Panasonic AC ADAPTOR PQLV19CE.

Quick Guide

part should be removed first.
Hook
Hooks
1
2
Fasten the AC
adaptor cord to
prevent it from
being
disconnected.
— 1 —
Digital Cordless Phone
KX-TCD505NL
Model No.
part should be inserted first.
,
,
,
.
1
2
3
4
LIN E
4
3
