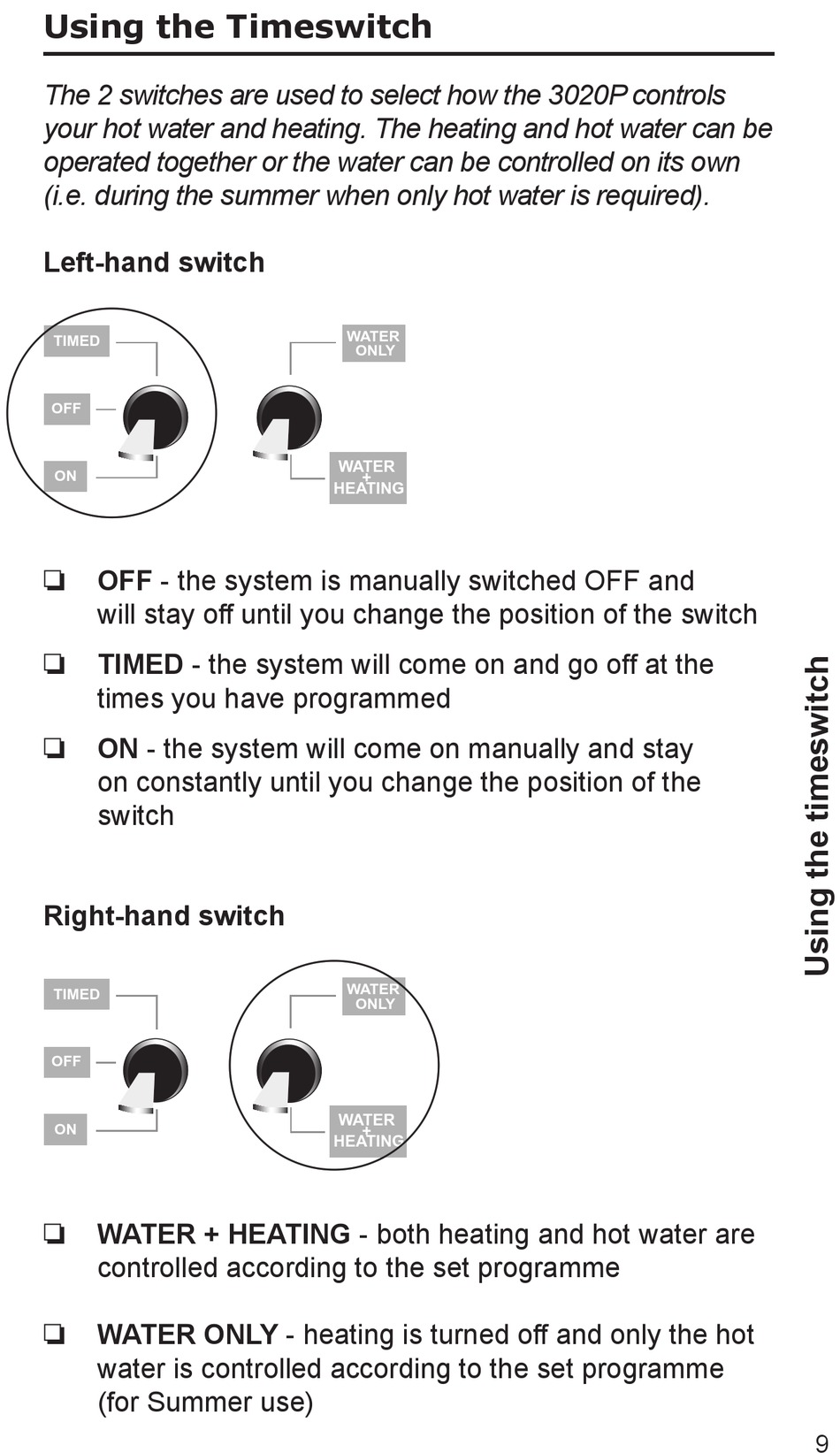

Using the Timeswitch

The 2 switches are used to select how the 3020P controls
your hot water and heating. The heating and hot water can be
operated together or the water can be controlled on its own
(i.e. during the summer when only hot water is required).
Left-hand switch
TIMED
OFF
ON
OFF - the system is manually switched OFF and
o
will stay off until you change the position of the switch
TIMED - the system will come on and go off at the
o
times you have programmed
ON - the system will come on manually and stay
o
on constantly until you change the position of the
switch
Right-hand switch
TIMED
OFF
ON
WATER + HEATING - both heating and hot water are
o
controlled according to the set programme
WATER ONLY - heating is turned off and only the hot
o
water is controlled according to the set programme
(for Summer use)
WATER
ONLY
WATER
+
HEATING
WATER
ONLY
WATER
+
HEATING
9
