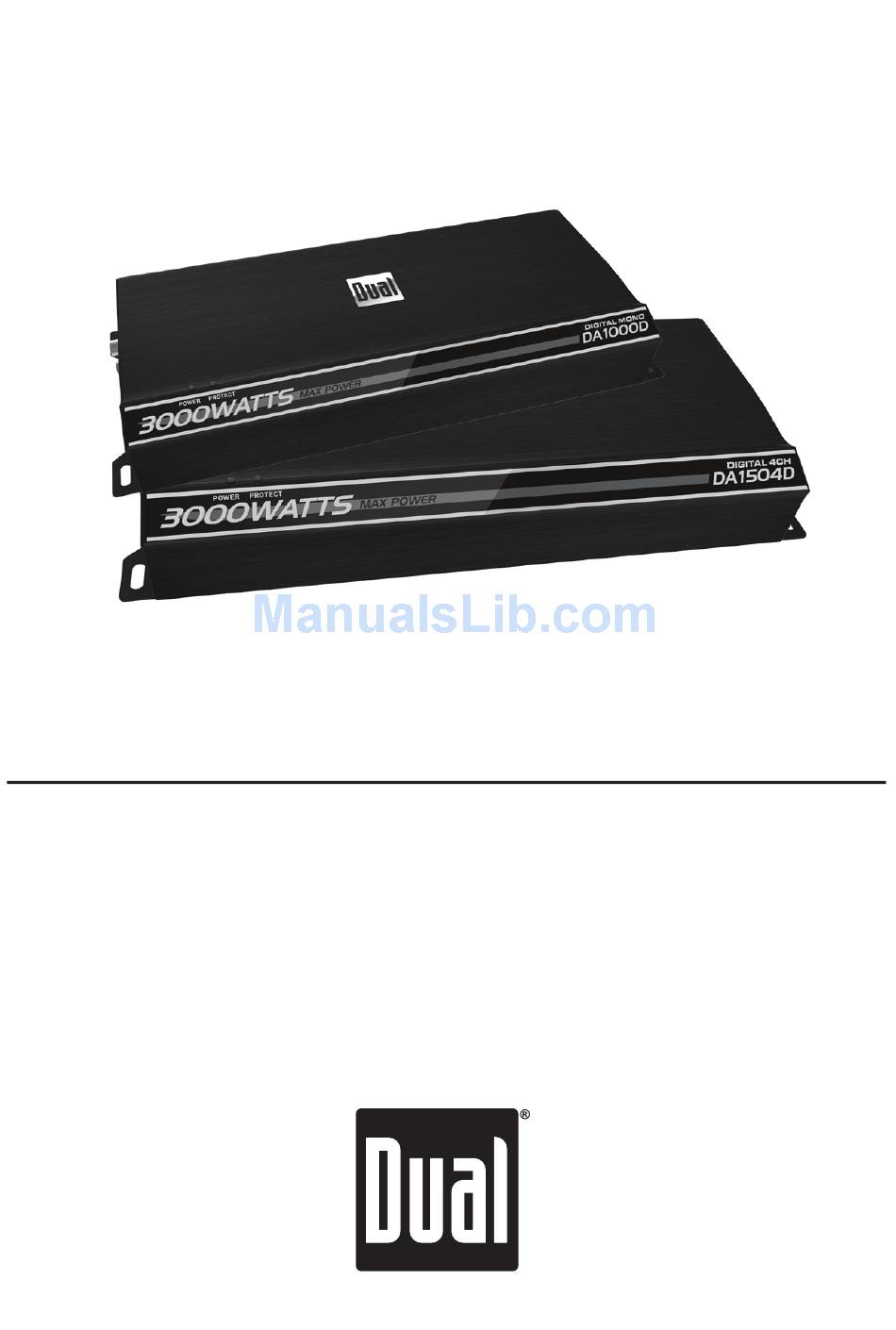

- Page 1 DA1000D DA1504D COMPACT SERIES INSTALLATION / OWNER'S MANUAL Mobile Power Amplifiers...
- Page 2 INSTALLATION Preparation Please read entire manual before installation. Due to the technical nature of amplifiers, it is highly recommended that your Axxera amplifier is installed by a professional installer or an authorized dealer. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) •...
-
Page 3: Connection Descriptions
INSTALLATION Connection Descriptions NOTE: Be sure to follow specific instructions included with your amplifier installation kit (not included with this amplifier). The information below should be used as a general guideline only. Power Wire (+12V) • Disconnect negative battery terminal before proceeding. Consult a qualified technician for instructions if you are unsure. - Page 4 INSTALLATION Audio Inputs and Controls DA1000D DA1504D Gain Subsonic Filter Crossover Mode Bass Boost Hi-Level Input Low Pass Filter Crossover Frequency Control Remote Bass Control RCA Input...
-
Page 5: Power And Speaker Connections
INSTALLATION Power and Speaker Connections DA1000D DA1504D Remote Turn On Speaker Connections Ground Connection Fuse(s) +12VDC Battery Connection... -
Page 6: Typical Wire Routing
Make sure to use is the correct type and amperage. Using an the same size power and ground wire. incorrect fuse could damage the amplifier. DA1000D 4 Ga. DA1000D 40Ax2 DA1504D 4 Ga. DA1504D 40Ax2 (located under plate) -
Page 7: Amplifier Connections
INSTALLATION Amplifier Connections 2 Speakers (stereo) Subwoofer (mono) Speaker Connections Connect speaker wires observing polarity. The minimum impedance load for the DA1504D is 2 ohms stereo and 2 ohms bridged. Use of loads lower than these is not recommended and may cause amplifier damage. -
Page 8: Configuration/Setup
This control allows precise adjustment of the Control crossover frequency. Bass Boost This control provides additional boost @ 45Hz (DA1000D) when used with subwoofers. Adjust this control with caution - as improper use can damage speakers! Subsonic Filter Setting this control to the desired frequency will... -
Page 9: Troubleshooting
INSTALLATION Troubleshooting Problem Cause Action +12V wire not connected or incorrect Check connections for proper voltage voltage. REM wire not connected or Unit will not turn on (11~16VDC) incorrect voltage (no power LED indicator) GND wire not connected Check connection to ground Fuse(s) blown Replace fuse(s) Speaker wires not connected... -
Page 10: Specifications
INSTALLATION Specifications DA1000D Power Output (14.4VDC, 20Hz~150Hz@2ohms): •500 Watts x 4 channels @ 4 Ohms •900 Watts x 4 channels @ 2 Ohms •1800 Watts x 2 channels @ 1 Ohm (bridged) Peak Music Power Output: 3000 Watts Signal to noise ratio: >... -
Page 11: One-Year Limited Warranty
A slight adjustment of any custom controls may save you a service Dual Electronics Corp. warrants this product to the original purchaser to be free from call. defects in material and workmanship for a period of one year from the date of the 2. - Page 12 Details and specifications mentioned in this document may be updated and subject to change without notice. To access the latest document, please check the product website. Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM, EST www.dualav.com ©2015 Dual Electronics Corp. NSA0115-V01...
