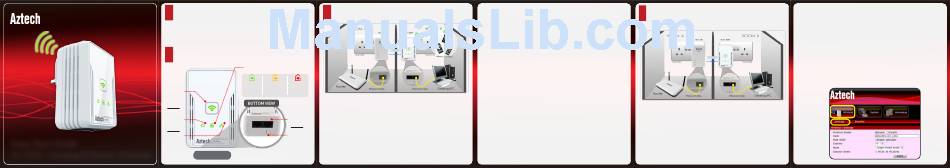

Aztech HL113EW Easy Start Manual

A
Package Contents
- HL113EW
- Ethernet Cable
- Resource CD
B
Device Overview
WPS
Button /
Wireless
LED/
Reset
Button
Power
LED
Ethernet
Easy Start Guide
LED
HL113EW | Homeplug AV Wireless-N Extender
C
Setup for New Network Connection
- Easy Start Guide
- Warranty Card
Power Line Activity LED
Represents your HL117EW's connection rating
Best Better Good
(Green) (Amber) (Red)
Connection rate Connection rate is Connection rate
is more than between 30 to is less than
80 Mbps 80 Mbps 30 Mbps
1.
In Room A, plug in your HomePlug AV device into a
Ethernet power outlet and connect it to your router's ethernet
Ports
port using an ethernet cable.
Simple
Make sure that your router's internet connection is
Connect
Button
up to allow you to access the internet.
HL113EW
D
Configuring Wireless Settings (Optional)
2. In Room B, plug in your HL113EW device into a
Ensure to follow the connection set up below.
power outlet. You may connect any device (e.g.
computer / notebook) to its ethernet port; you may
also connect any of your wireless devices via WiFi
(SSID and Password is printed at the label sticker
located at the top surface of your HL113EW).
3. Confirm that a connection was established on both
HomePlug AVs. Successful connection is indicated
1. Connect an Ethernet cable from your computer to any
by Green light on both Power and Power Line
of the available Ethernet Ports of your HL113EW.
Activity LEDs. Your Homeplug AV is now ready to
2. On your computer, turn OFF your device's Wireless
use and may now access the internet.
Adapter (if applicable).
3. Open and Launch a web browser. Type in 10.0.10.254
on the web browser's url link then press enter.
4. Enter admin for Username and admin for Password.
5. Select the Wireless tab to modify the wireless
settings.
6. After changing the preferred settings, click Apply to
save.
